Specifications
Equipped With
GENERAL SPECIFICATIONS:

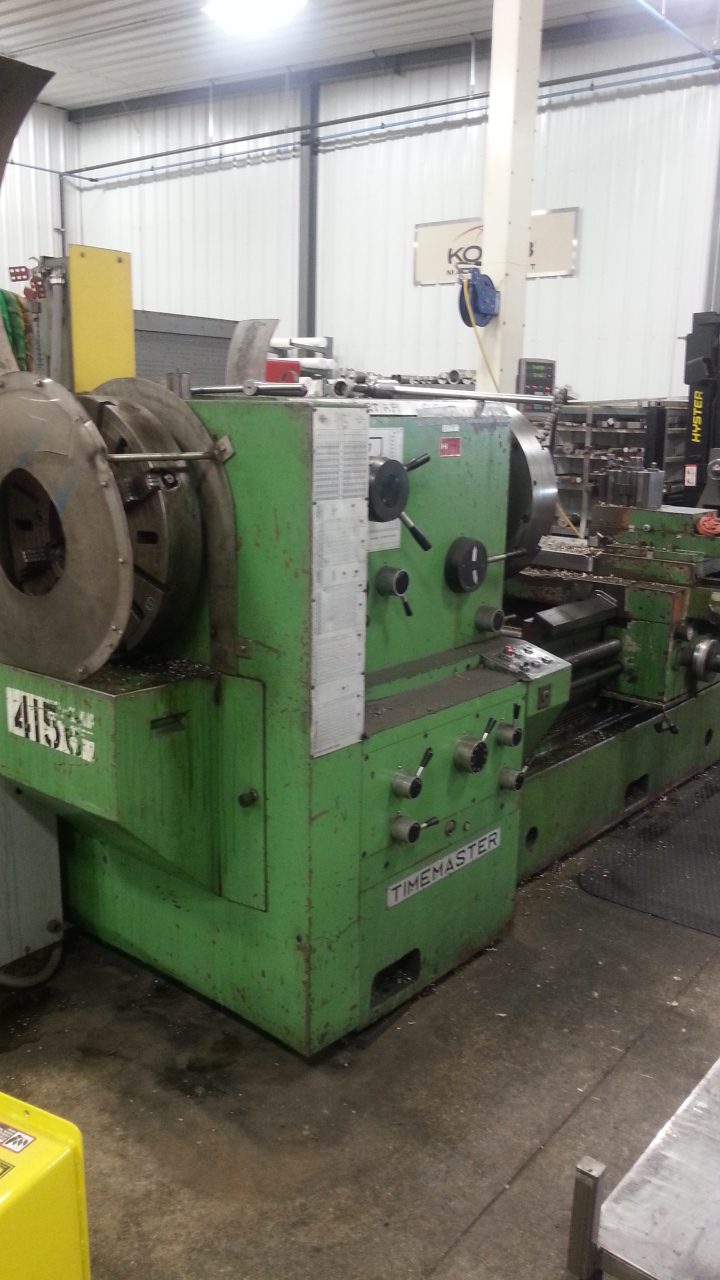

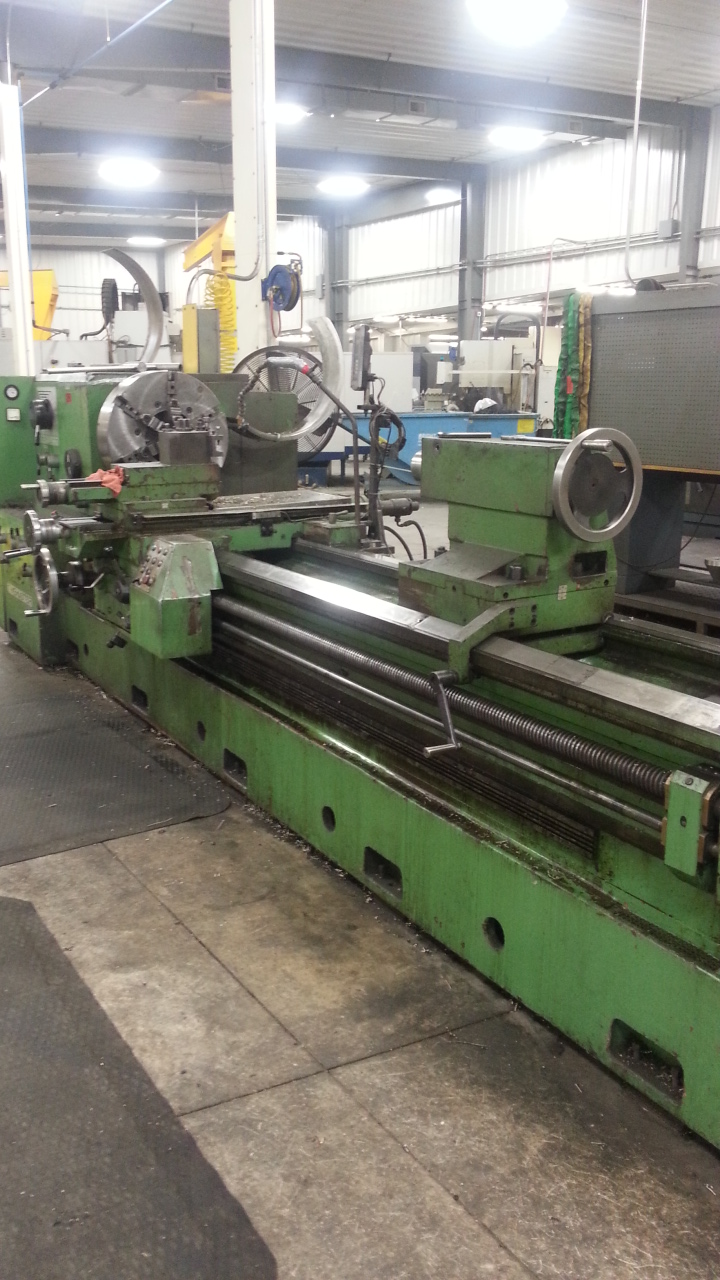

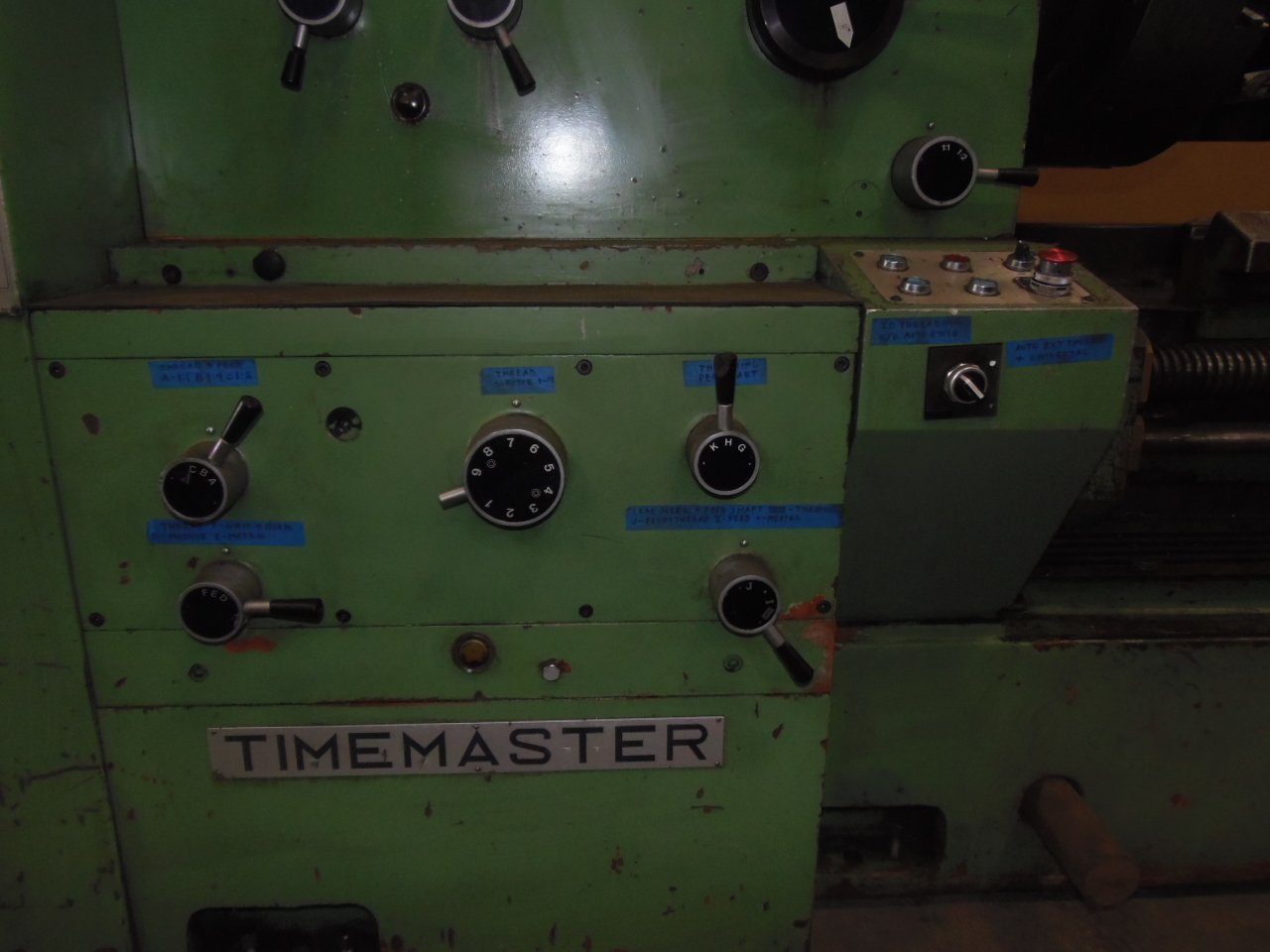

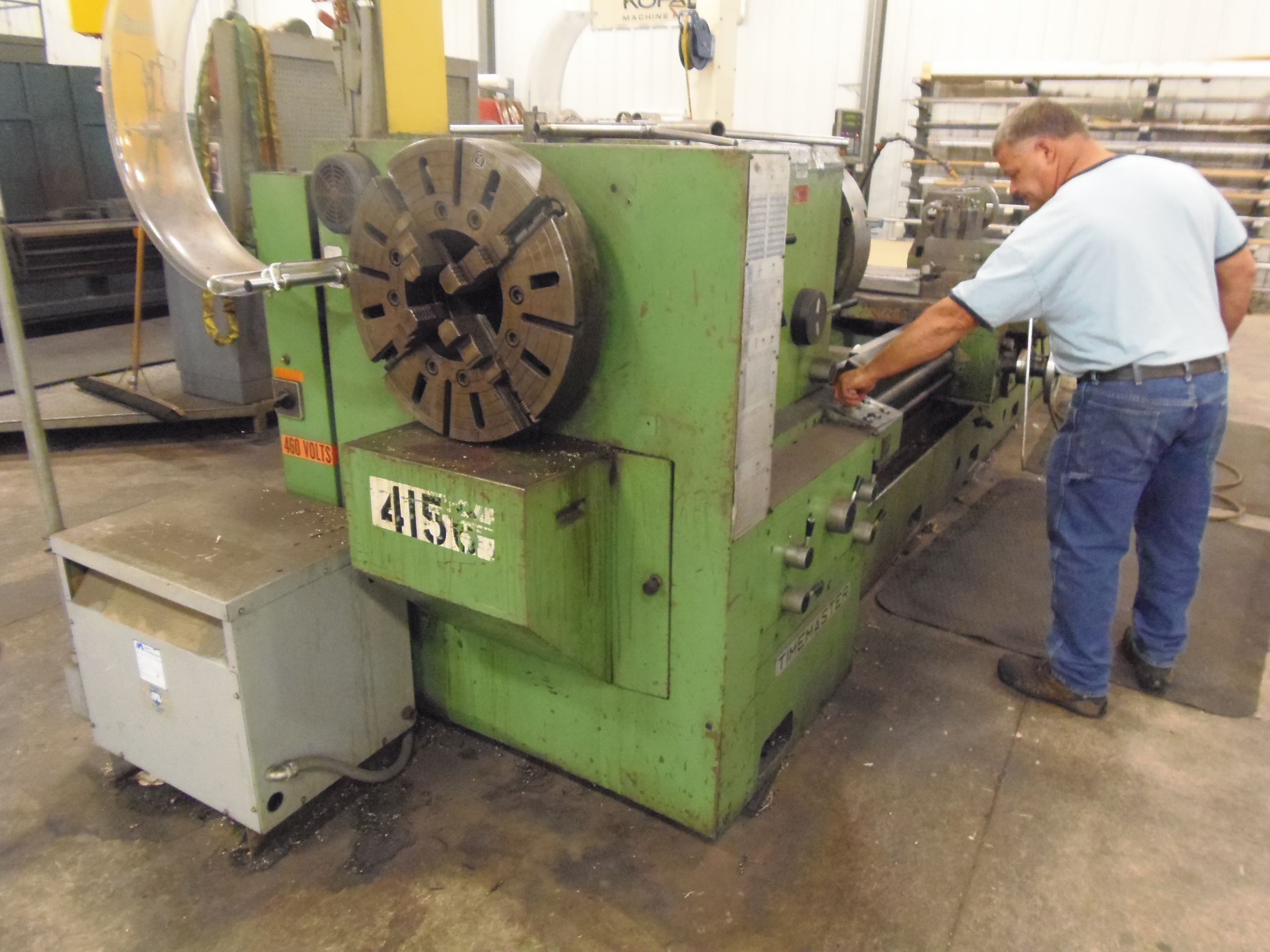

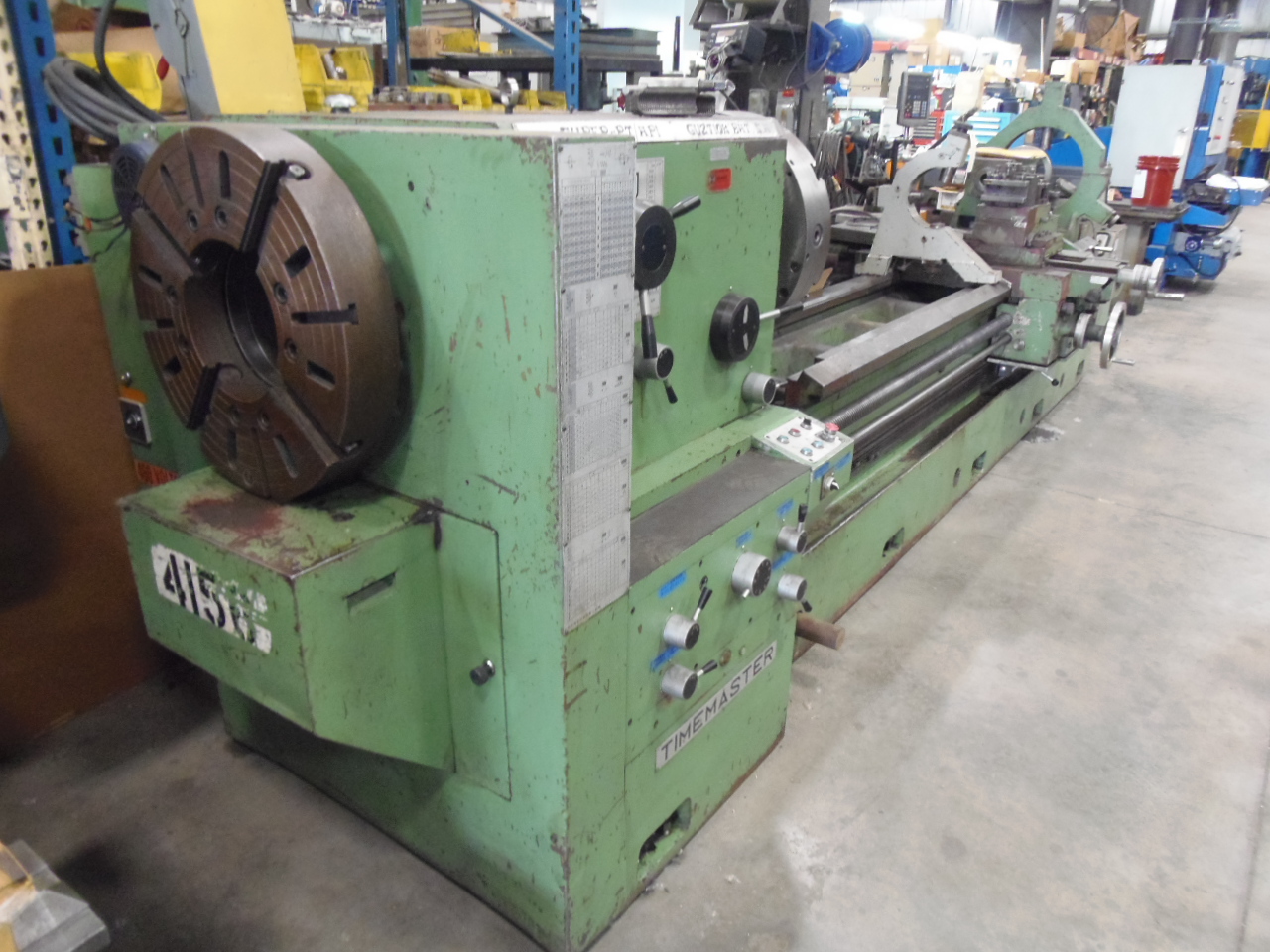

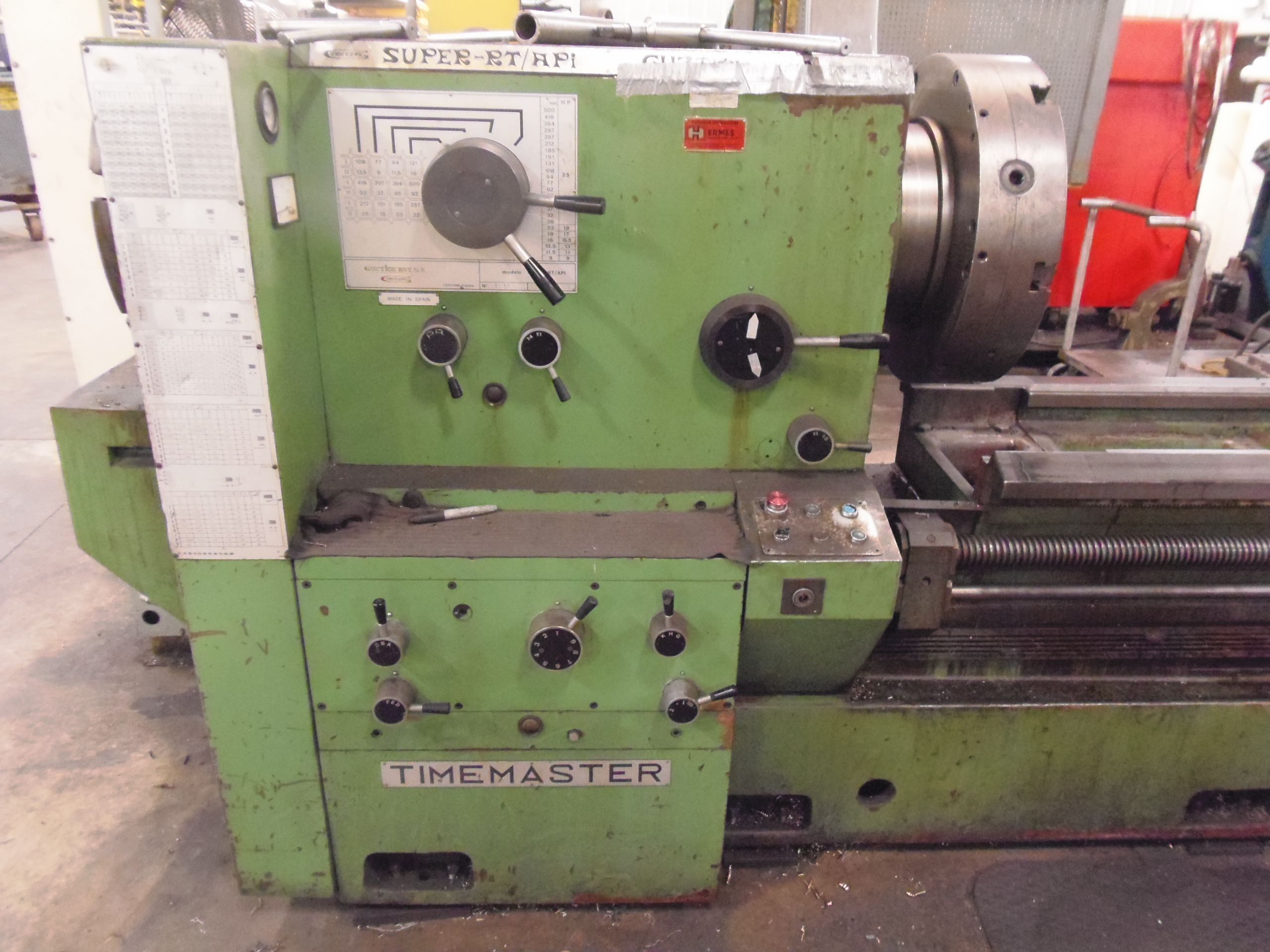

MANUFACTURER............... TIMEMASTER GURUTZPE
MODEL...................... SUPER RT 3000/400
SERIAL #................... SN1-13
AGE (YEAR)................. 1982
SWING...................... 32"
SWING OVER C.S............. 19.5"

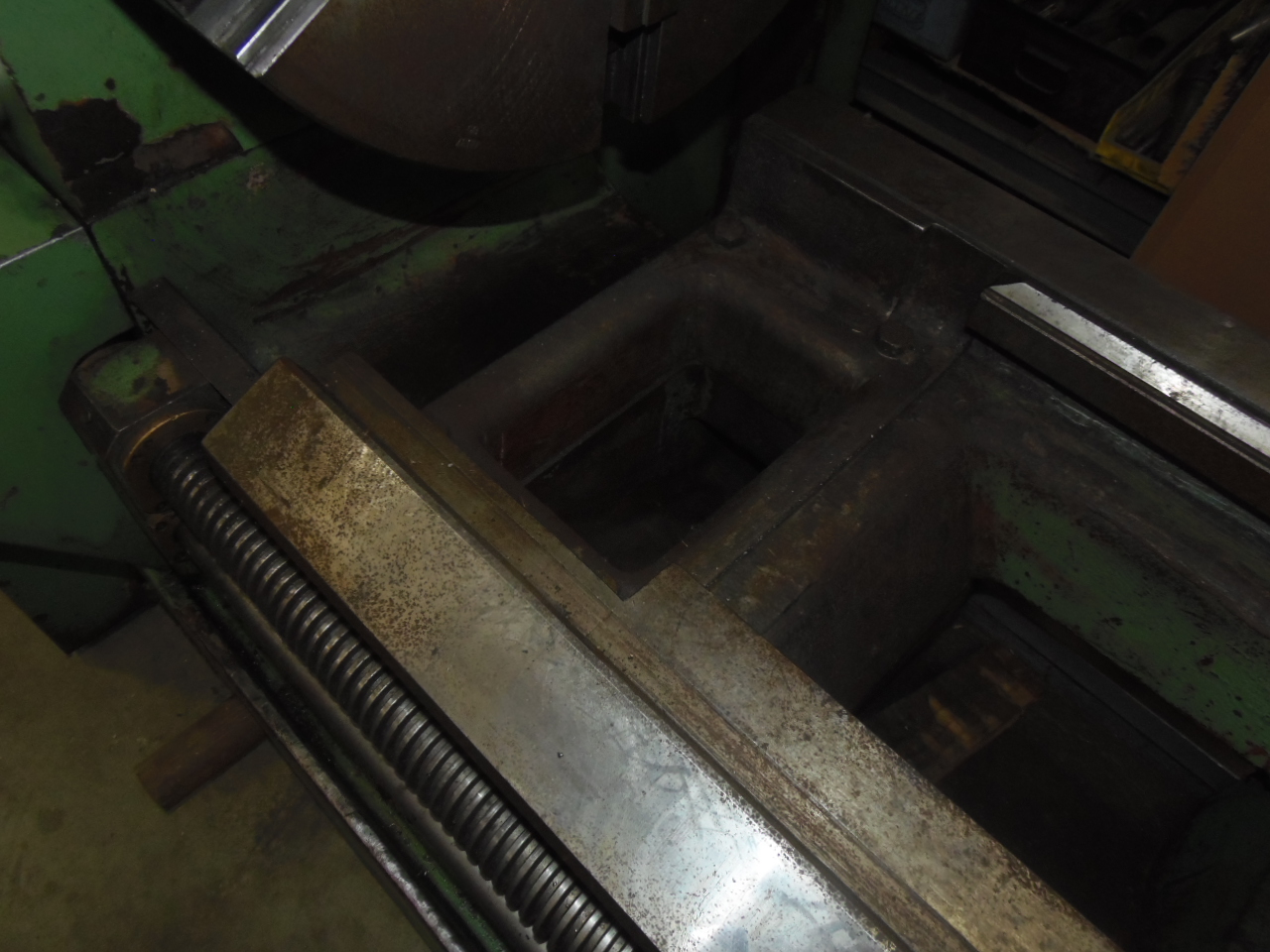

SWING IN GAP............... 48"
SPINDLE NOSE............... A2-15
APPX.
LENGTH IN GAP........ 20 1/2"
DISTANCE BETWEEN CENTERS... 120"
SPINDLE BORE............... 10.5"

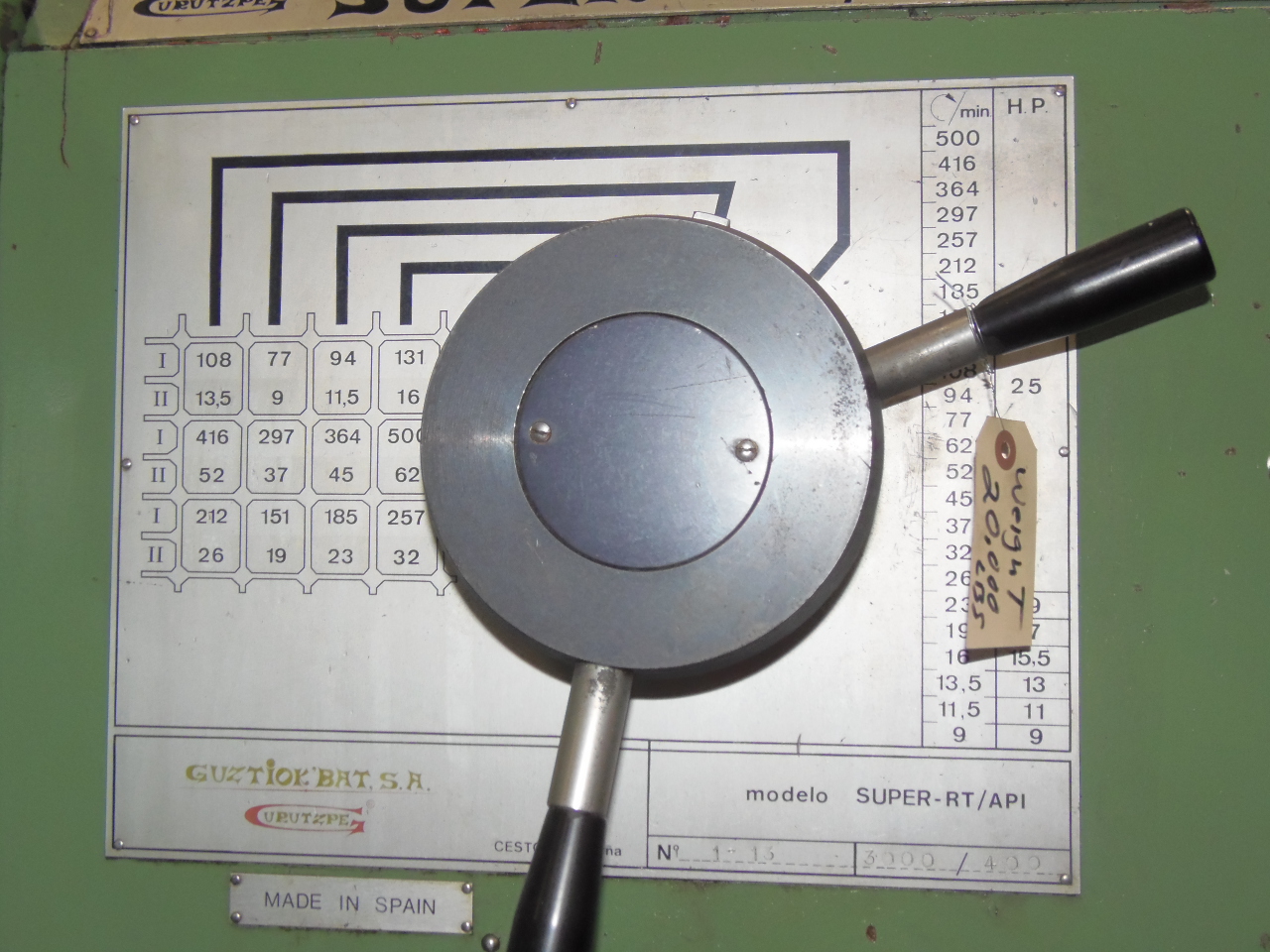

SPINDLE SPEED.............. 9 - 500 RPM
ELECTRICS.................. 460 (440) V / 3PH

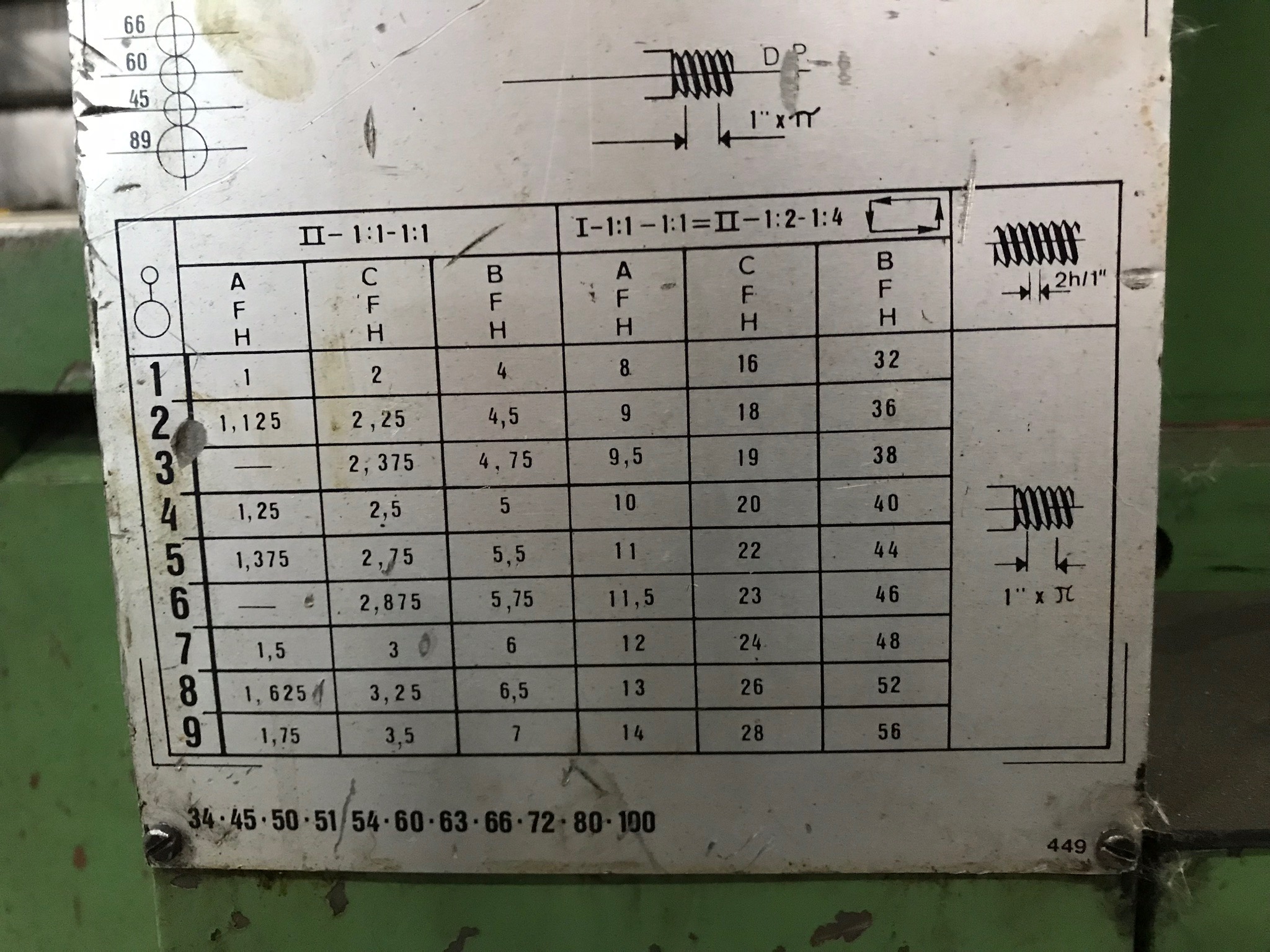

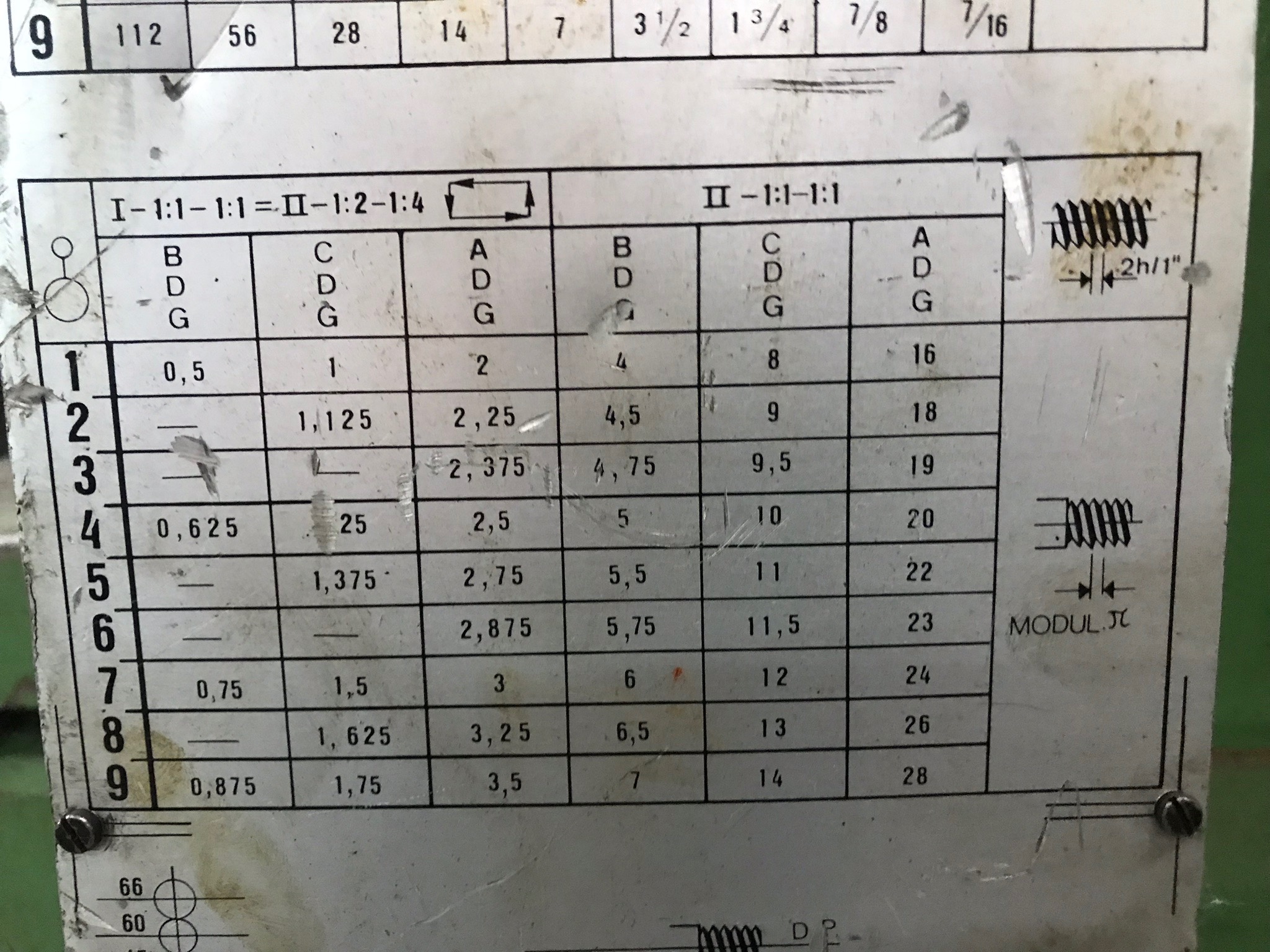

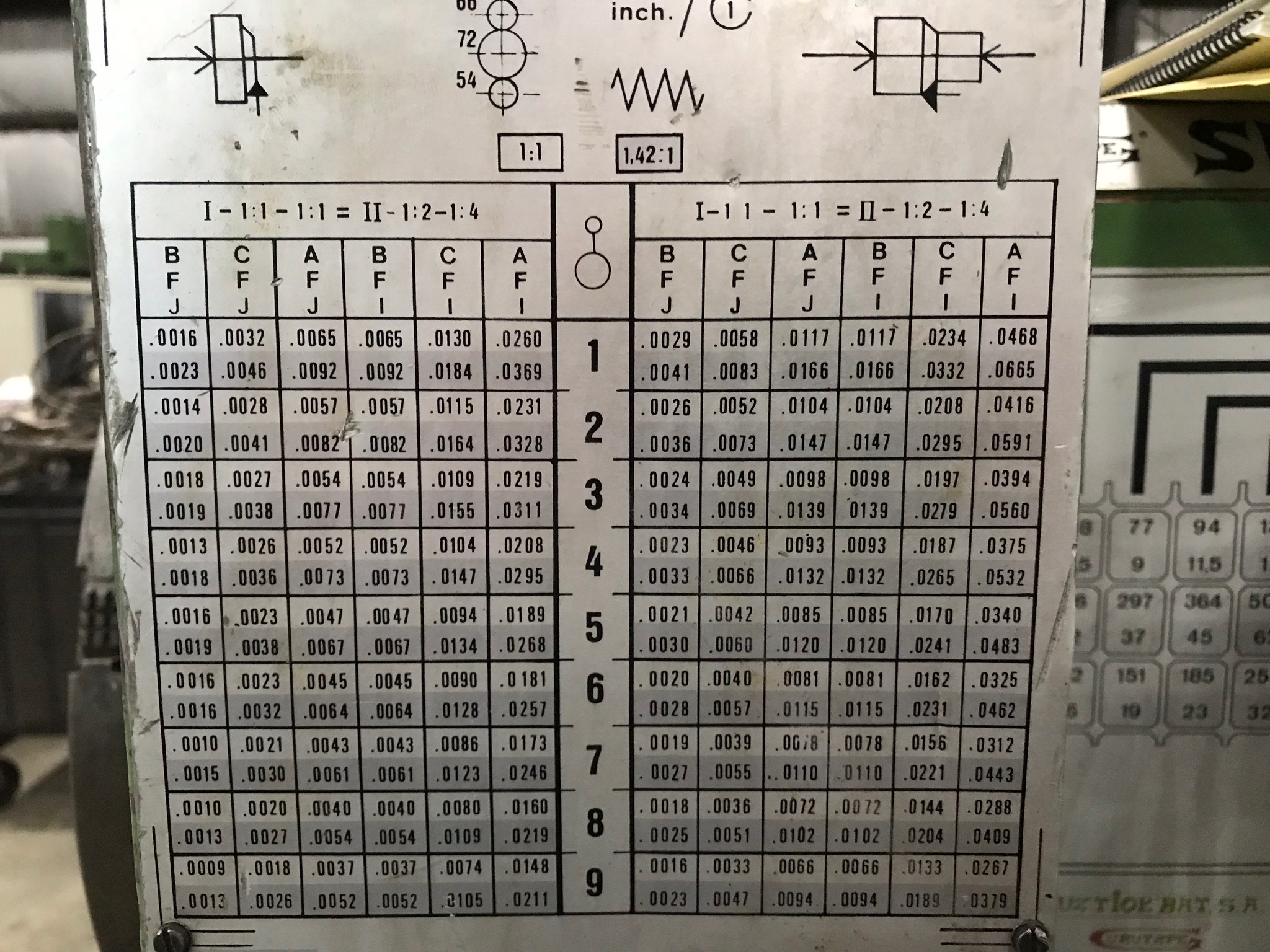

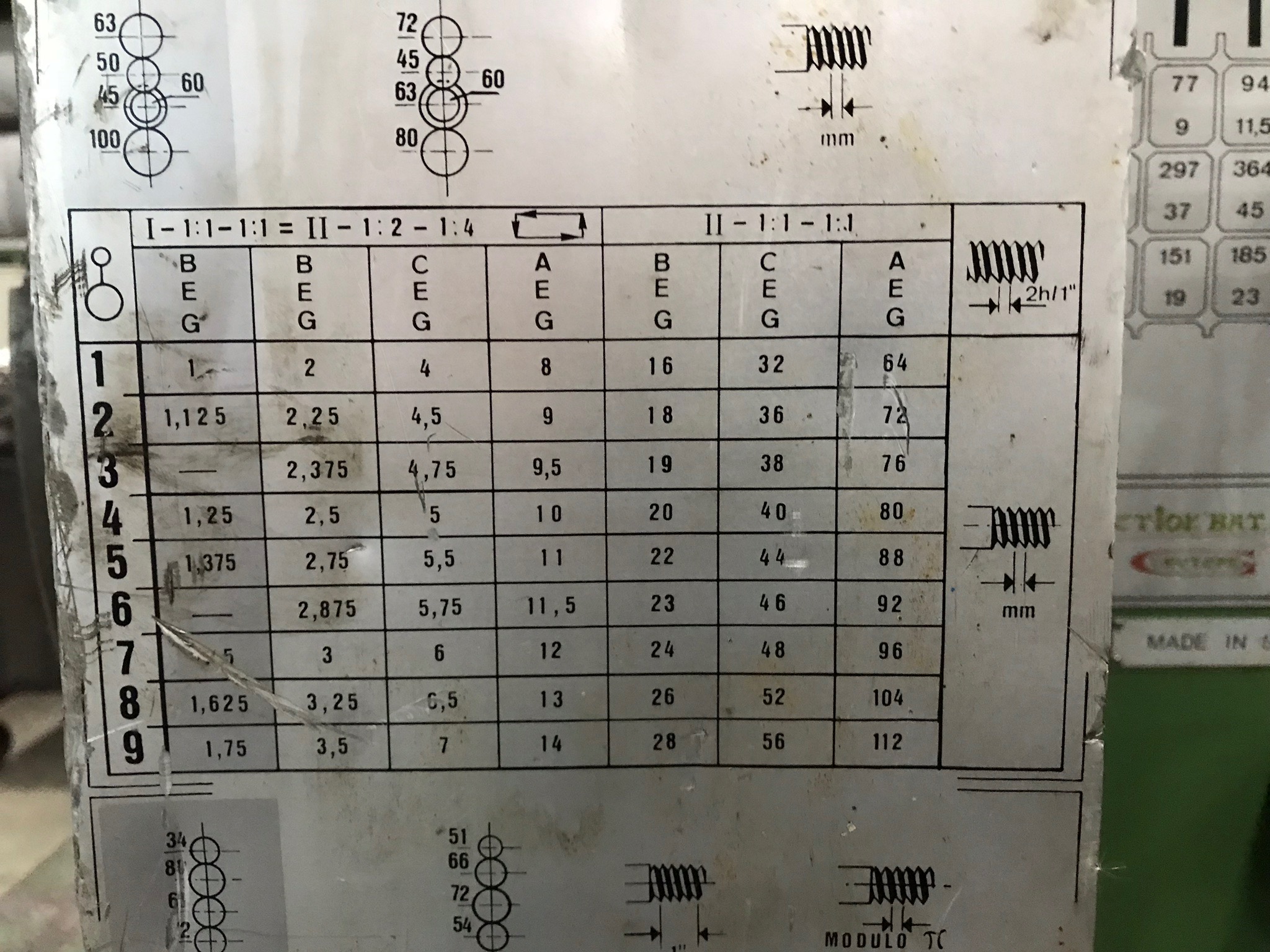

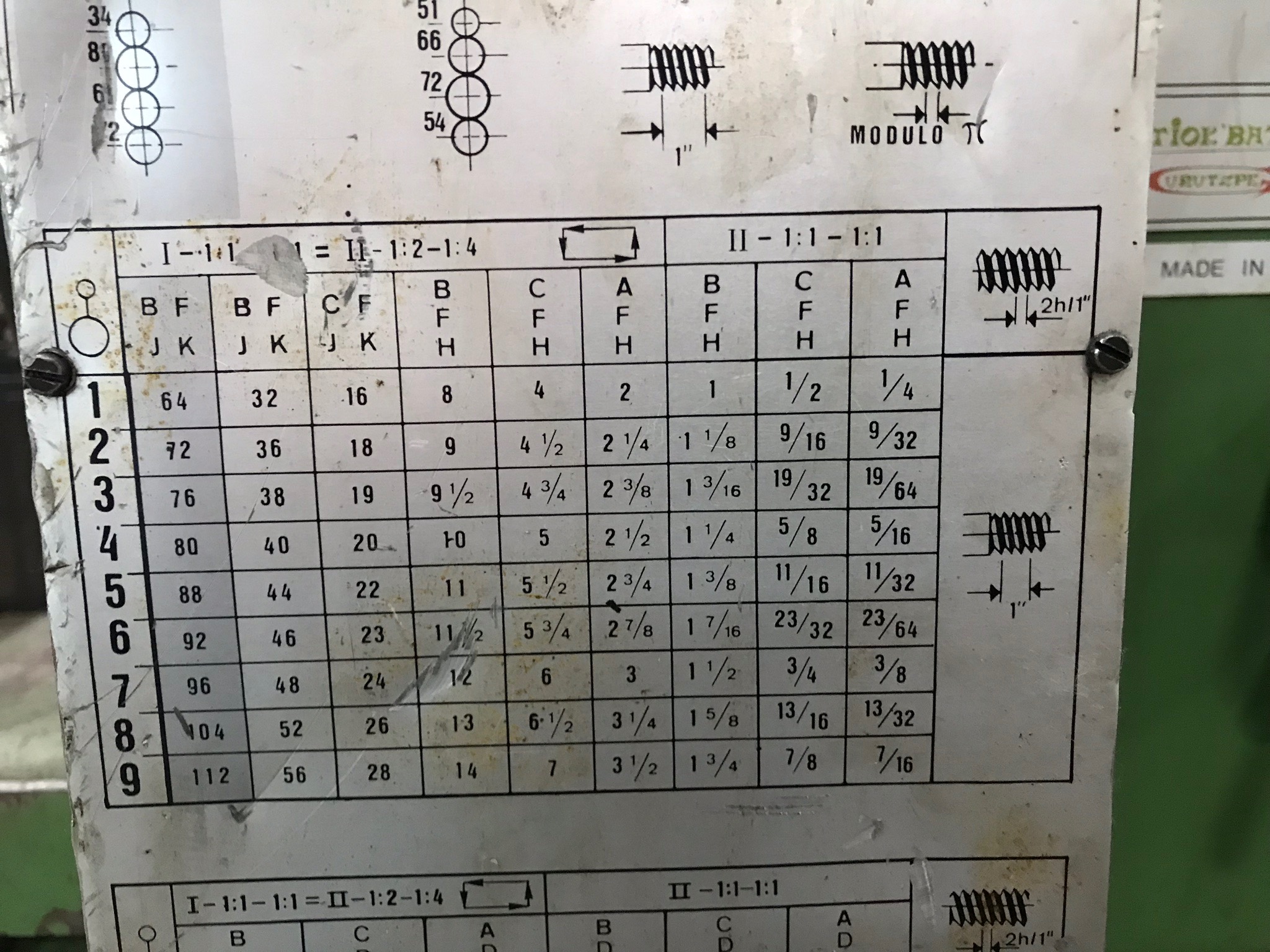

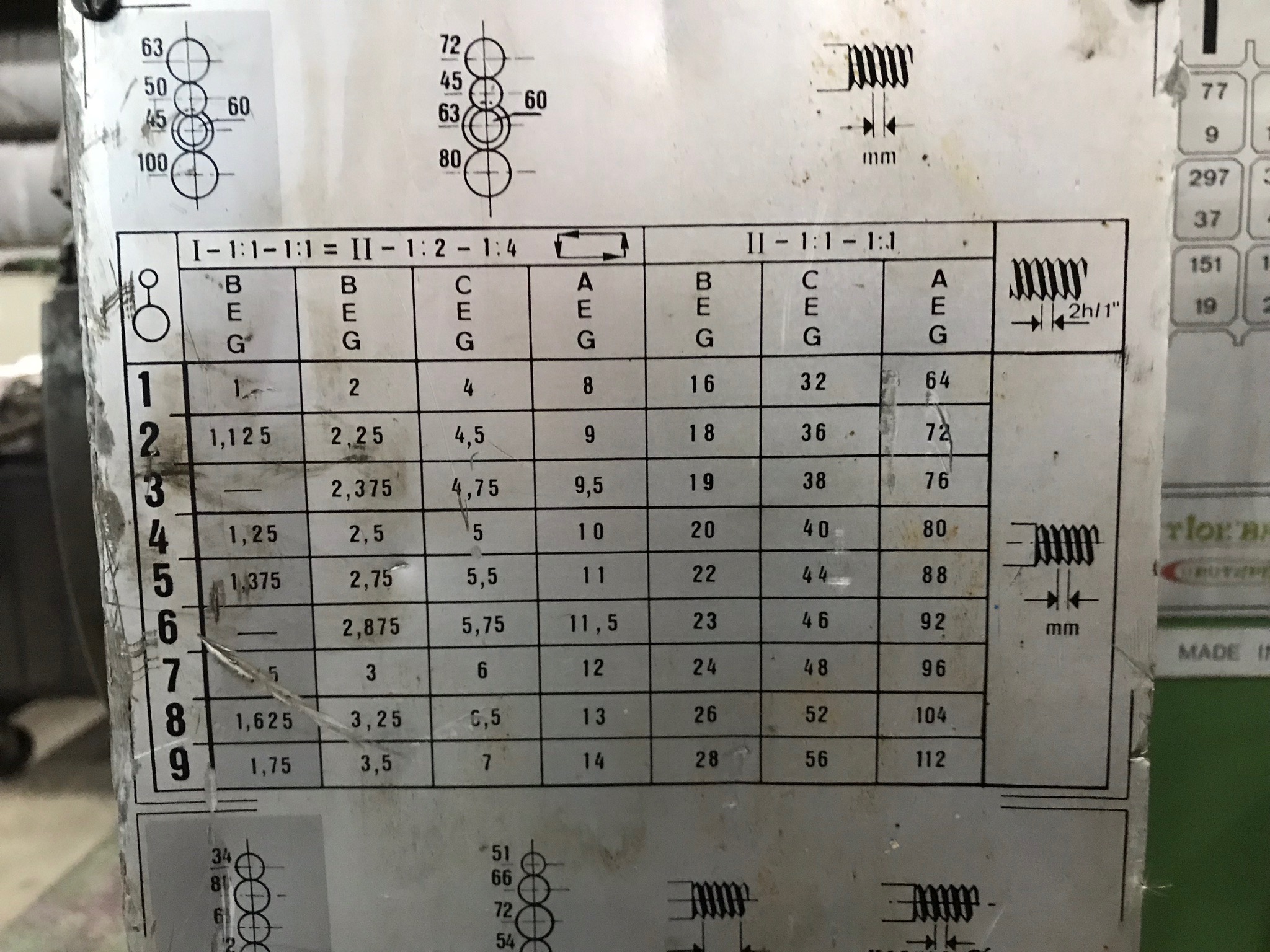

THREADING.................. INCH/METRIC/MODULE/DP
OVERALL DIMENSIONS......... 220" x 82" x 63" H
WEIGHT (APPROX)............ 20,000 LBS.
EQUIPPED WITH:

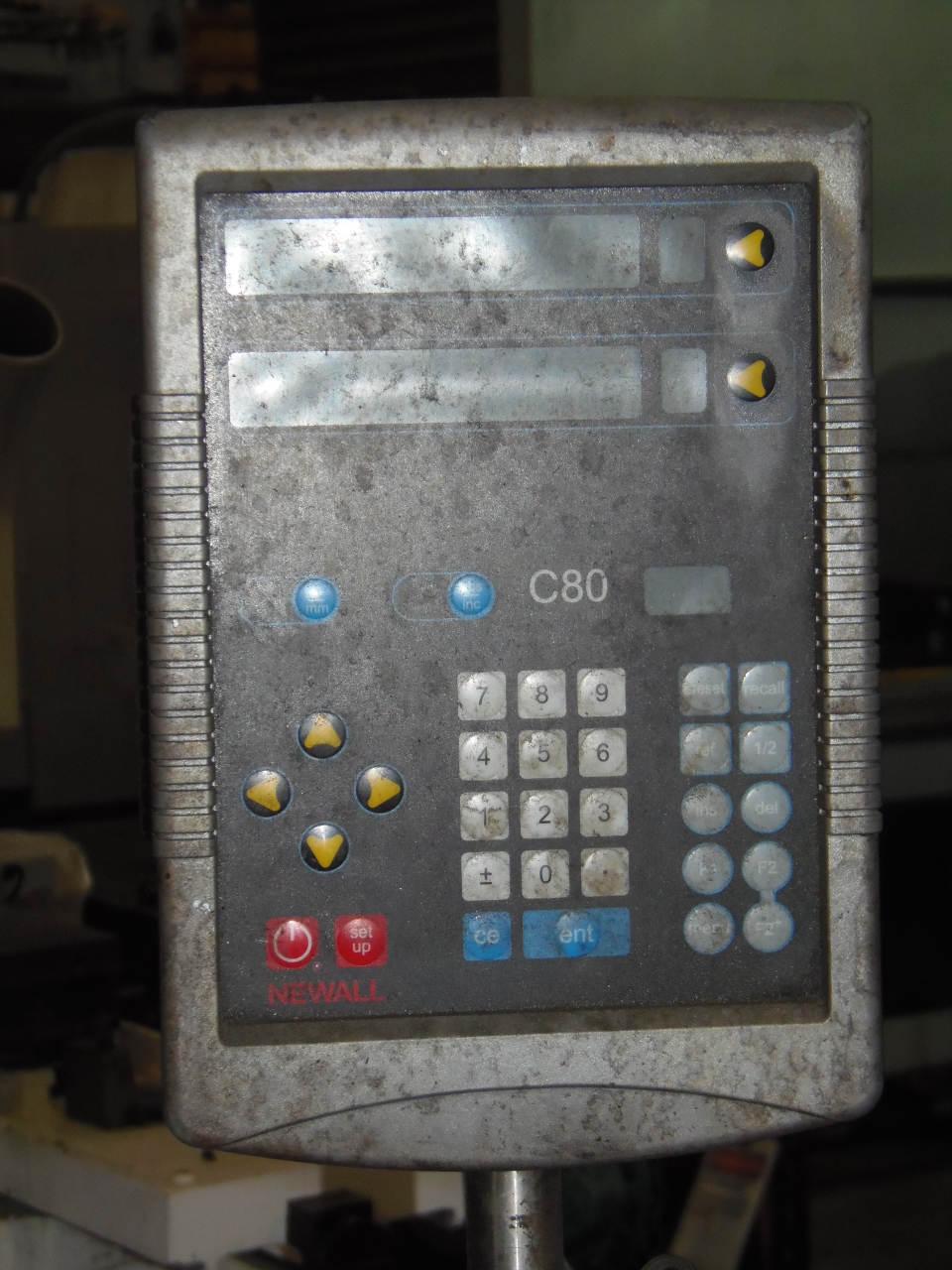

NEWELL DIGITAL READOUT

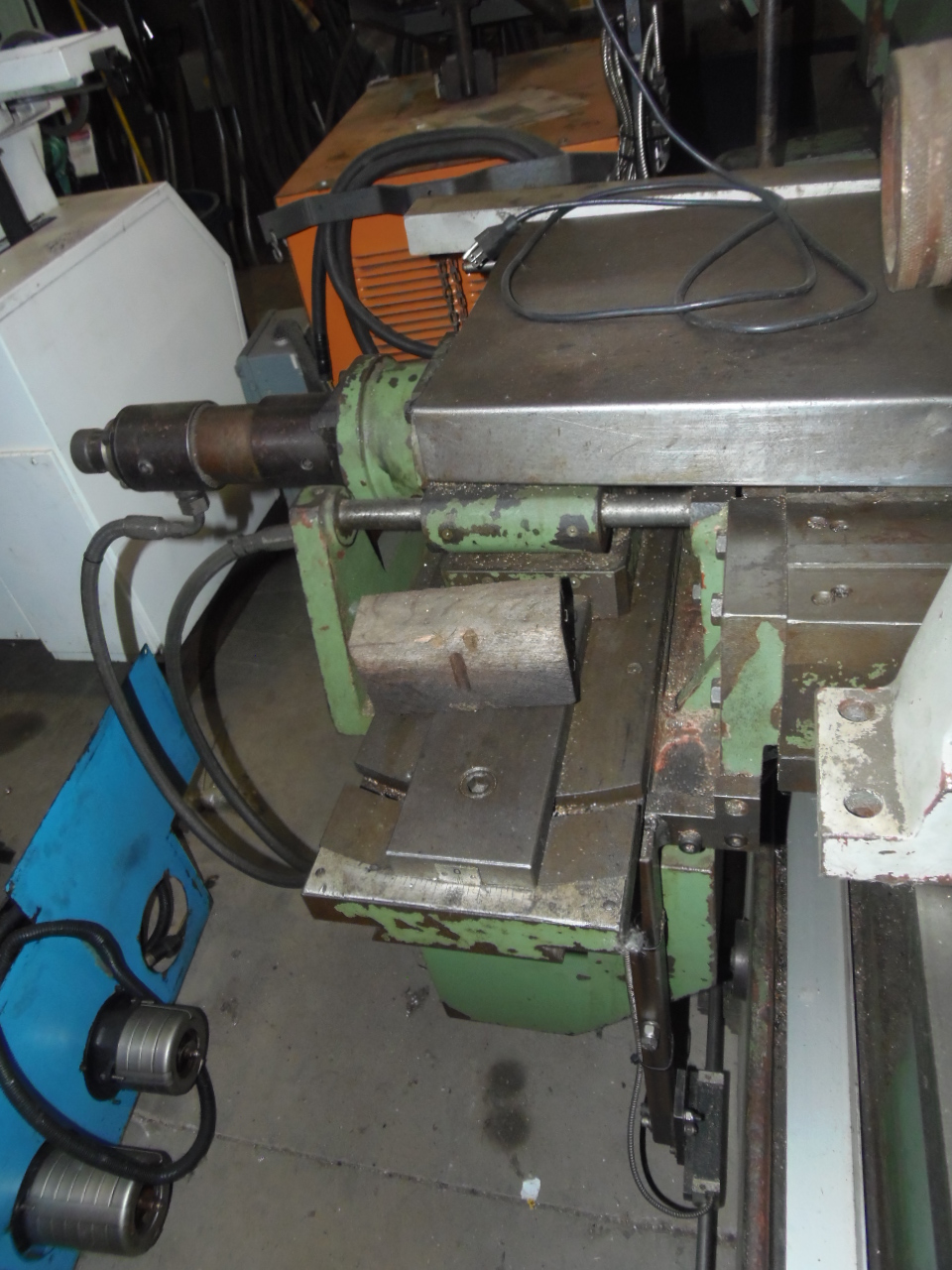

TAPER
RAPID TRAVERSE

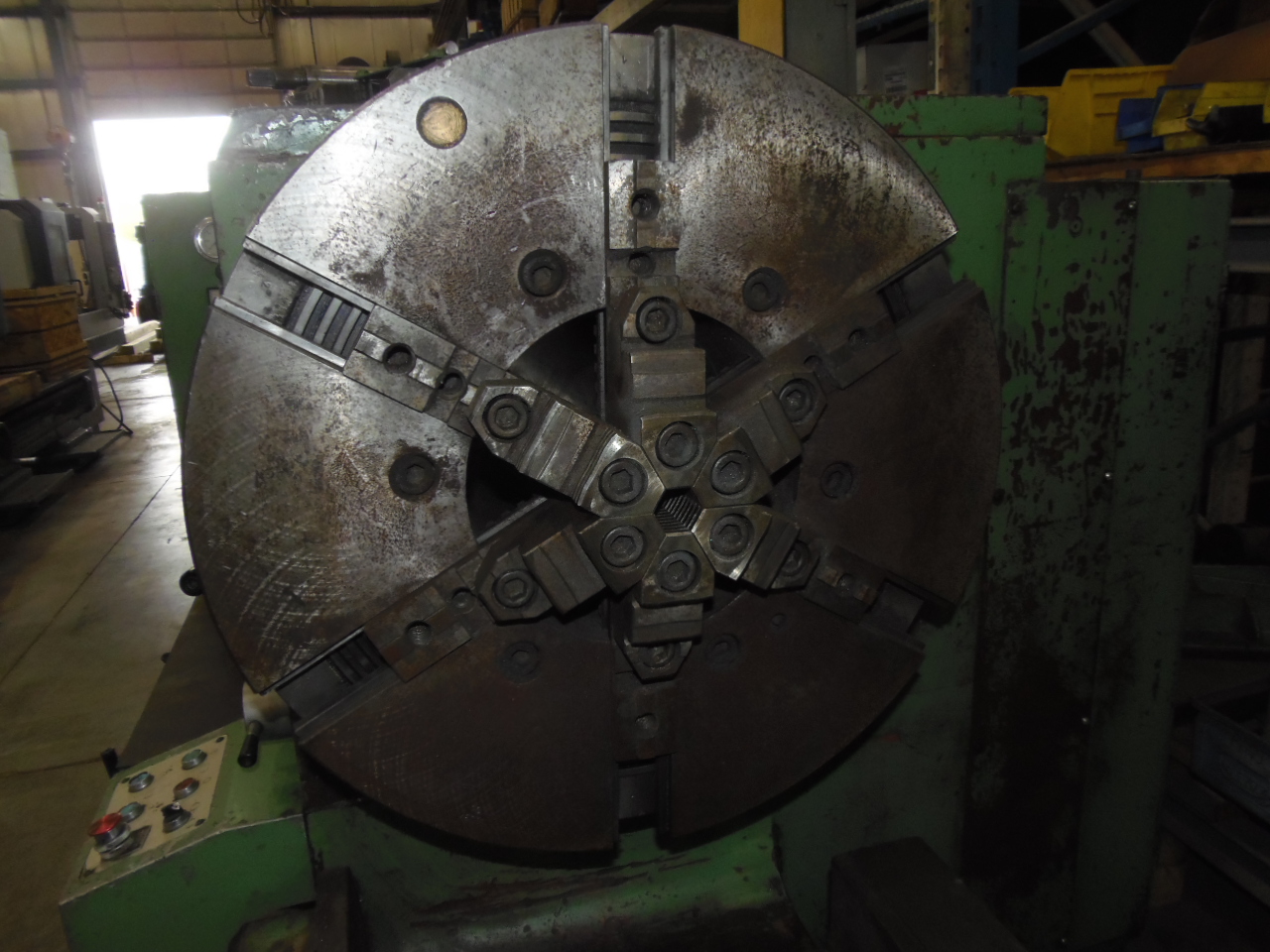

25" 6 JAW FRONT CHUCK

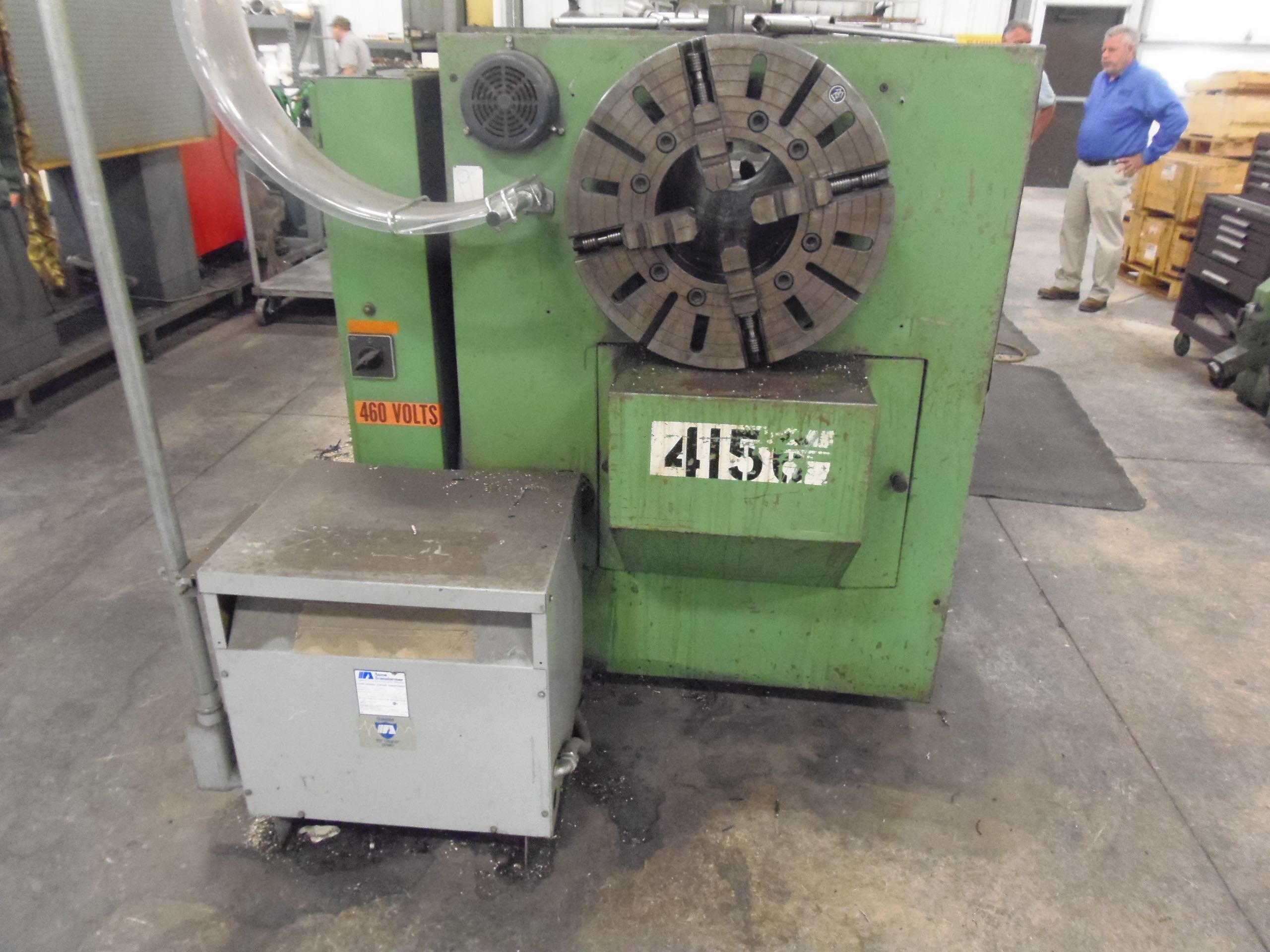

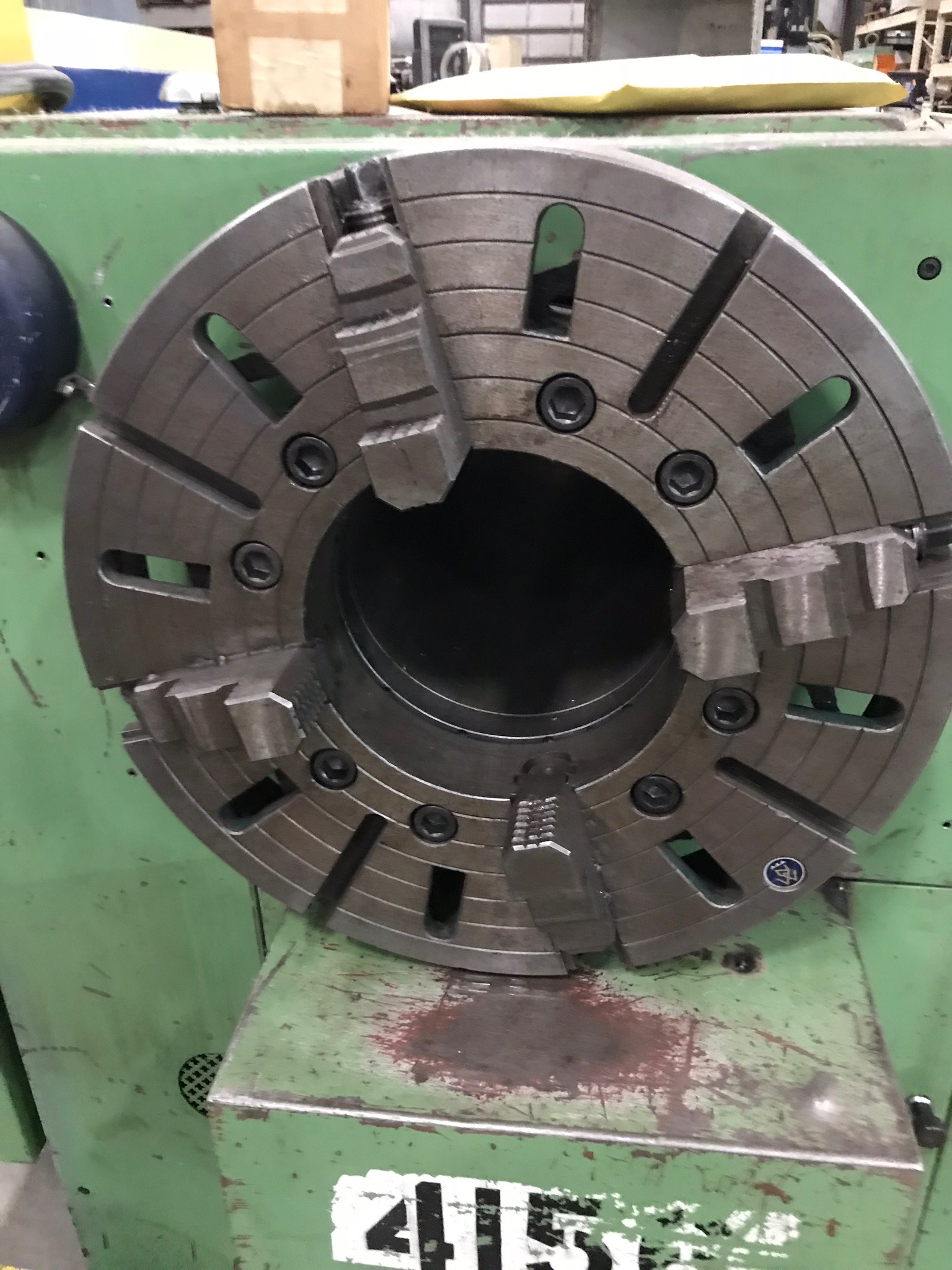

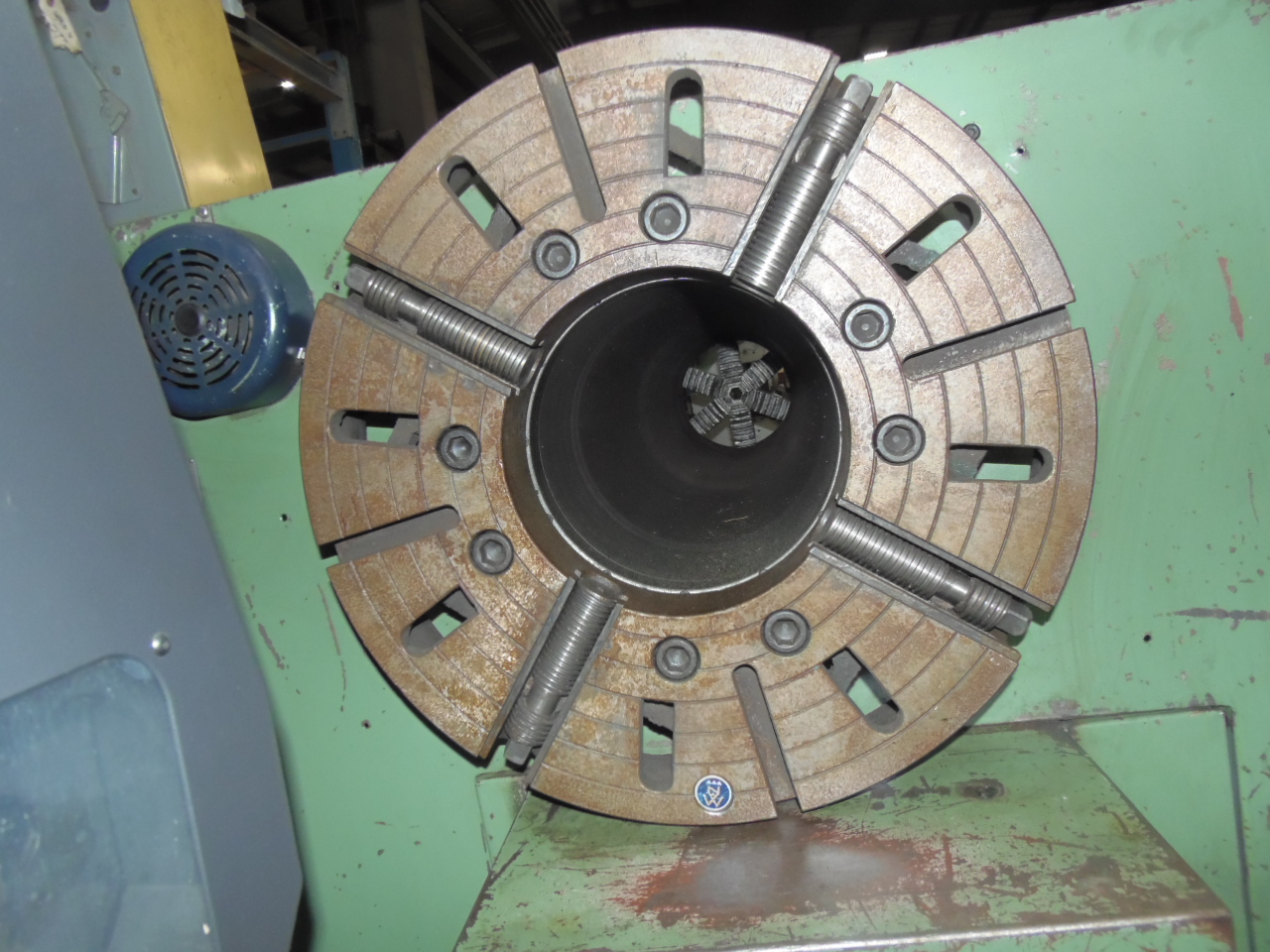

24" 4 JAW REAR CHUCK

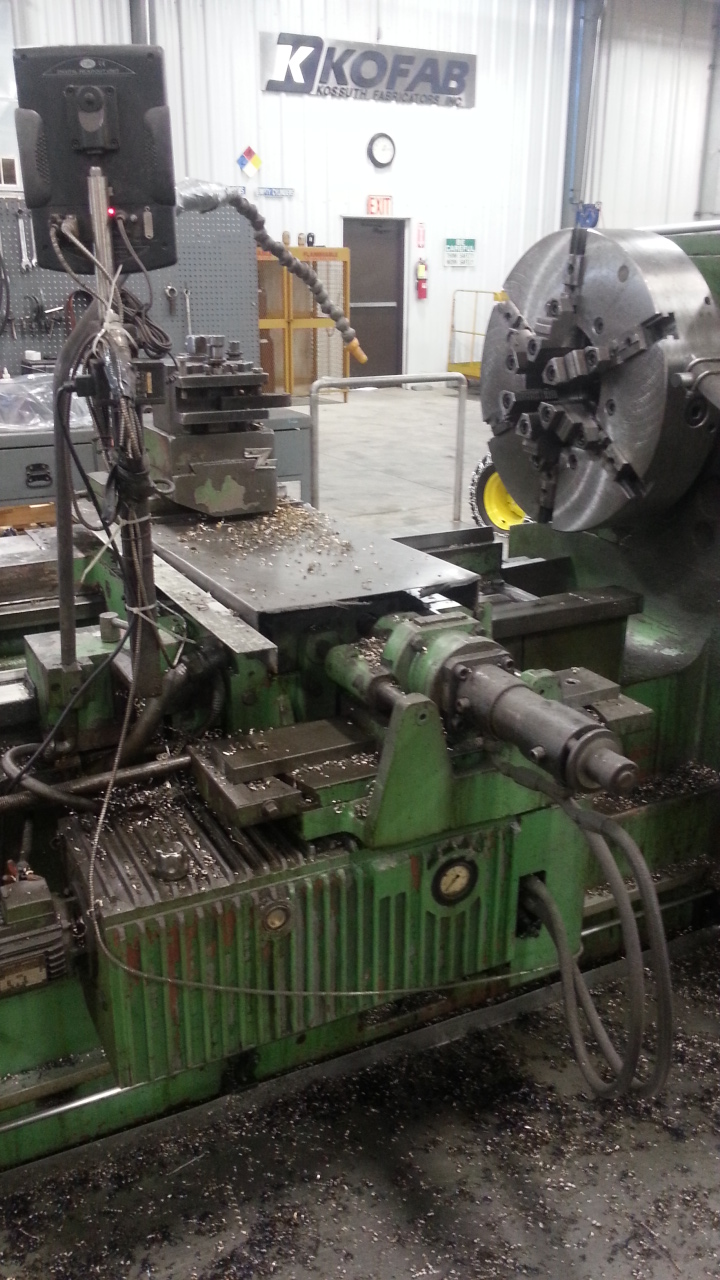

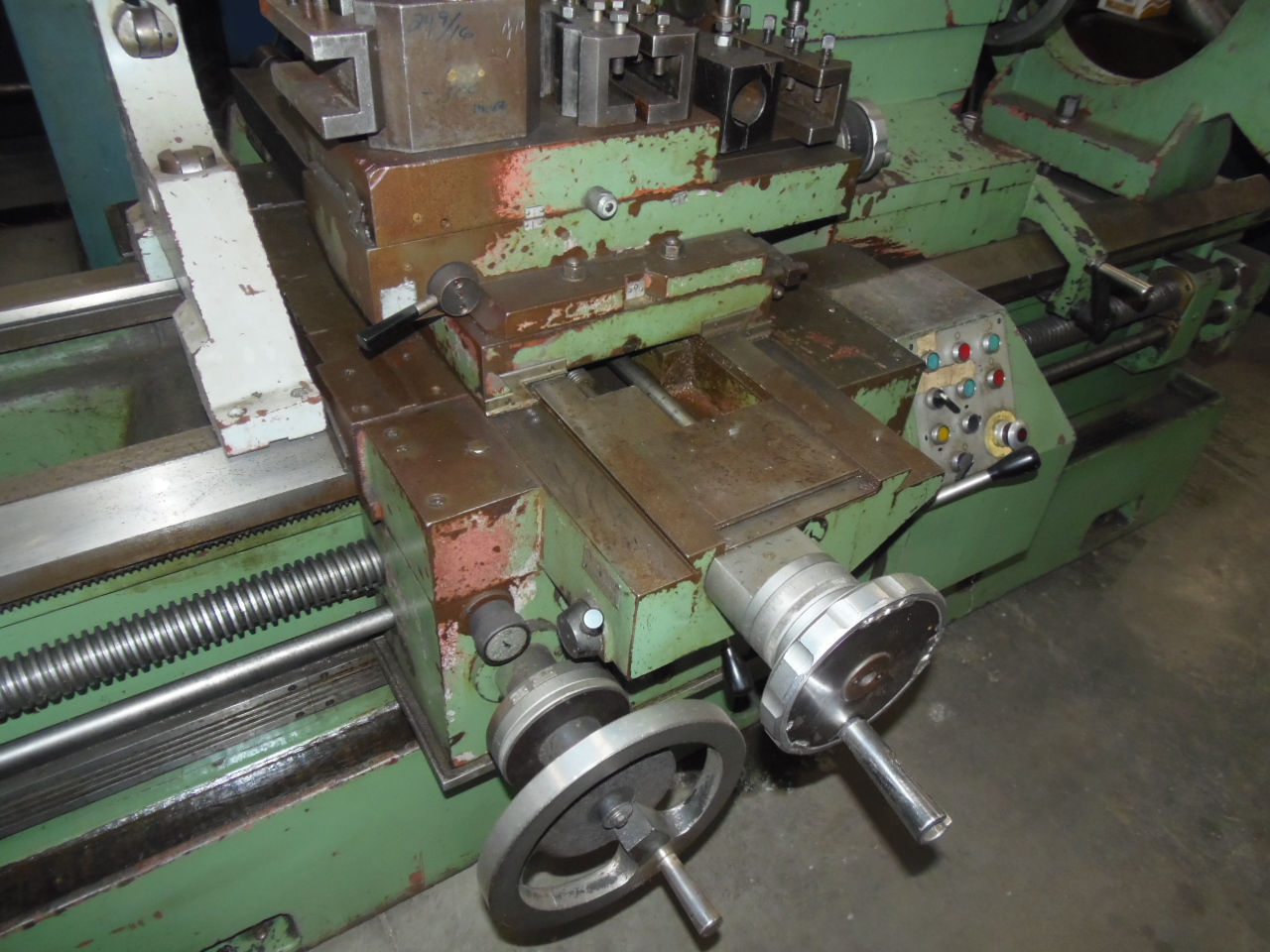

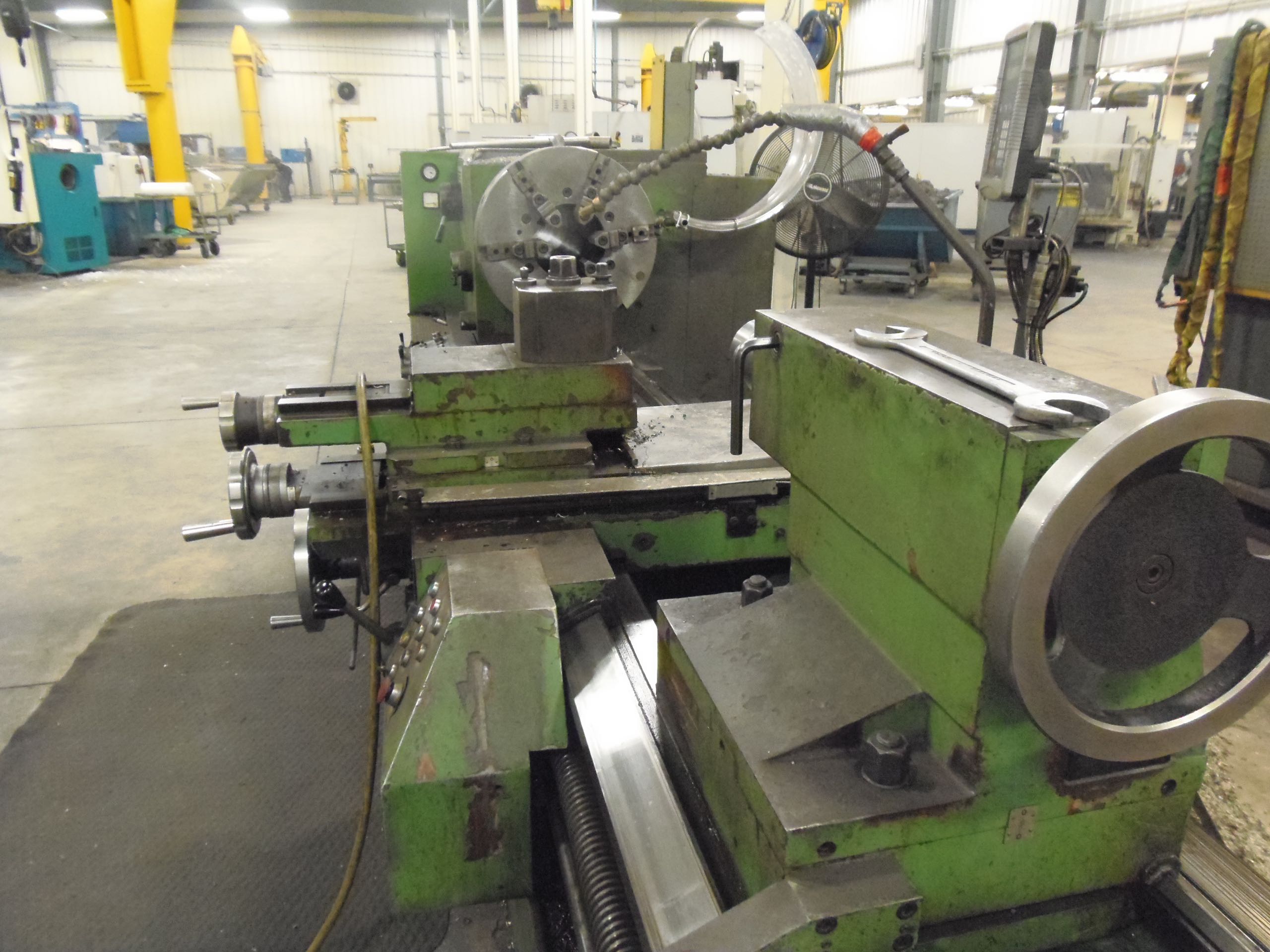

4 WAY TOOL POST WITH HOLDERS
AUTO THREADING ATTACHMENT
