GENERAL SPECIFICATIONS:
MANUFACTURER................... TIMEMASTER GURUTZPE
MODEL.......................... SUPER AT 3000/100
SERIAL #....................... 16-49
AGE (YEAR)..................... 1981
SWING.......................... 32"
SWING OVER C.S................. 19.5"
SWING IN GAP................... 48"
APPX.
LENGTH IN GAP............ 20 1/2"
DISTANCE BETWEEN CENTERS....... 120"
SPINDLE BORE................... 10"
SPINDLE SPEED.................. 9 - 500 RPM
THREADING...................... INCH/METRIC/MODULE/DP
OVERALL DIMENSIONS............. 6'W X 6'H X 18'L
WEIGHT (APPROX)................ 16,300 LBS.
EQUIPPED WITH:
RAPID TRAVERSE

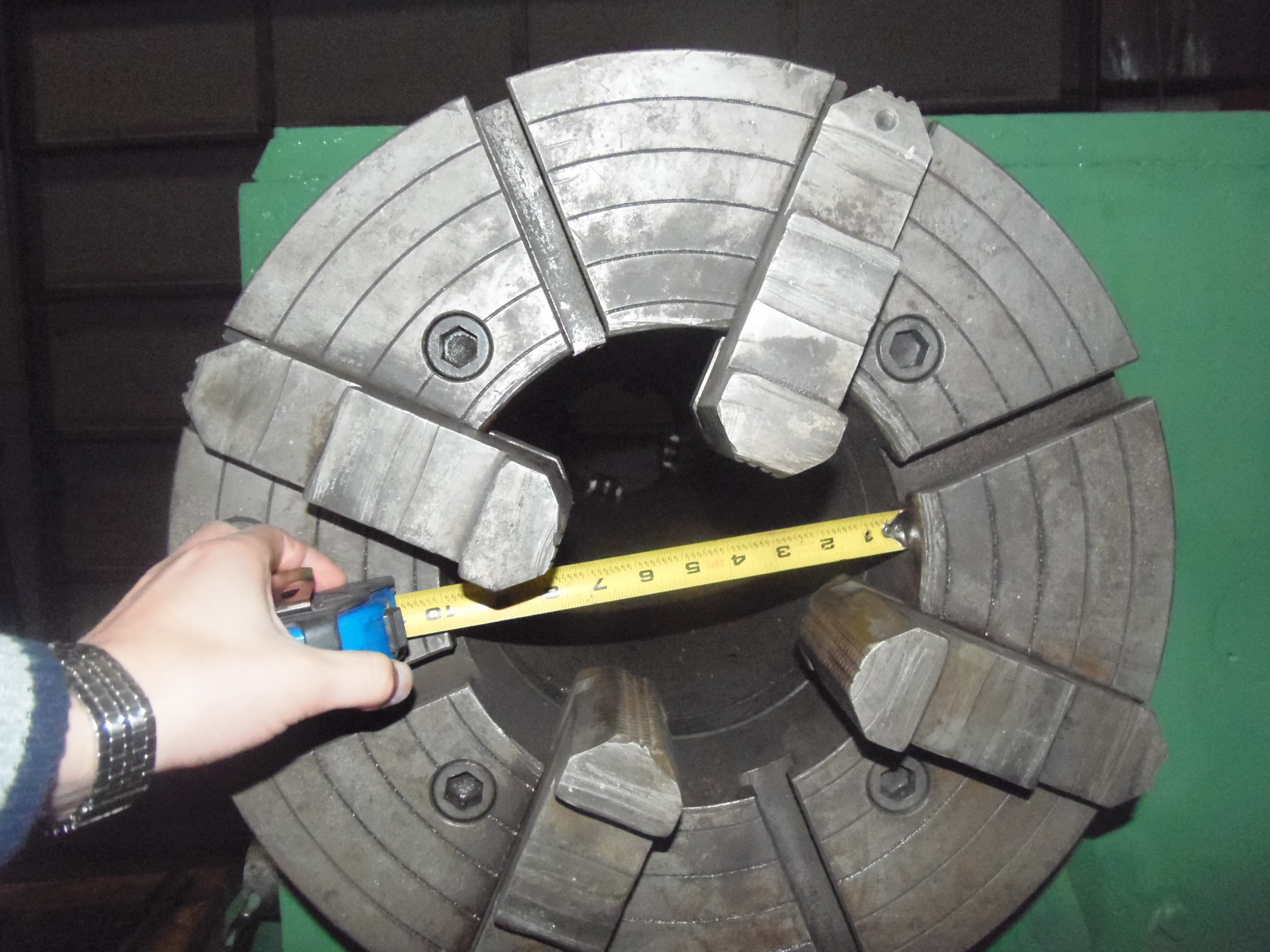

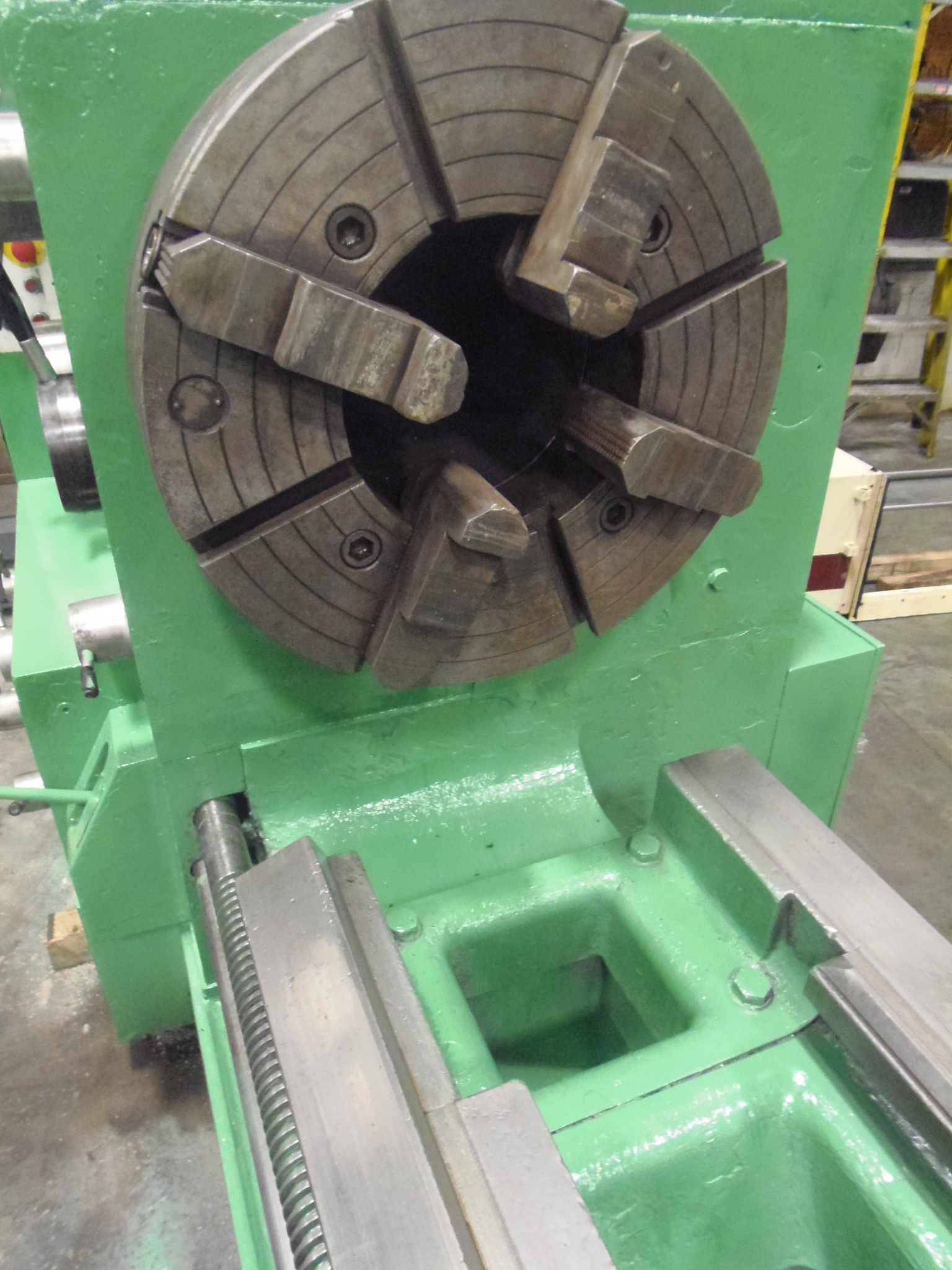

4 JAW 21" CHUCK
WITH 10" HOLE

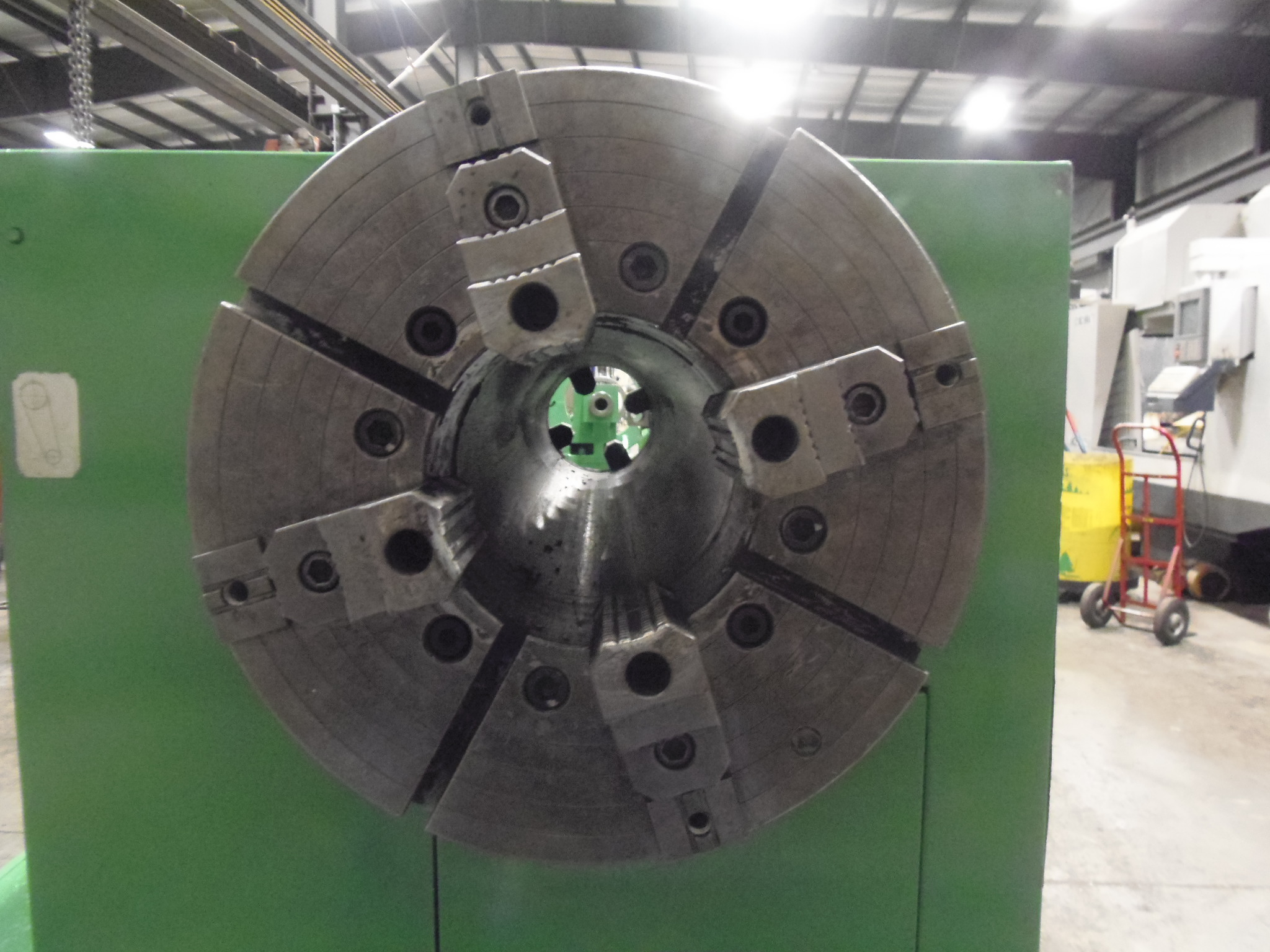

4 JAW 24" CHUCK WITH 10" HOLE MOUNTED ON REAR OF SPINDLE

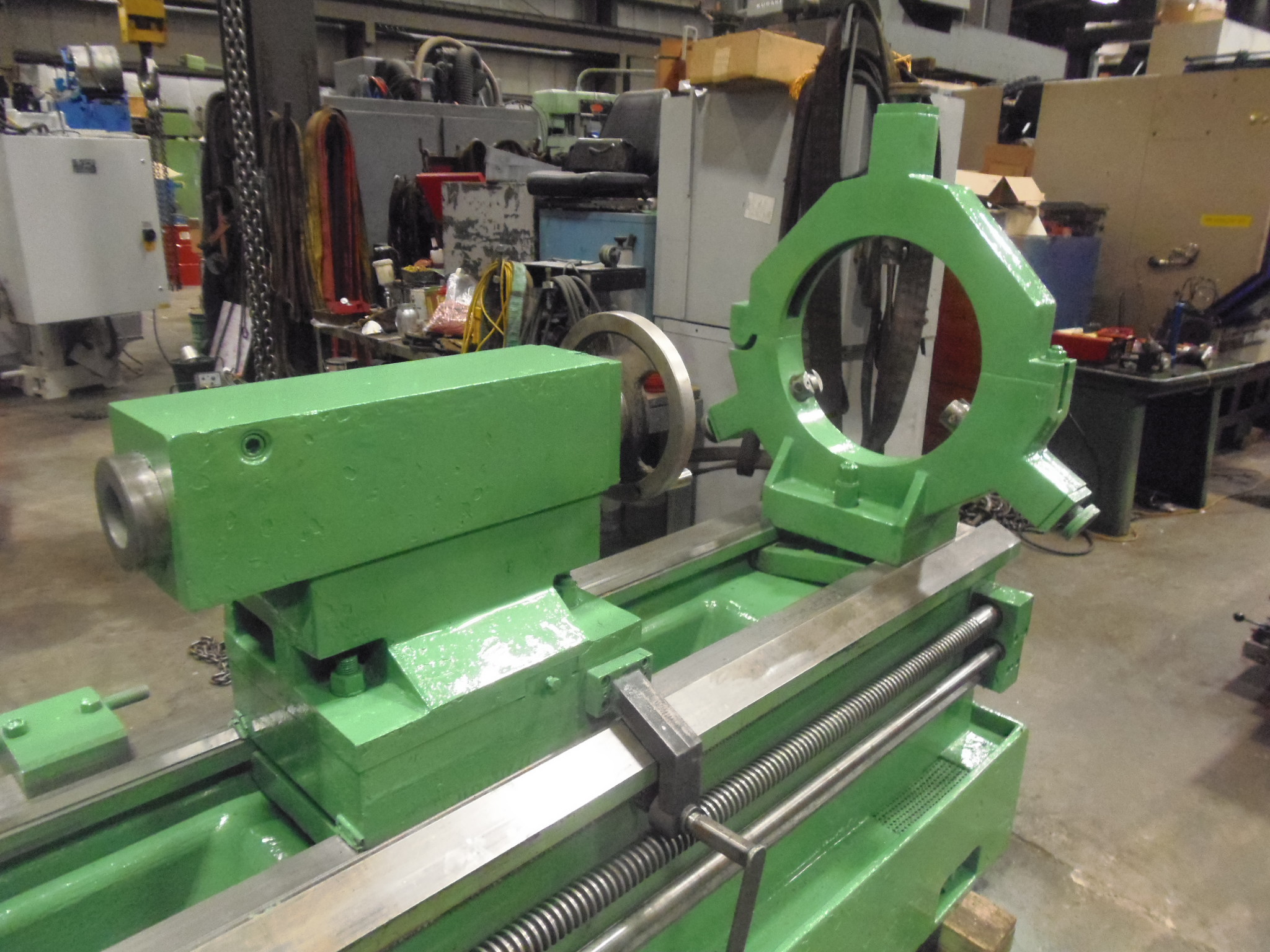

16" ROLLER STEADY REST

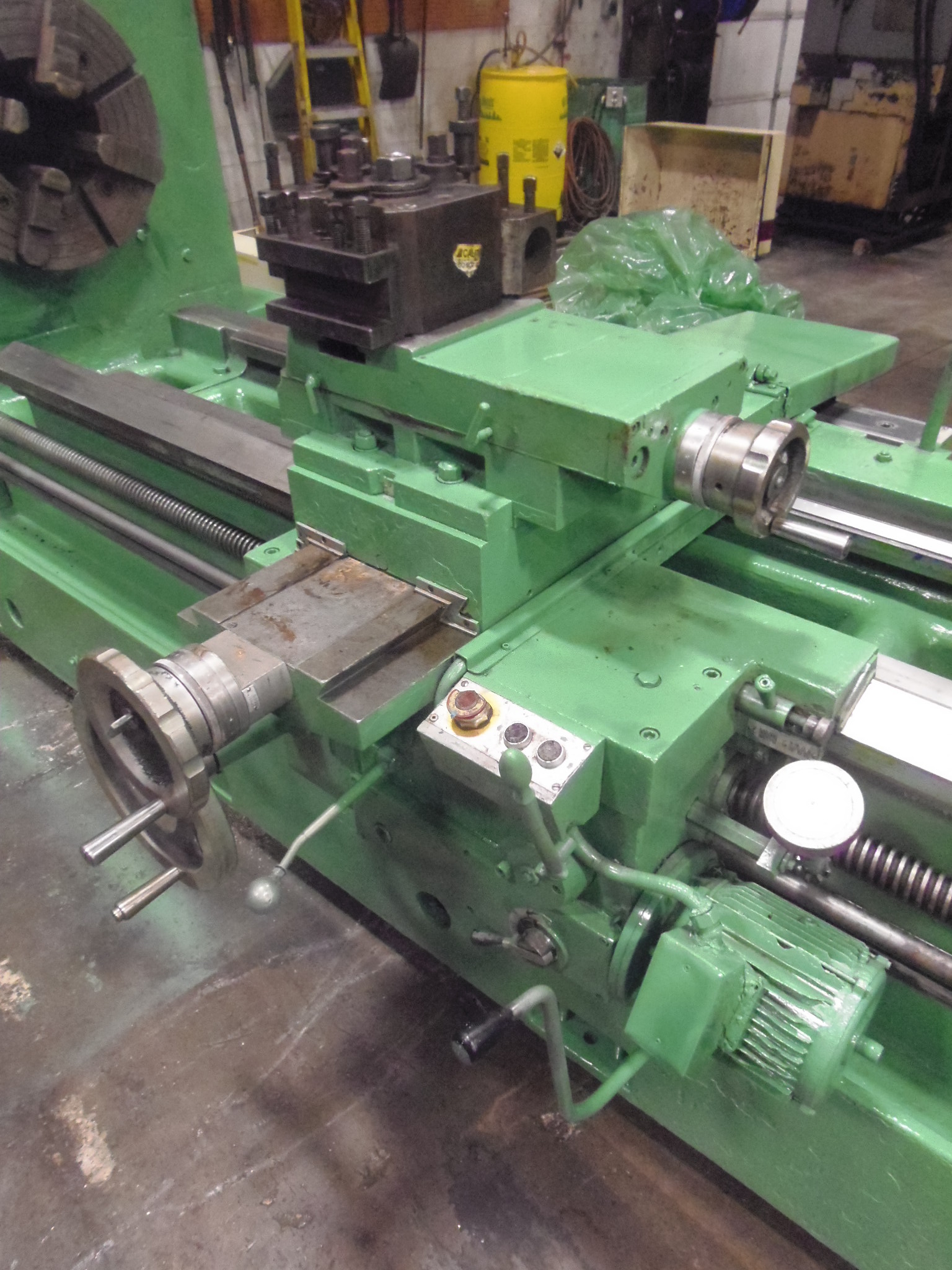

4 WAY TOOL POST WITH HOLDERS
AUTO THREADING
