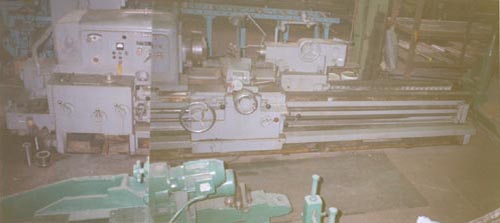

30"x96" MONARCH #2516-20,TAPER,(3)CHUCKS,STEADY,1250 RPM,THREADING,1958,

GENERAL SPECIFICATIONS:
NEW APPROXIMATELY 1958
SWING 30"
SWING OVER CROSS SIDE 19"
DISTANCE BETWEEN CENTER 96"
HOLE THRU SPINDLE 3.06"
SPINDLE SPEEDS 36
SPINDLE SPEED RANGE 10-1250 RPM
CENTER, MORSE TAPER NO. 6
SPINDLE, AMERICAN STANDARD TAPER NO. 350
DIMENSIONS APPROXIMATELY 179" x 72" x 54"
WEIGHT APPROXIMATELY 17,500 LBS.
WIRED 440 VOLTS, 3 PHASE

EQUIPPED WITH:
TAPER ATTACHMENT
24" 4-JAW CHUCK
20" 4-JAW CHUCK
15" 3-JAW CHUCK
14" FACE PLATE
11-16 STEADY REST
TOOL POST WITH HOLDERS
TAILSTOCK
COMPLETE COOLANT SYSTEM WITH SPLASH GUARDS
INCH THREADING
