SPECIFICATIONS:

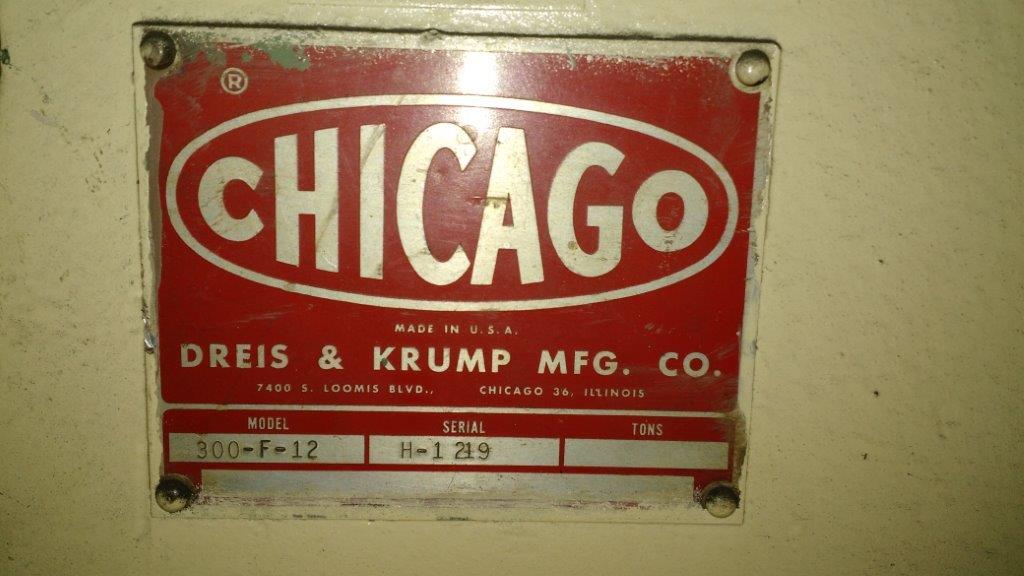

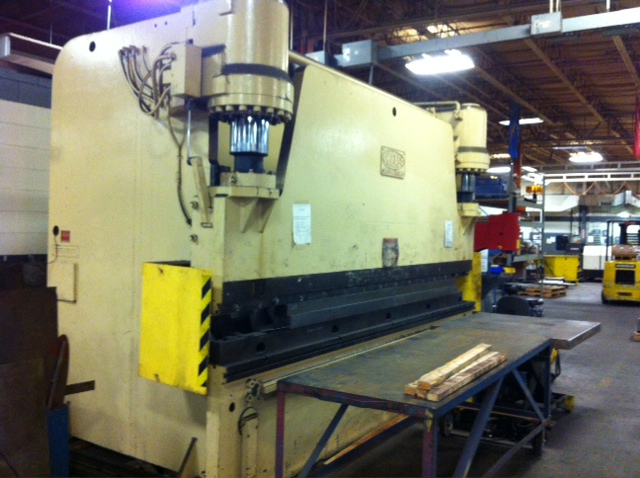

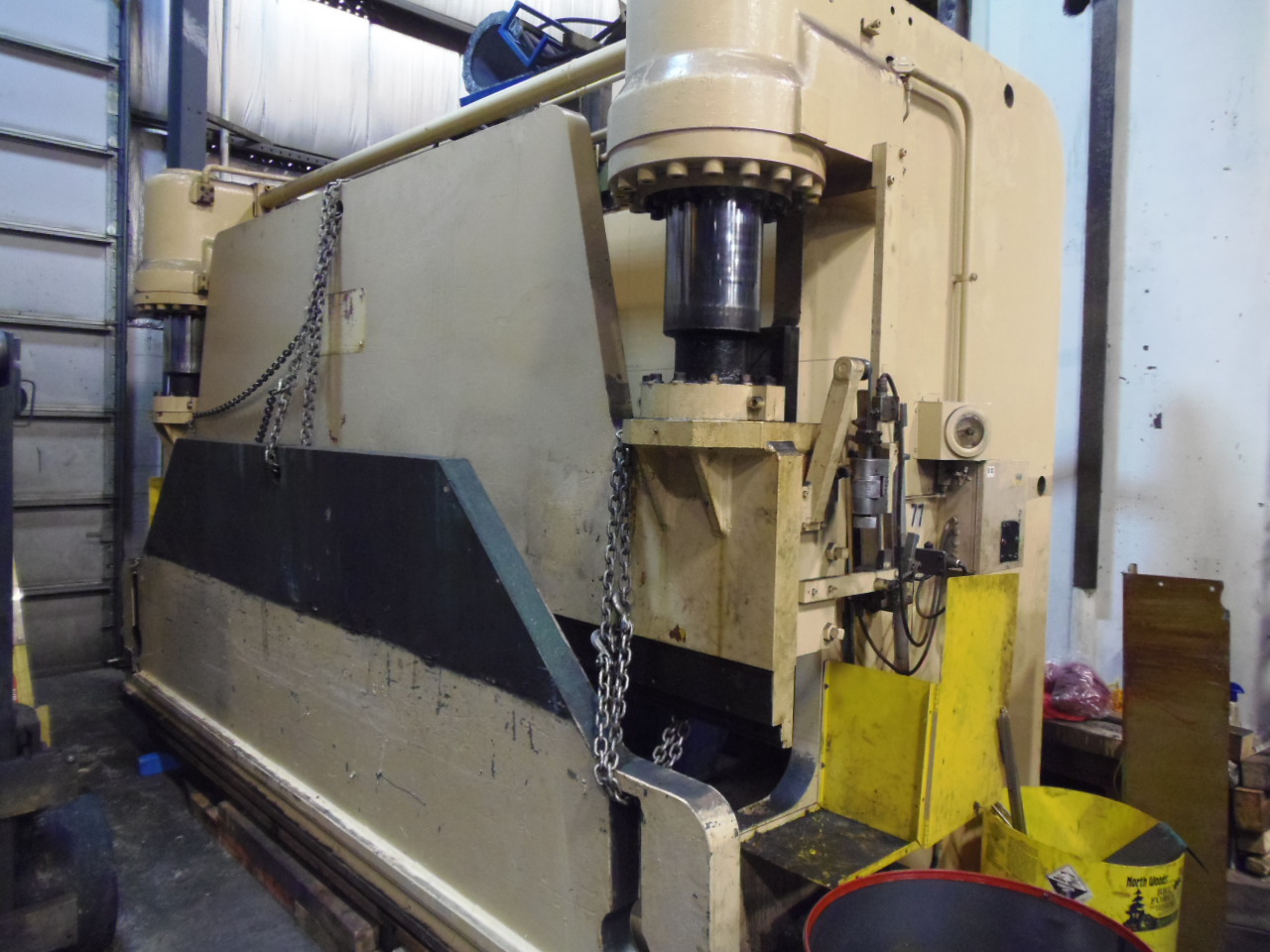

MANUFACTURER..................... DREIS & KRUMP
MODEL............................ 300F12
SERIAL NUMBER.................... H-1219
NEW.............................. 1965
BENDING CAPACITY................. 14'6" X 5/6" MILD STEEL
................................. 10' X 3/8" MILD STEEL
................................. 8' x 1/2" MILD STEEL
TONNAGE CAPACITY................. 300 TONS
OVERALL LENGTH OF BED & RAM...... 14'6"
DISTANCE BETWEEN HOUSINGS........ 12'6"
STROKE........................... 12" (ADJUSTABLE)
OPEN HEIGHT...................... 20"
CLOSED HEIGHT.................... 8"
THROAT DEPTH..................... 10"
GAP DEPTH........................ 18"
WIDTH OF BED..................... 7-1/4"
FLOOR TO TOP OF BED.............. 34-1/2"
SPEED APPROX..................... 60"/MINUTE ADVANCE
................................. 26"/MINUTE PRESS
................................. 60"/MINUTE RETURN
EQUIPPED WITH:
3-POSITION NEUTRAL-STOP-DOWN-UP
ELECTRICAL FOOT SWITCH
DUAL PALM BUTTONS FOR RUN WITH
EMERGENCY STOP BUTTON

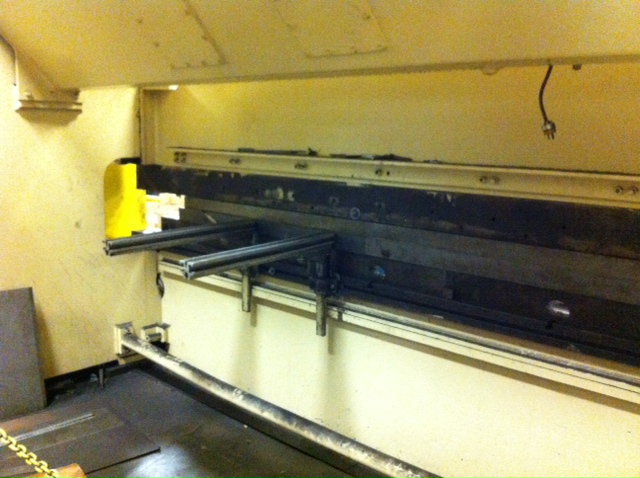

4" HIGH DIE RAIL

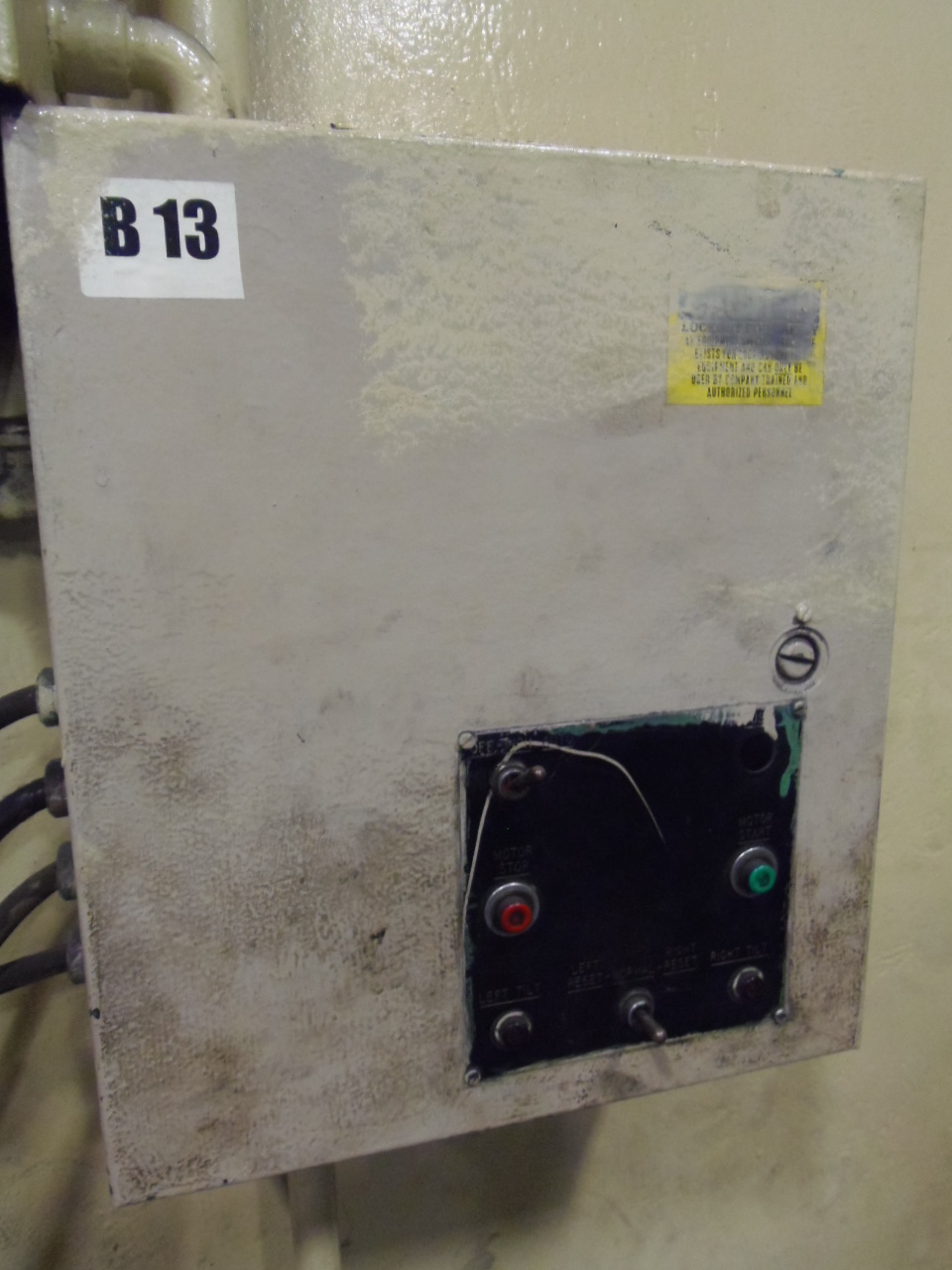

PUSH BUTTONS FOR START-STOP
KEY SELECTOR SWITCHES FOR INCH-OFF-SINGLE-
HI-STOP-LO; USE -BYPASS-HAND-FOOT PRE-SET
TONNAGE CONTROL WITH INDICATOR
RAM LEVEL ADJUSTMENT WITH DEPTH STOP
SECTIONAL RAM DIE CLAMPS
MANUAL
BIJUR ONE SHOT OIL LUBRICATION
(5) T-SLOTS IN TOP OF BED
DOVETAIL SLOTS IN TOP OF BED

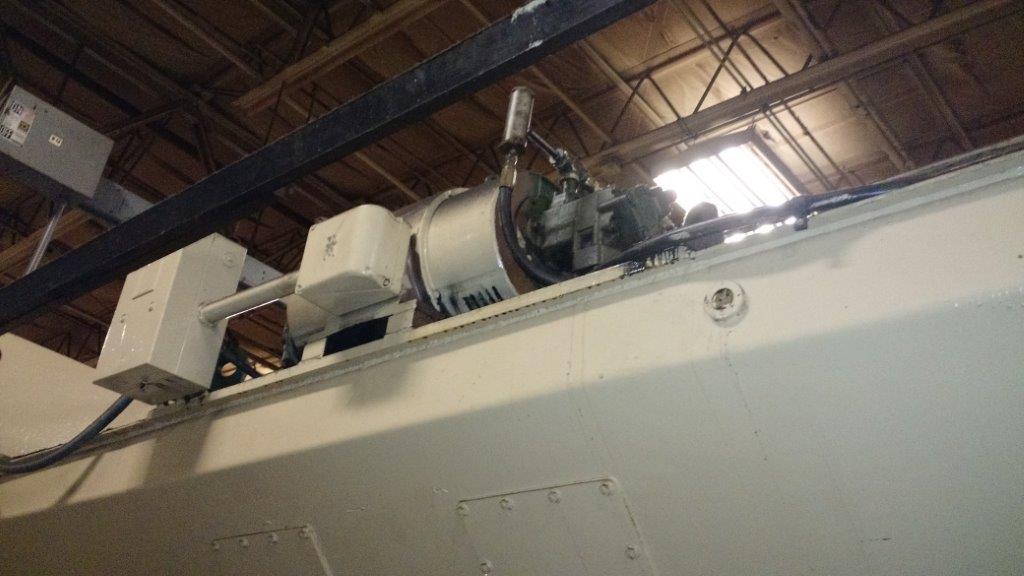

HYDRAULIC PUMP, DRIVEN BY
30 HP 1800 RPM 230/460/3/60 MOTOR
WEIGHT APPROX. 57,200 (TOTAL WITH BED)
OVERALL DIMENSIONS APPROX 194" L-R X 77"
F-B X 128" HIGH(25" PIT REQUIRED)
SPECIFICATIONS SUBJECT TO VERIFICATIONS
