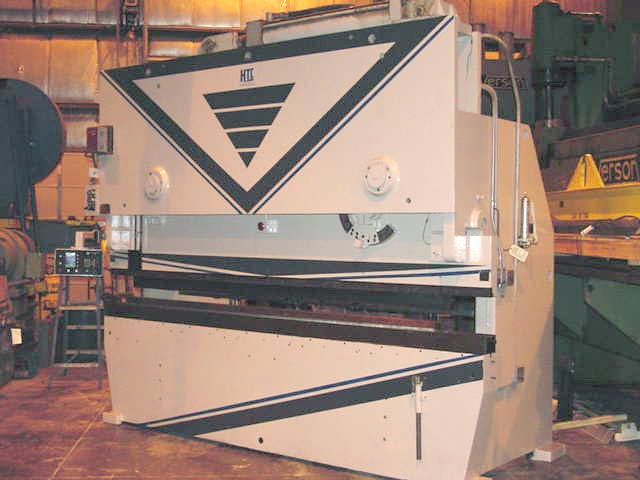

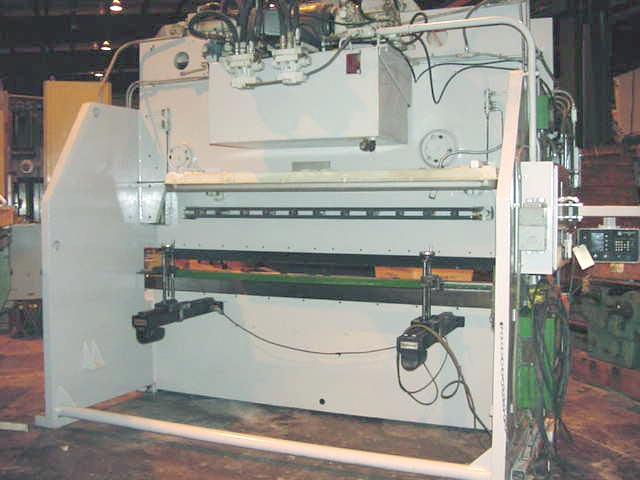

300 TON X 12' HTC, HURCO AUTOBEND IV BACKGAUGE, 10'6" BETWEEN, 12' LOWER DIE RAIL, 1979

GENERAL SPECIFICATIONS:
MANUFACTURER.................................. HTC
MODEL......................................... 130-12H
SERIAL #...................................... 1079G-1790
NEW APPROXIMATELY............................. 1979
TONNAGE CAPACITY.............................. 300
OVERALL LENGTH................................ 12'
DIST. BETWEEN HOUSINGS........................ 10'6"
OVERALL RATING................................ 1/2" x 12'
RATING BETWEEN HOUSINGS....................... 9/16" x 10'
RAM STROKE.................................... 7"
OPEN HEIGHT................................... 14.5"
CLOSED HEIGHT................................. 7.5"
MOTOR......................................... 25 HP
APPROX. WEIGHT................................ 46,000 LBS.

EQUIPPED WITH:
ELECTRIC FOOT SWITCH

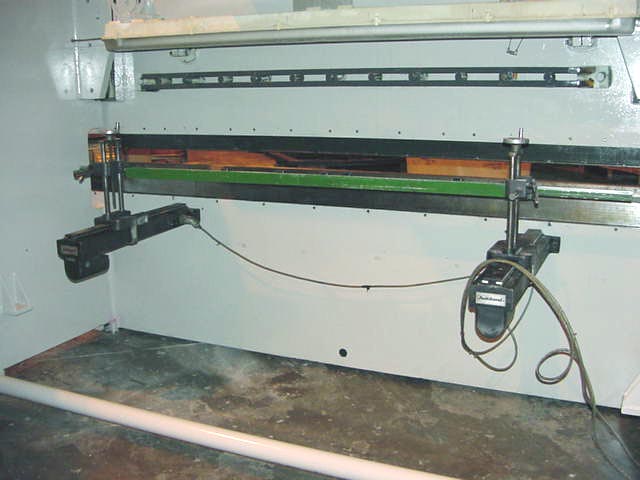

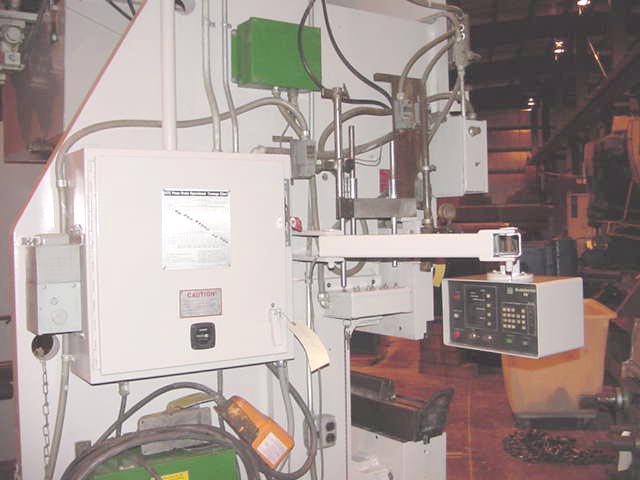

HURCO AUTOBEND IV CNC BACKGAUGE
12' LOWER DIE RAIL
FLUSH FLOOR MOUNT
