Specifications
Equipped With

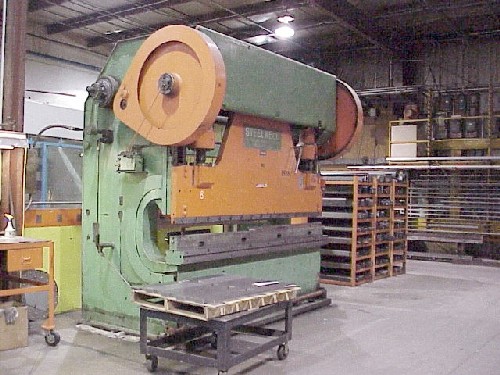

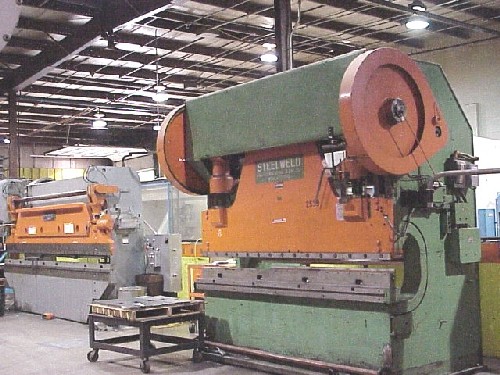

GENERAL SPECIFICATIONS:

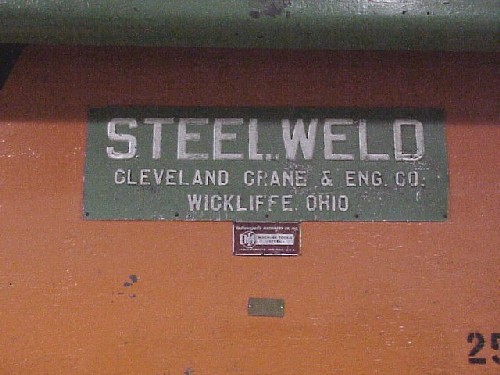

MANUFACTURER....................... STEELWELD
MODEL.............................. AI4-8
SERIAL #........................... P865
NEW APPROXIMATELY.................. 1946
CAPACITY........................... 300 TONS

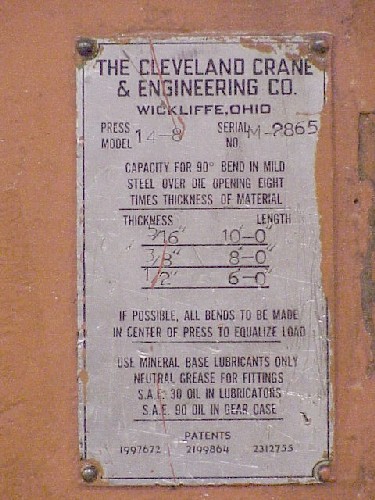

BENDING CAPACITY (MILD STEEL)...... 6'x1/2",8'x 3/8",10'x 5/16"
OVERALL LENGTH OF BED.............. 10'
DISTANCE BETWEEN HOUSINGS.......... 8'6"
WIDTH AT TOP OF BED................ 10"
HEIGHT OF BED...................... 38"
STROKE LENGTH...................... 4"
THROAT DEPTH....................... 18"
TONGUE SLOT IN BED AND RAM......... 1/4"W X 3/4"D
RAM ADJUSTMENT..................... 6"
SPEED.............................. 22 SPM
SHUT HEIGHT (SDAU)................. 14"
MOTOR.............................. 10 HP @ 1800 RPM
WEIGHT (APPROX.)................... 35,650 LBS.
DIMENSIONS (APPROX.)............... 12'L x 6'10"W x 10'10"H
EQUIPPED WITH:
AUTOMATIC PRESSURE LUBRICATION SYSTEM
RAM ADJUSTMENT DIGITAL INDICATORS
TWIN DISK FRICTION CLUTCHES
MAIN DRIVE GEAR IN OIL
FLUSH FLOOR DESIGN, NO PIT REQUIRED
