Specifications
Equipped With
GENERAL SPECIFICATIONS:

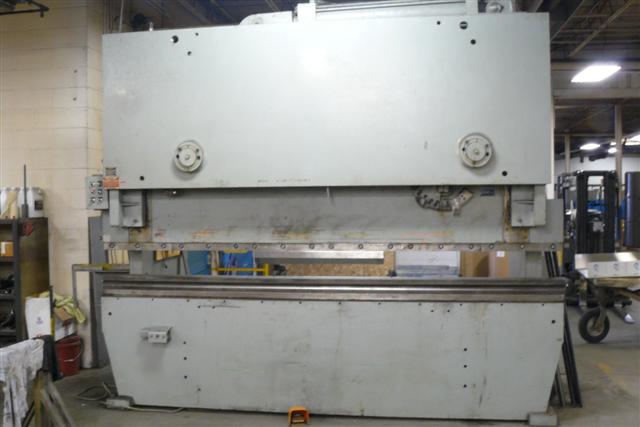

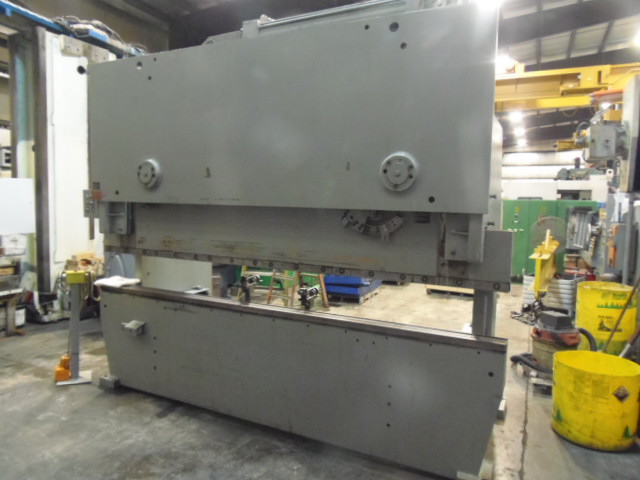

MANUFACTURER............................. HTC
MODEL.................................... 300M
SERIAL #................................. 480G1989
NEW APPROXIMATELY........................ 1980
TONNAGE CAPACITY......................... 300
OVERALL LENGTH........................... 12'
DIST. BETWEEN HOUSINGS................... 10'6"
OVERALL RATING........................... 1/2" x 12'
RATING BETWEEN HOUSINGS.................. 9/16" x 10'
RAM STROKE............................... 7"
OPEN HEIGHT.............................. 14.5"
CLOSED HEIGHT............................ 7.5"
MOTOR.................................... 25 HP
DIMENSIONS............................... 152 x 65 x 132 H”
APPROX. WEIGHT........................... 40,560 LBS.
EQUIPPED WITH:

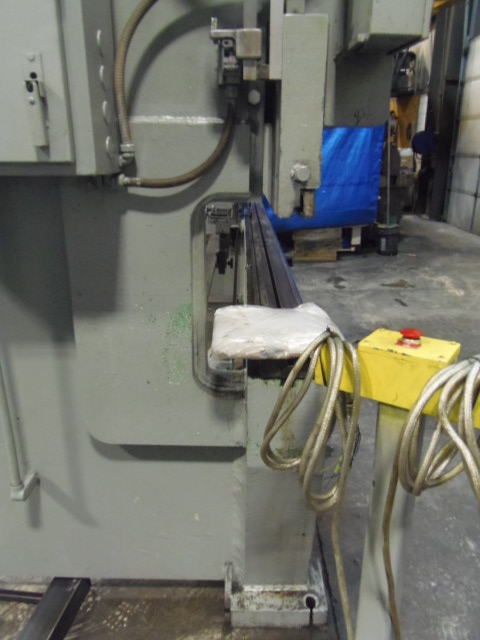

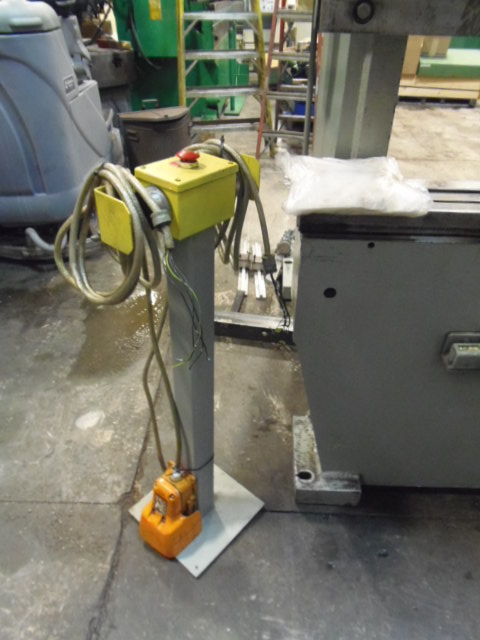

ELECTRIC FOOT SWITCH

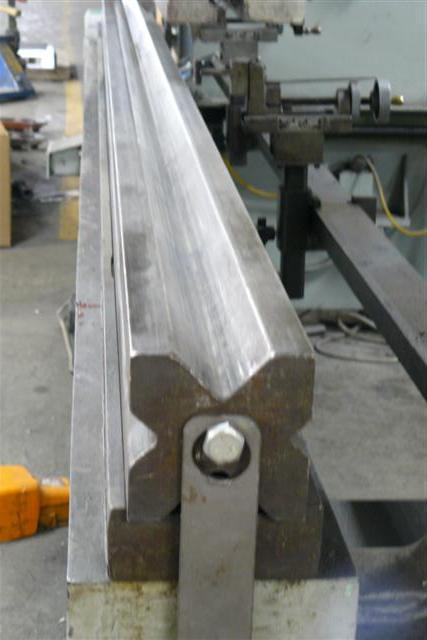

4 WAY PRESS BRAKE DIE WITH 1", 1.5", 2.5", AND 3" V'S

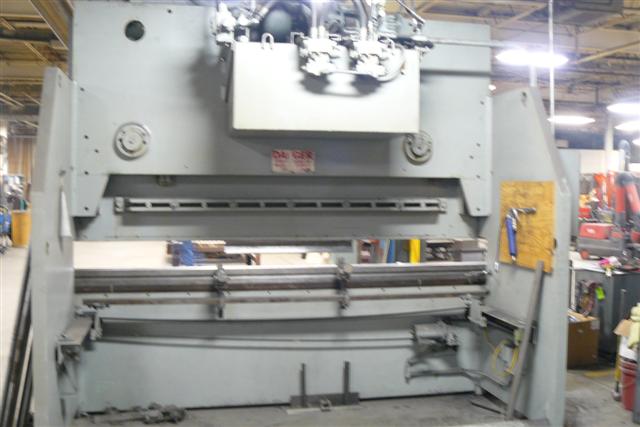

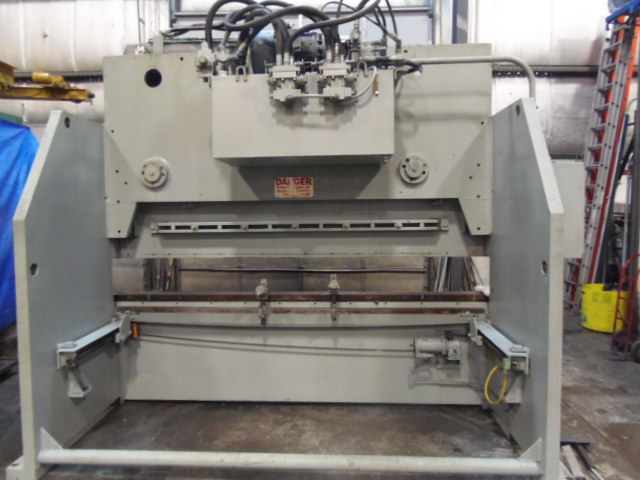

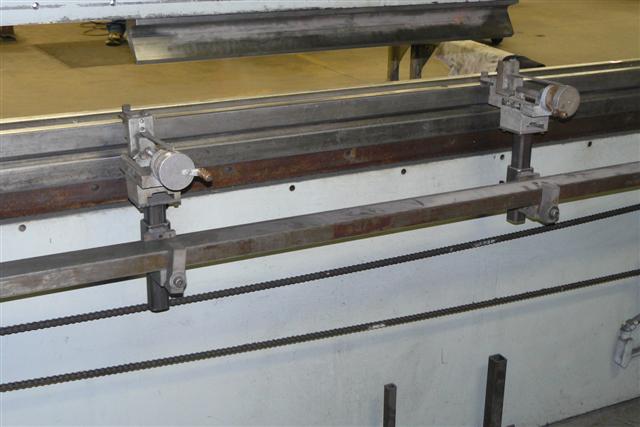

24" FRONT OPERATED POWER BACK GAUGE WITH ADJUSTABLE FINGERS
FLUSH FLOOR MOUNT
ELECTRICS: DUAL VOLTAGE MOTOR 230/460
CURRENTLY WIRED FOR 220V
SPECIFICATIONS SUBJECT TO VERIFICATION
