Specifications
Equipped With
SPECIFICATIONS:
MANUFACTURER............... MEUSER LATHE
MODEL...................... SUPERIOR
SERIAL#.................... 16280
YEAR MANUFACTURED.......... 1955
SWING OVERWAYS............. 30"
SWING OVER CROSS SLIDE..... 18"
SWING IN GAP............... 40"
GAP LENGTH................. 16"
CENTER DISTANCE............ 216"
SPINDLE SPEED.............. 16-1000 RPM
SPINDLE BORE............... 2 1/2"
WEIGHT..................... 12,800 LBS.
DIMENSIONS (APPROX)........ 23' X 64" X 58" H
EQUIPED WITH:

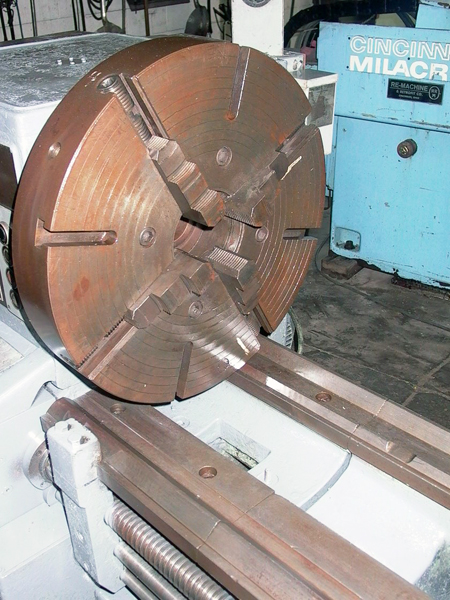

4 JAW CHUCK 24"
3 JAW CHUCK 18"

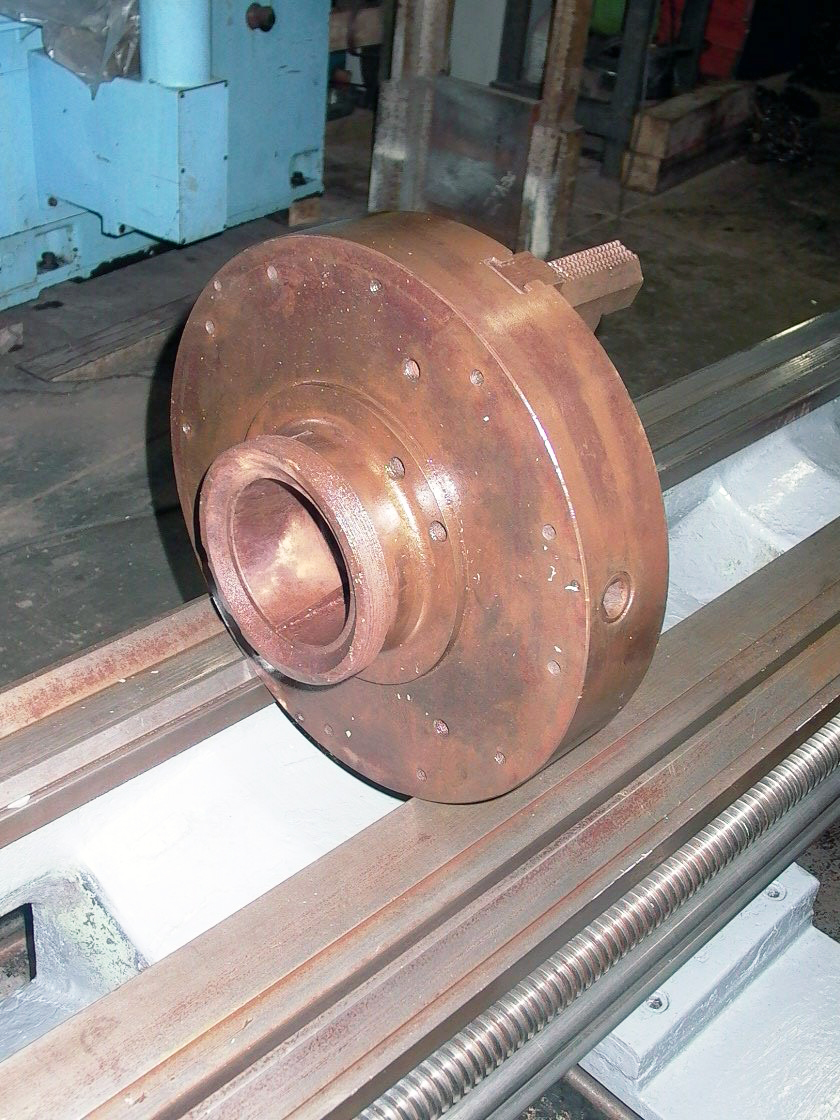

SCREW ON CHUCK SYSTEM

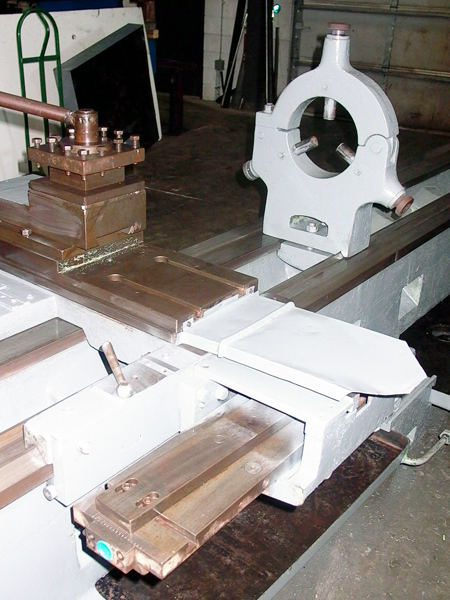

STEADY REST

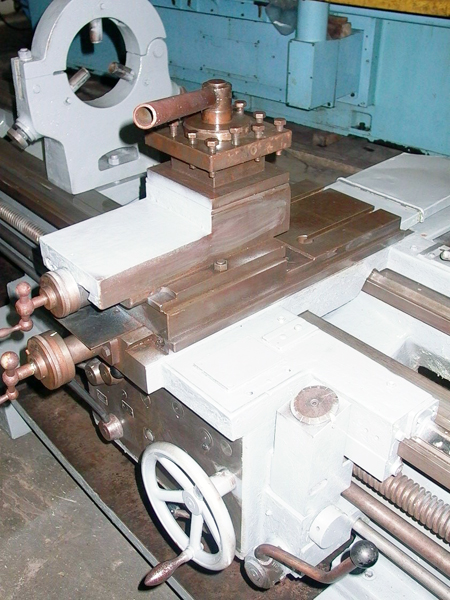

TOOL POST
TAPER ATTACH.
11 KW MOTOR
IN/MM THREADING
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
