Specifications
Equipped With
GENERAL SPECIFICATIONS:

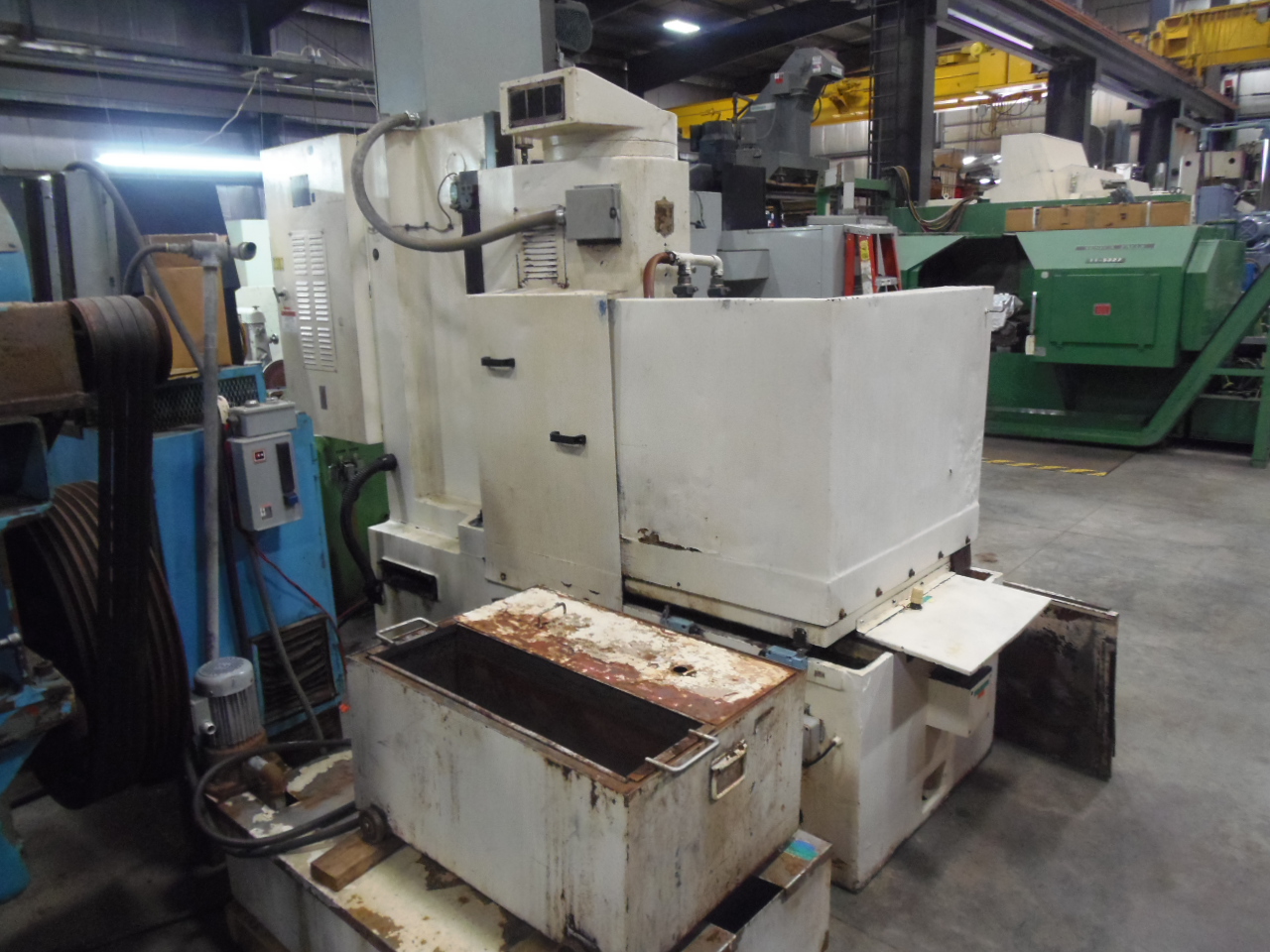

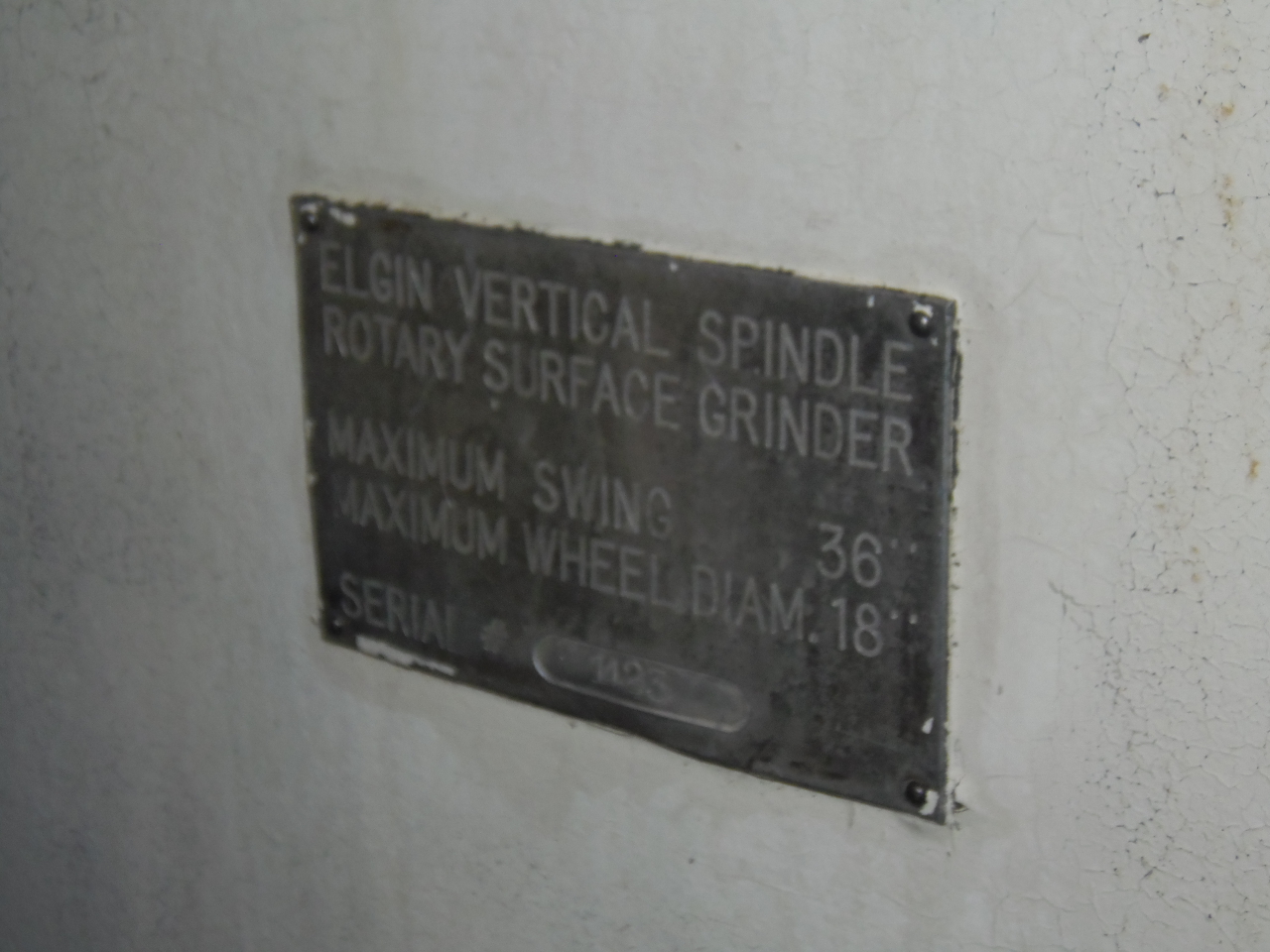

MANUFACTURER.................. ELGIN
MODEL......................... 36
SERIAL NUMBER................. 1423

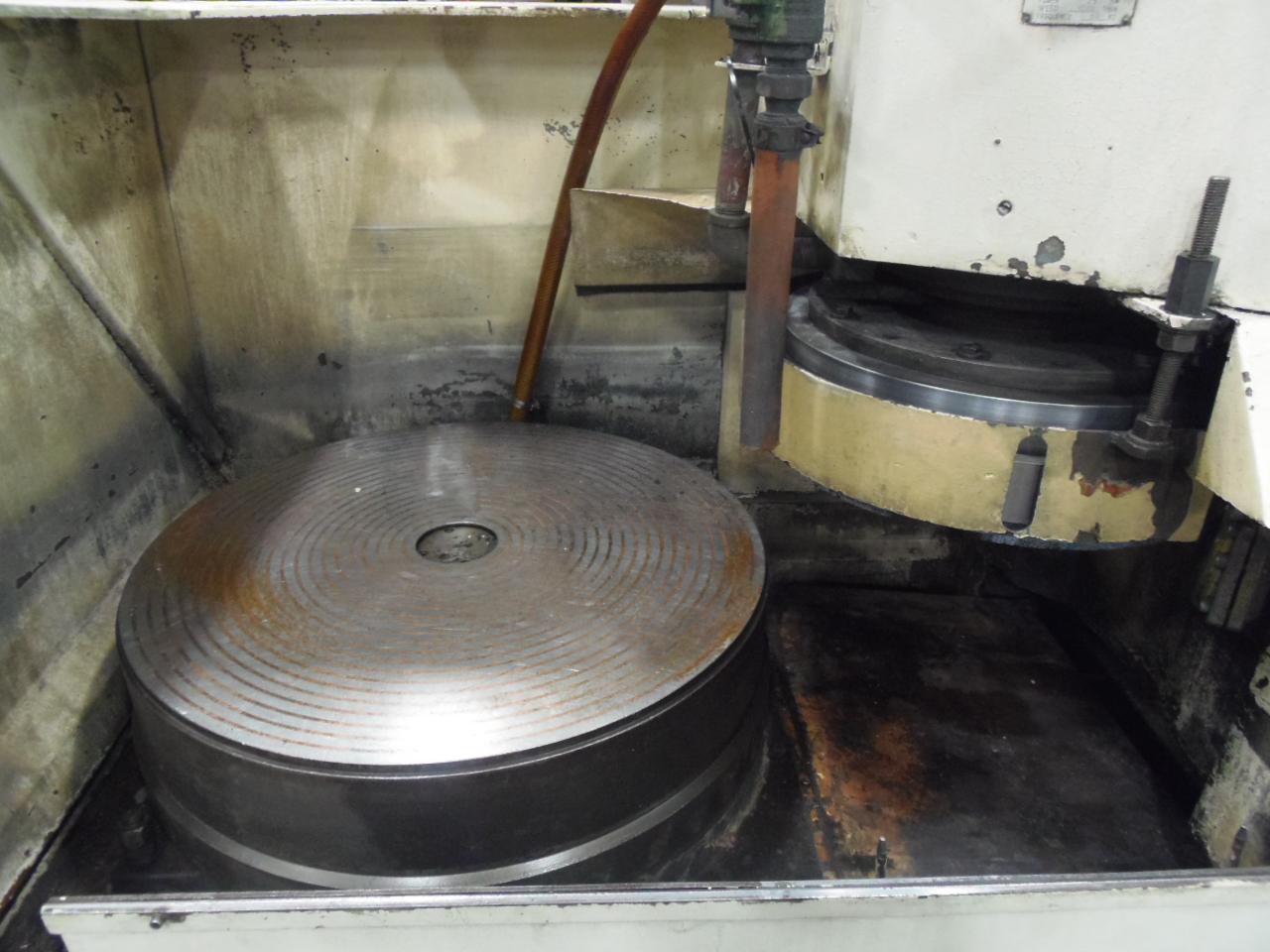

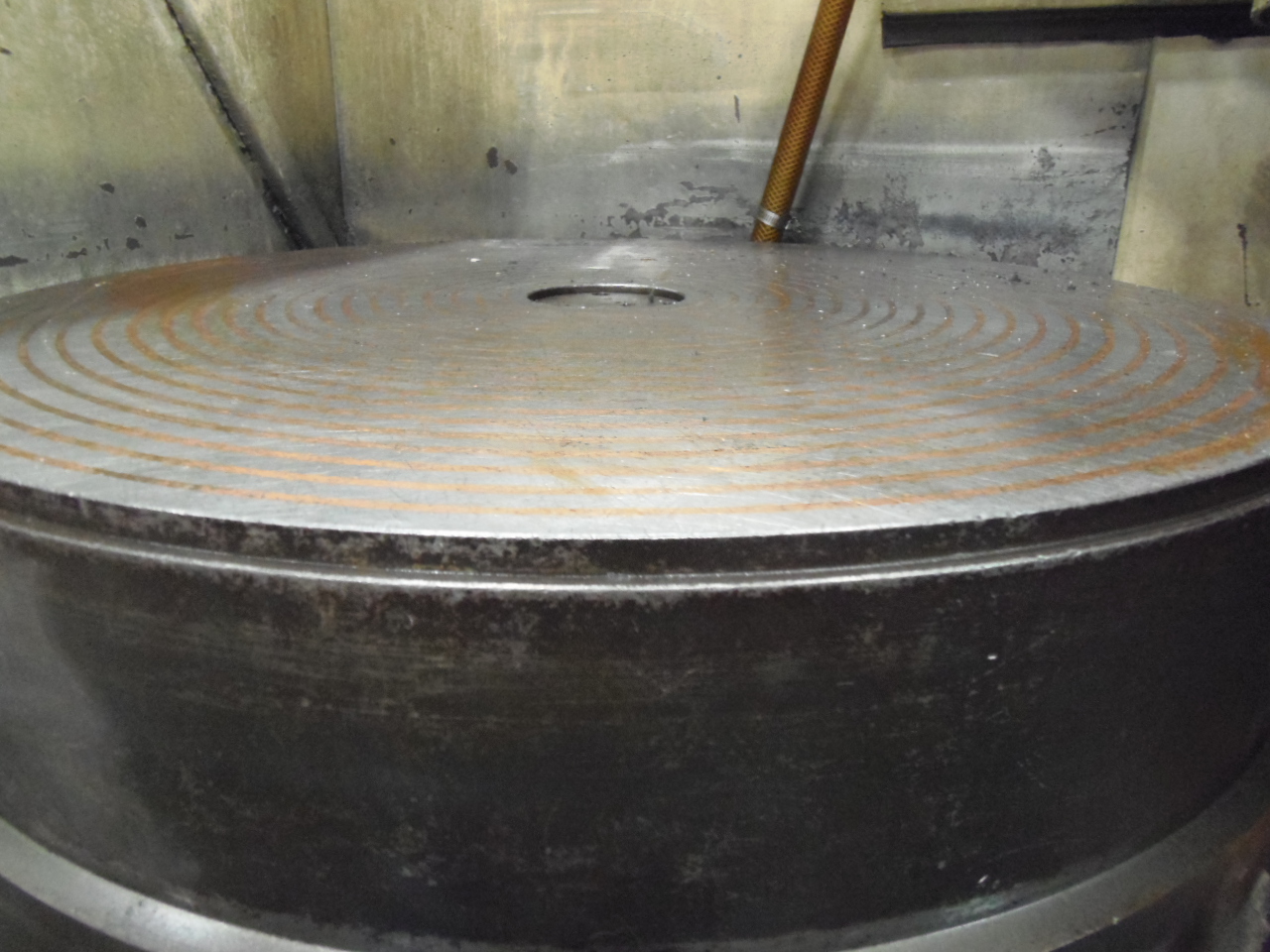

MAGNETIC CHUCK SIZE........... 30"
MAX. GRINDING HEIGHT.......... 12"
VERTICAL TRAVEL............... 16"

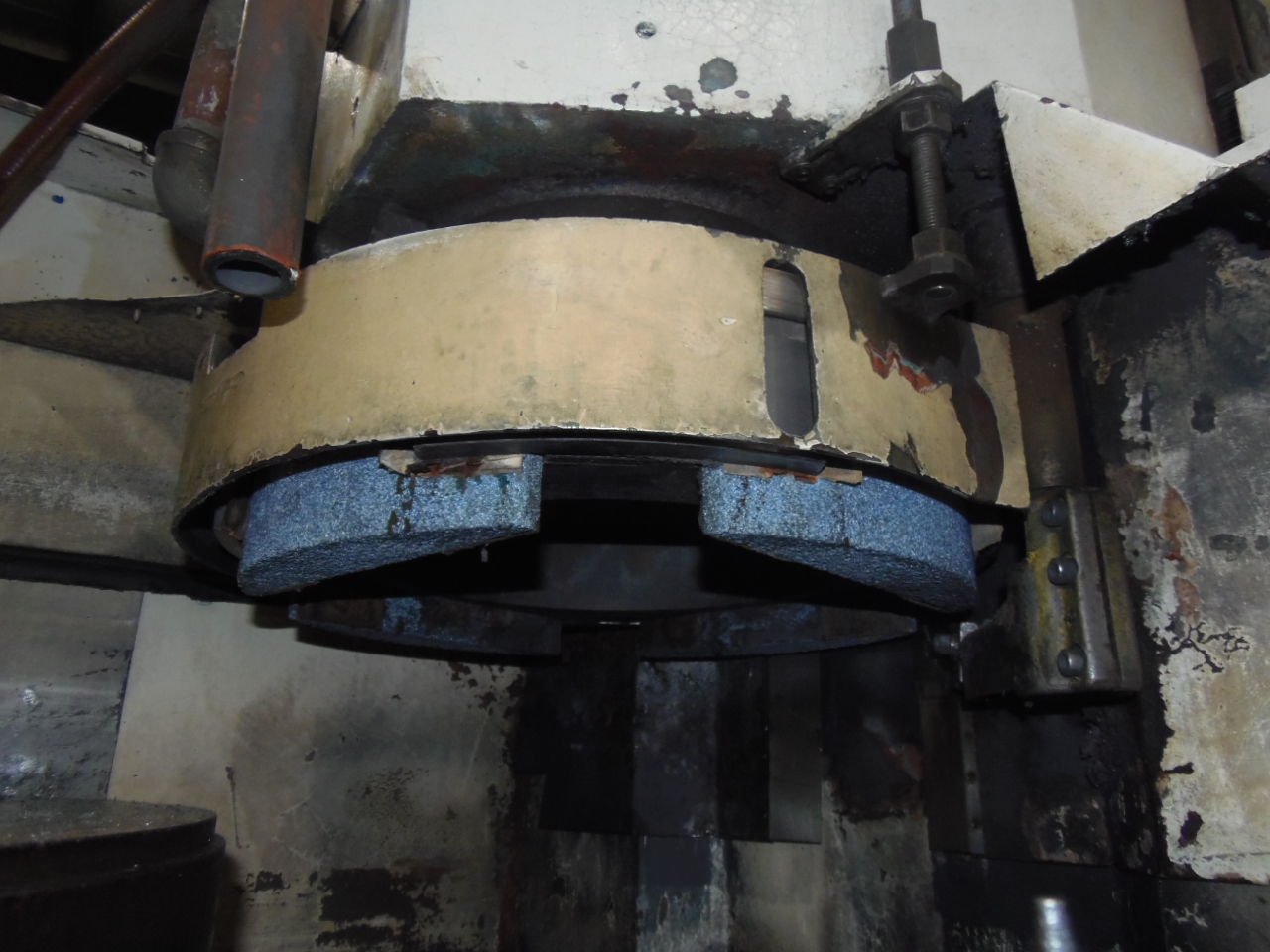

SEGMENTED WHEEL SIZE.......... 18"
GRINDING WHEEL SPEED.......... 1200 RPM
HORSEPOWER.................... 32
TABLE RPM..................... 15 AND 24
COOLANT SYSTEM................ YES
DEMAGNETIZING SYSTEM.......... YES
MACHINE WEIGHT................ 12,000 LBS
EQUIPPED WITH:

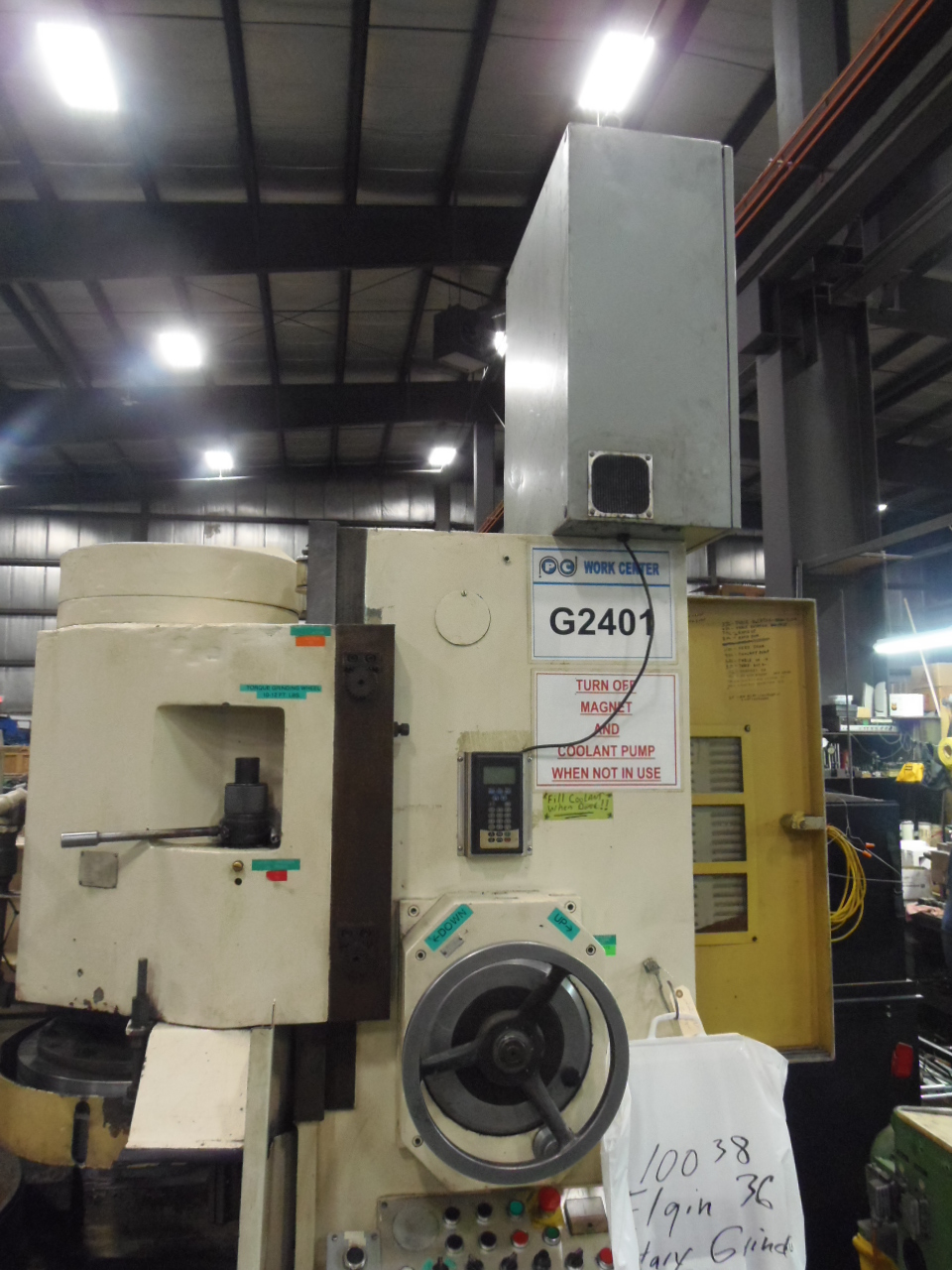

ALLEN BRADLEY POWERFLEX 700 SPINDLE DRIVE INSTALLED 2009
MANUAL AND AUTOMATIC FEED

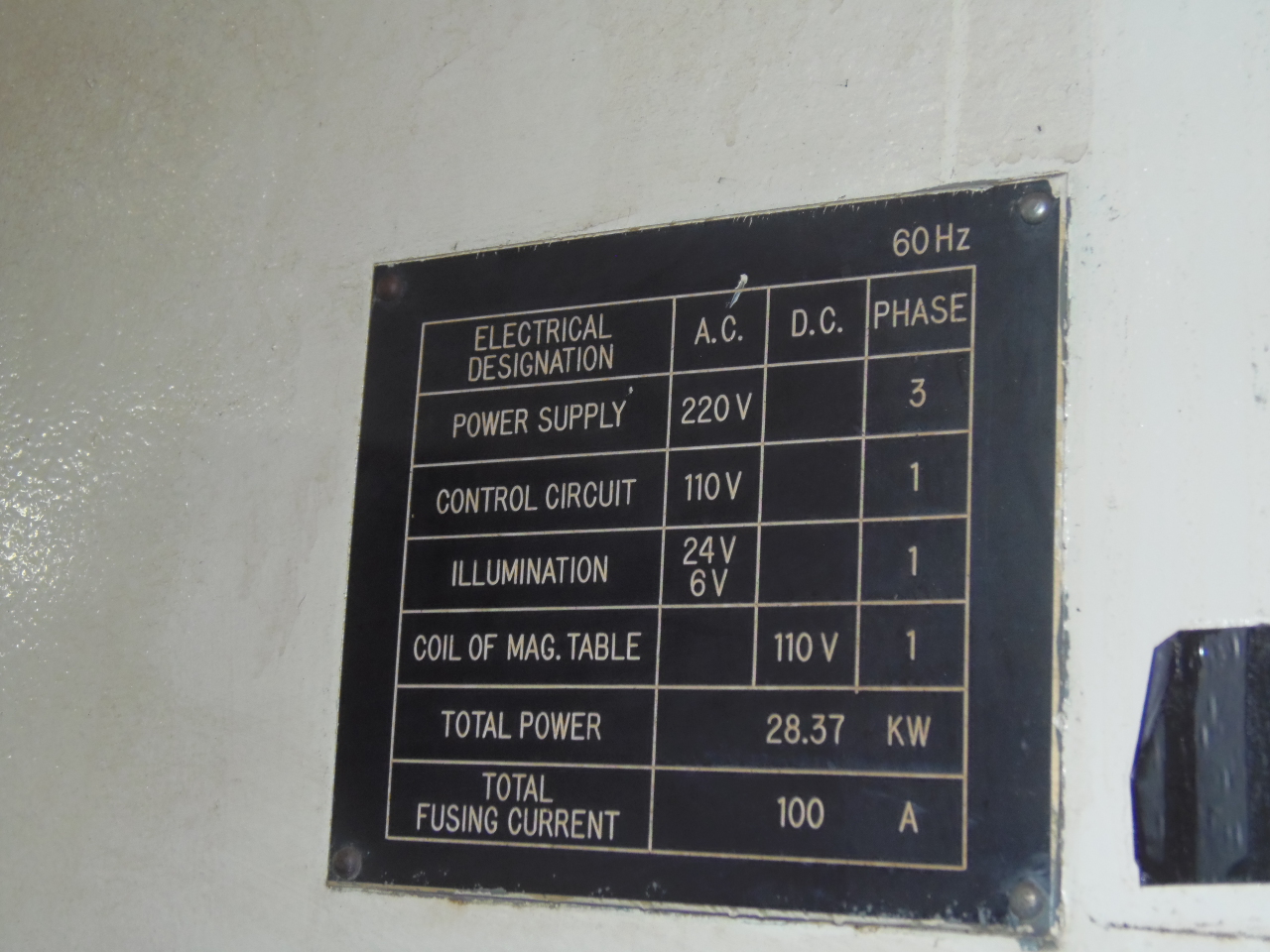

WIRED 220V
WHEEL DRESSER
OPERATION, ELECTRICAL, AND PARTS MANUAL
MACHINES WERE SOLD FROM LATE 80'S THRU MID 90'S
PARTS AVAILABLE FROM RIVERSIDE MACHINERY IN NEW YORK
