Specifications
Equipped With
GENERAL SPECIFICATIONS:

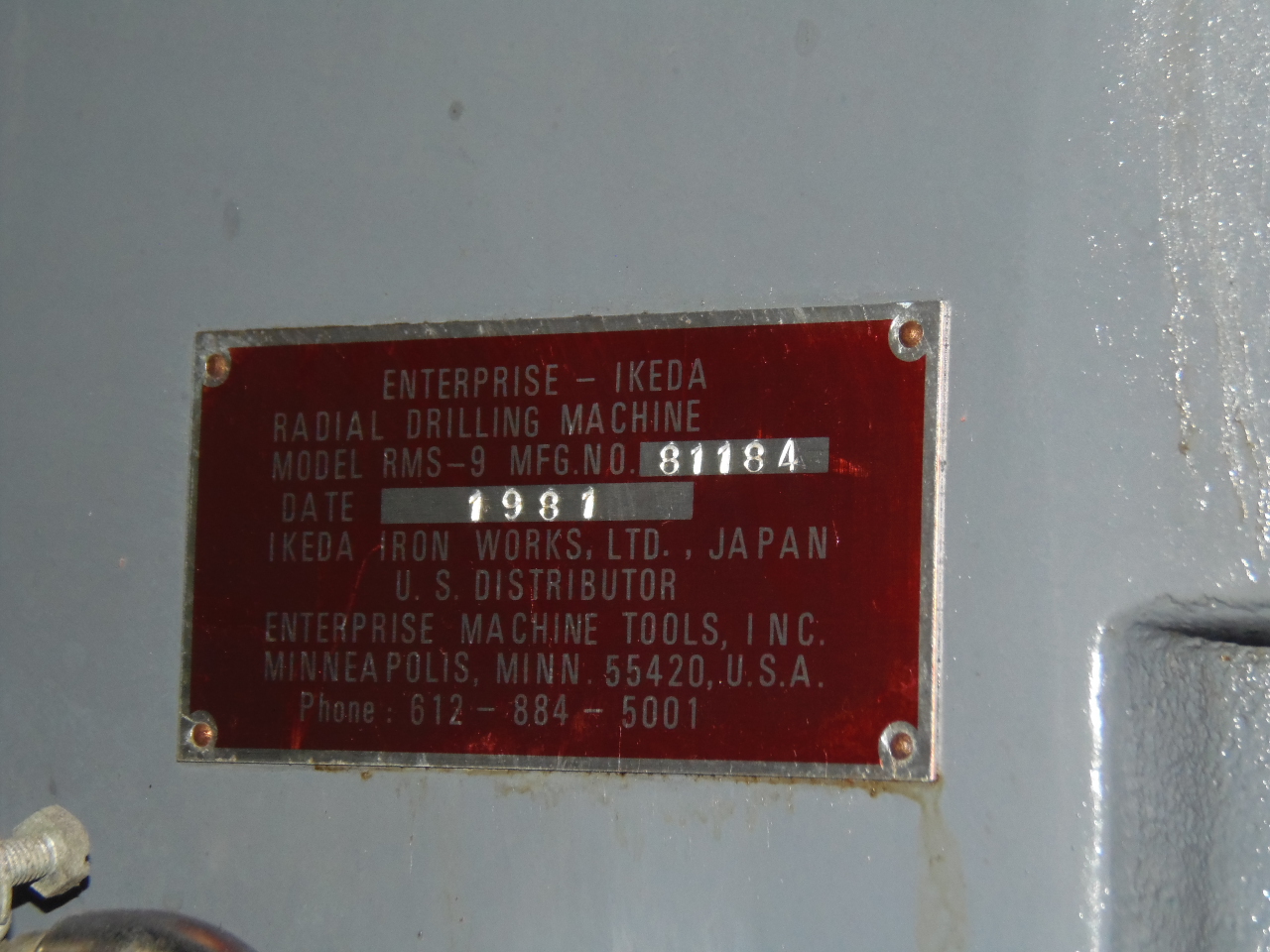

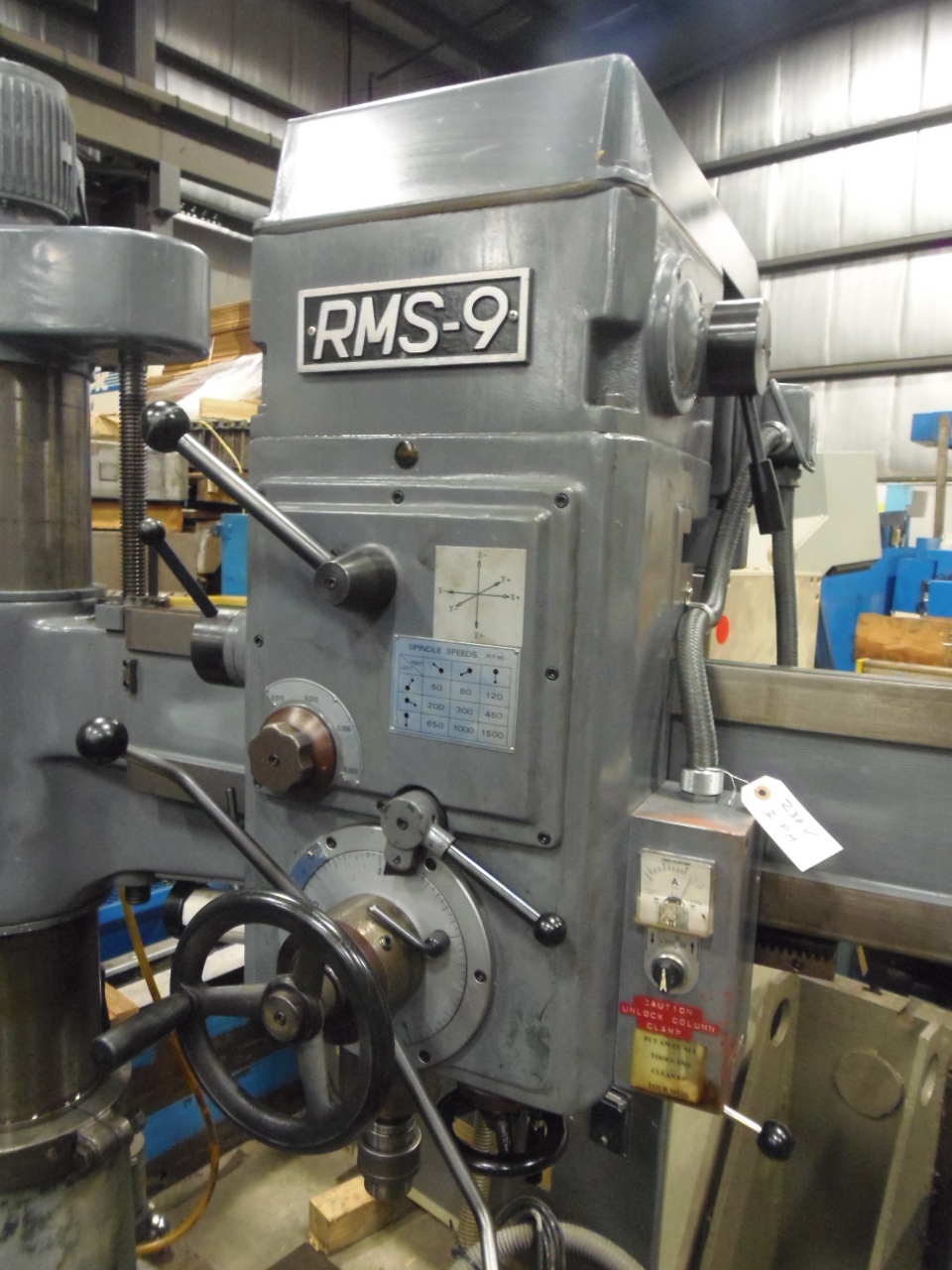

MANUFACTURER............................... IKEDA
NEW APPROXIMATELY.......................... 1981
SERIAL NUMBER.............................. 81184
ARM LENGTH................................. 36"

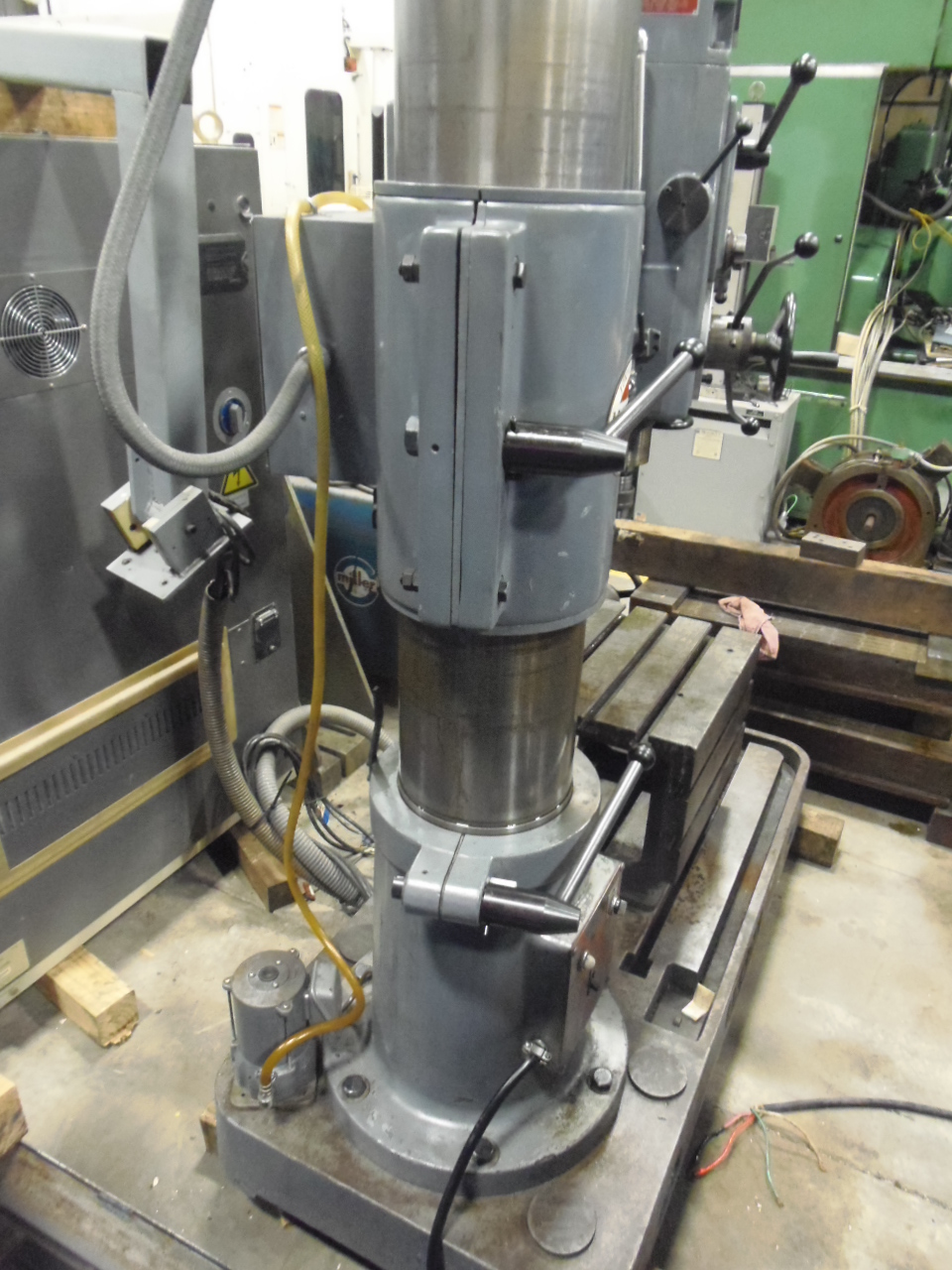

COLUMN DIAMETER............................ 9"
SPINDLE MOTOR.............................. 3 HP
WORKING AREA OF BASE....................... 37" x 23"

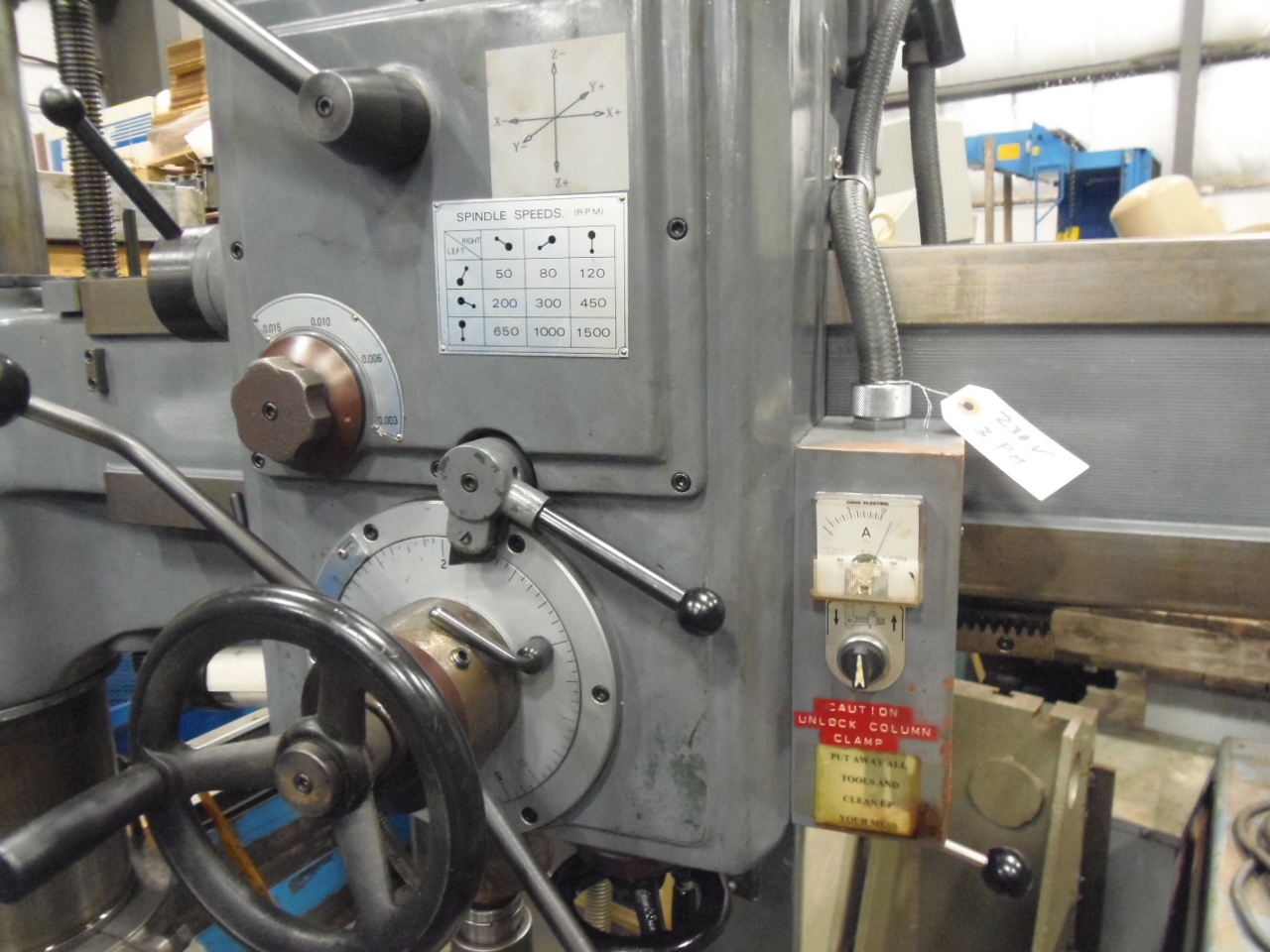

SPINDLE SPEED (9).......................... 50-1500 RPM
SPINDLE FEEDS.............................. .003" - .015" IPR
SPINDLE TAPER.............................. NO. 4 MT
DISTANCE SPINDLE TO BASE................... 11.5" MIN. TO 43" MAX.
DISTANCE SPINDLE TO COLUMN................. 11" MIN. TO 36" MAX.
SPINDLE TRAVEL............................. 9"
WEIGHT APPROXIMATELY....................... 4,000 LBS.
EQUIPPED WITH:

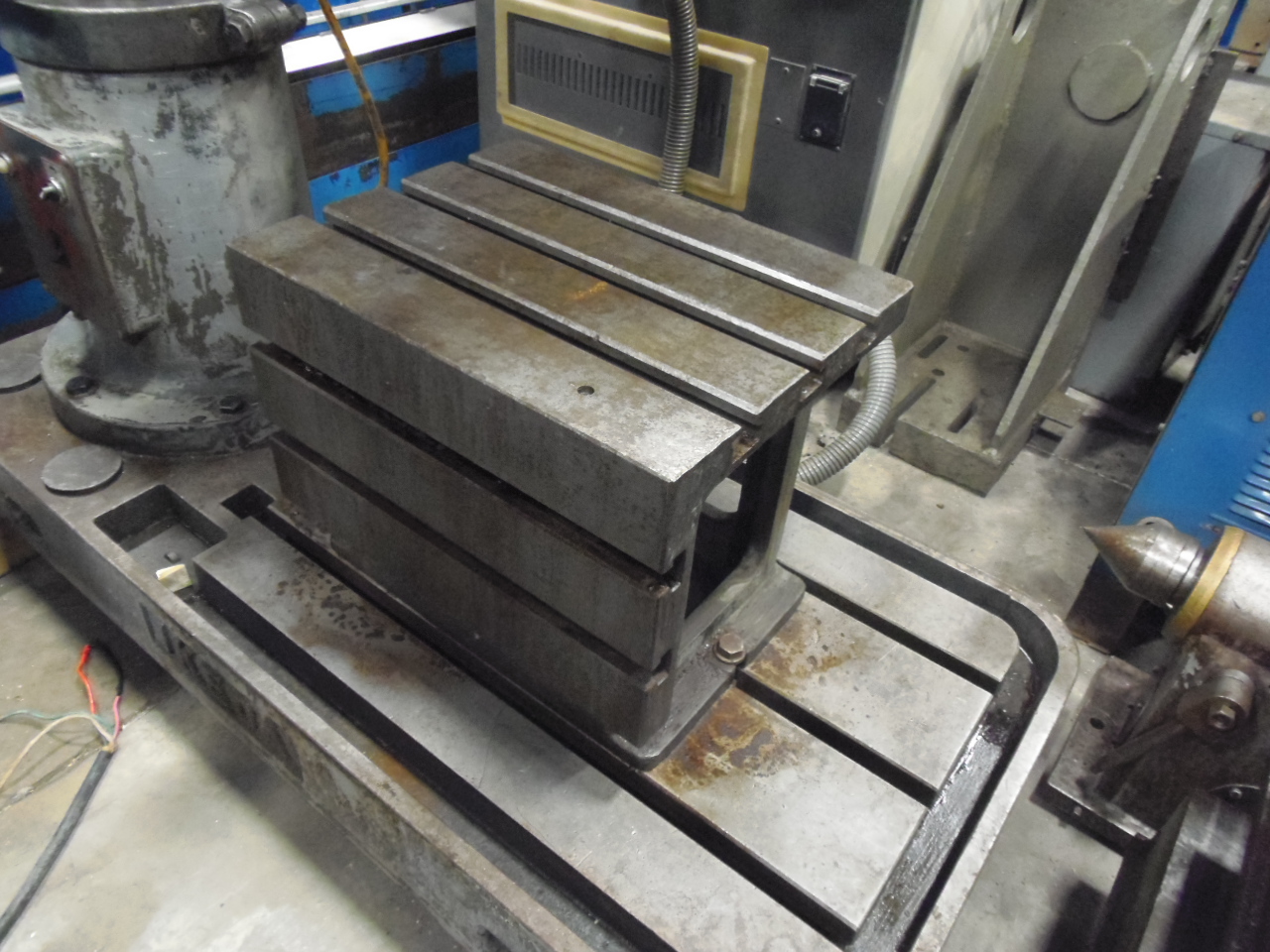

BOX TABLE
POWER ELEVATION
MAGIC CHUCK WITH QUICK CHANGE HOLDERS
CURRENTLY WIRED 220V/3/60
