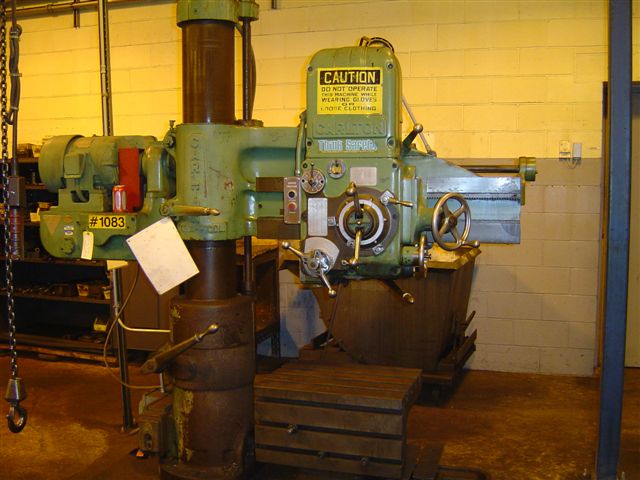

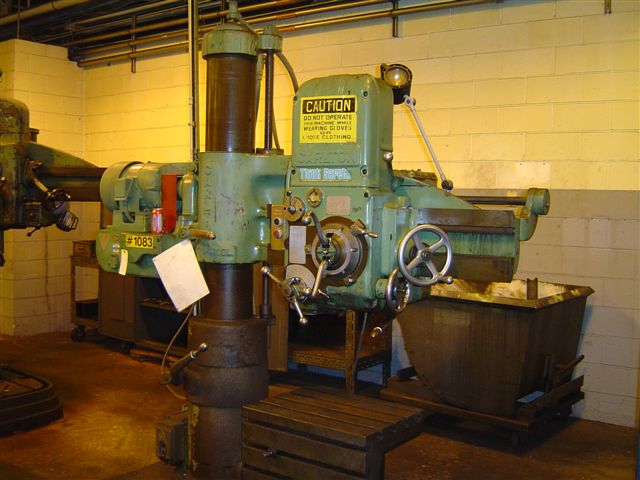

3' X 9" CARLTON, 1A, 1500 RPM, #4MT, PWR ELEV, PWR CLMP, 5 HP

GENERAL SPECIFICATIONS:
MANUFACTURER CARLTON
MODEL 1A
SERIAL# 1A3766
AGE APPROXIMATELY 1963
ARM LENGTH 3'
COLUMN DIAMETER 9"
AREA OF BASE 41" X 30"
SPINDLE SPEEDS 60 TO 1500 RPM
SPINDLE FEEDS .006 TO .025
SPINDLE STROKE 12"
SPINDLE DIAMETER 2.5"
SPINDLE TAPER #4MT
SPINDLE TO COLUMN 36" MAX / 9" MIN
SPINDLE TO BASE 53" MAX / 14" MIN

EQUIPPED WITH:
5 HORSE POWER MOTOR
COOLANT
POWER CLAMP
POWER ELEVATION
