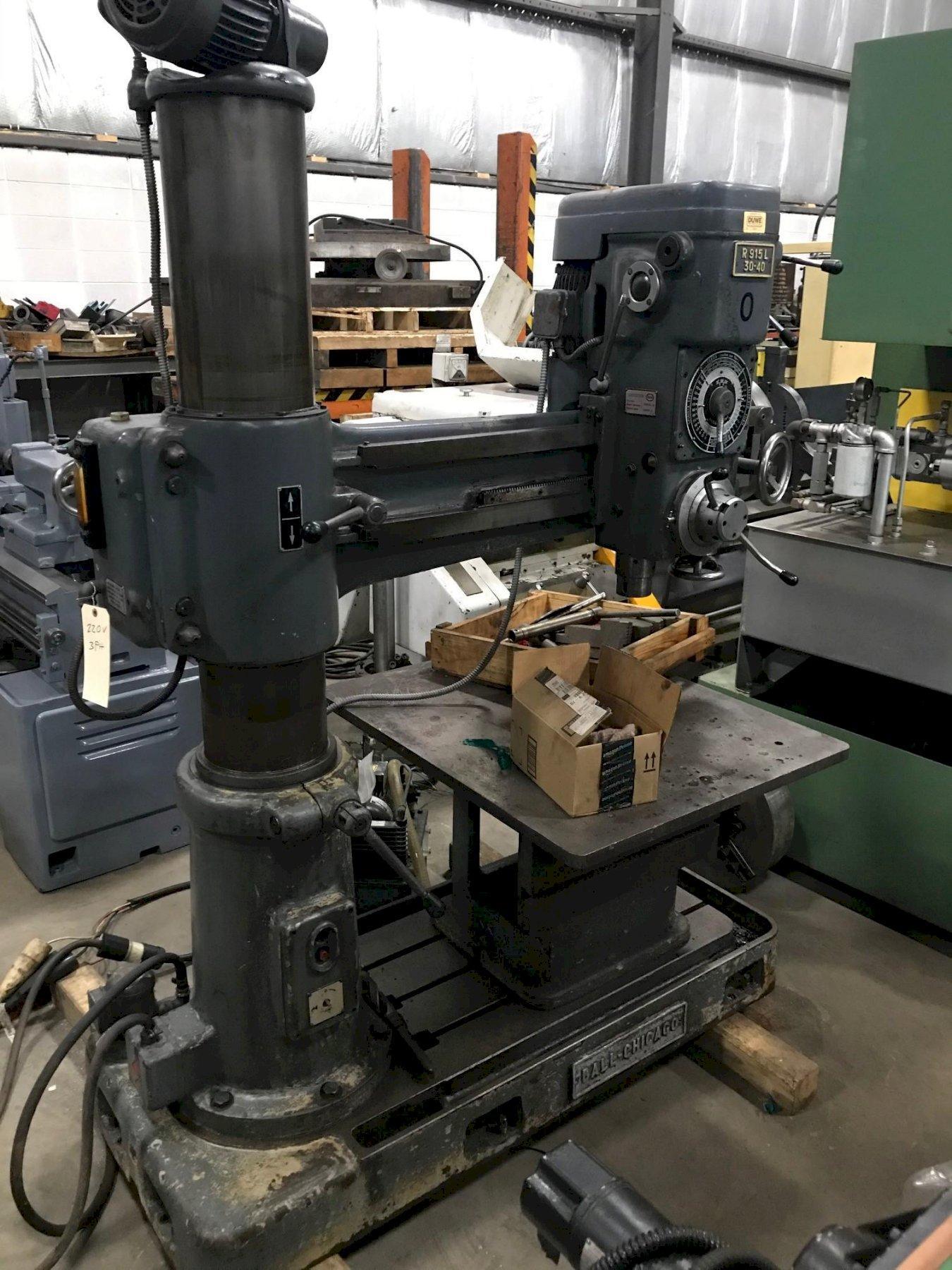

3' x 8" RADIAL DRILL. BALL CHICAGO

Brand
Not Specified

Model
R915L

Type
Drills, Radial

Stock #
10389

Condition
Used

Year

Request a Quote

Specifications

GENERAL SPECIFICATIONS:

MAKE........................ BALL-CHICAGO

MODEL....................... R915L

COLUMN DIAMETER............. 8"

SPINDLE CENTER TO COLUMN ... 36"

SPINDLE NOSE TO BASE........ 48"

SPINDLE TAPER............... 4MT

SPINDLE HP.................. 3
SPINDLE SPEEDS.............. 60 – 2000 RPM

SPINDLE FEEDS/REV........... 0.002, .004, .008 IPR

FLOOR SPACE................. 3' X 6'
MACHINE WEIGHT.............. 2,900 LBS

EQUIPPED WITH:

BOX TABLE 27" X 27" X 23" H

POWER FEED
