GENERAL SPECIFICATIONS:

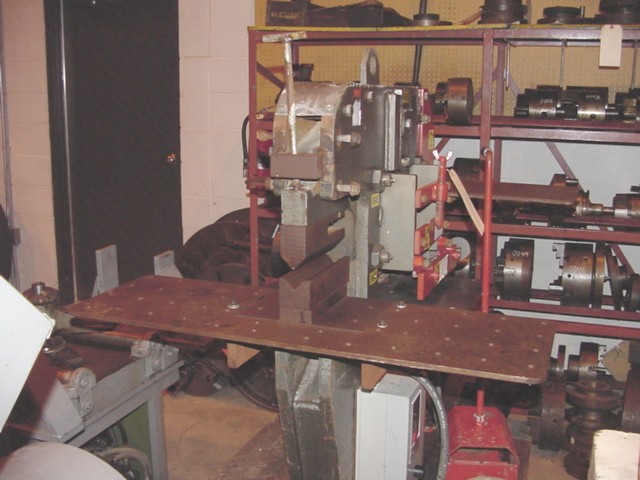

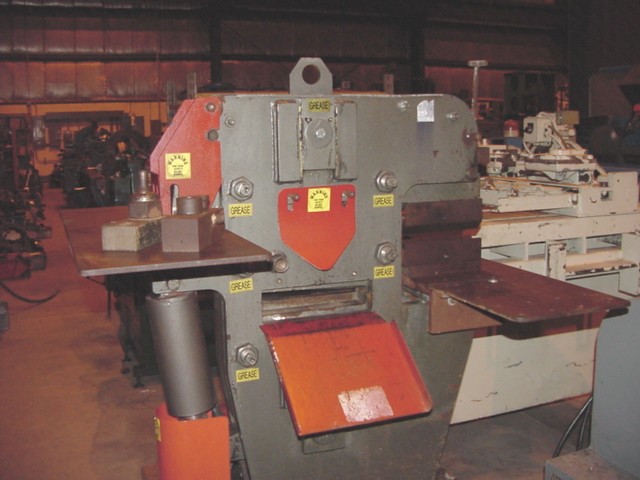

MANUFACTURER EDWARDS
MODEL IW-50
TYPE JAWS IV
NEW (APPROX.) 1994
SERIAL # 1792945
RATED CAPACITY 50 TON
THROAT 7"
MAX. CAPACITY 1" DIA.-5/8" PLATE
OPEN HEIGHT 7.15"
SHUT HEIGHT 6.06"
STROKE 1.09"
BAR SHEAR ROUNDS/SQUARES 1-1/8"
BAR SHEAR FLAT MAX. THICKNESS 3/4" x 4"
BAR SHEAR FLAT MAX. WIDTH 1/2" x 10"
ANGLE SHEAR MAX. SIZE 3" x 3" x 3/8"
HYDRAULIC SYSTEM 11 GALS/MIN.-2,200 PSI
MOTOR 3 HP
ELECTRICS 208/240V/3PH
DIMENSIONS (APPROX.) 30.25" x 30.25" x 62.5"H
WEIGHT (APPROX.) 1,325 LBS.
EQUIPPED WITH:

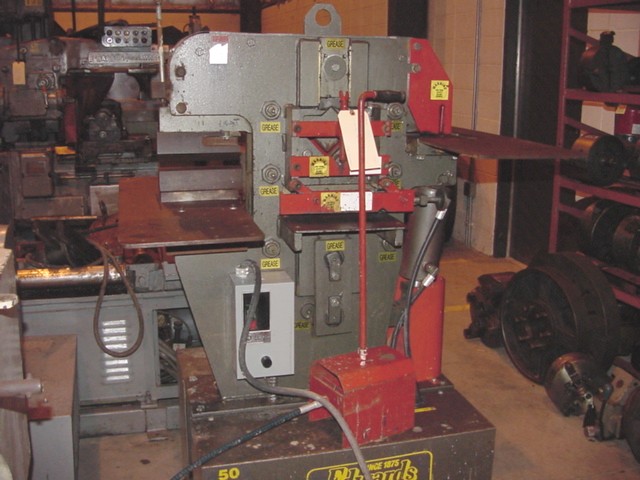

REMOTE FOOT PEDAL OPERATION
TRAY FOR CUT STOCK

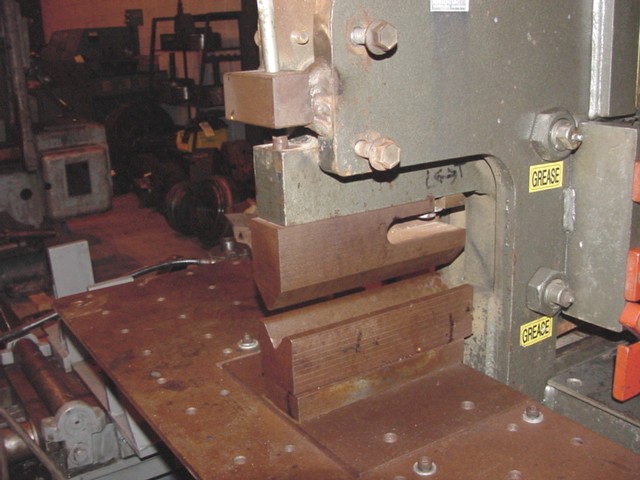

1 PUNCH & V-DIE
