Specifications
Equipped With
GENERAL SPECIFICIATIONS:
SERIAL # 54-W-5055
ANGLES-LEG OUT 3 X 3 X 3/8
MIN. DIAMETER 24
ANGLES-LEG IN 2-1/2 X 2-1/2 X 3/8
MIN. DIAMETER 30
SMALLEST ANGLE-LEG OUT 1-1/2 X 1-1/2 X 3/16
MIN. DIAMETER 13
SMALLEST ANGLE-LEG IN 1-1/2 X 1-1/2 X 3/16
MIN. DIAMTER 14
BEAMS ON FLANGES 5" - 12-1/4 LB.
MIN. DIAMTER 40
CHANNELS-FLANGES OUT 5" - 11-1/2 LB.
CHANNELS-FLANGES IN 5" - 9 LB.
MIN. DIAMETER 18
FLATS ON EDGE 3 X 5/8
MIN. DIAMETER 36
FLATS ON FLAT 6 X 1
MIN. DIAMETER 24
ROUNDS AND SQUARES 2 - 1-3/4
MIN. DIAMETER 24
COPPER TUBES - 12 GAUGE 3-1/2
COPPER TUBES - 16 GAUGE 4
STANDARD ST. PIPE 2
X HEAVY PIPE 2
XX HEAVY IPIPE 1-1/2
MIN. DIAMETER 20
CENTERS LOWER ROLLS 12
DIAMETER ANGLE ROLLS 11-3/8
RPM ROLLS 13-1/2
FEET PER MINUTE 40
SIZE MOTOR 10 HP
SPEED MOTOR 1200 RPM
DIAMETER UPPER SHAFT 4-3/4
DIAMETER LOWER SHAFTS 4
GEAR RATIO 130
DIMENSIONS 6'Lx5'Wx5'2"H
WEIGHT 5,600 LBS.
EQUIPPED WITH:

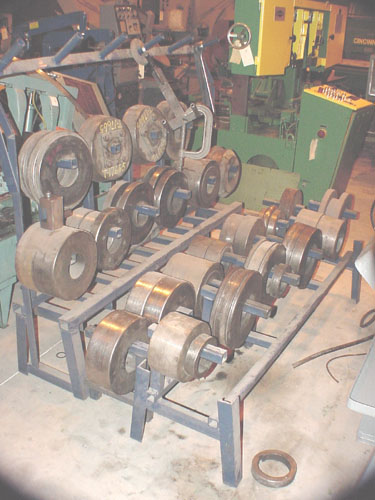

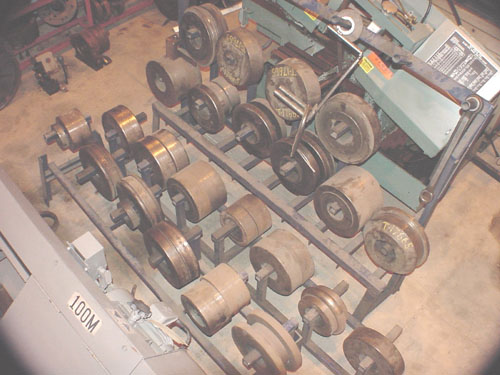

8 SET OF TOOLING WITH SPACERS
