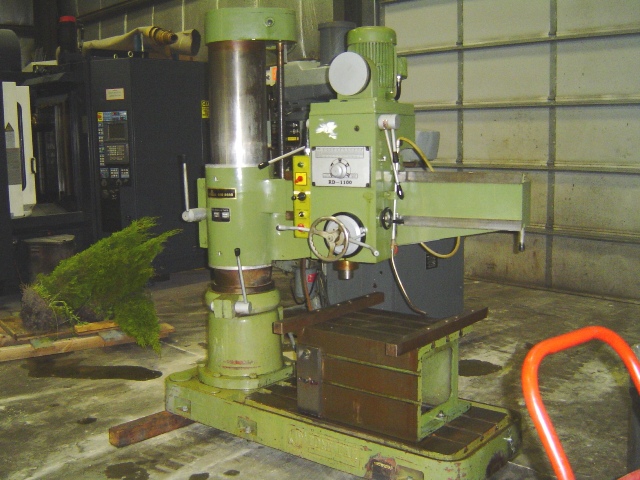

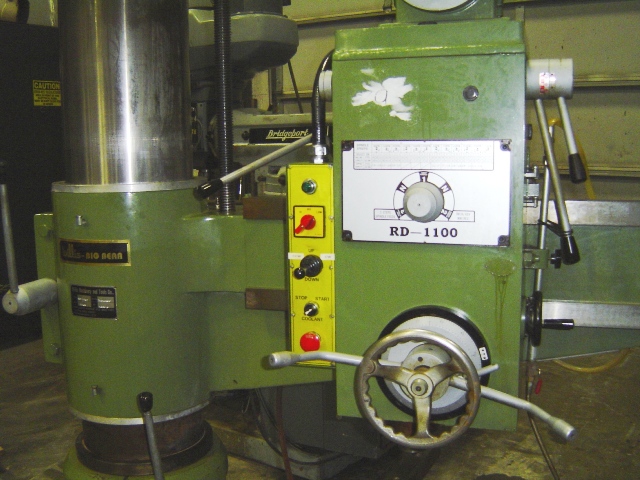

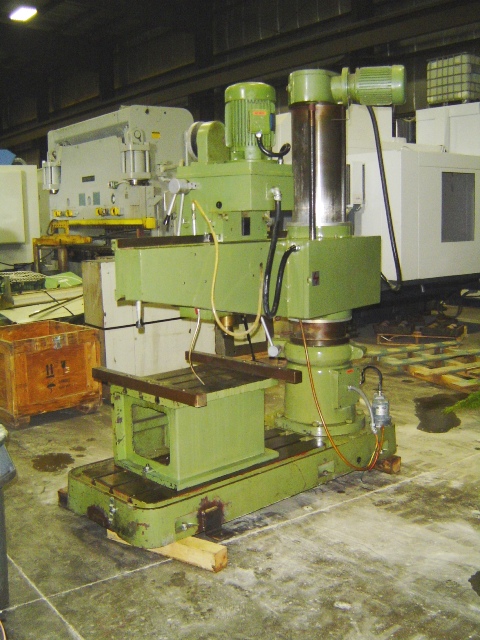

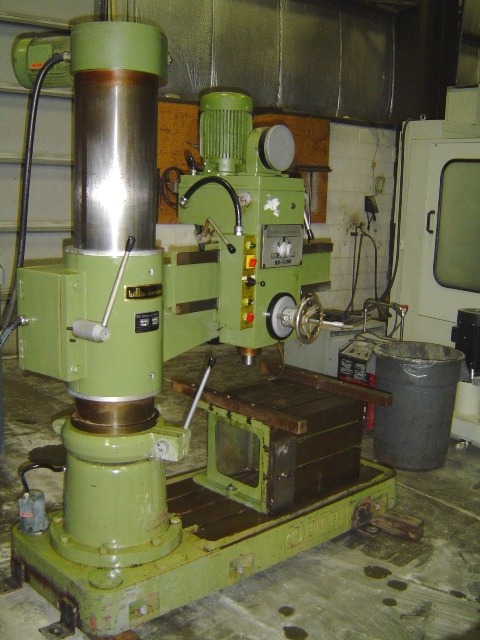

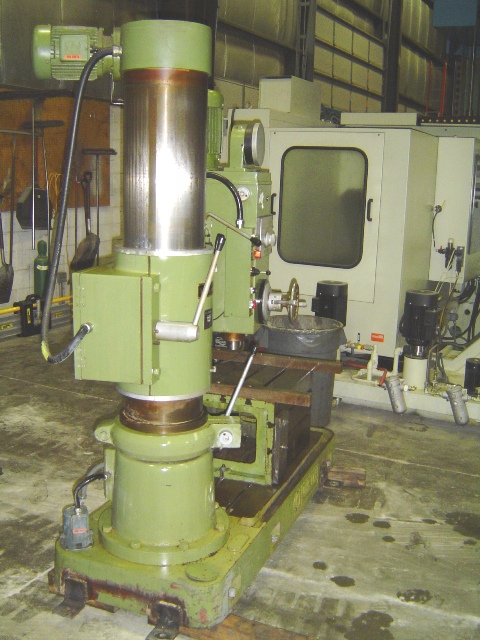

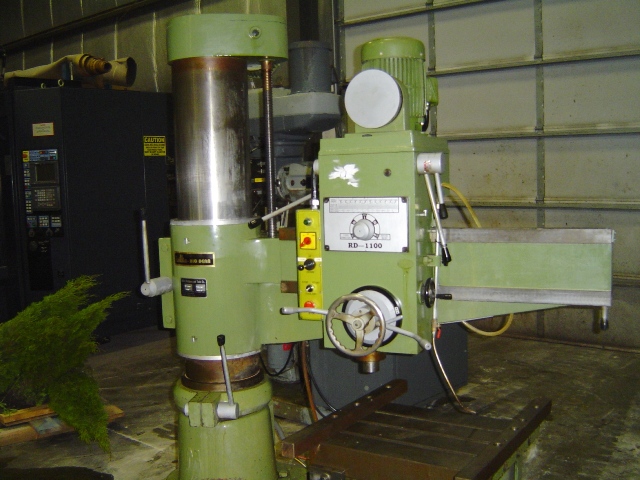

Specifications
Equipped With
SPECIFICATIONS:
COLUMN DIAMETER..............................11-3/4"
HORIZONTAL HEAD TRAVEL.......................32"
OVERALL HEIGHT (FLOOR TO TOP OF COLUMN)......86"
SPINDLE STROKE...............................9-1/2"
SPINDLE SPEED................................(12)-44-1500
SPINDLE HP...................................5
DRILLING CAPACITY............................1-3/4"
MAX. DISTANCE SPINDLE CENTER TO COLUMN.......45"
MAX. DISTANCE SPINDLE NOSE TO BASE...........48"
BASE DIMENSIONS..............................28" X 72" X 7"
SPINDLE TAPER................................MT #4
SPINDLE FEEDS................................(3)0.002-0.006 IPR
BOX TABLE..................................25-3/4 X 19-3/4 X 16"
WORK LIGHT
COOLANT PUMP WITH RESERVOIR IN THE BASE
ARM ELEVATING MOTOR........................2 HP
EMERGENCY STOP, LOW VOLTAGE CONTROLS
NET WEIGHT.................................4600 LBS
DRILLING CAP. IN STEEL.....................1-3/4"
DRILLING CAP. IN CAST IRON.................2-1/8"
COLUMN DIA.................................11-3/4"
MAX. DISTANCE COLUMN TO SPINDLE CENTER.....45"
MIN. DISTANCE COLUMN TO SPINDLE CENTER.....13"
HORIZ. TRAVEL OF HEAD......................32"
MAX. DISTANCE FROM SPINDLE TO BASE.........48"
MIN. DISTANCE FROM SPINDLE TO BASE.........28"
BOX TABLE, DIMENSIONS,...................LxWxH 25-3/4X19-3/4X16"
SPINDLE TAPER.............................MT #4
QUILL TRAVEL...............................9-1/2"
SPINDLE SPEEDS.............................(12) 44-1500
FEED RATES IPR.............................(3) 0.002-0.006
SPINDLE....................................HP 5
ELEVATING MOTOR............................HP 2
COOLANT PUMP...............................HP 1/8
