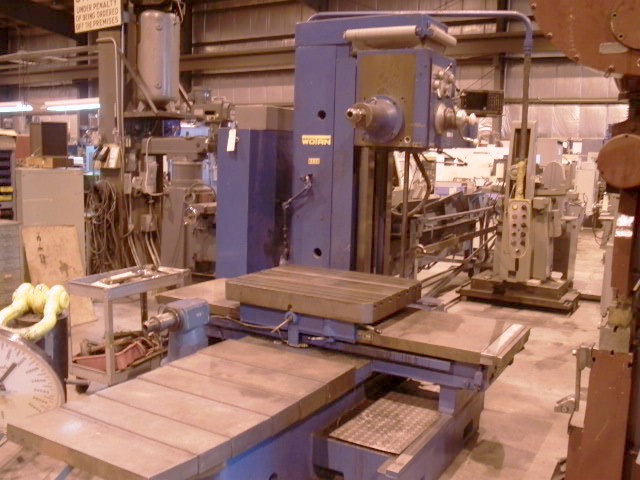

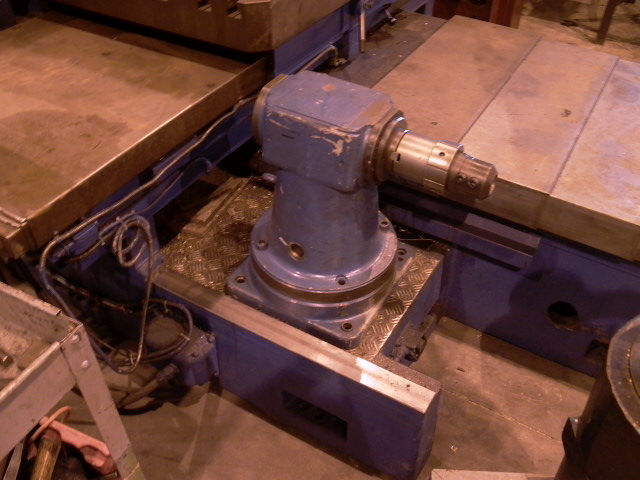

3" WOTAN B-85, 35 x 39 ROTARY TABLE,RIGHT ANGLE ATTACH., 1000 RPM

GENERAL SPECIFICATIONS:
MANUFACTURER WOTAN
MODEL B-85
SPINDLE DIAMETER 3.2"
SPINDLE TAPER MT5
SPINDLE TRAVEL 27.75"
VERTICAL HEADSTOCK TRAVEL 41"
TABLE SIZE, ROTARY 35" X 39"
CROSS TABLE TRAVEL 45"
LONGITUDINAL TRAVEL 45"
BED WIDTH OVER SLIDEWAYS 31.5"
SPINDLE SPEED RANGE (30) 9 - 1000 RPM
RAPID TRAVERSE RATE 95 IPM
SPINDLE MOTOR 10 HP
DIMENSIONS (APPROX.) 90"FB x 168"LR x 108"H
WEIGHT (APPROX.) 15,000 LBS

EQUIPPED WITH:
BUILT-IN ROTARY TABLE

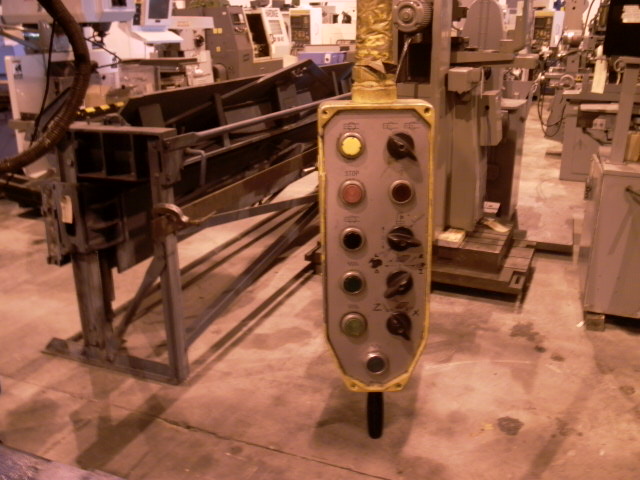

PENDANT CONTROL
SPINDLE SUPPORT
QUICK CHANGE TOOLHOLDER

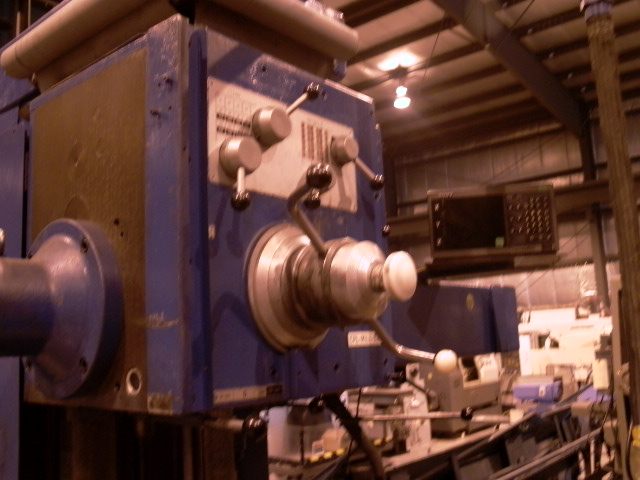

2 AXIS SONY DIDGITAL READOUT
