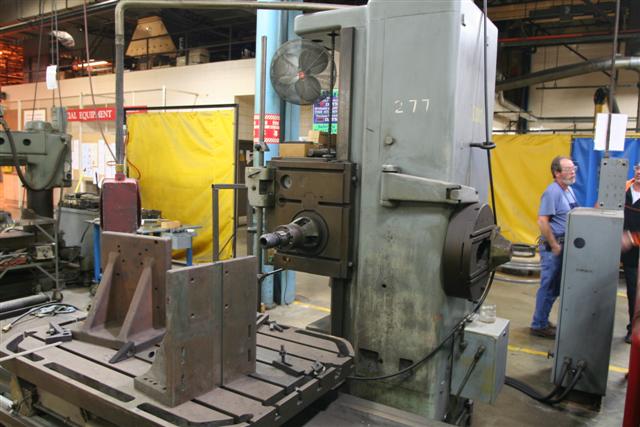

3" SUPERMILL AL76, 36 X 48 TABLE, 80" X 37" X 43" VERT., FACING HEAD, RIGHT ANGLE HEAD, TAILSTOCK, THREADING

GENERAL SPECIFICATIONS:
MANUFACTURER SUPERMILL
MODEL AL76
SERIAL 5939
SPINDLE SIZE 3"
SPINDLE TRAVEL 29"
FACING SPINDLE 5.12"
MAX RPM 1450
FEED RATES .0012-.32 IPR
SPINDLE TAPER MT #5
TABLE SIZE 36" x 48"(914 X 1220)
TABLE TRAVEL (LEFT/RIGHT) 80" (2032)
VERTICAL 43" (1092)
IN/OUT 37" (940)
DISTANCE SPINDLE FACE TO OUTBOARD SUPPORT 75"
HORSEPOWER 14.2
MACHINE HEIGHT 102"
MACHINE WEIGHT 36,000 LBS

EQUIPPED WITH:
POWER ROTARY TABLE
FACING HEAD
OUTBOARD SUPPORT (TAILSTOCK)
RIGHT ANGLE ATTACHMENT
THREADING
RAPIDS (72 IPM)
