Specifications
Equipped With
GENERAL SPECIFICATIONS:

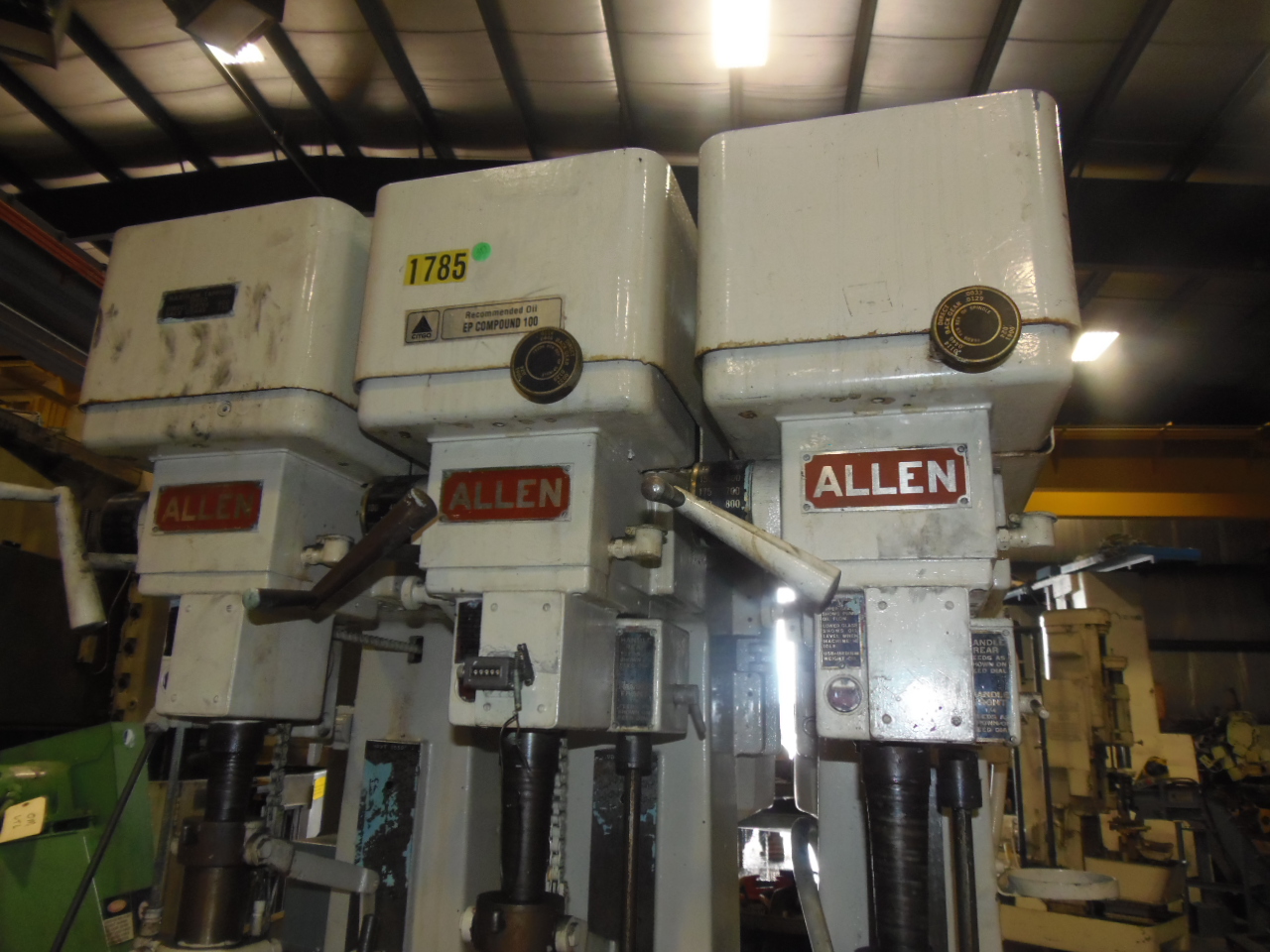

MANUFACTURER...................... ALLEN
SERIAL NUMBER
A SPINDLE...................... MADVW 35590A
B SPINDLE...................... MADVW 35590B
C SPINDLE...................... MADVT 35590C
MODEL............................. 2 1/2
SPINDLE DIAMETER.................. 2 1/2"
NEW............................... 1980

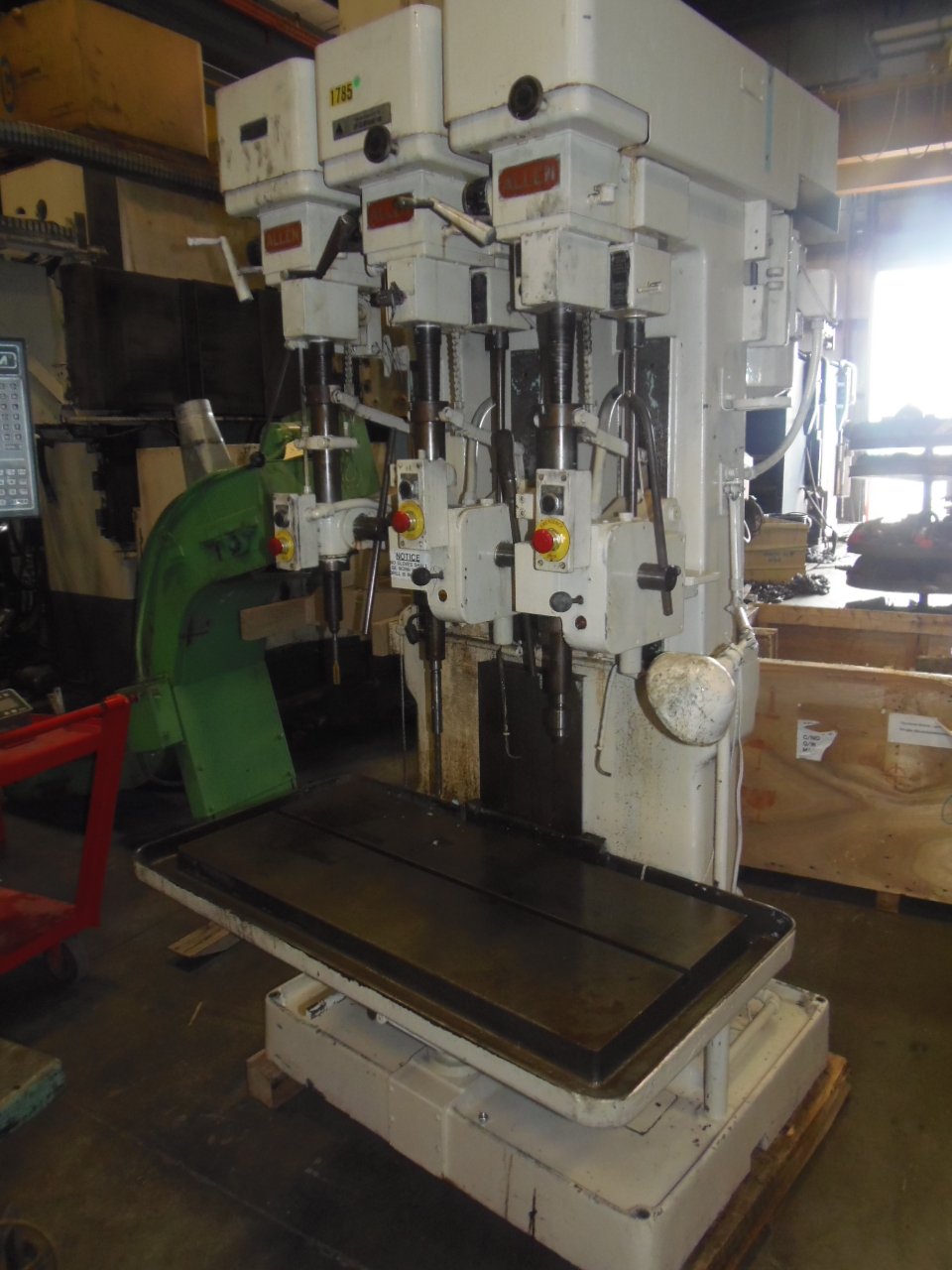

NUMBER OF SPINDLES................ 3
RATED CAPACITY.................... 1.5" IN CAST IRON
STROKE OF SPINDLES................ 8"
VERTICAL ADJUSTMENT OF HEADS...... 15"
TAPER OF SPINDLES................. 3 MORSE

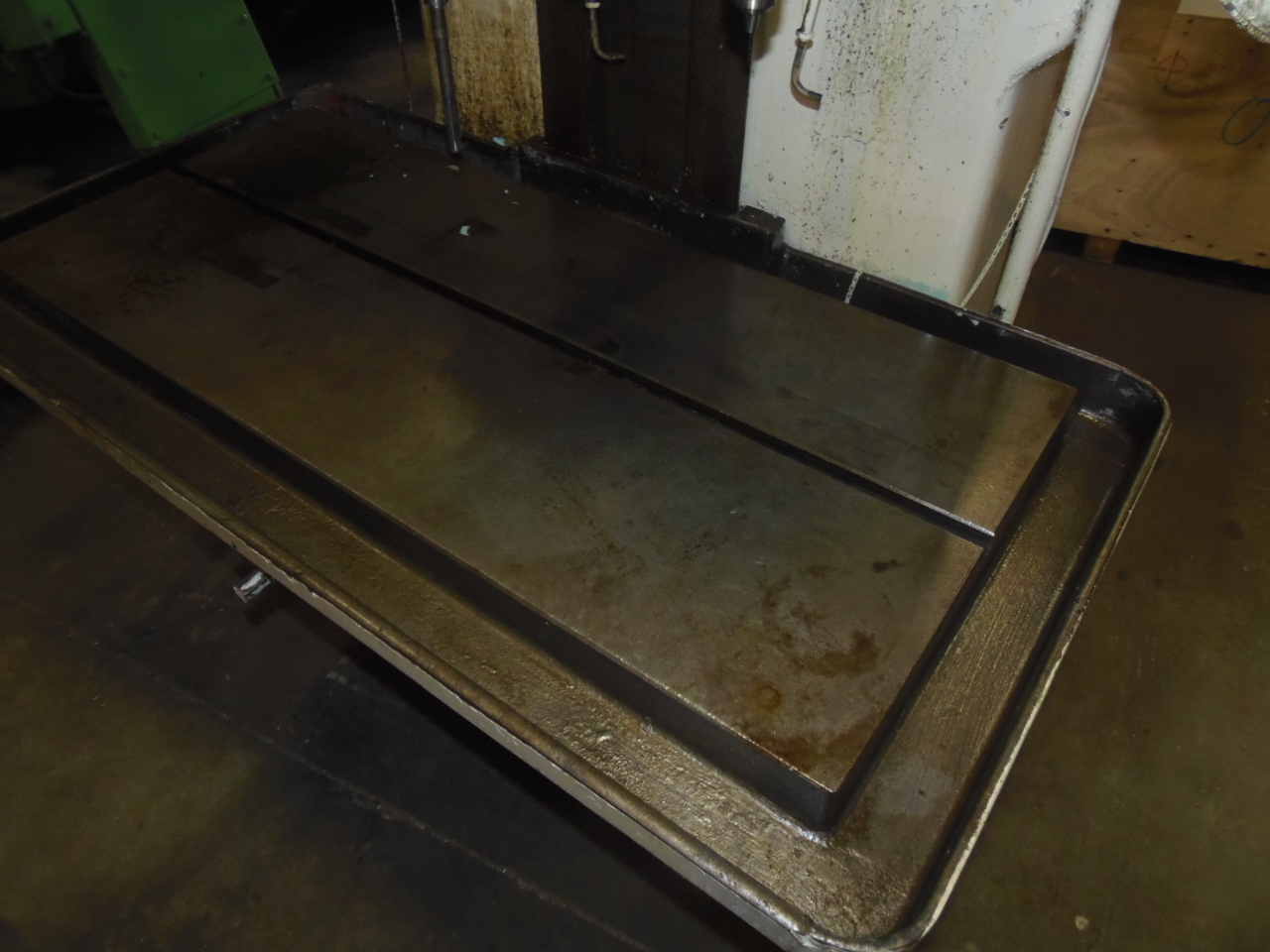

TABLE SIZE........................ 21" X 46" L/R
TABLE SIZE OVER COOLANT TROUGHS... 28" X 53" L/R
RPM RANGE......................... 150 - 600 IN BACK GEAR
600 - 2400 IN DIRECT DRIVE
DISTANCE BETWEEN SPINDLES......... 11"

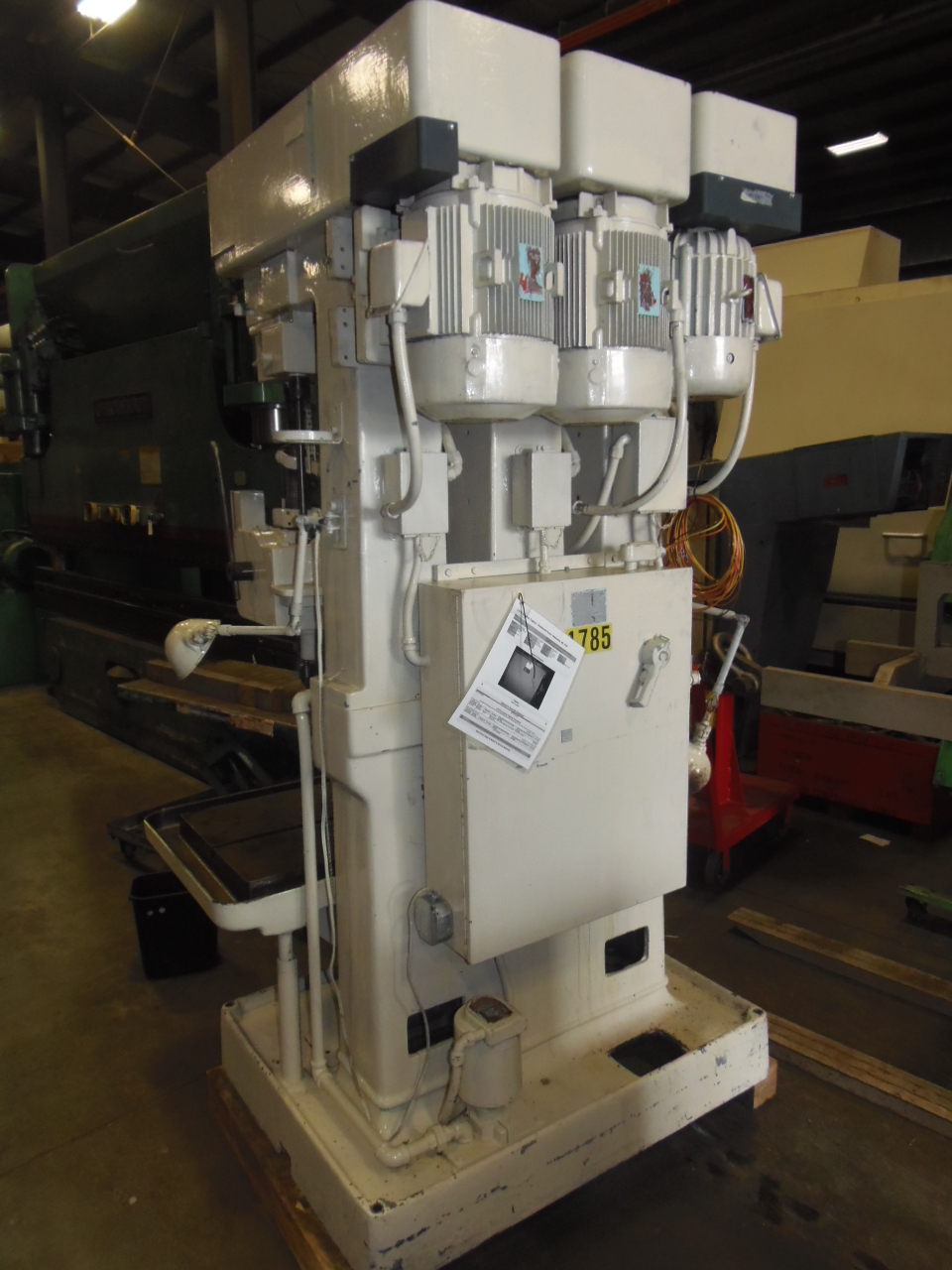

HORSEPOWER PER SPINDLE............ 3 HP
EQUIPPED WITH:

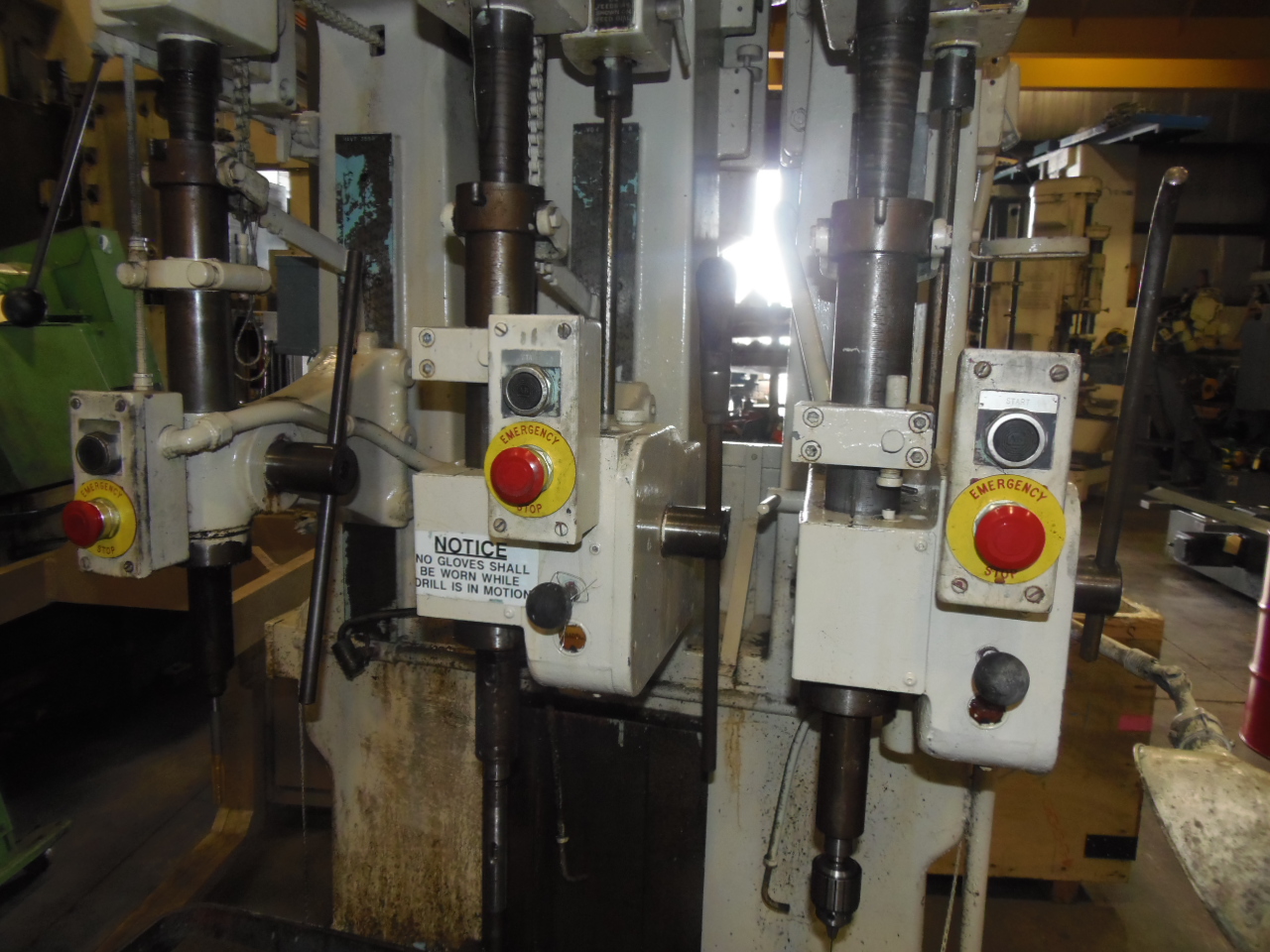

LEFT SPINDLE HAS MANUAL FEED WITH TAPPING CONTROLS
MIDDLE AND RIGHT SPINDLES HAVE POWER FEED
TABLE HAS MANUAL VERTICAL ADJUSTMENT OF 16"
5/8" SLOT ON TABLE UNDER CENTERLINE OF SPINDLES

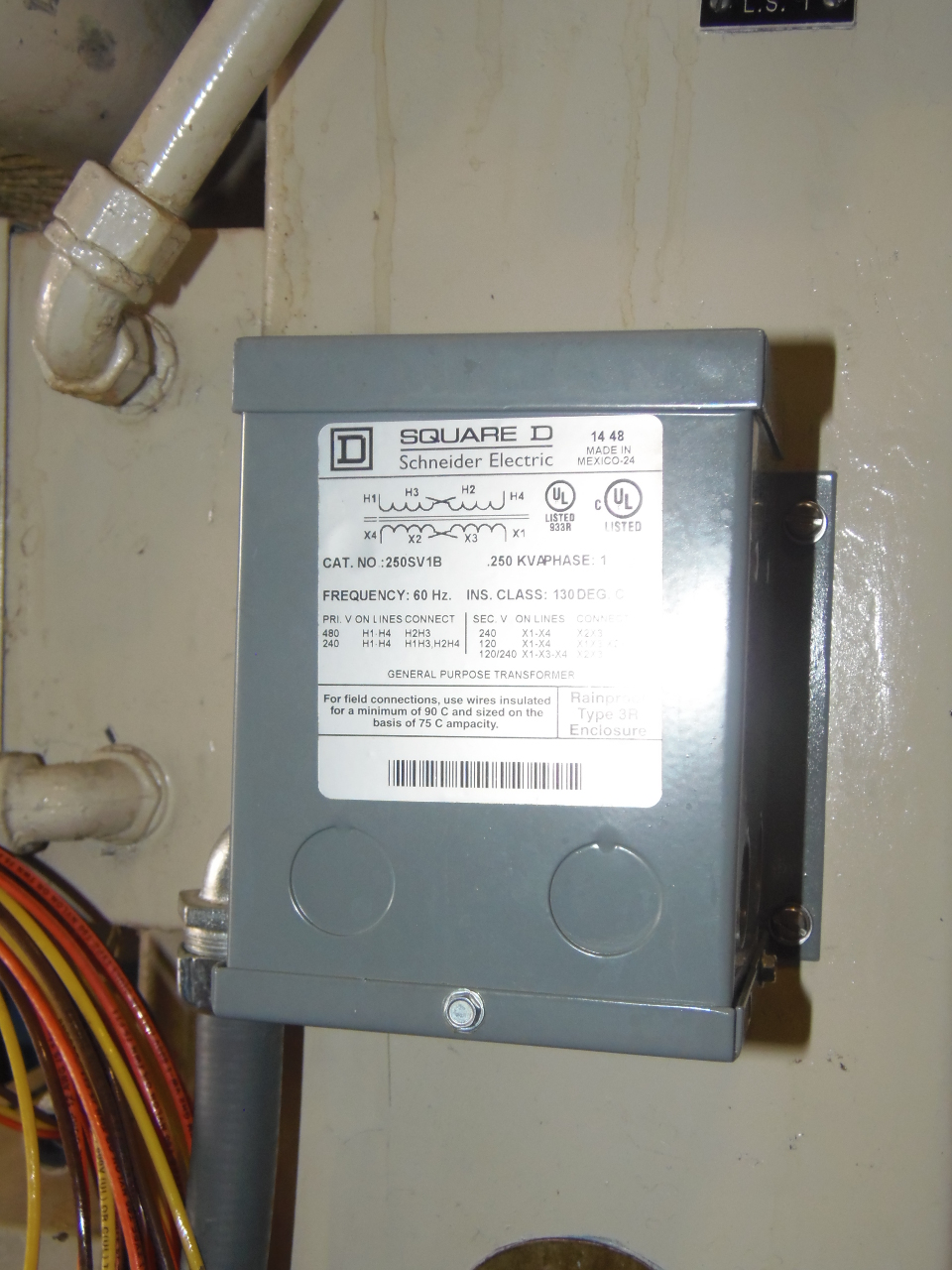

WIRED FOR 480V
