Specifications
Equipped With
GENERAL SPECIFICATIONS:

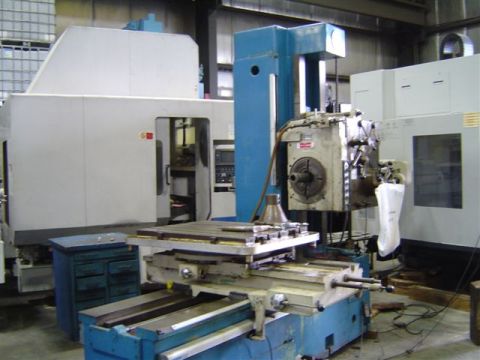

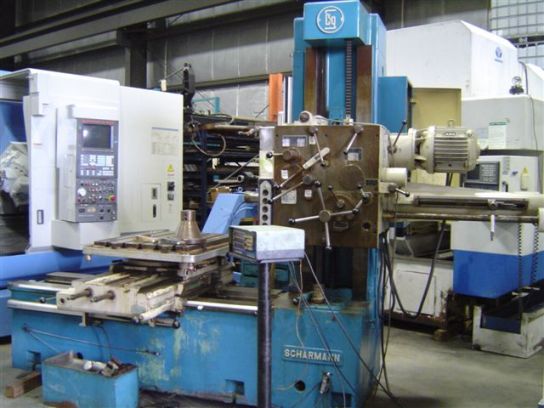

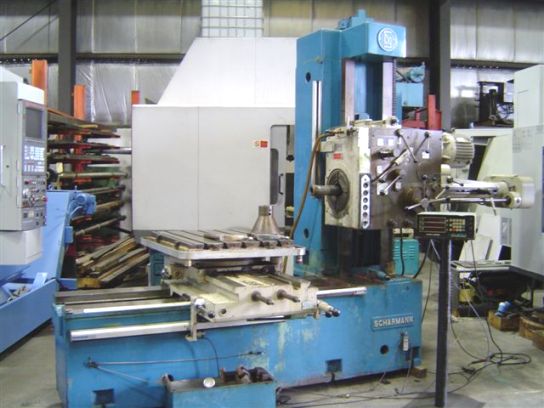

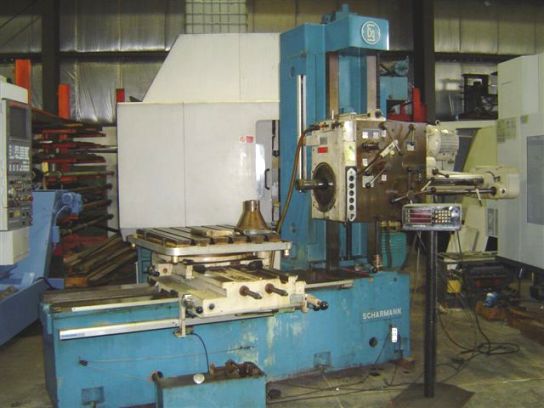

MANUFACTURER SCHARMANN
MODEL WB75
SERIAL 145038
NEW APPROXIMATELY 1963

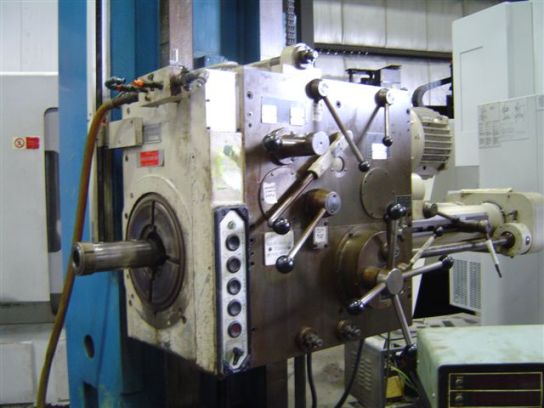

SPINDLE SIZE 3"
SPINDLE SPEED 20-1800 RPM
FEED RATES .0017-.25 IPR
SPINDLE TAPER MT #5
SPINDLE TRAVEL 29.5" (750 MM)
TABLE SIZE 28" x 35"(710 X 900)
TABLE TRAVEL (CROSS) 31.5" (800)
VERTICAL HEAD TRAVEL 29.5" (750)
LONGITUDINAL TRAVEL 40"
EQUIPPED WITH:

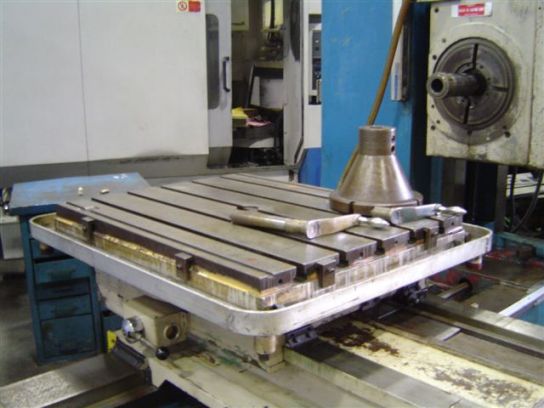

POWER ROTARY TABLE
3 AXIS D.R.O.
220V 3 PHASE, 60 CYCLE ELECTRICS
OVERALL LENGTH 150" (3820) X 71" (1800) WIDE X 101" (2550) TALL
WEIGHT APPROXIMATELY 12,000 LBS.
VIDEO AVAILABLE AT http://www.wismet.com/buy/detail.cfm?inventoryid=8234
