Specifications
Equipped With
GENERAL SPECIFICATIONS:

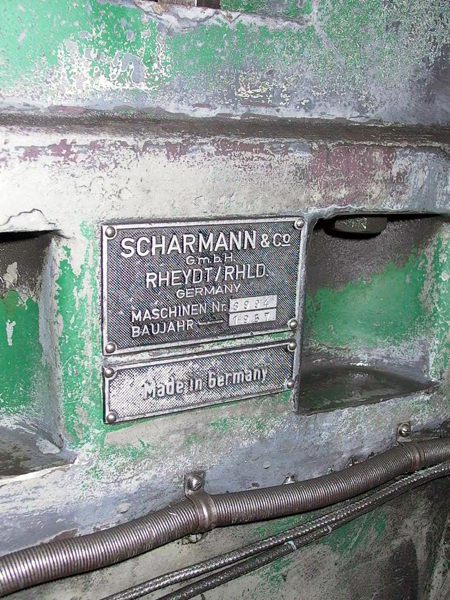

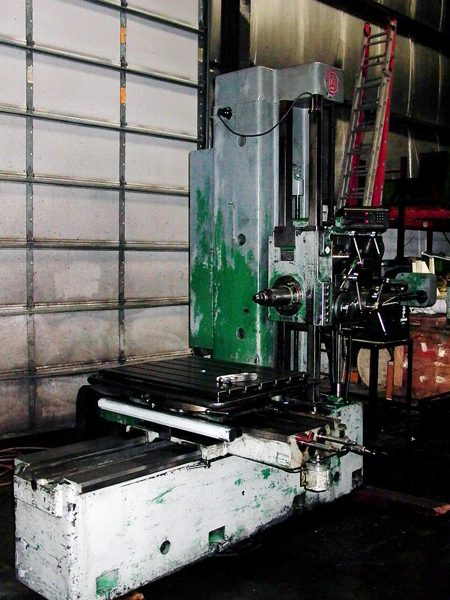

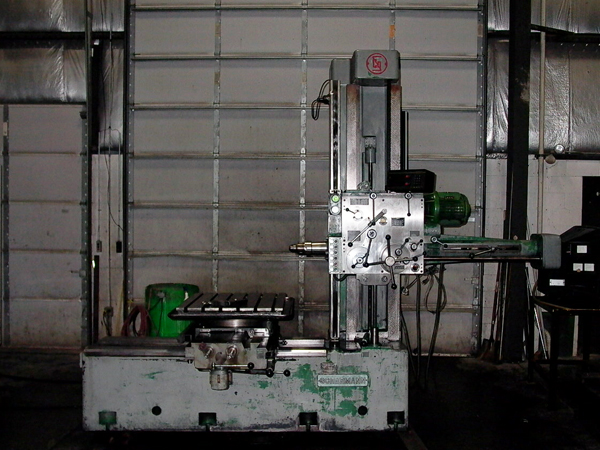

MAKE......................... SCHARMANN
MODEL........................ WB 75
SERIAL NUMBER................ 6994
AGE (APPROX)................. 1957

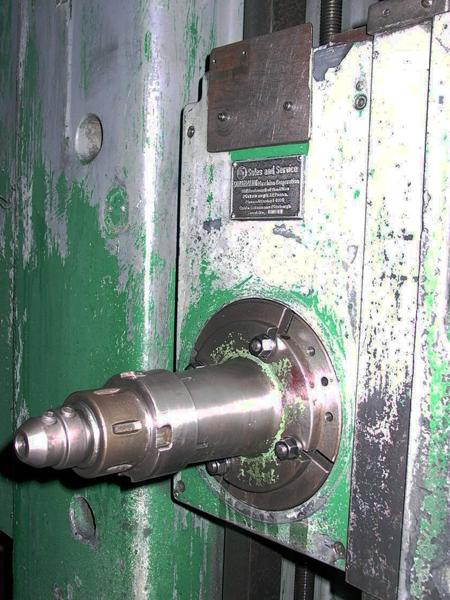

SPINDLE DIAMETER............. 2.94"
SPINDLE TAPER................ #5MT
SPINDLE SPEEDS (LOW/HIGH).... 18-900
FEED RATES................... .0011-.250 IPR

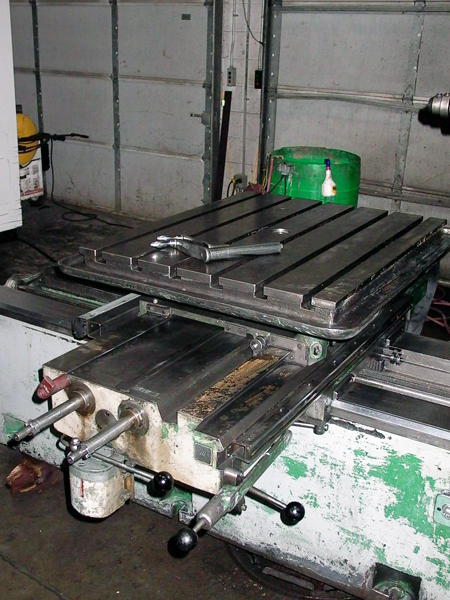

ROTARY TABLE SIZE............ 39" X 31" (990 MM X 787 MM)
TRAVEL - CROSS............... 37.5" (952 MM)
TRAVEL - VERTICAL............ 45.5" (1155 MM)
TRAVEL - LONGITUDINAL........ 41.25" (1047 MM)
TRAVEL - SPINDLE............. 21.5" (546 MM)
FLOOR SPACE.................. 155" X 80" X 120"
WEIGHT APPROX................ 20,000 LBS
ELECTRICS.................... 220V / 3PH / 60 HZ

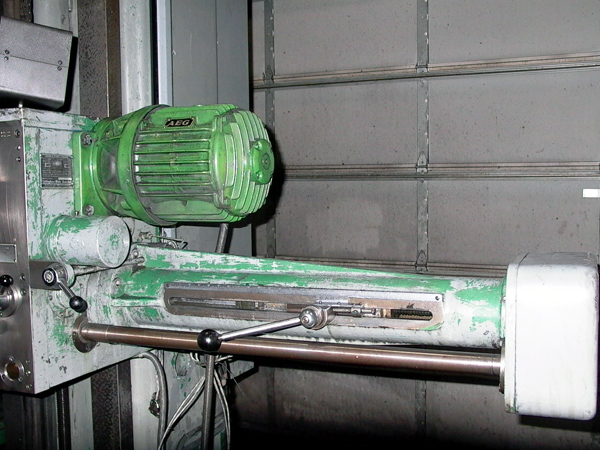

MOTOR........................ 4.5 KW / 6 KW
........................ (6 HP / 8 HP)
........................ 16.5 / 21.7 AMP
........................ 1750 / 3480 RPM
EQUIPPED WITH:

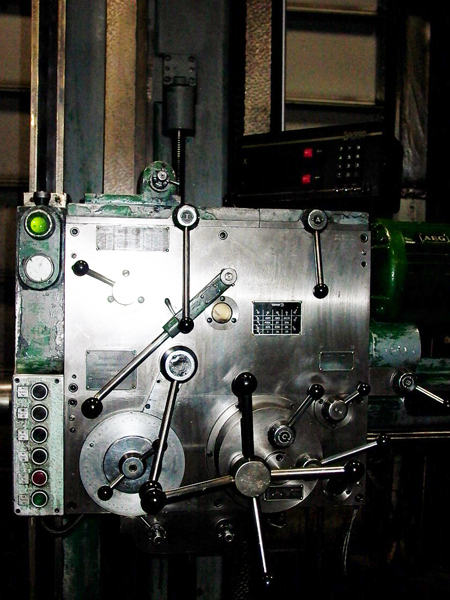

2 AXIS SARGON DRO (BOX DOES NOT WORK)
15" FACING HEAD
OUTBOARD SUPPORT (TAILSTOCK)
MISC MANUALS
