Specifications
Equipped With
GENERAL SPECIFICATIONS:

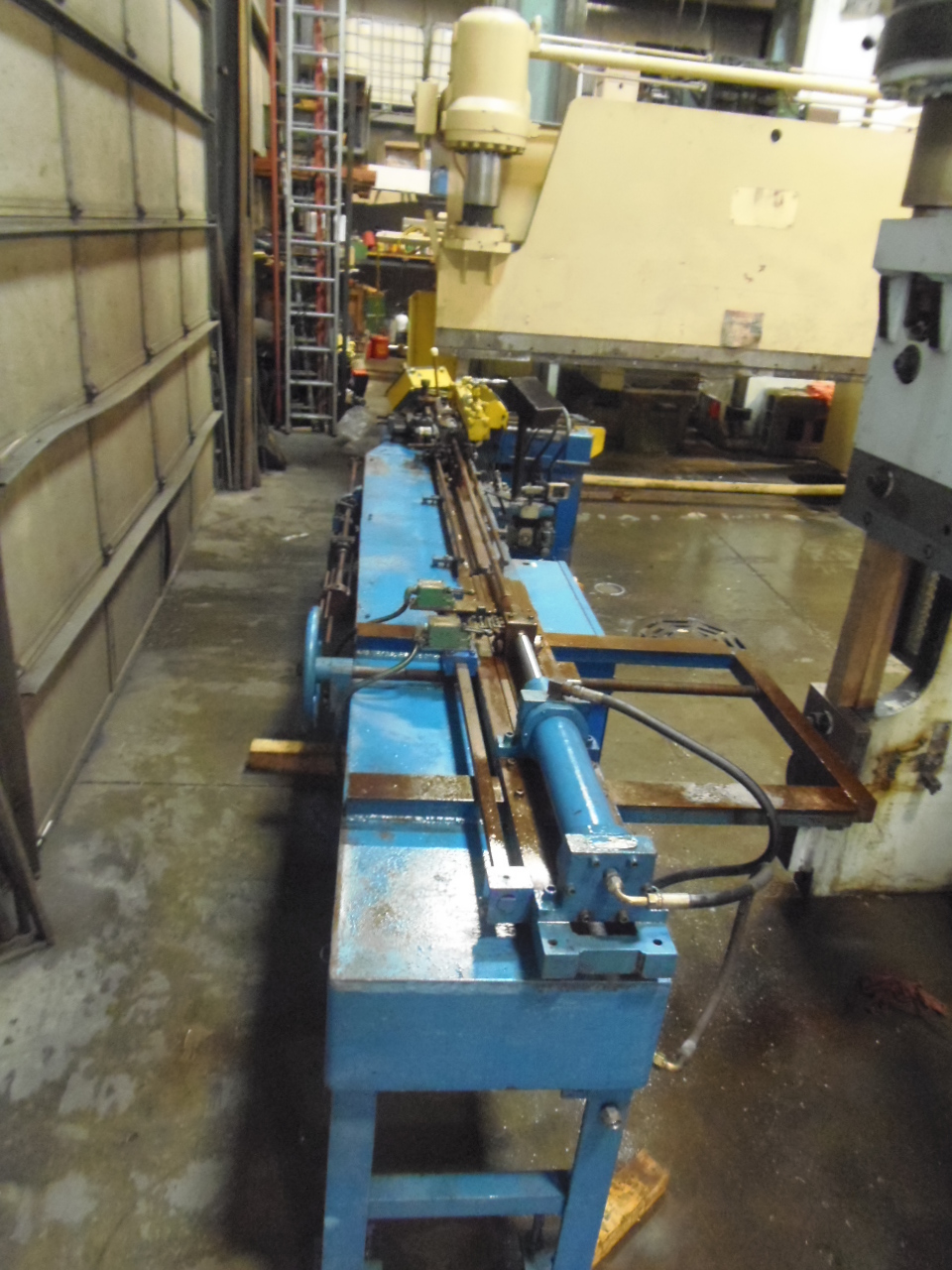

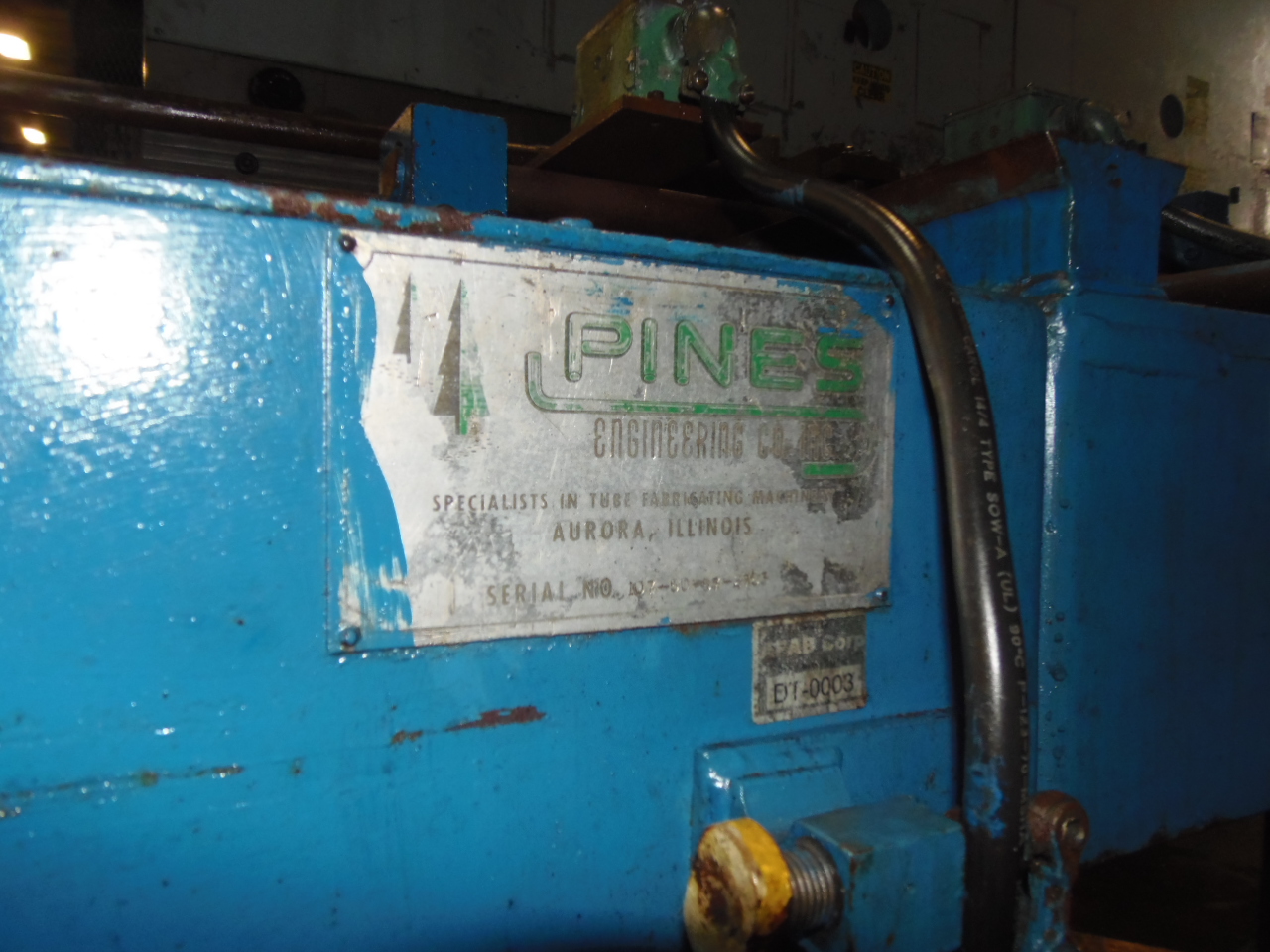

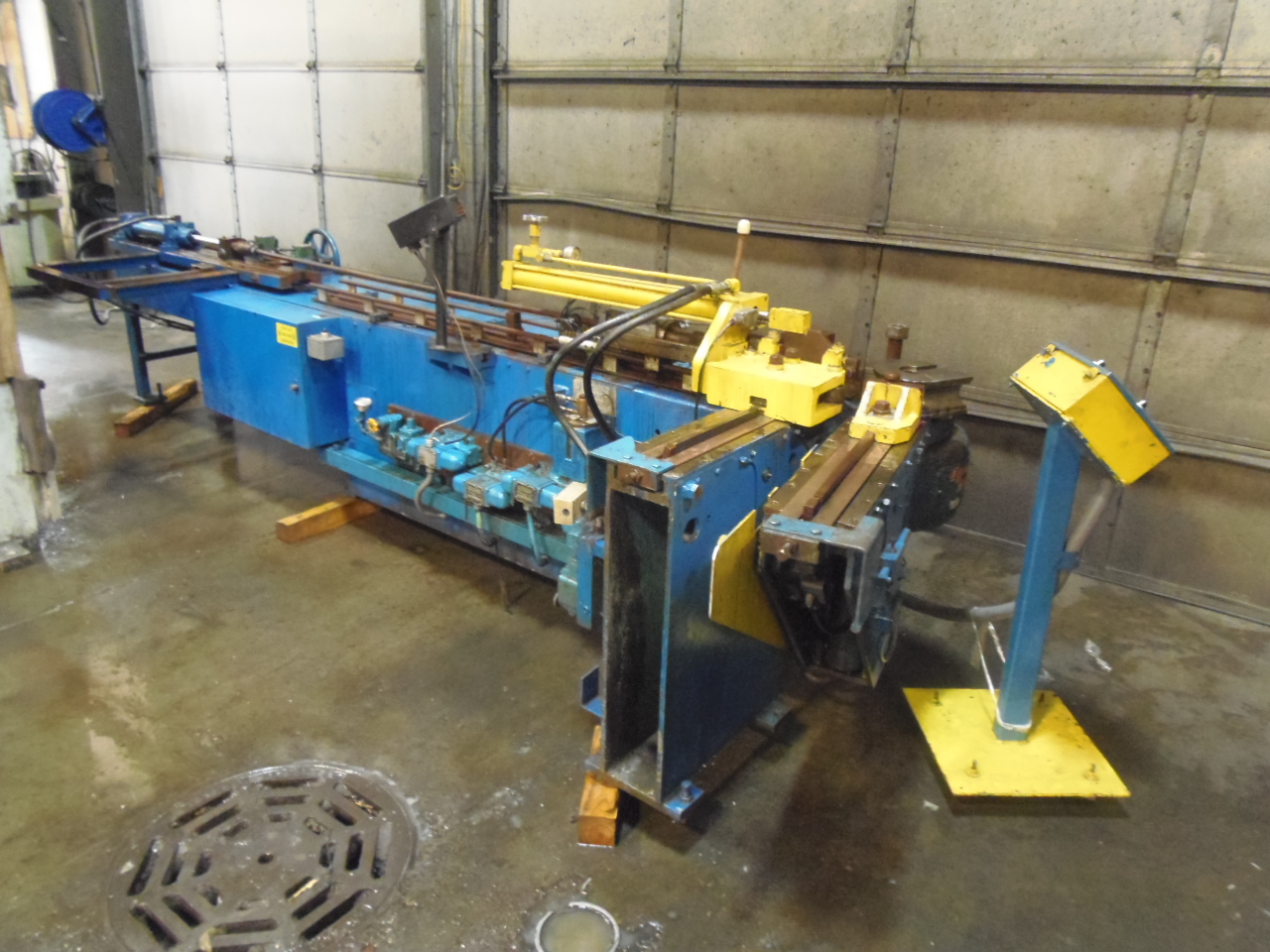

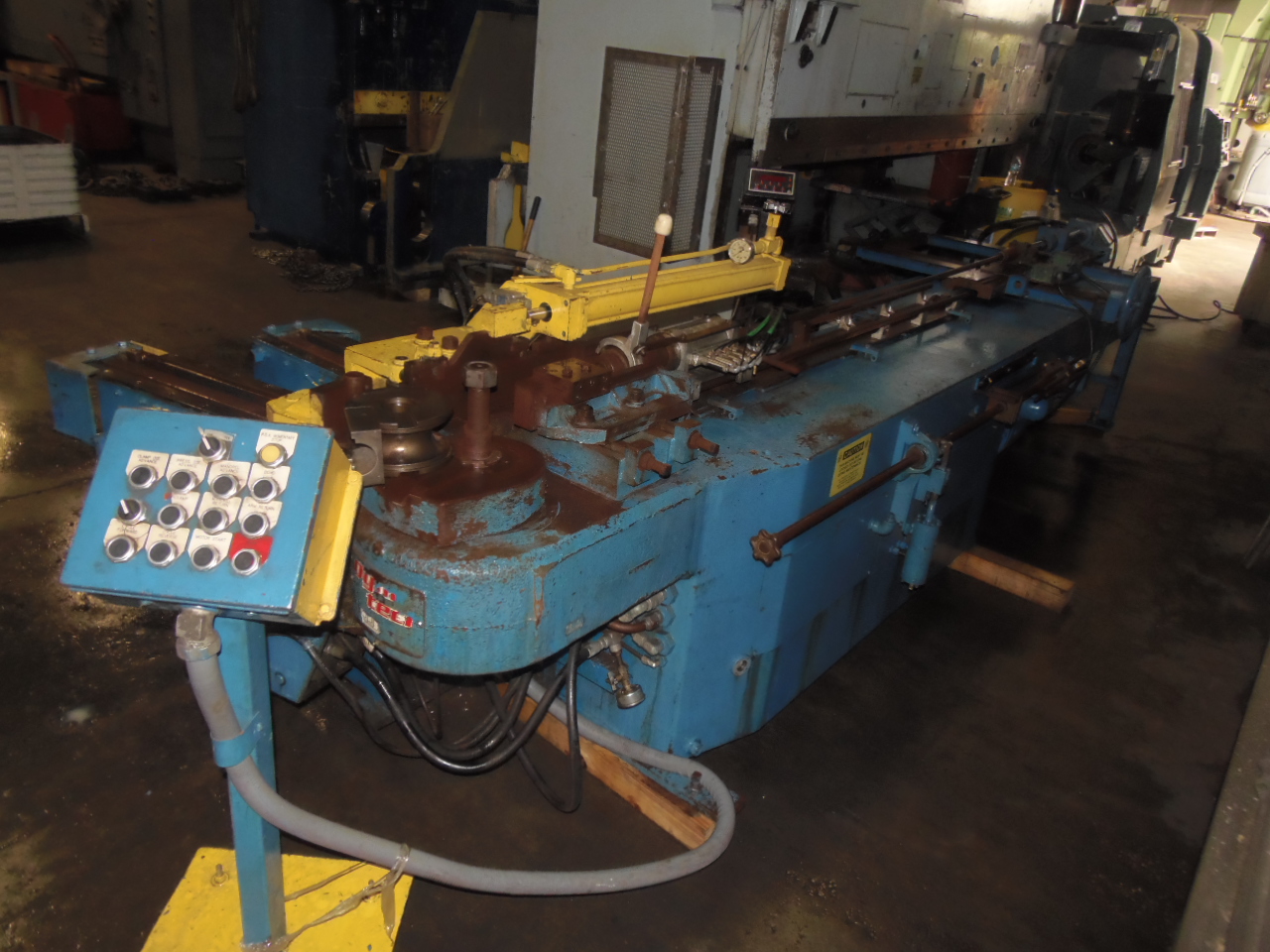

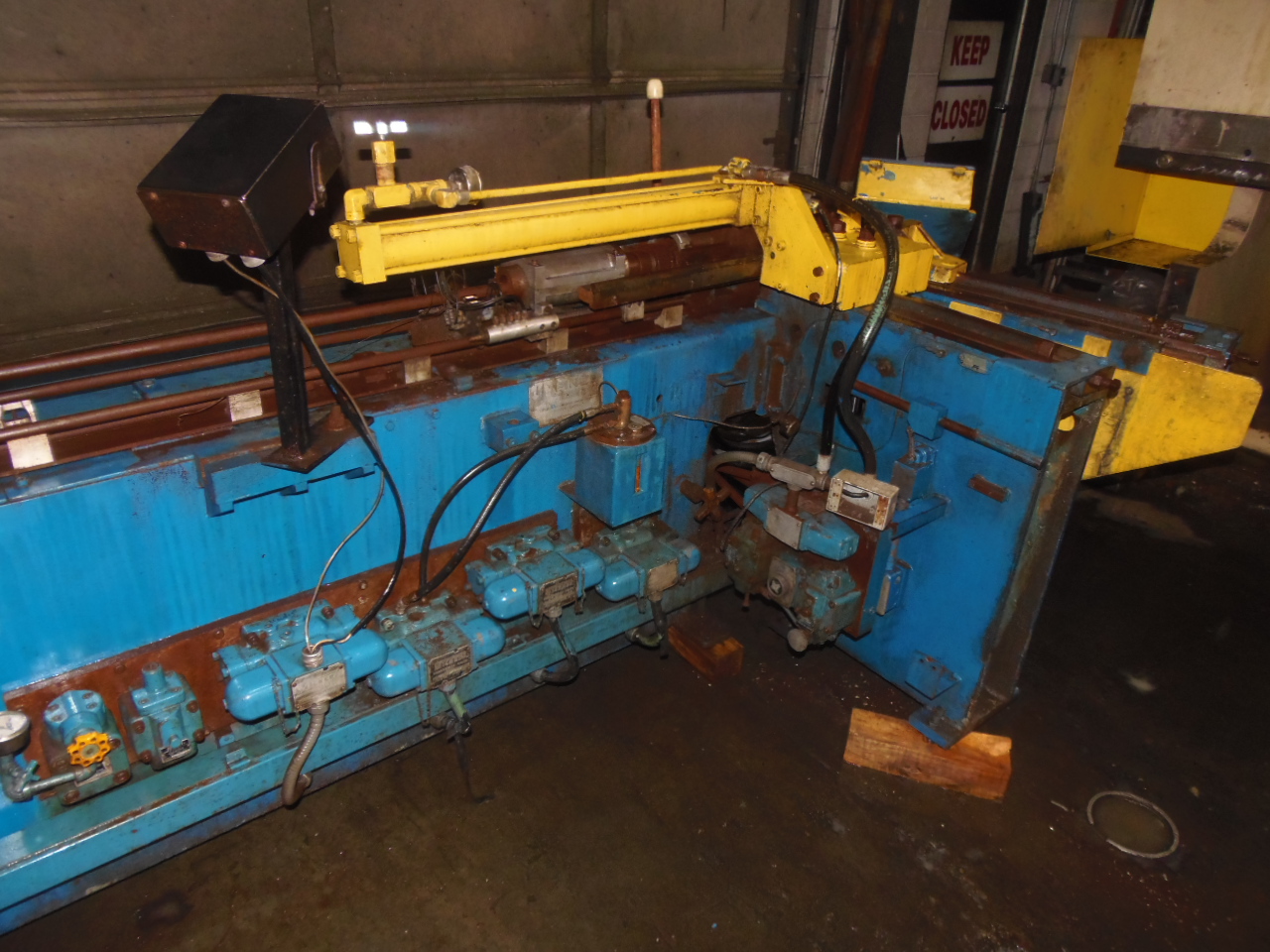

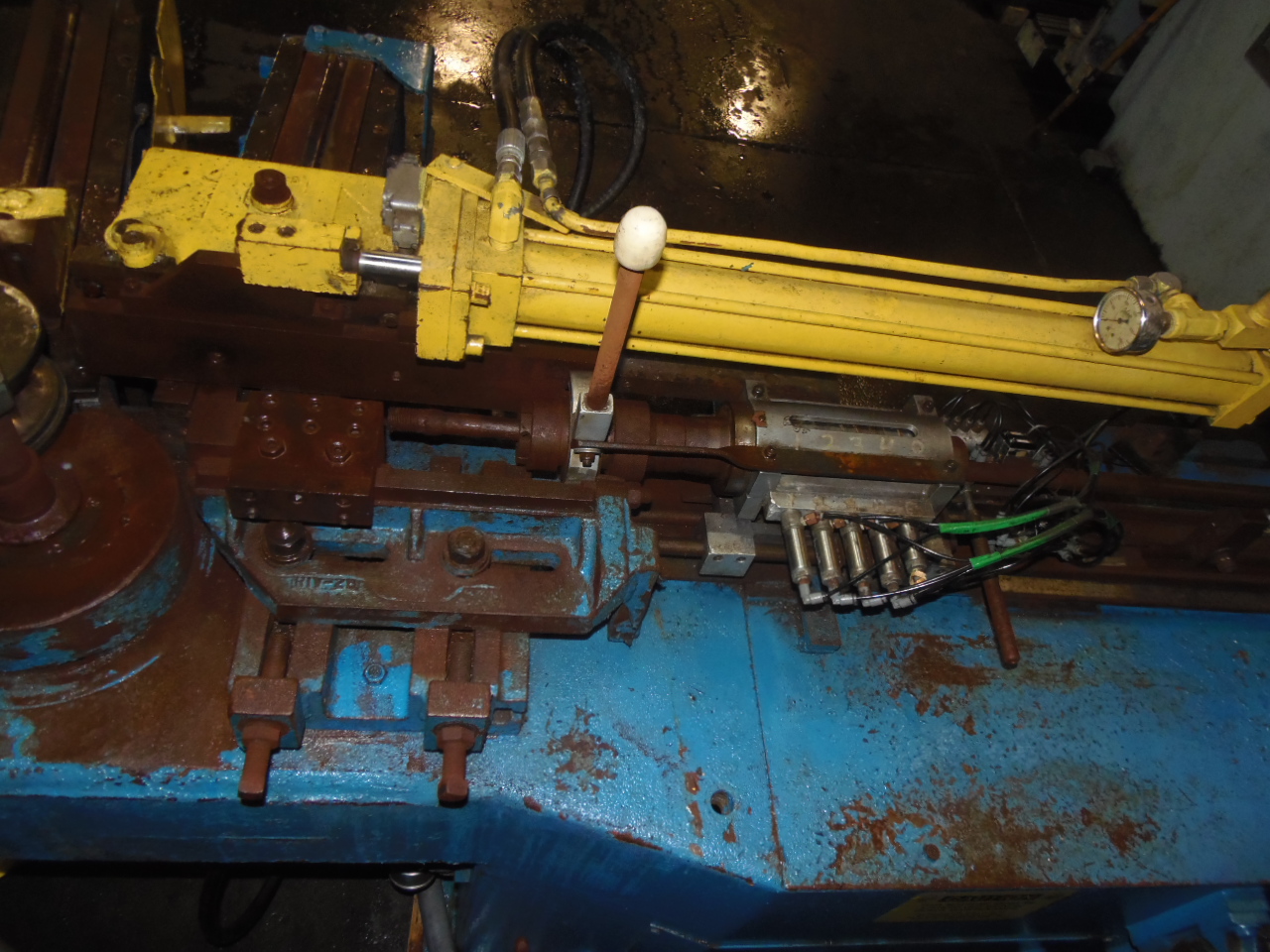

MAKE............................ PINES
MODEL........................... #2

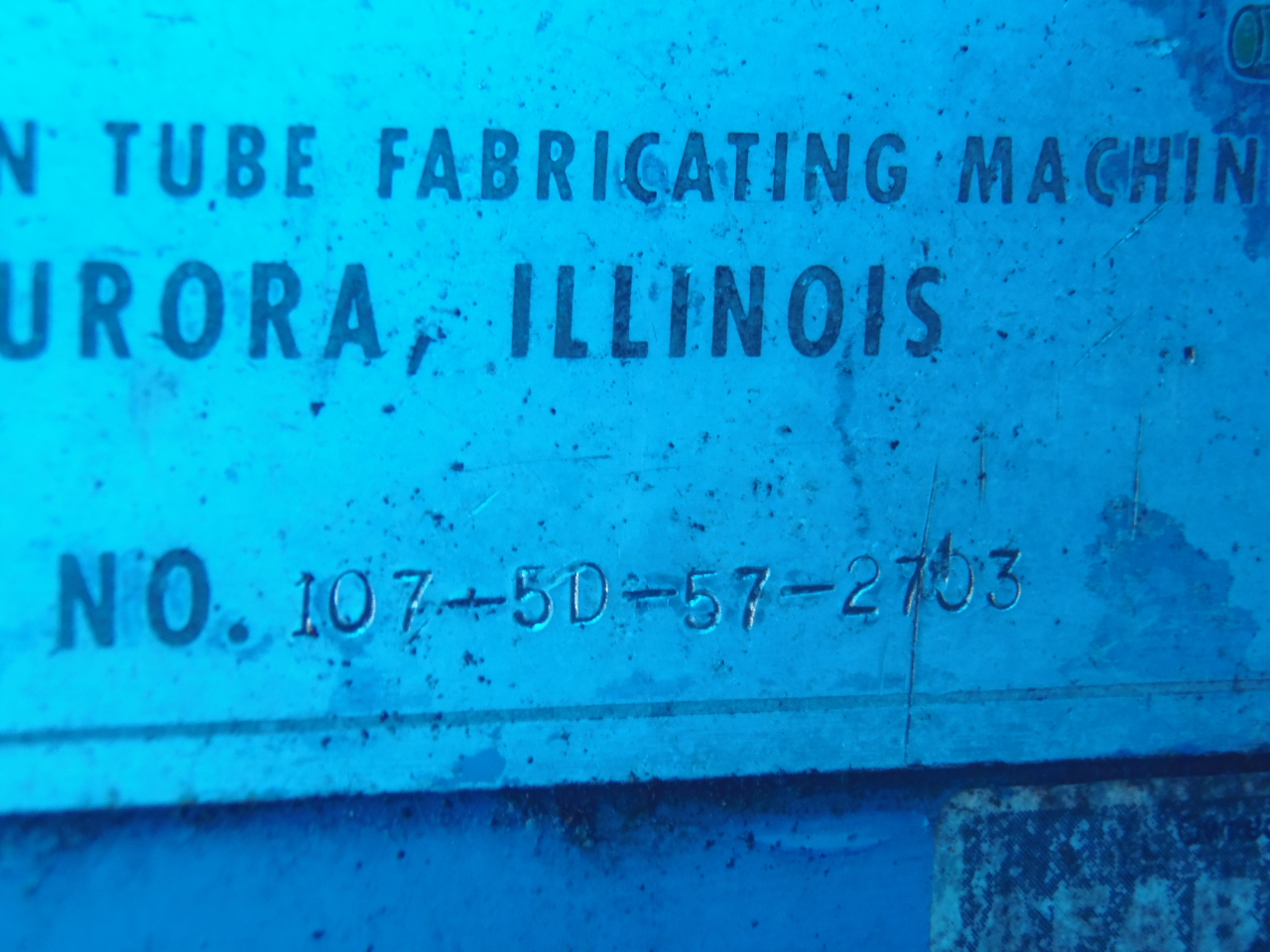

SERIAL NUMBER................... 107-5D-57-2703
AGE............................. 1957
MAX BENDING CAPACITY AND SPECIFICATIONS
(ACCORDING TO PINES WEBSITE)
ROUND TUBING NON-FERROUS
Y.P. TO 25,000 PSI OD X WALL.... 3" X .188"
ROUND TUBING MILD STEEL
Y.P. TO 40,000 PSI OD X WALL.... 3" X .109"
ROUND TUBING STAINLESS
Y.P. TO 60,000 PSI OD X WALL.... 3" X .065"
STEEL PIPE SCHEDULE 80.......... 2"
SQUARE TUBING MILD STEEL........ 2 1/2" X .083"
RECTANGULAR TUBING MILD STEEL
E-PLANE......................... 1 1/2" X 3" X .148"
RECTANGULAR TUBING MILD STEEL
H-PLANE......................... 1 1/2" X 2 1/2" X .120"
ROUND BAR MILD STEEL............ 1 7/8"
SQUARE BAR MILD STEEL........... 1 11/16"
EQUIPPED WITH:

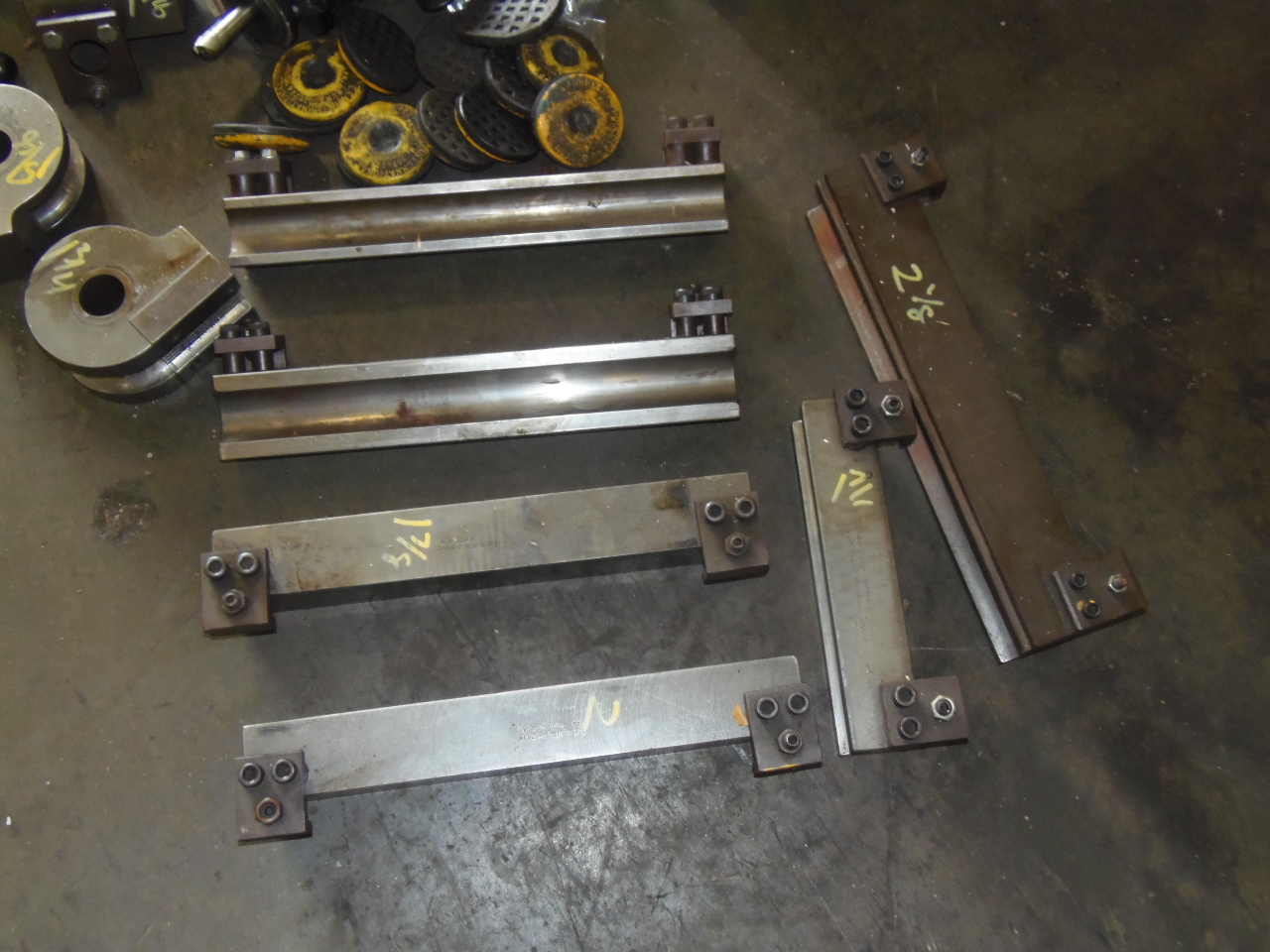

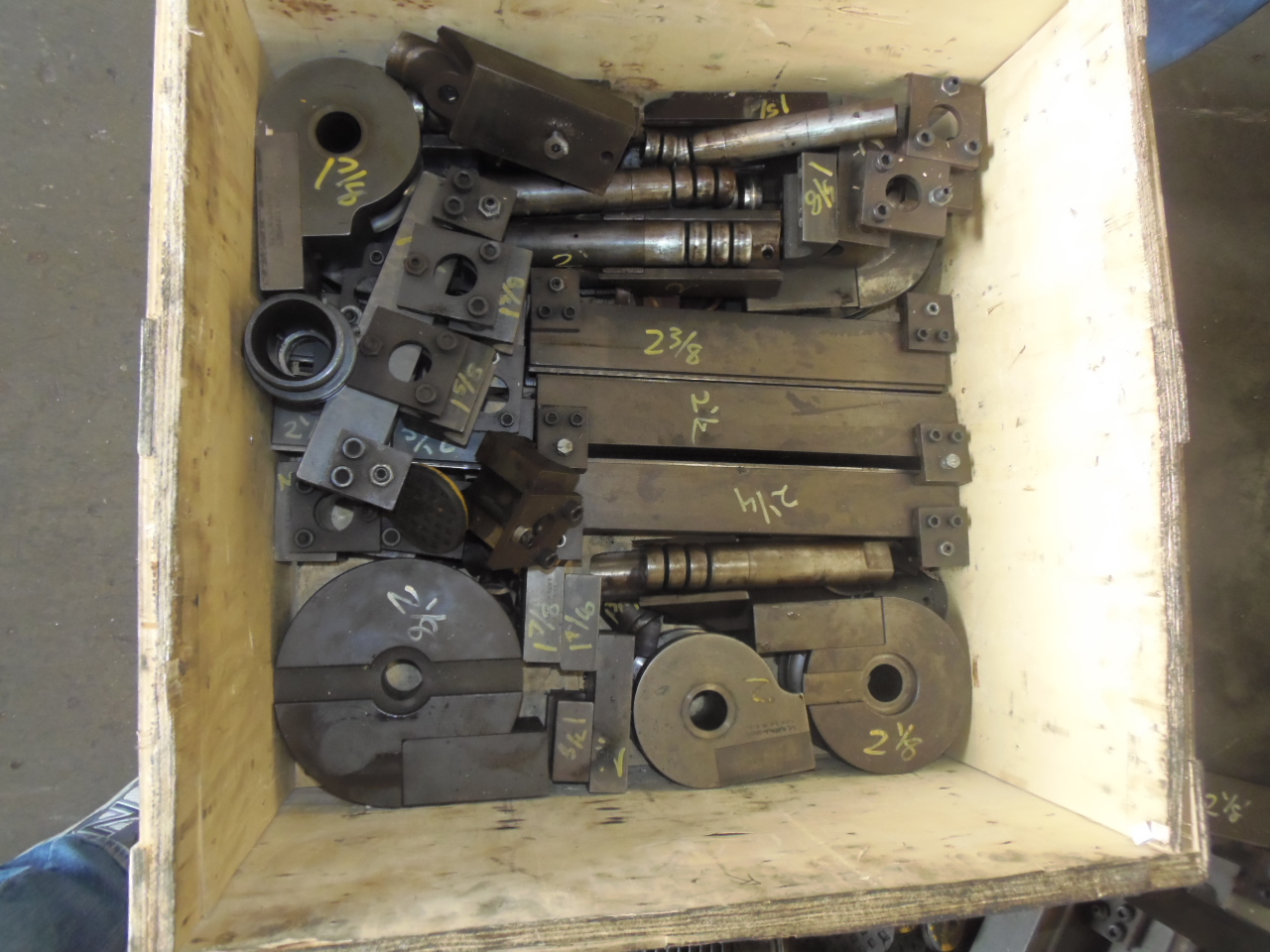

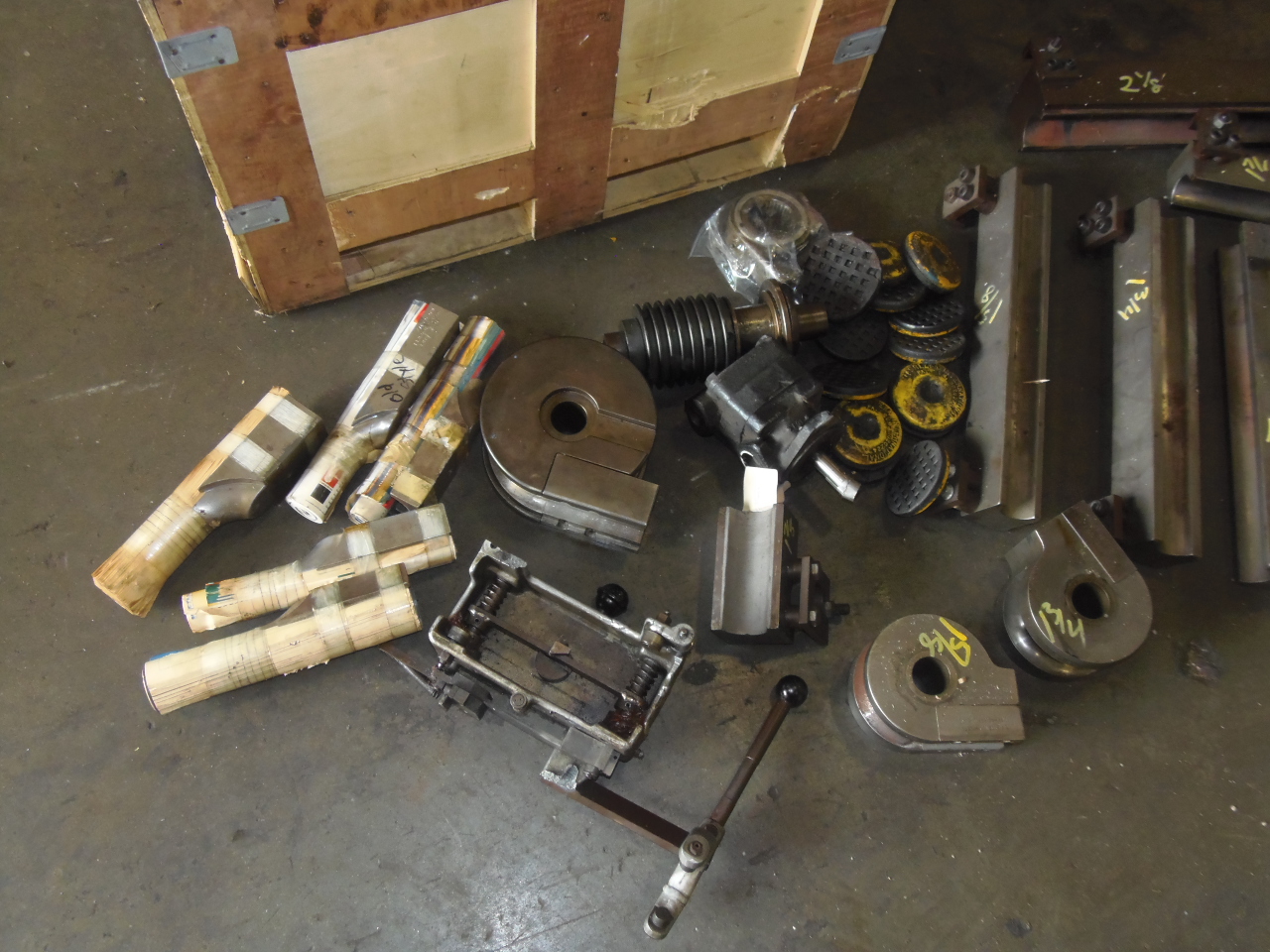

SOME TOOLING (NOT ALL PICTURED)
SPECIFICATIONS SUBJECT TO VERIFICATION
(TAKE FROM PINES WEBSITE)
