Specifications
Equipped With
GENERAL SPECIFICATIONS:

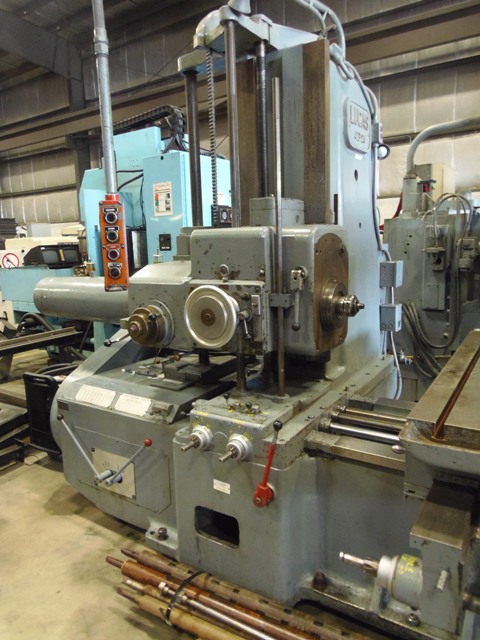

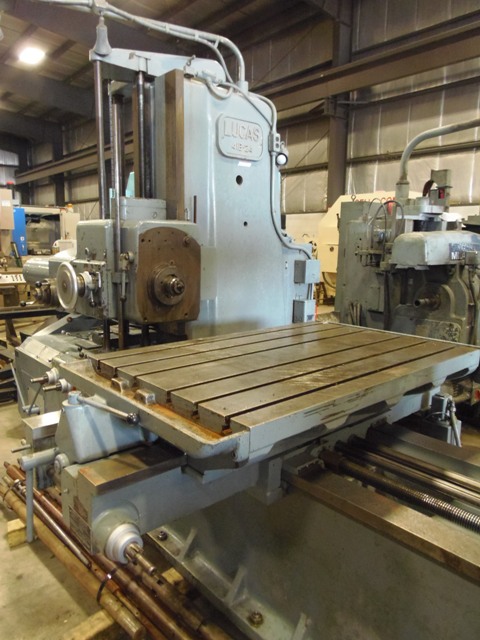

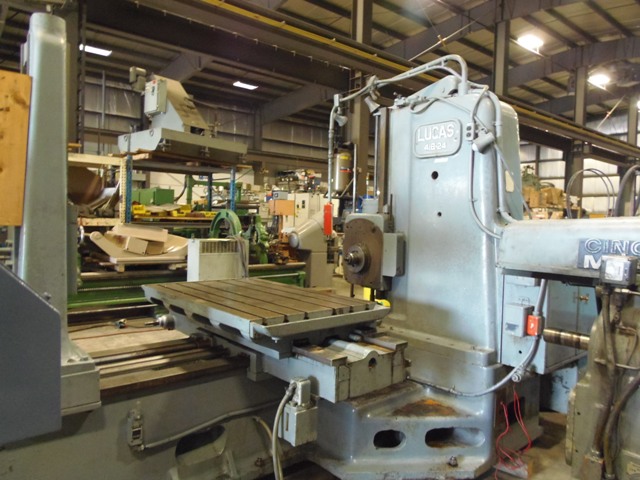

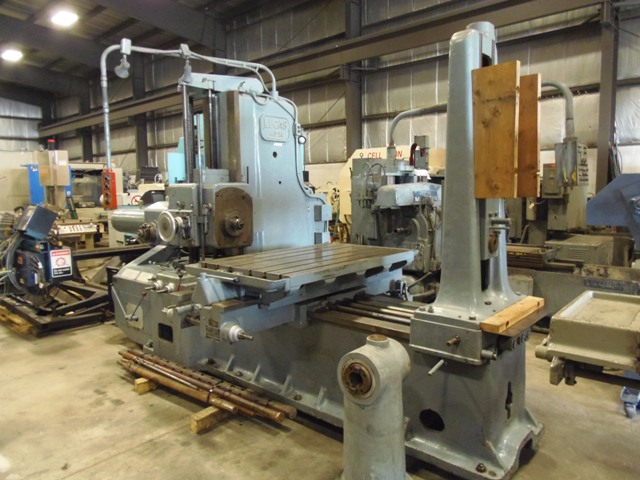

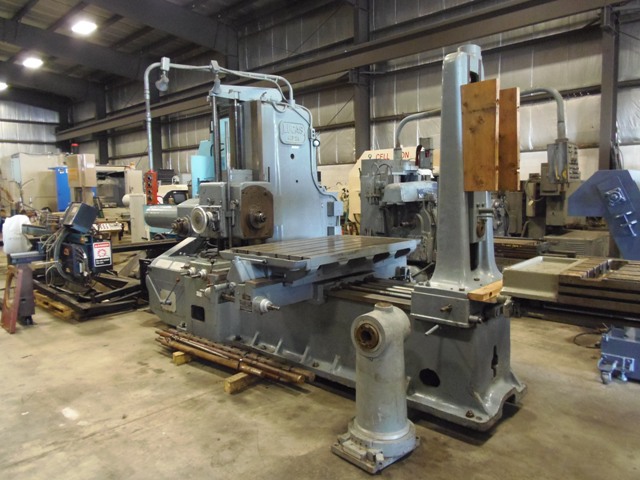

MANUFACTURER.......................... LUCAS
MODEL................................. 41B-24
SERIAL#............................... 41B0924
AGE APPROXIMATELY..................... 1955
SPINDLE DIAMETER...................... 3"
SPINDLE TAPER......................... MT#5
SPINDLE MOTOR......................... 10HP
SPINDLE SPEEDS........................ 35 - 1500 RPM
TRAVELS (CROSS X)..................... 40"
(VERTICAL Y).................. 35"
(SPINDLE Z)................... 24"
(SADDLE W).................... 40"
TABLE SIZE............................ 34" X 50"
DIMENSIONS............................ 14'L X 80"W X 101"H
WEIGHT (APPROX)....................... 22,000 LBS.
ELECTRICS............................. 220V
EQUIPPED WITH:

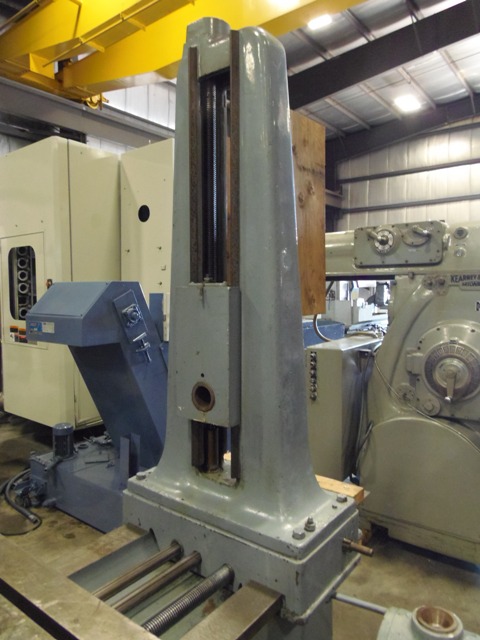

TAILSTOCK

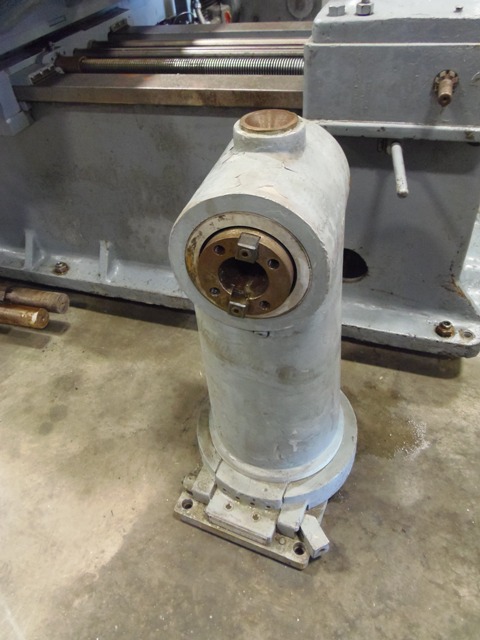

RIGHT ANGLE HEAD
THREADING
SPECIFICATIONS SUBJECT TO VERIFICATION
