Specifications
Equipped With
GENERAL SPECIFICATIONS:

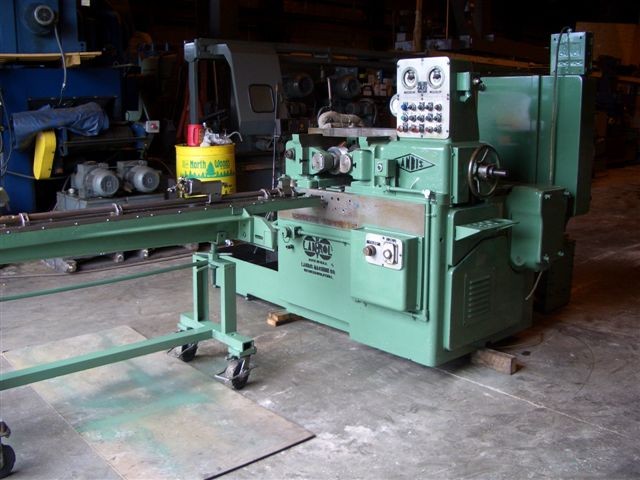

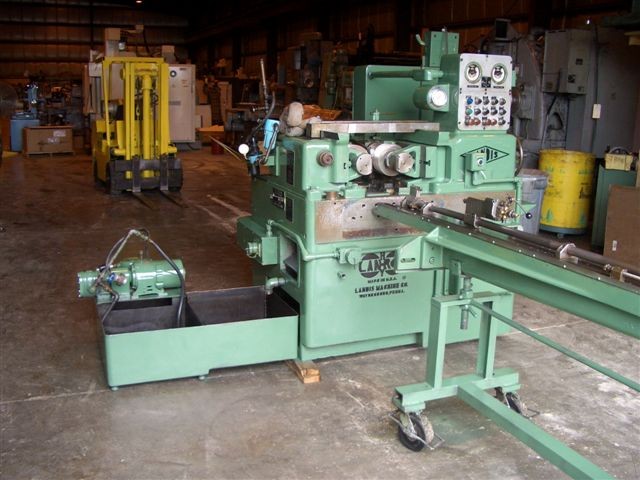

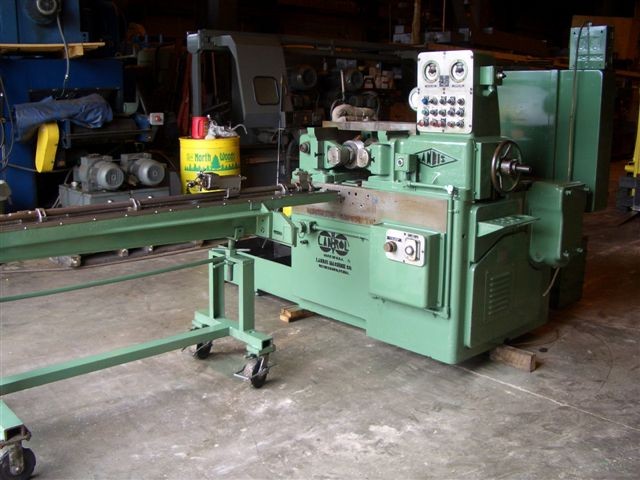

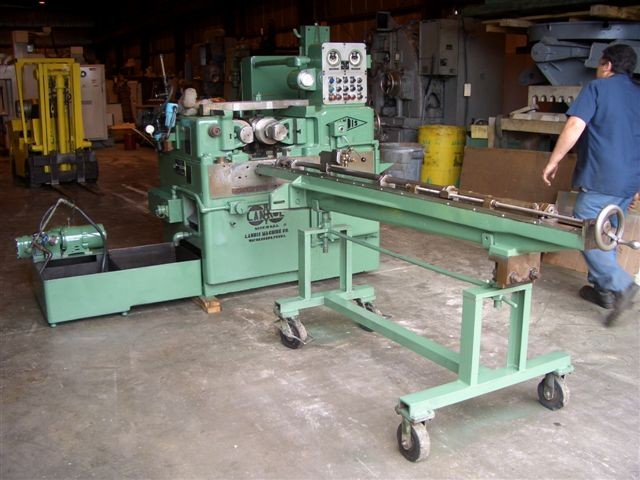

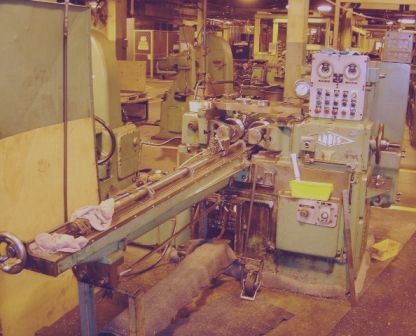

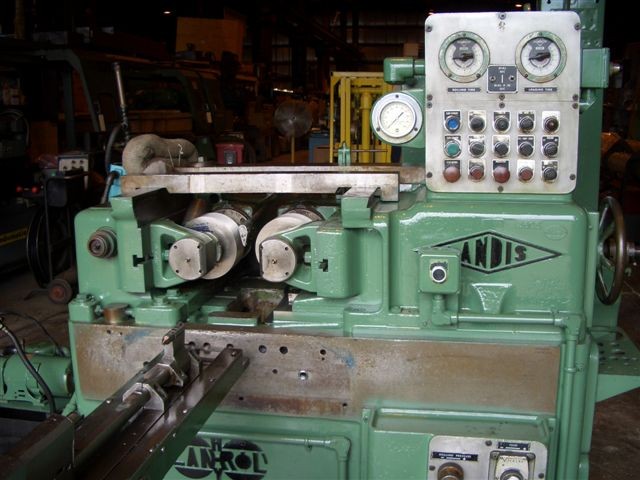

MANUFACTURER LANDIS LANHYROL
MODEL 24PW
SERIAL 24PW-68
DIAMETER OF WORK MAX. CAP. 3" (75MM)
DIAMETER OF WORK SPECIAL CAP. 4" (100MM)
ROLL DIAMETER MAX. 8-5/8" (219 MM)
SPINDLE SPEEDS (10 HP) MIN. 21 RPM
SPINDLE SPEEDS (10 HP) MAX. 126 RPM
SPINDLE SPEEDS (15 HP) MIN. 41 RPM
SPINDLE SPEEDS (15 HP) MAX. 238 RPM
ROLLING PRESSURE VARIABLE-MAX. 18 TONS
FINEST PITCH-UN OR AN 32 TPI
COARSEST PITCH-UN OR AN 2 TPI
COARSEST PITCH ACME 4 TPI
COARSEST PITCH WORM THREAD 7 DIAMETERAL PITCH/EQUIVILNT
THREAD LGTH MAX. INFEED METHOD 5-7/8" (149 MM)
EQUIPPED WITH:

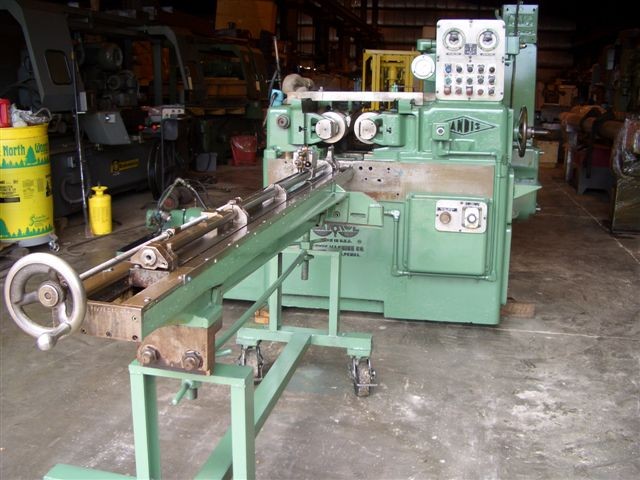

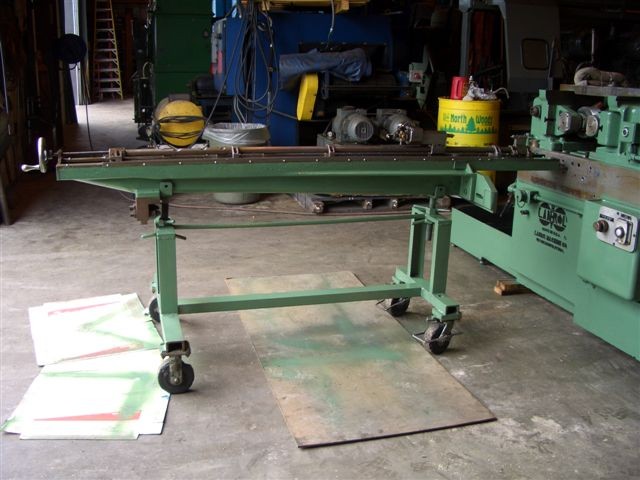

STOCK FEEDER
MISCELLANEOUS TOOLING
NOTE: PER SPECIFICATIONS FROM THE LANDIS BROCHURE TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
