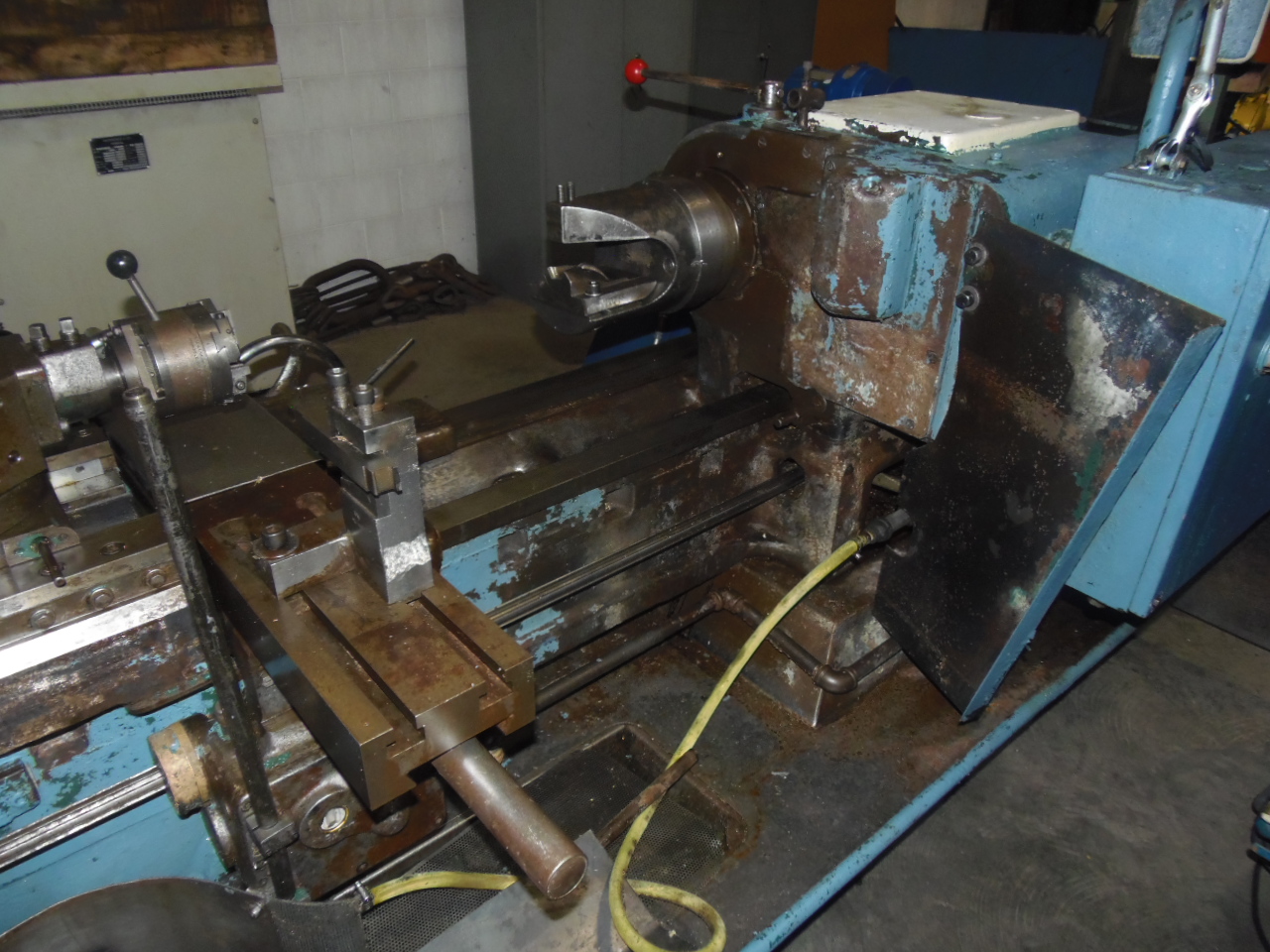

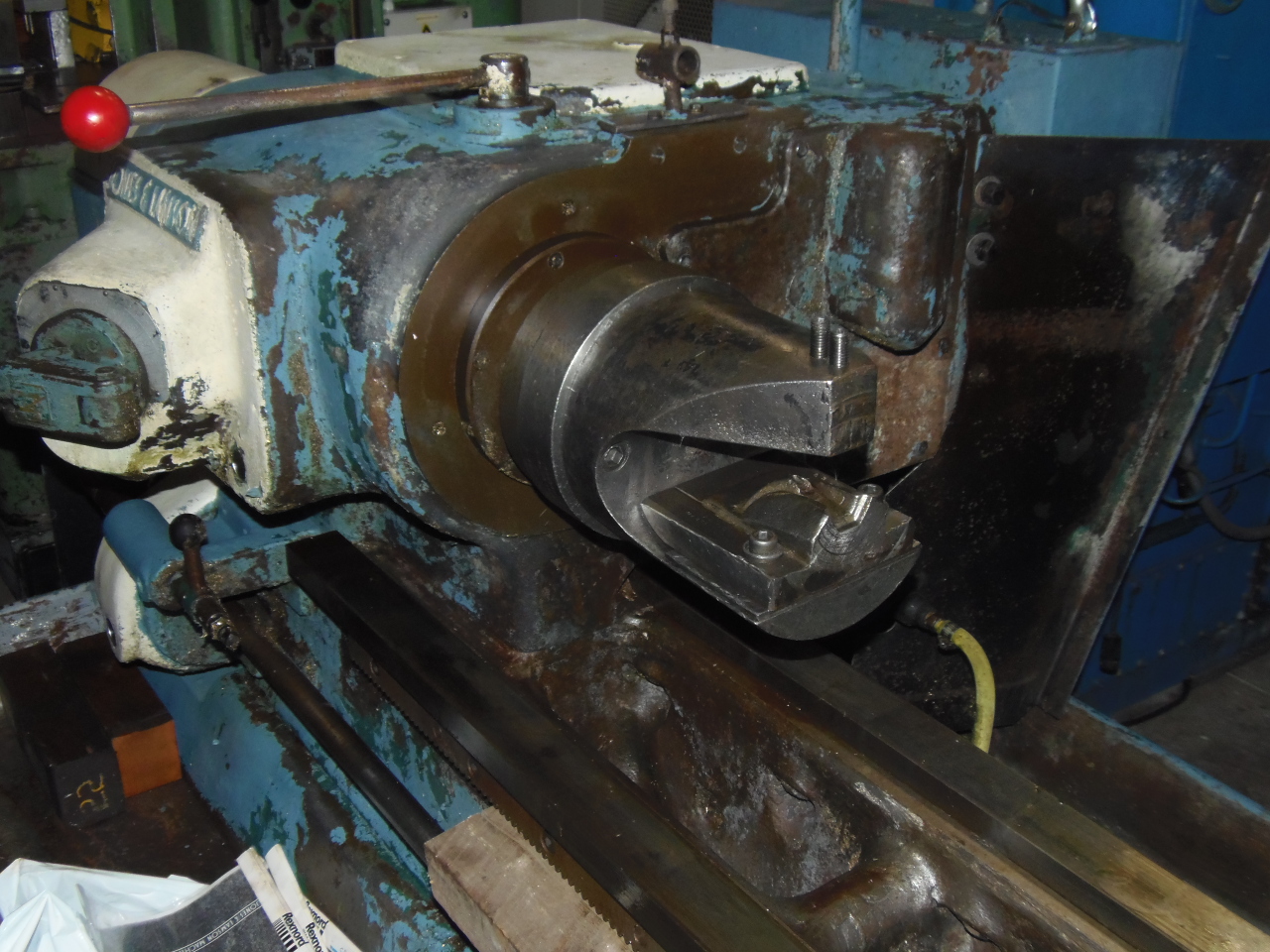

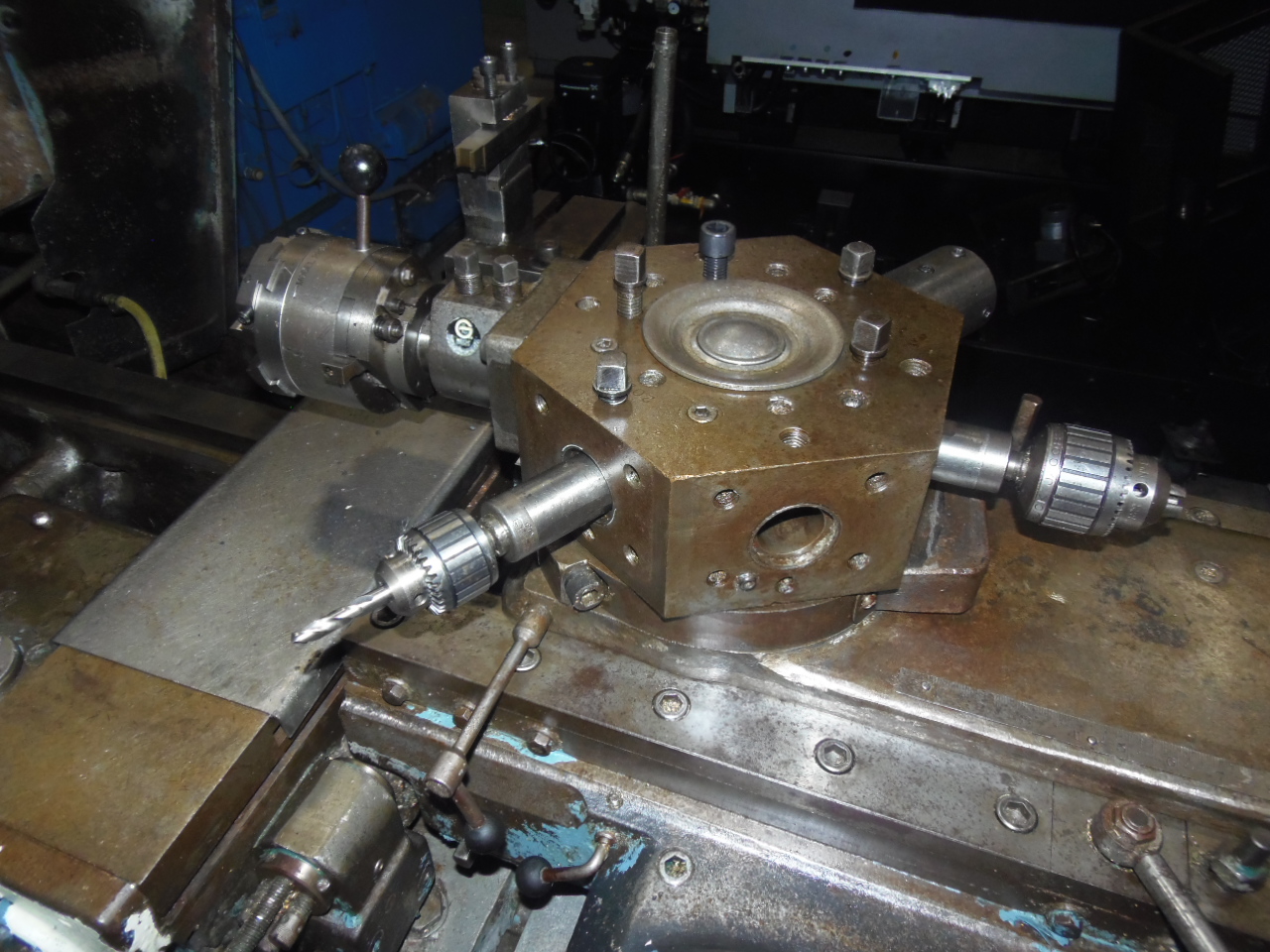

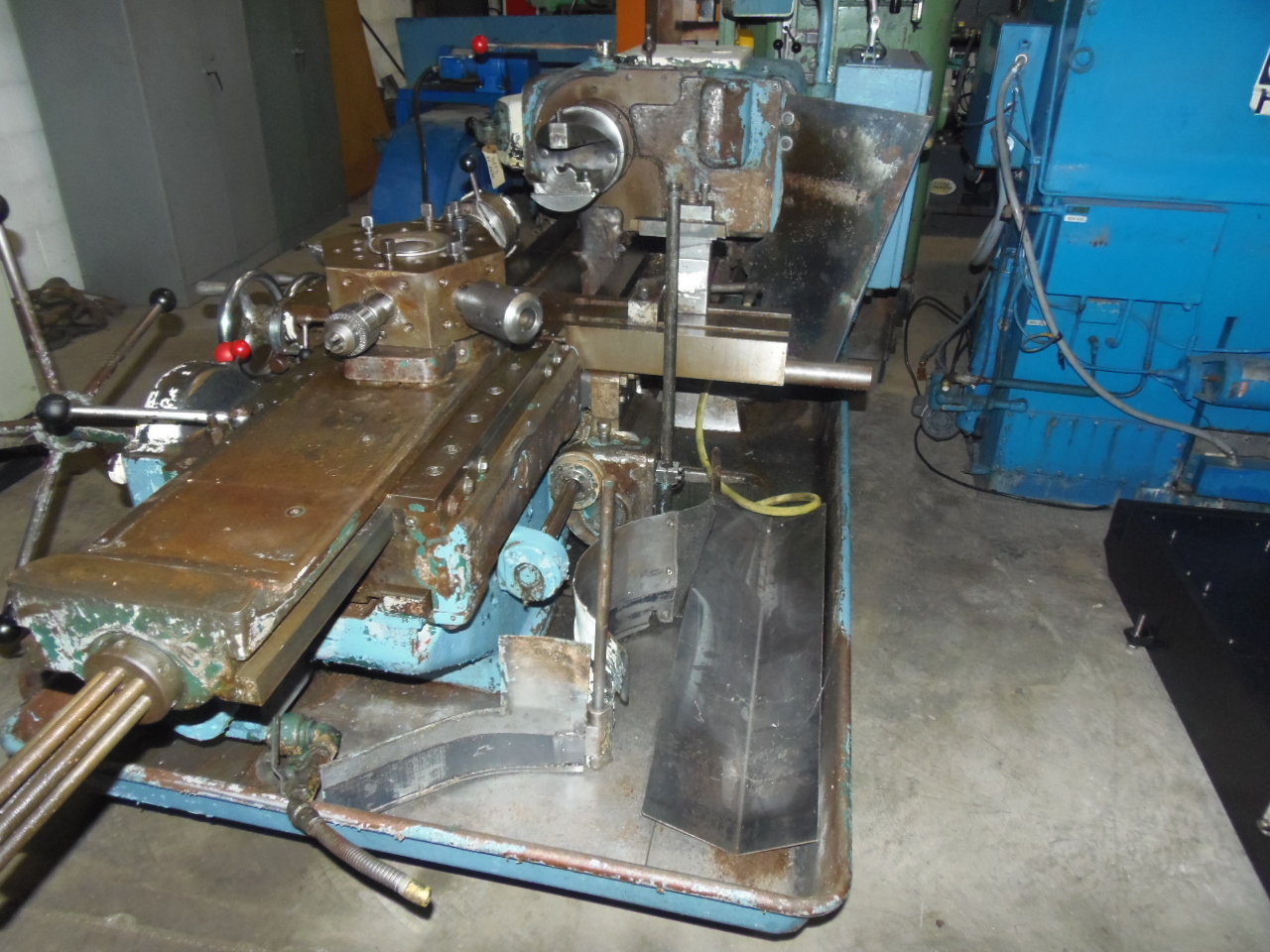

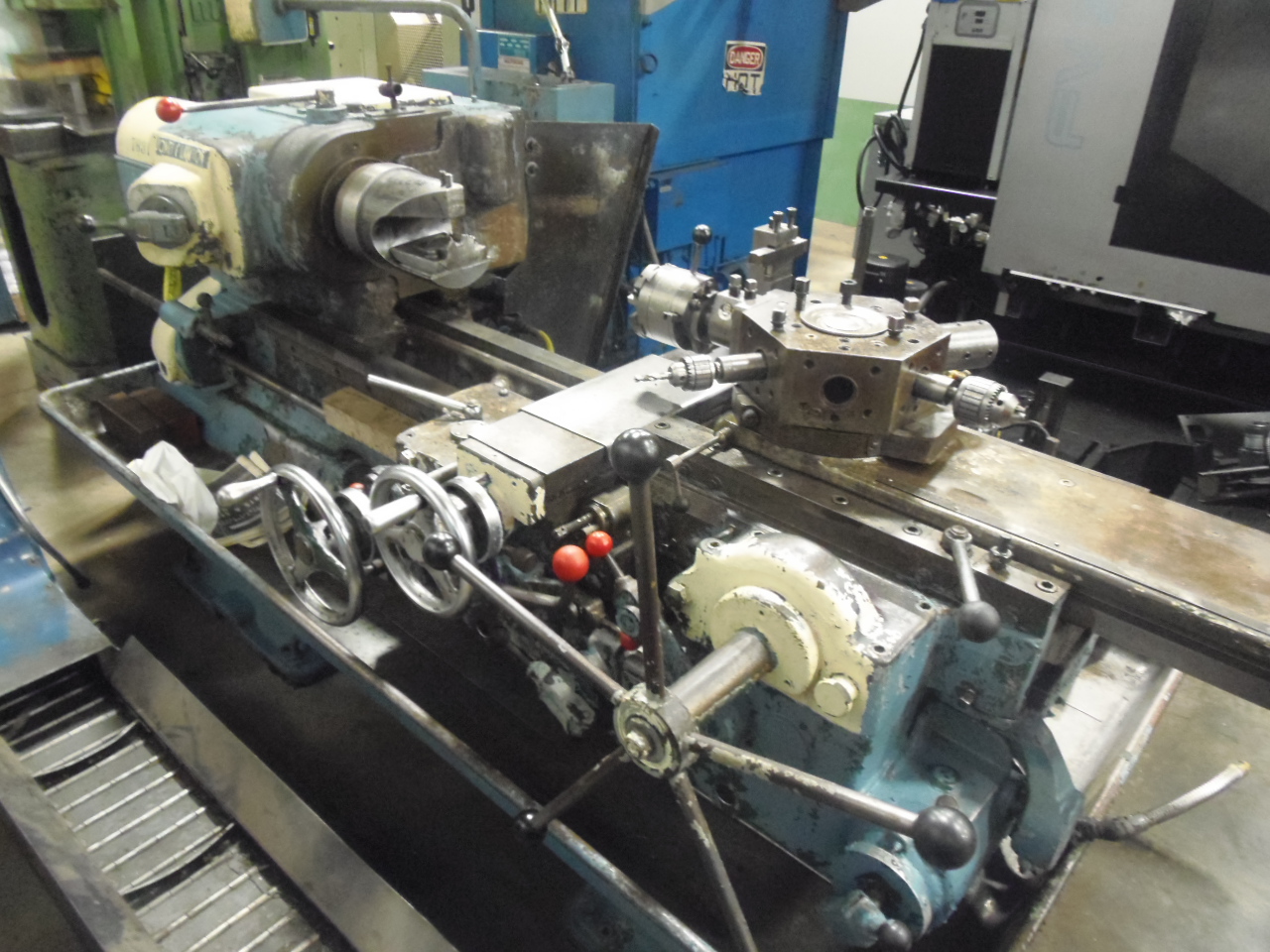

#3 JONES & LAMSON TURRET LATHE

Brand
JONES & LAMSON

Model
3

Type
Lathes, Turret

Stock #
10332

Condition
Used

Year
1959

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:

MANUFACTURER................ JONES & LAMSON

MODEL....................... NO. 3

SERIAL...................... 202032
SWING OVER BED WAYS......... 21-1/4"

SWING OVER CARRIAGE GUIDE... 18-1/2"

SWING OVER CROSS SLIDE...... 11"

TURNING LENGTH.............. 10"
SPINDLE SPEED RANGE (9)..... 20 - 1000 RPM
FEED RANGE LONGITUDINAL..... .005 - .100
CROSS............ .0025 - .050
HOLE THROUGH SPINDLE........ 1-1/2"

EQUIPPED WITH:
2 JAW CHUCK
HOLDERS
CHIP PAN

CURRENTLY WIRED 440/60/3

MISC. MANUALS

SHIPPING WEIGHT 6000 LBS.
