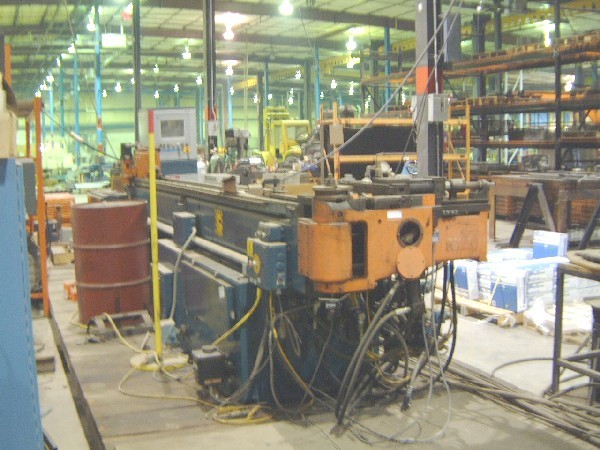

3" EATON-LEONARD VB30HS, 12" RADIUS, 195 DEG. BEND ANGLE, 30 HP, 12' DIST. OVER MANRDREL, PREMIER CTRL, 1998

GENERAL SPECIFICATIONS:
MANUFACTURER EATON-LEONARD
MODEL VB30HS RH612 1 PC 0198
NEW (APPROX.) 1988
MOTOR 30 HP
DISTANCE OVER MANDRELL 12'
CAPACITY TUBE 3" OD x .187" WALL
MAX. RADIUS 12"
MAX. BEND ANGLE 195 DEG.
DISTANCE FLOOR TO DIE CENTER 49"

EQUIPPED WITH:

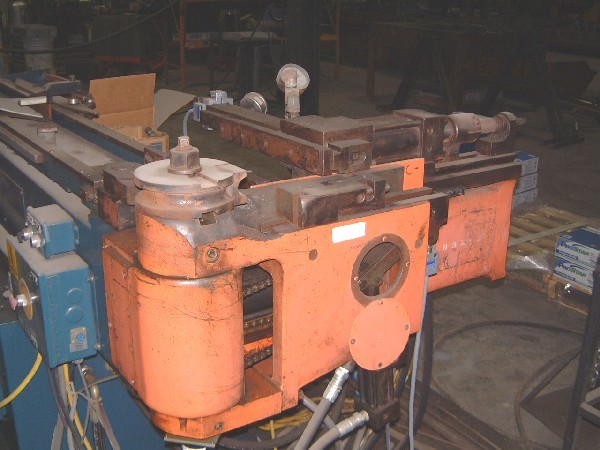

#150 BEND HEAD
PREMIER CONTROL/IBM PC COMPATIBLE
PRESSURE DIE ASSIST
PLANE OF BEND

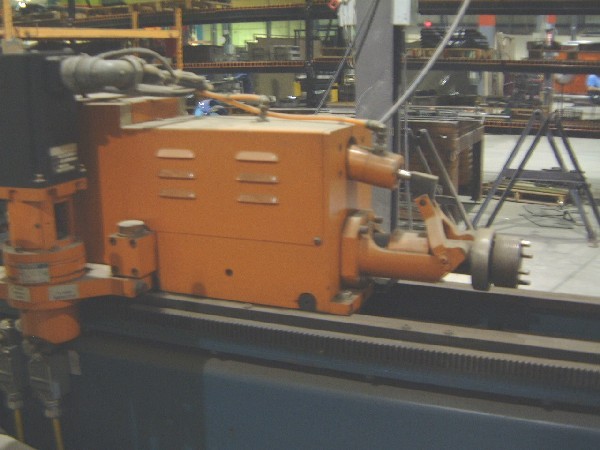

HYDRAULIC MANDRELL EXTRACTOR
INTERCHANGABLE BEND HEAD
NOTE: COMPLETELY REBUILT IN 1998 BY EATON LEONARD
