Specifications
Equipped With
GENERAL SPECIFICATIONS:

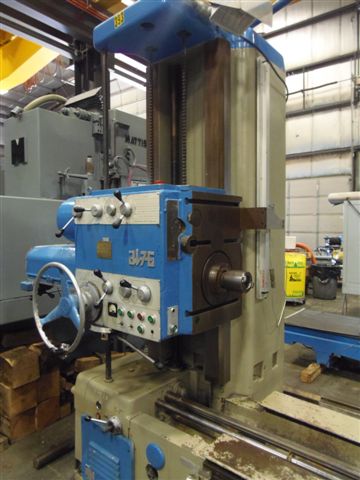

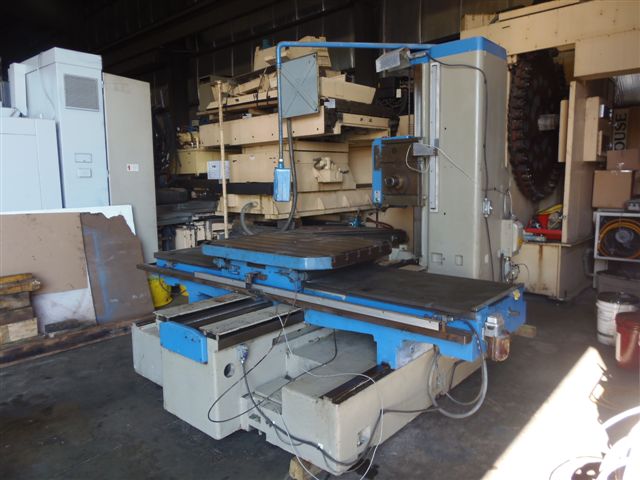

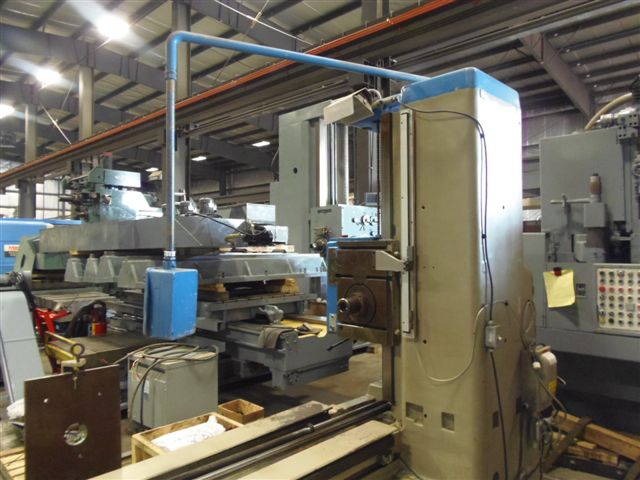

MANUFACTURER.................................SUPERMILL
MODEL........................................AL 76 / B4
SERIAL#......................................3059.3
AGE APPROXIMATELY............................1966

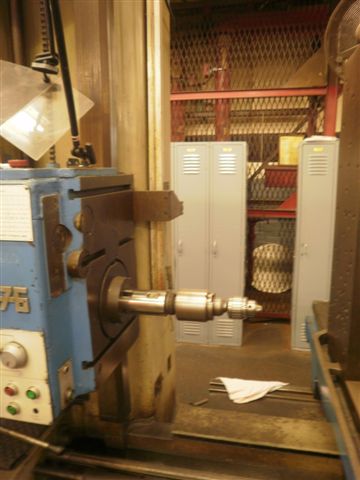

SPINDLE DIAMETER.............................3'
SPINDLE TAPER................................MT#5
SPINDLE MOTOR................................10 HP
SPINDLE TRAVEL...............................26"
SPINDLE SPEED (16)...........................10 to 1800 RPM
ROTARY TABLE SIZE............................36" X 48"
TRAVELS (X)..................................80"
(Y) VERTICAL ........................40"
(Z) IN AND OUT.......................48"
DIMENSIONS:..........................126"W X 132"D X 102"H
WEIGHT APPROXIMATELY.........................19,500 LBS.
EQUIPPED WITH:

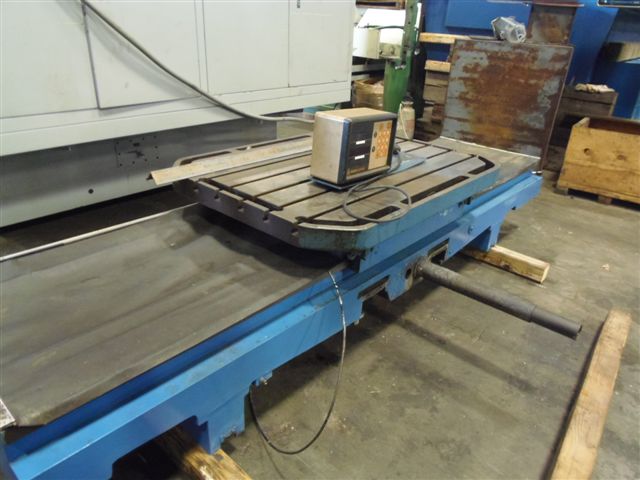

ROTARY TABLE

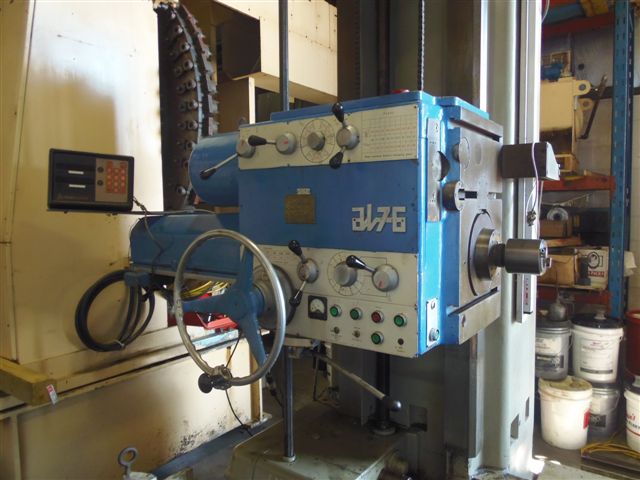

2 AXIS DRO ANILAM MICROWIZARD
HARDENED WAYS

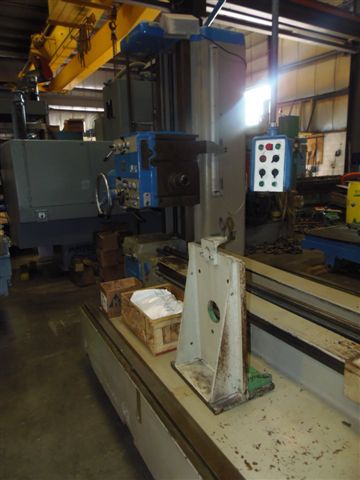

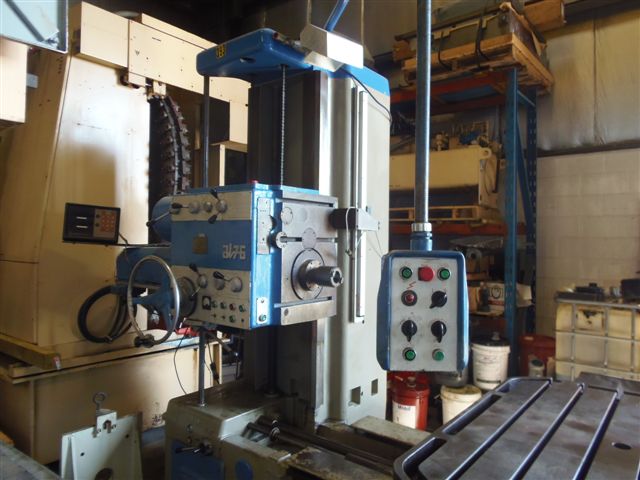

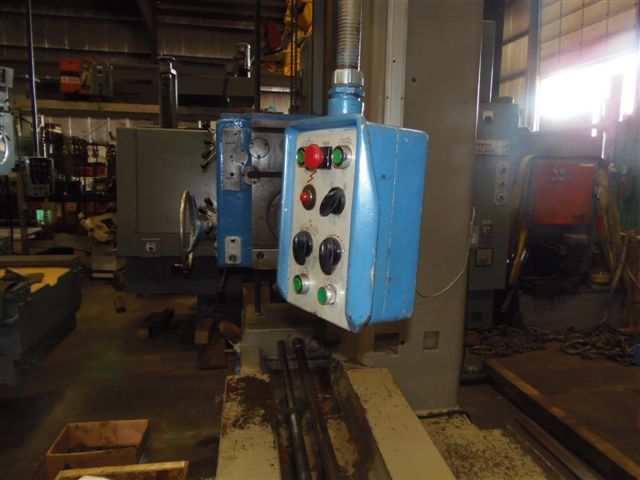

PENDENT CONTROL
QUICK CHANGE TOOL HOLDER
SOME TOOL HOLDERS
