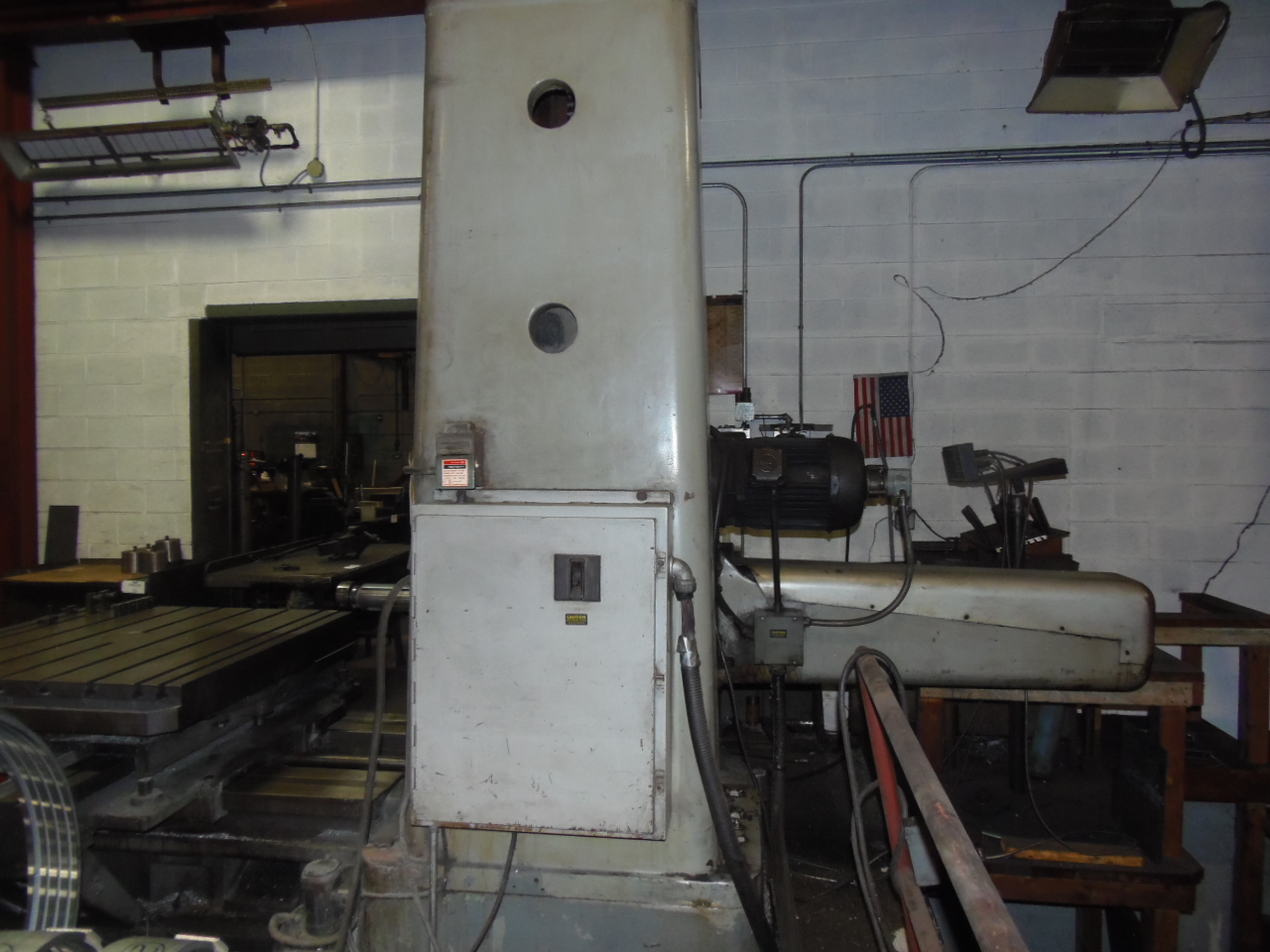

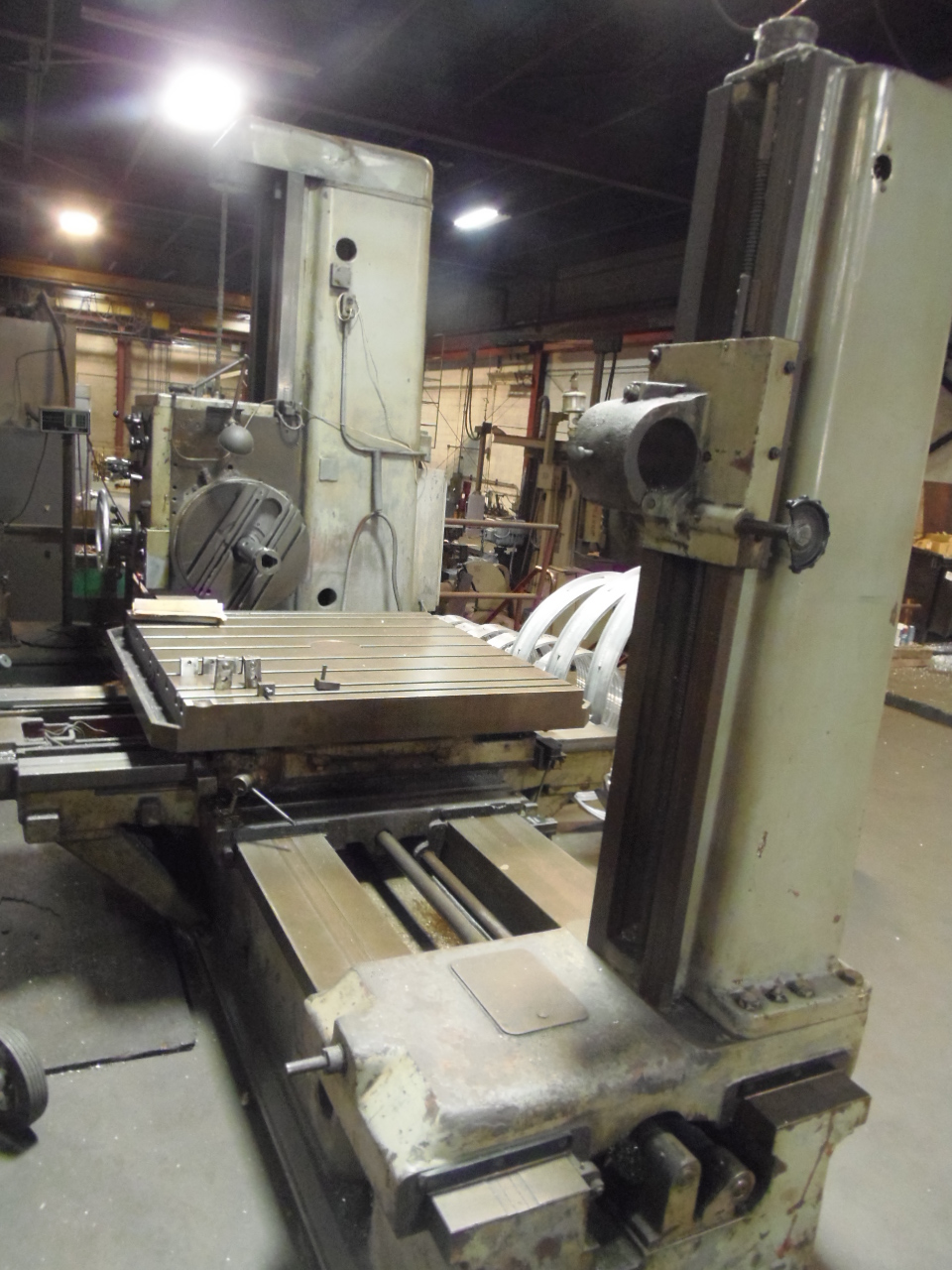

3.93" TOS HORIZONTAL TABLE TYPE BORING MILL, MODEL H100A, 49" x 49" TABLE, 6-900 RPM, 1965

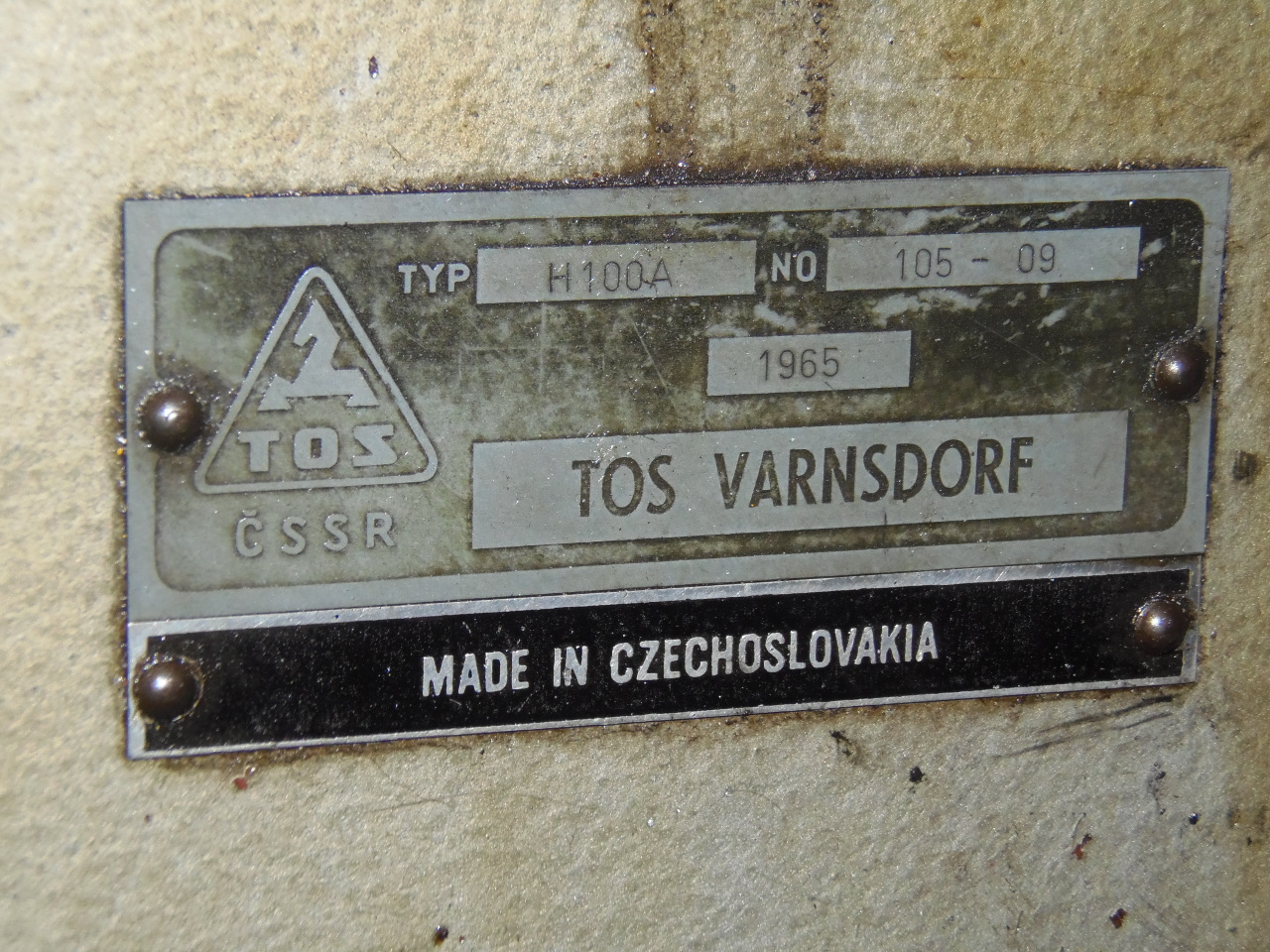

MAKE.............................. TOS
MODEL............................. H 100 A
SERIAL NUMBER..................... 105-09
AGE (YEAR)........................ 1965
SPINDLE DIAMETER.................. 3.9"
SPINDLE TAPER (FACTORY)........... MORSE 6*
SPINDLE SPEEDS.................... 6-900 RPM
NUMBER OF SPEED RANGES............ 23

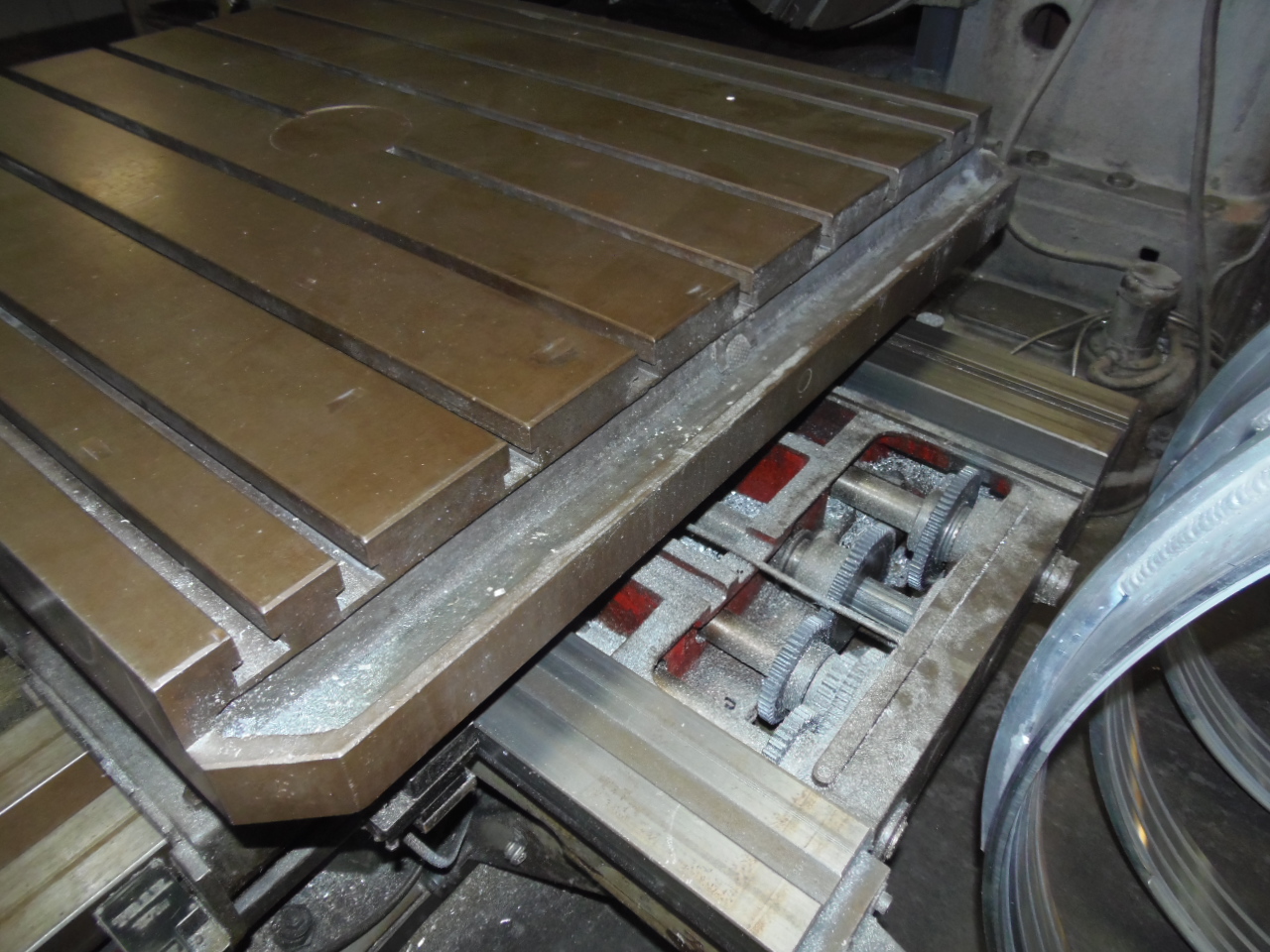

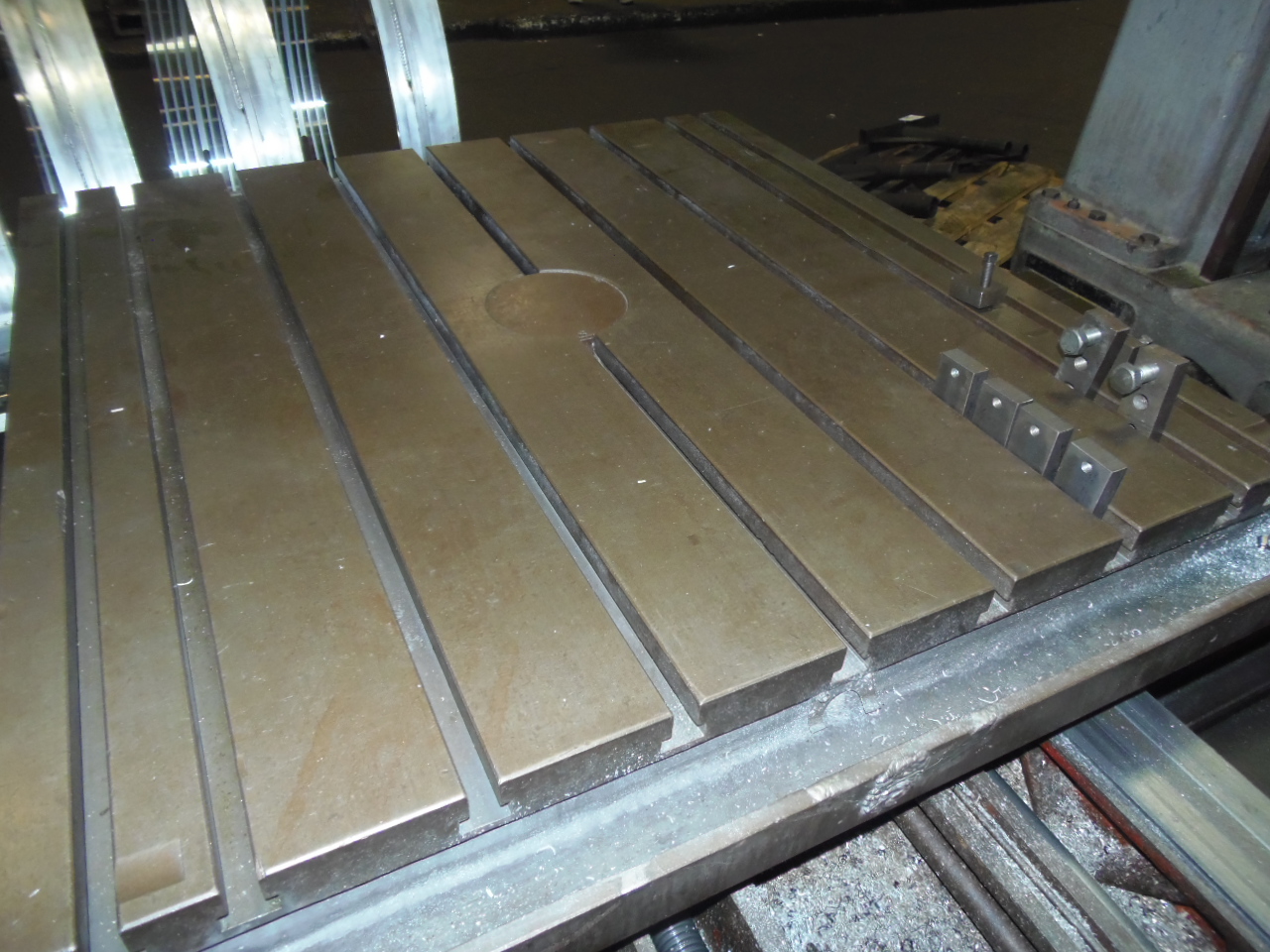

TABLE SIZE........................ 49" X 49"
TABLE CAPACITY (WEIGHT)........... 6,600 LBS.
CENTERLINE OF SPINDLE TO TABLE.... 0-44"

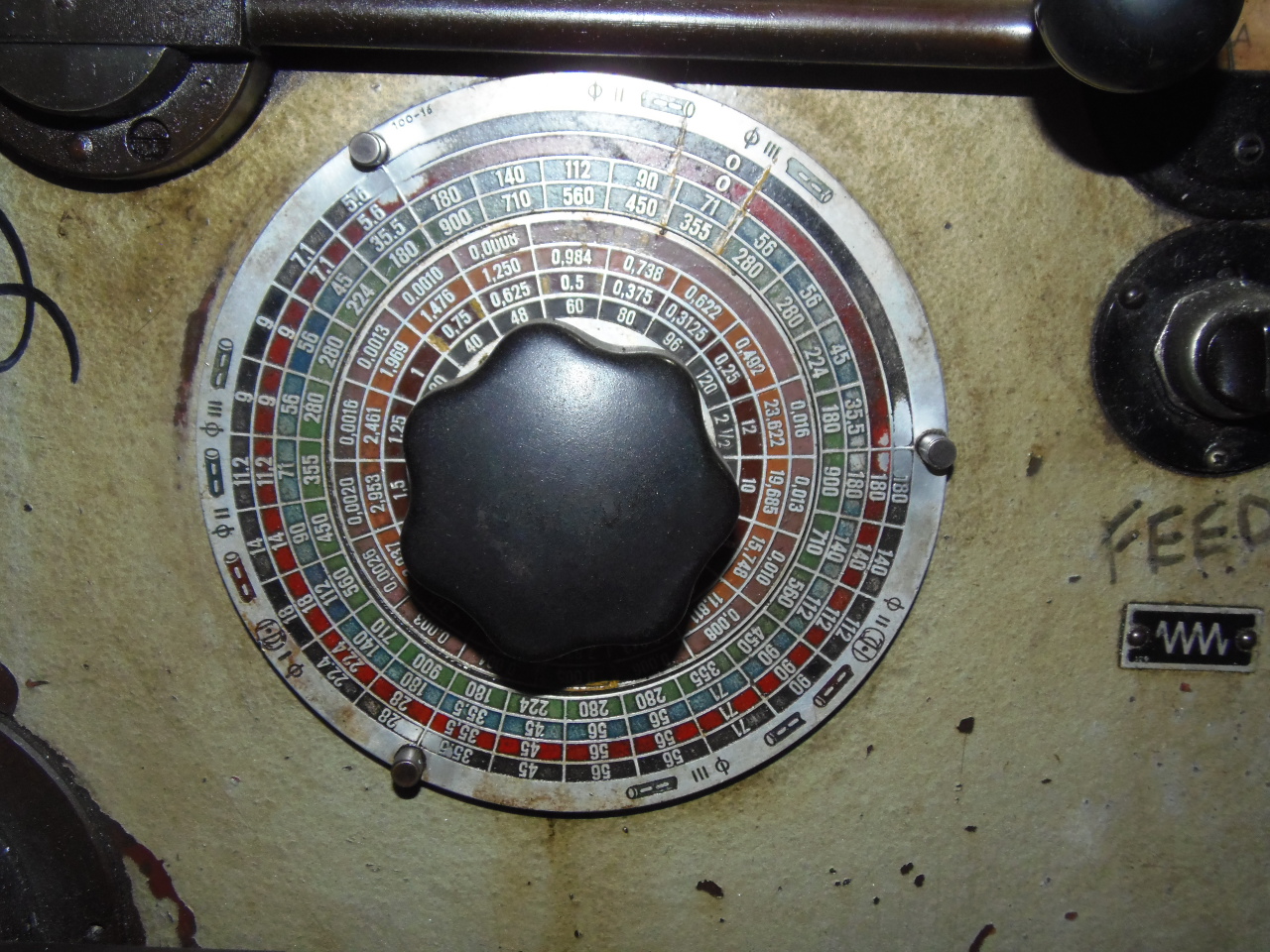

FEEDS:
WORKSPINDLE, SPINDLE HEAR, LONG. TABLE,
TRANS TABLE, TOOL SLIDE PER (1)
REVOLUTION OF WORKSPINDLE......... 0.0007-0.472"
STILLSTAND FEED SPEEDS............ 0.492-24.80" / MIN
RAPID OF SPINDLE, TABLE, HEAD..... 78.75" / MIN
ROTARY RAPID FEED OF TABLE........ 1 RPM
THREADS:
METRIC THREADS / PITCH............ (18) .25-12 MM
WHITWORTH THREADS / T.P.I......... (18) .05-120"
DIMENSIONS........................ 230" X 102" X 120" H
WEIGHT (APPROX)................... 31,000 LBS

EQUIPPED WITH:

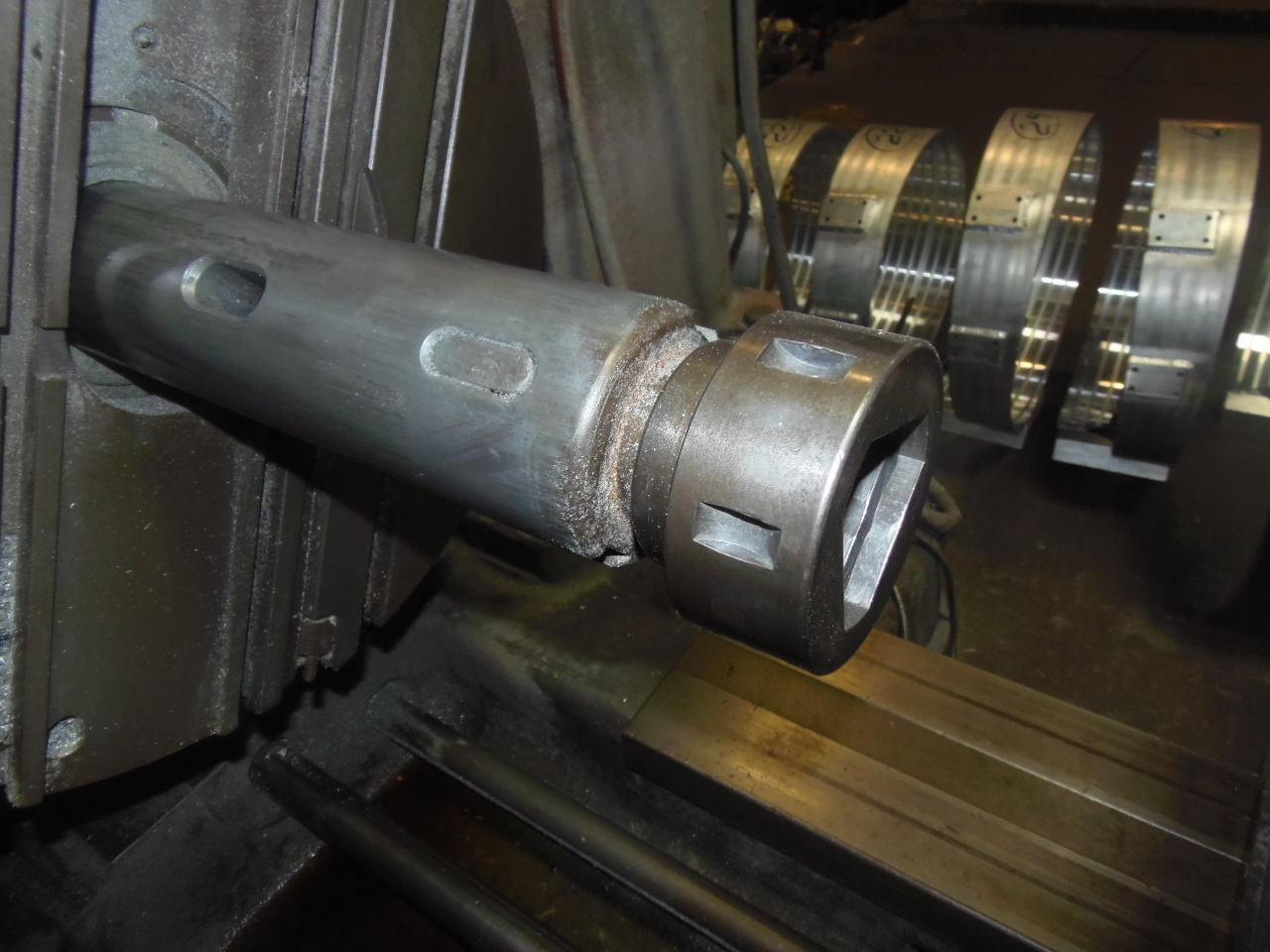

*CURRENTLY EQUIPPED WITH QUICK CHANGE SPINDLE
MANUALS

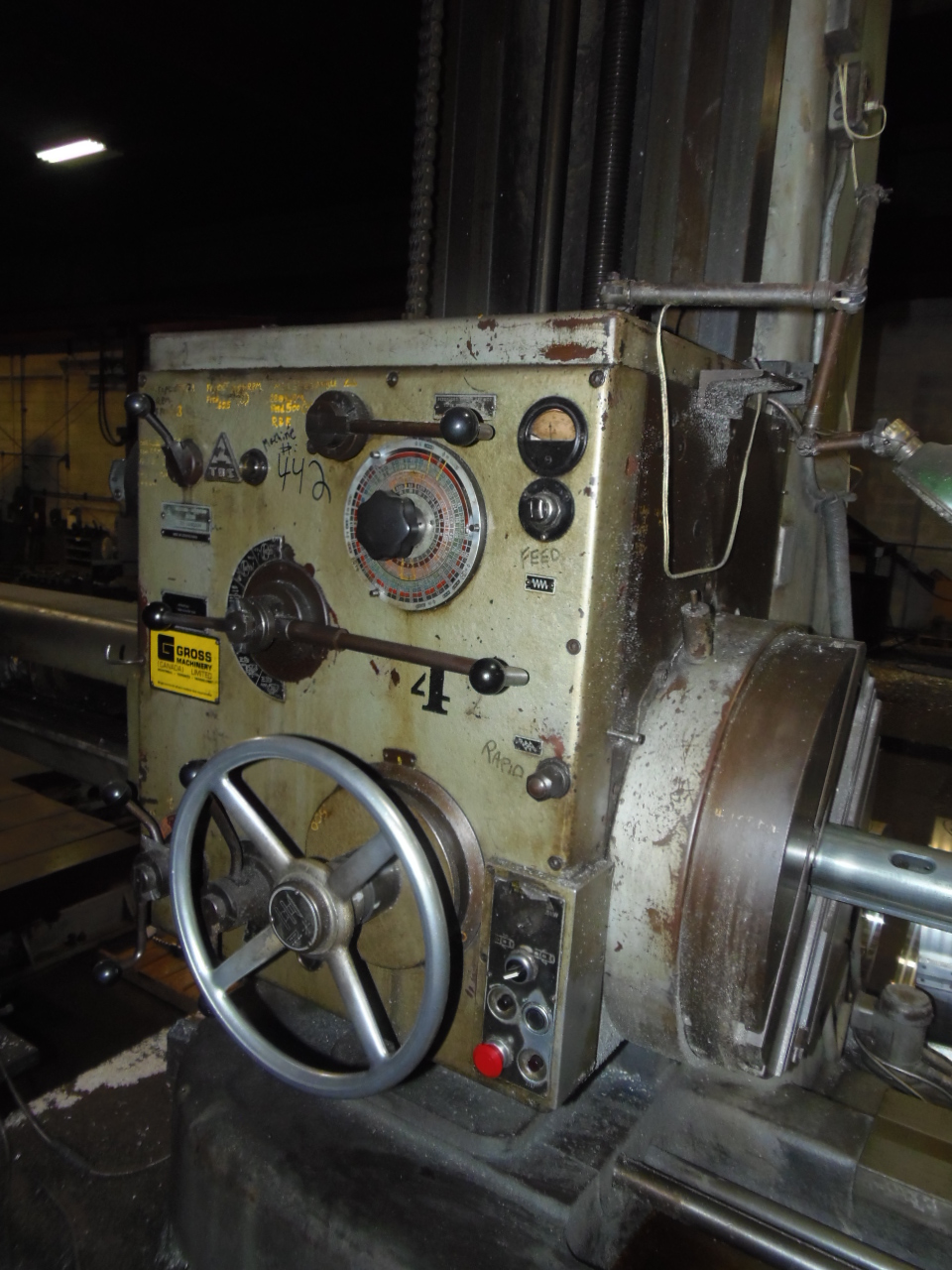

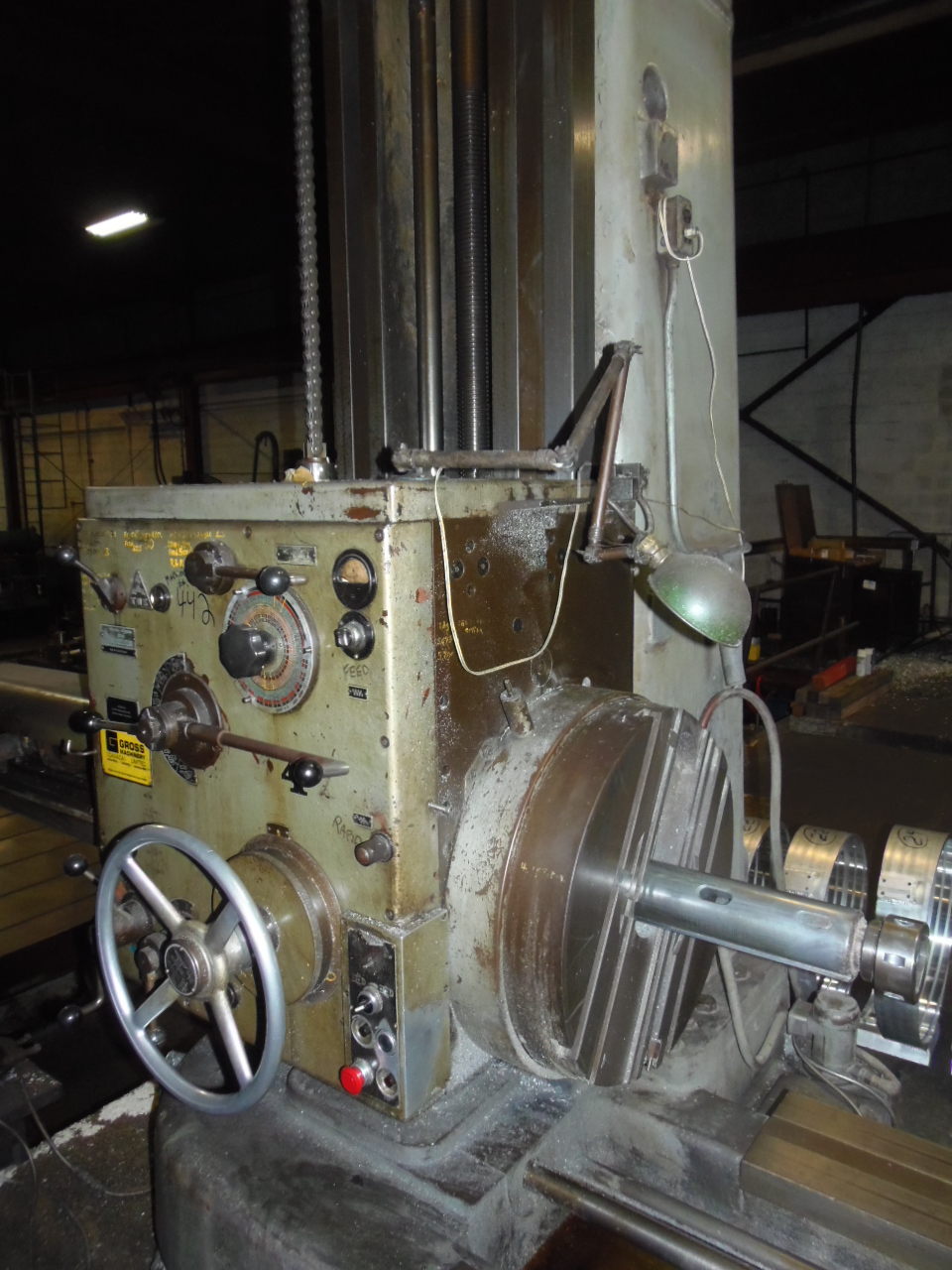

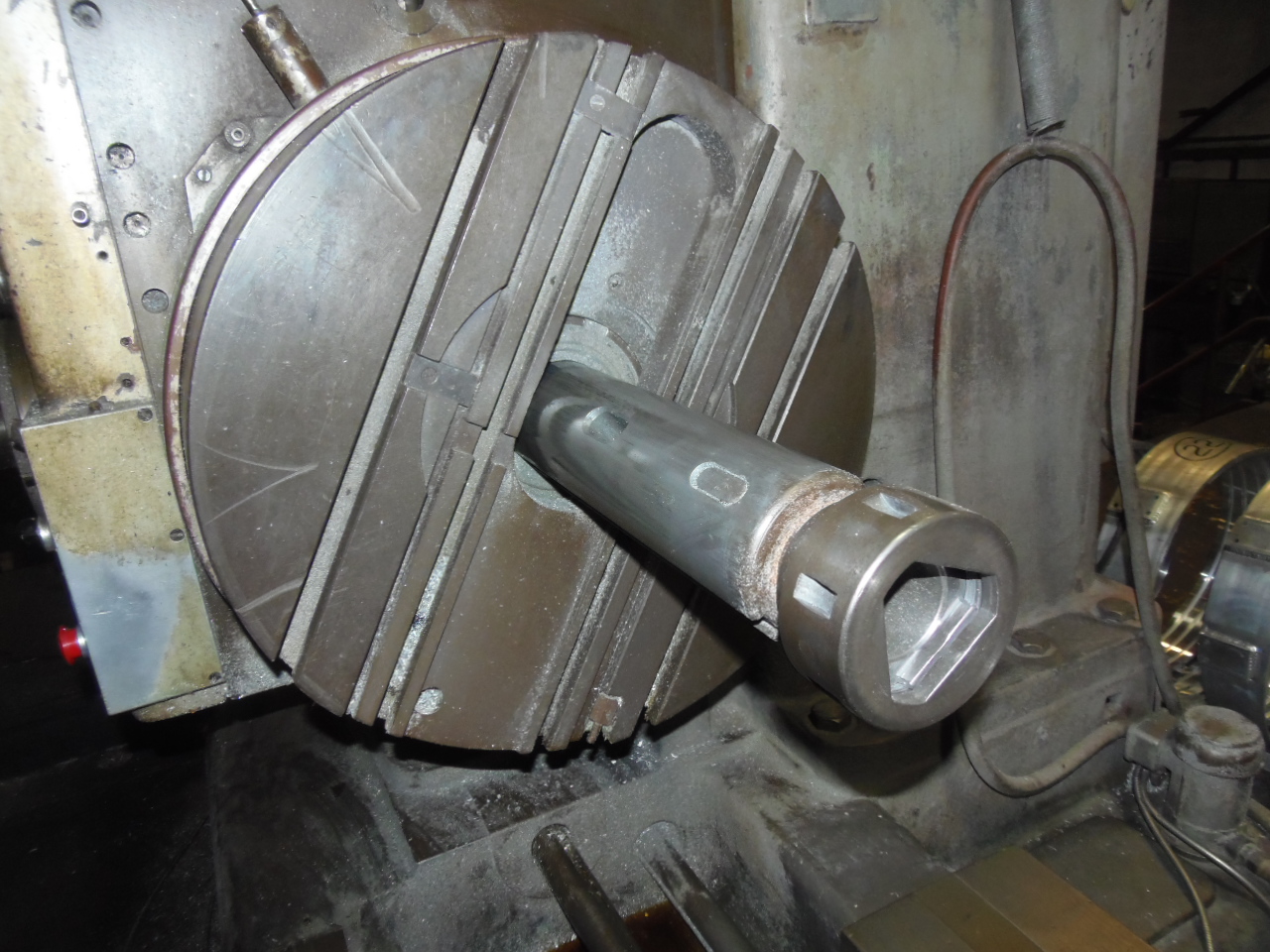

23.5" FACING HEAD
TAILSTOCK
