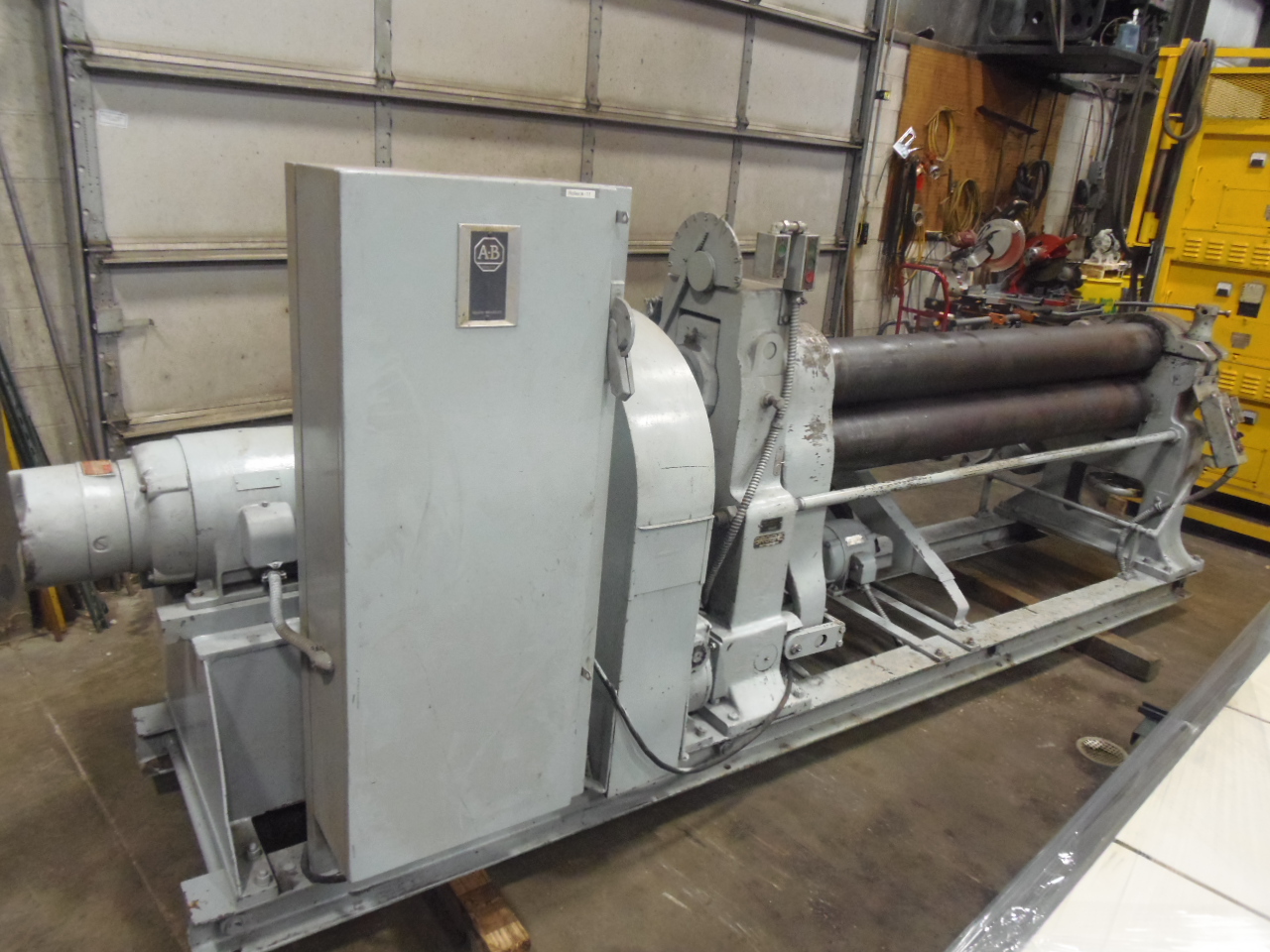

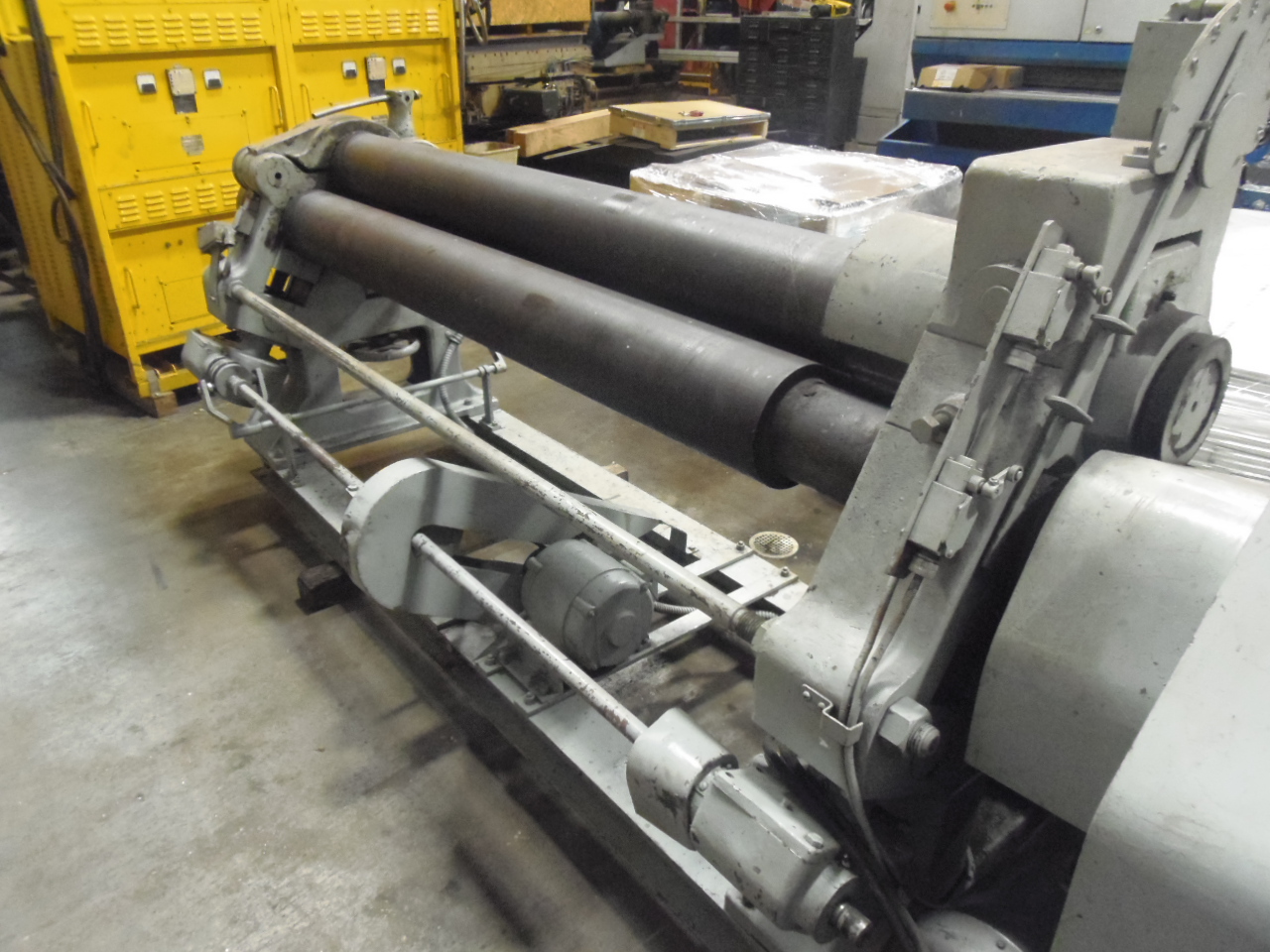

GENERAL SPECIFICATIONS:

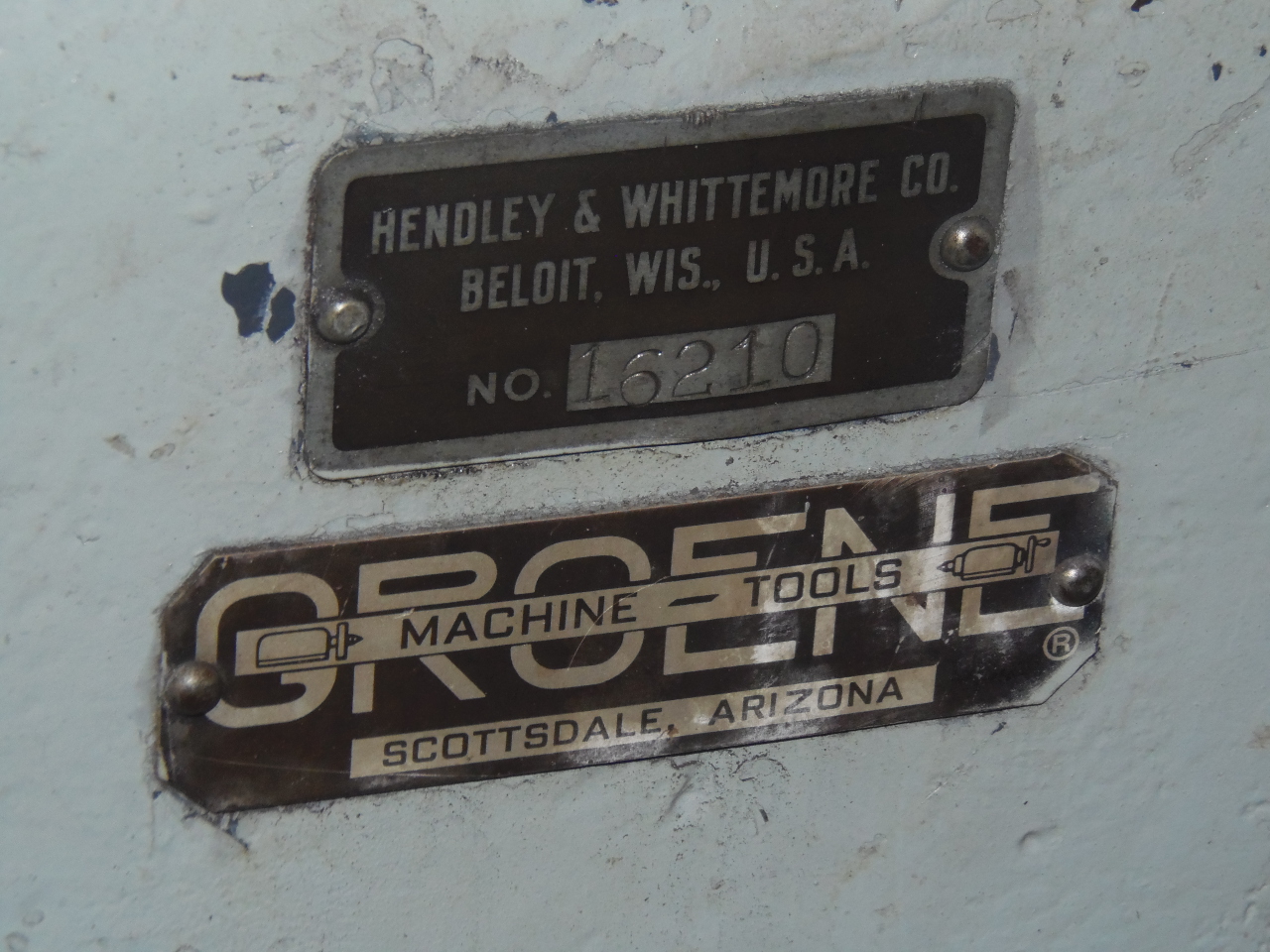

MANUFACTURER.................... HENDLEY BELOIT
SERIAL #........................ 16210
MODEL........................... 8E
RATED CAPACITY.................. 3/8"
WORKING LENGTH.................. 72"
ROLL LENGTH..................... 76"
DIAMETER OF FEED ROLLS.......... 8"
DIAMETER OF THIRD ROLL.......... 8"
POWER LOWER ROLL ADJUSTMENT..... 6"

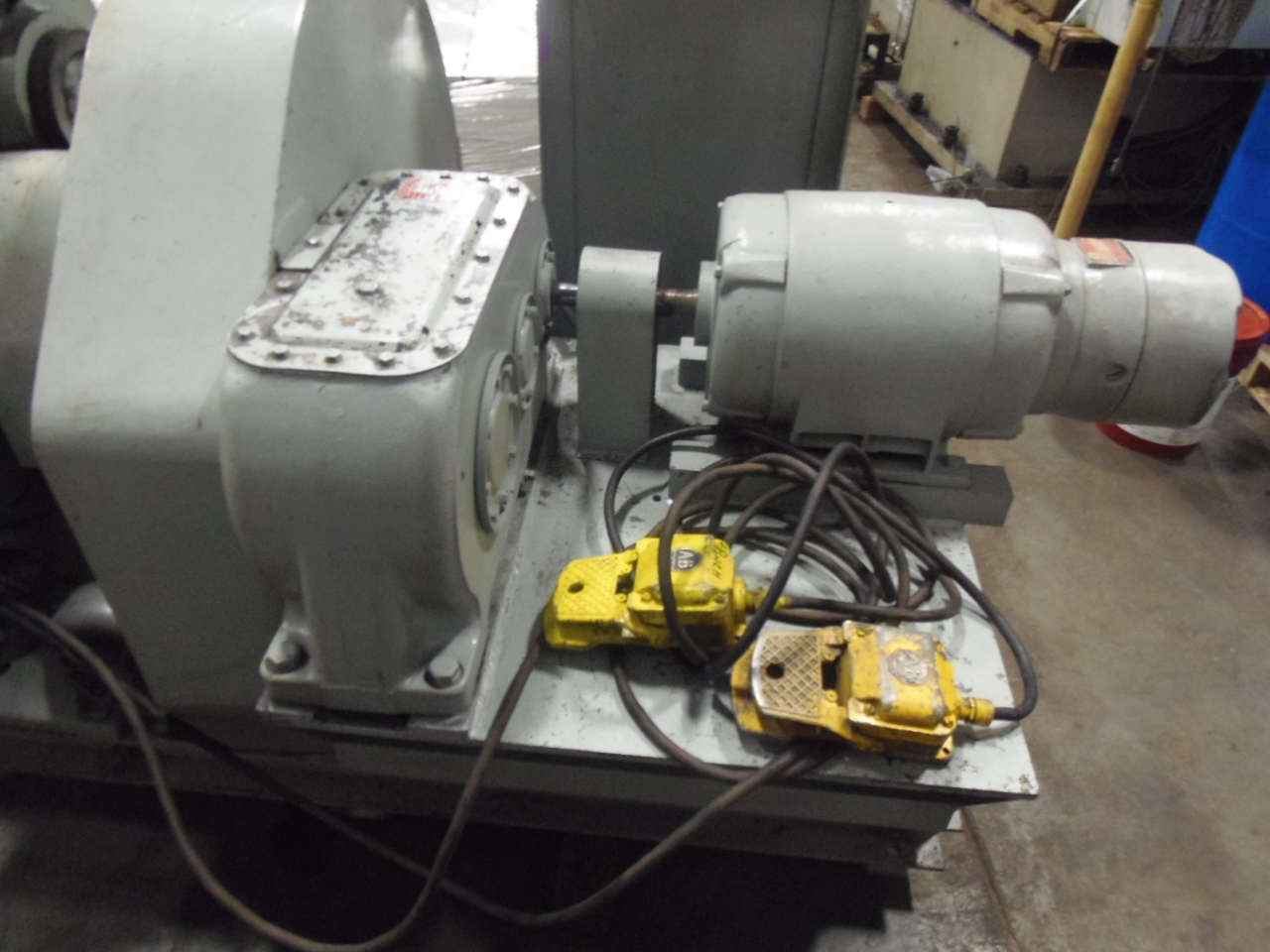

MOTOR........................... 12.5 HP
ELECTRICS....................... 220/440 CURRENTLY 440V
DIMENSIONS (APPROX.)............ 48" x 135"
APPROXIMATE WEIGHT.............. 8600 LBS
EQUIPPED WITH:

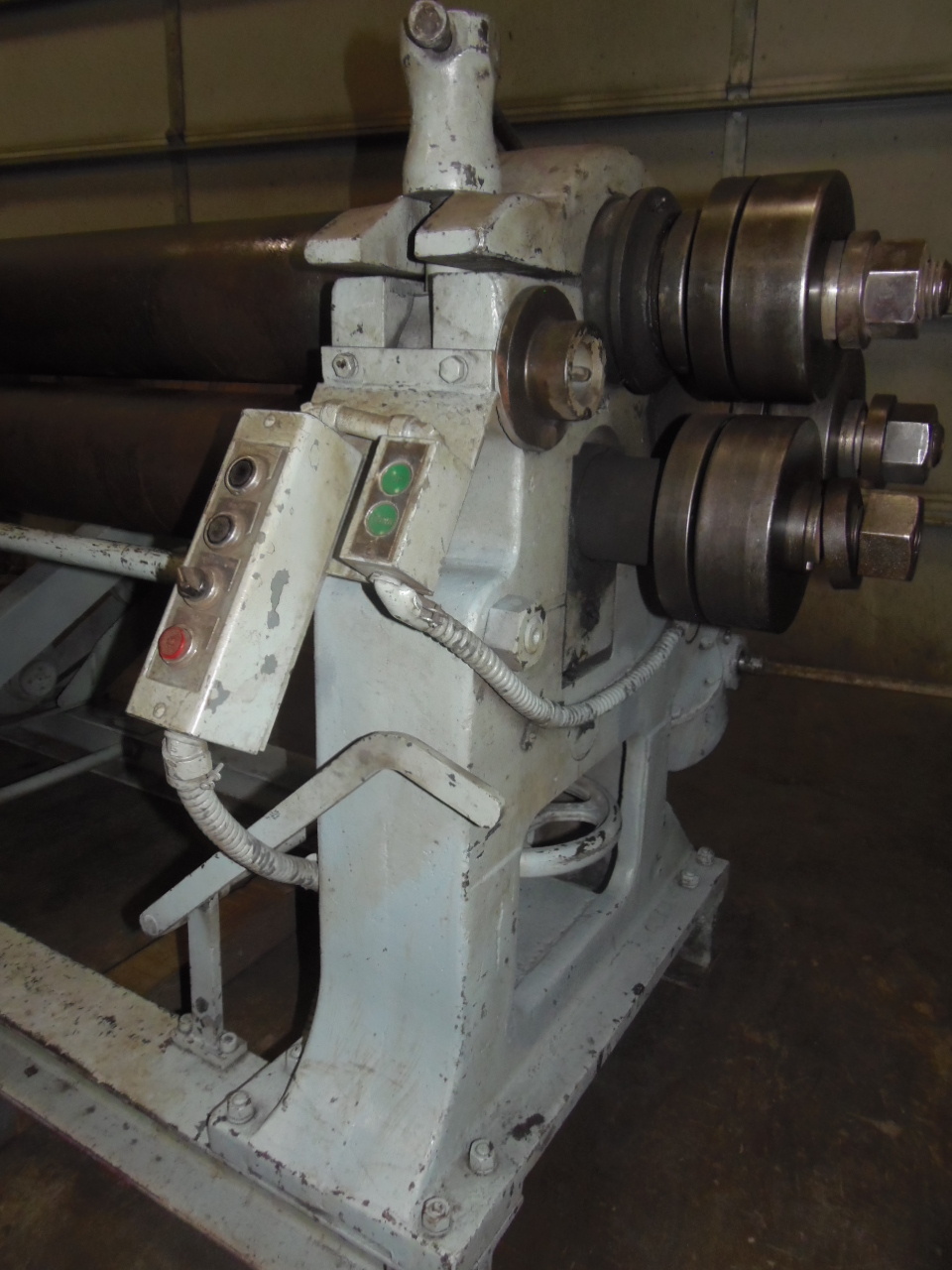

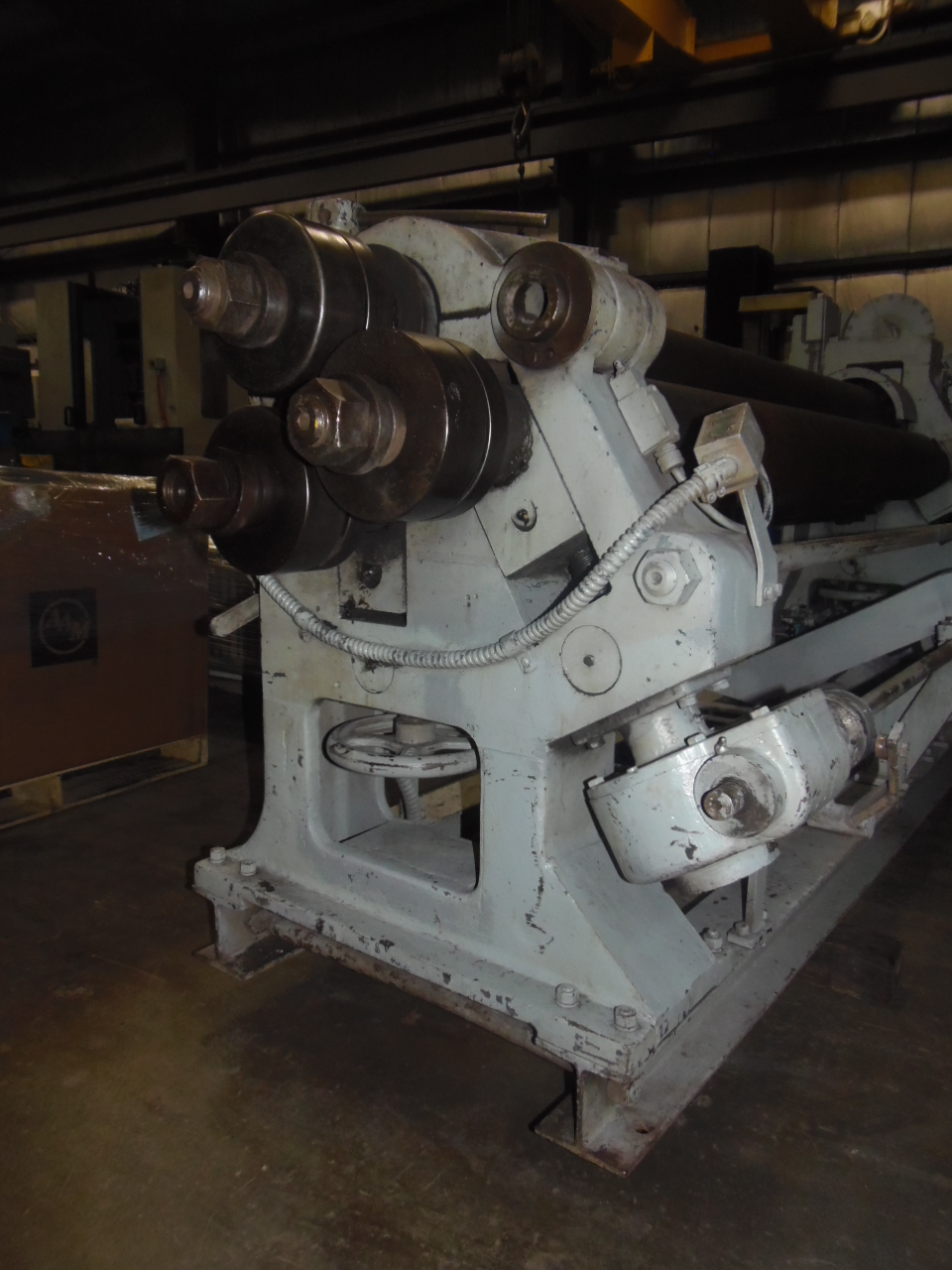

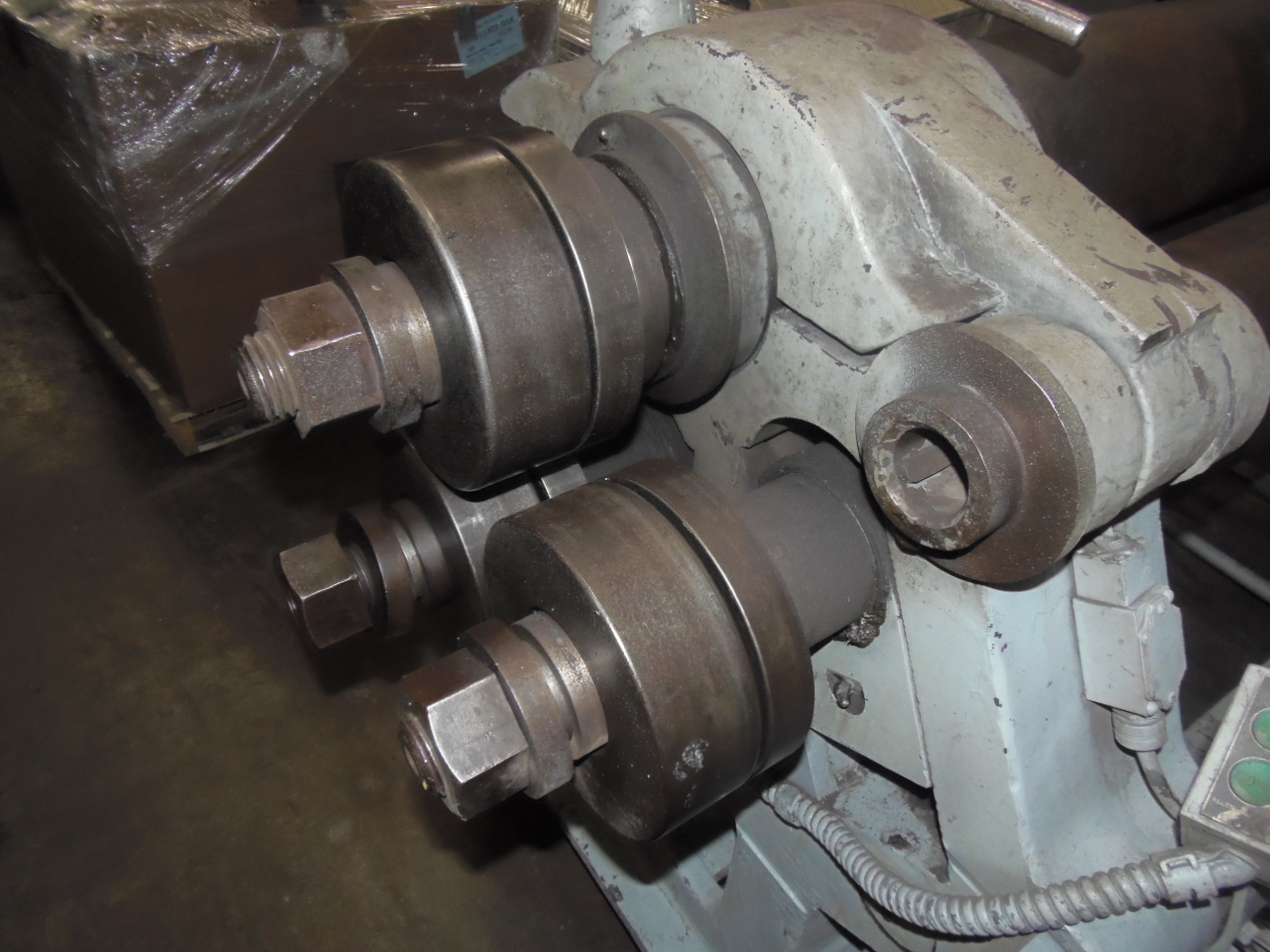

ANGLE ROLL ATTACHMENT WITH 3 8" ROLLS
LEG OUT CAPACITY: 2.5" x 2.5" x .25" -- 30" Min Dia.
LEG IN CAPACITY: 2" x 2" x .25" -- 30" Min Dia.
POWER TILT FOR OPENING ROLLS

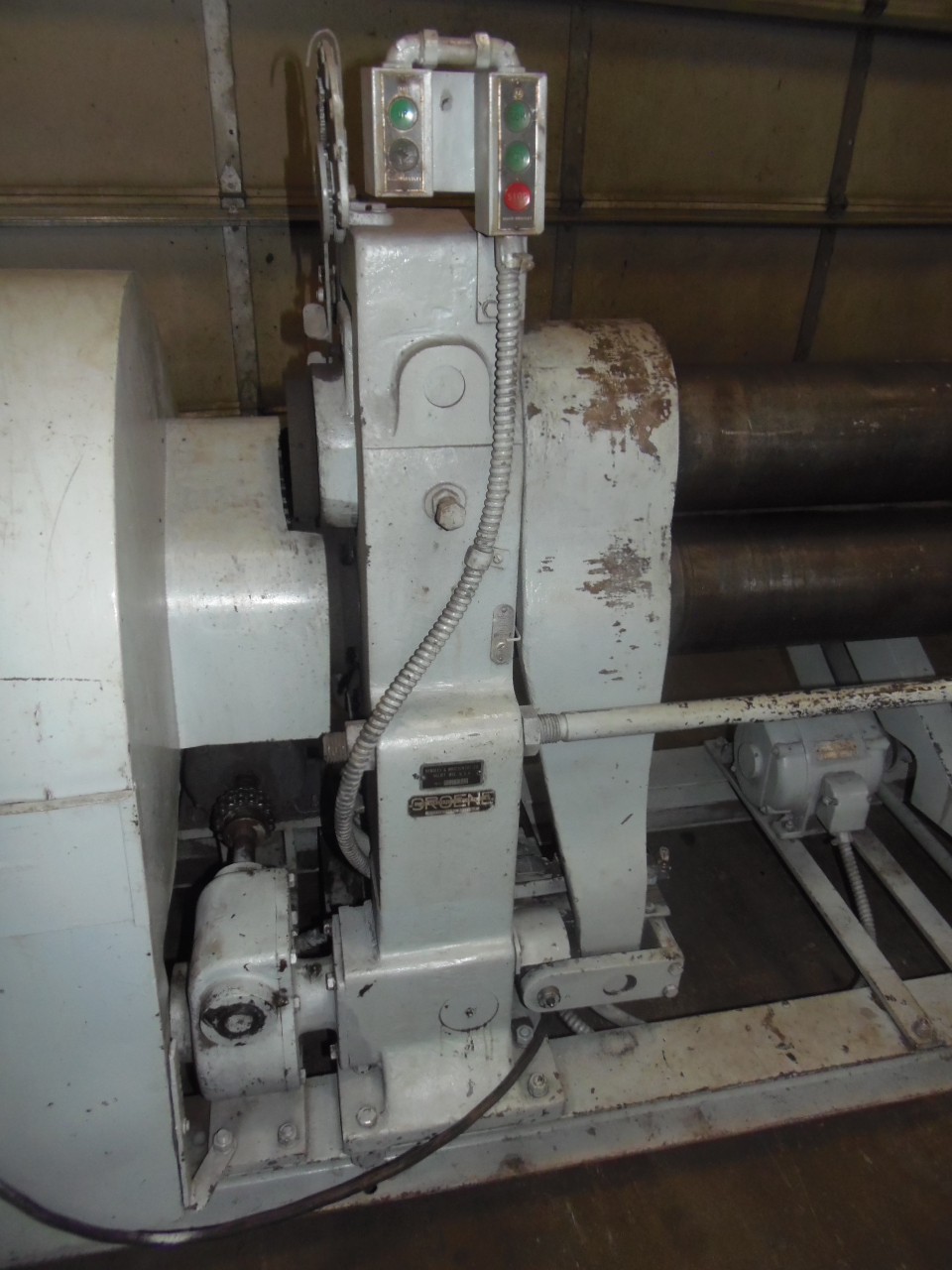

JOG/FORWARD/REVERSE
INITIAL PINCH DESIGN
FLUSH FLOOR (NO PIT)
