Specifications
Equipped With
GENERAL SPECIFICATIONS:

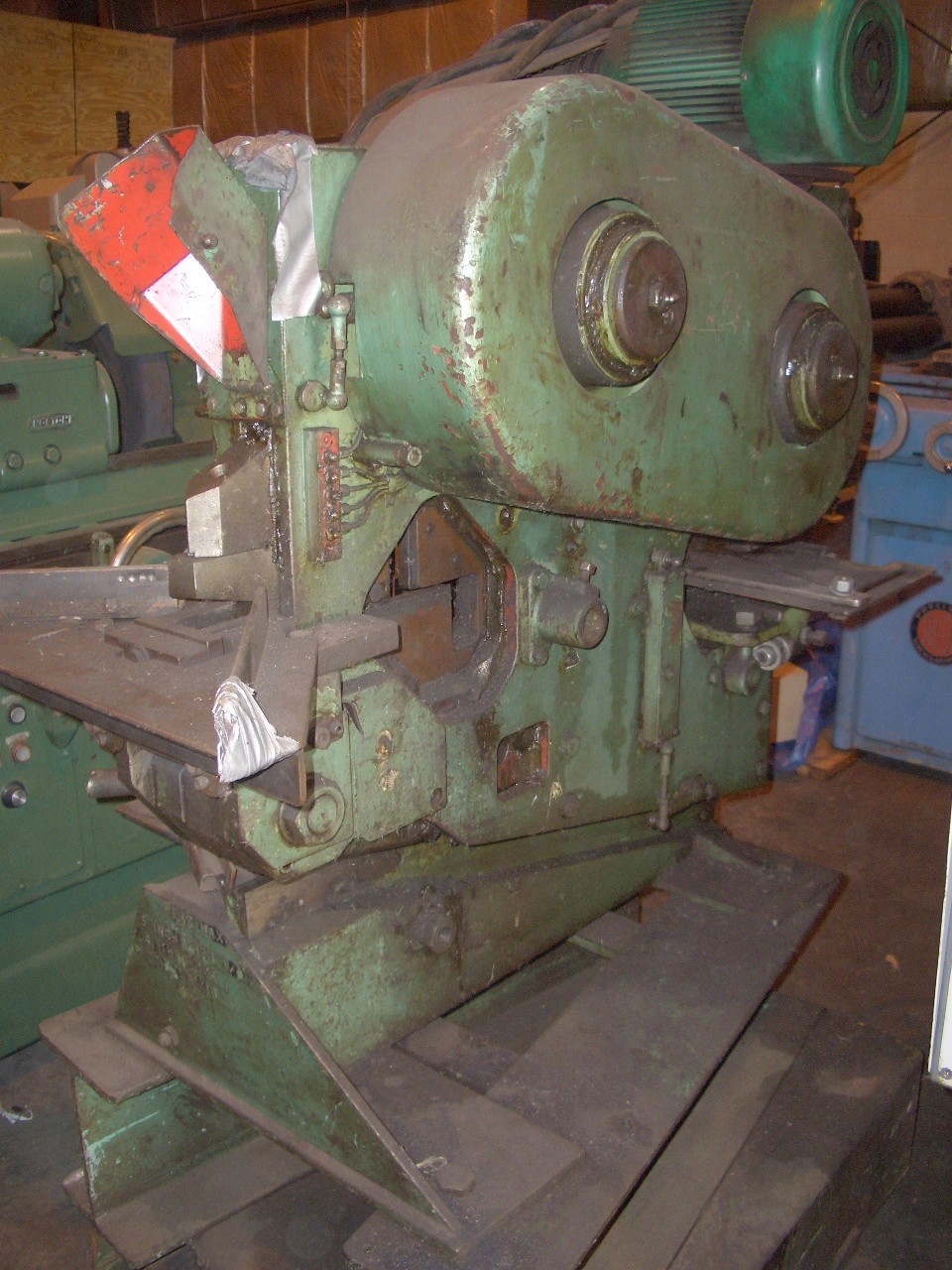

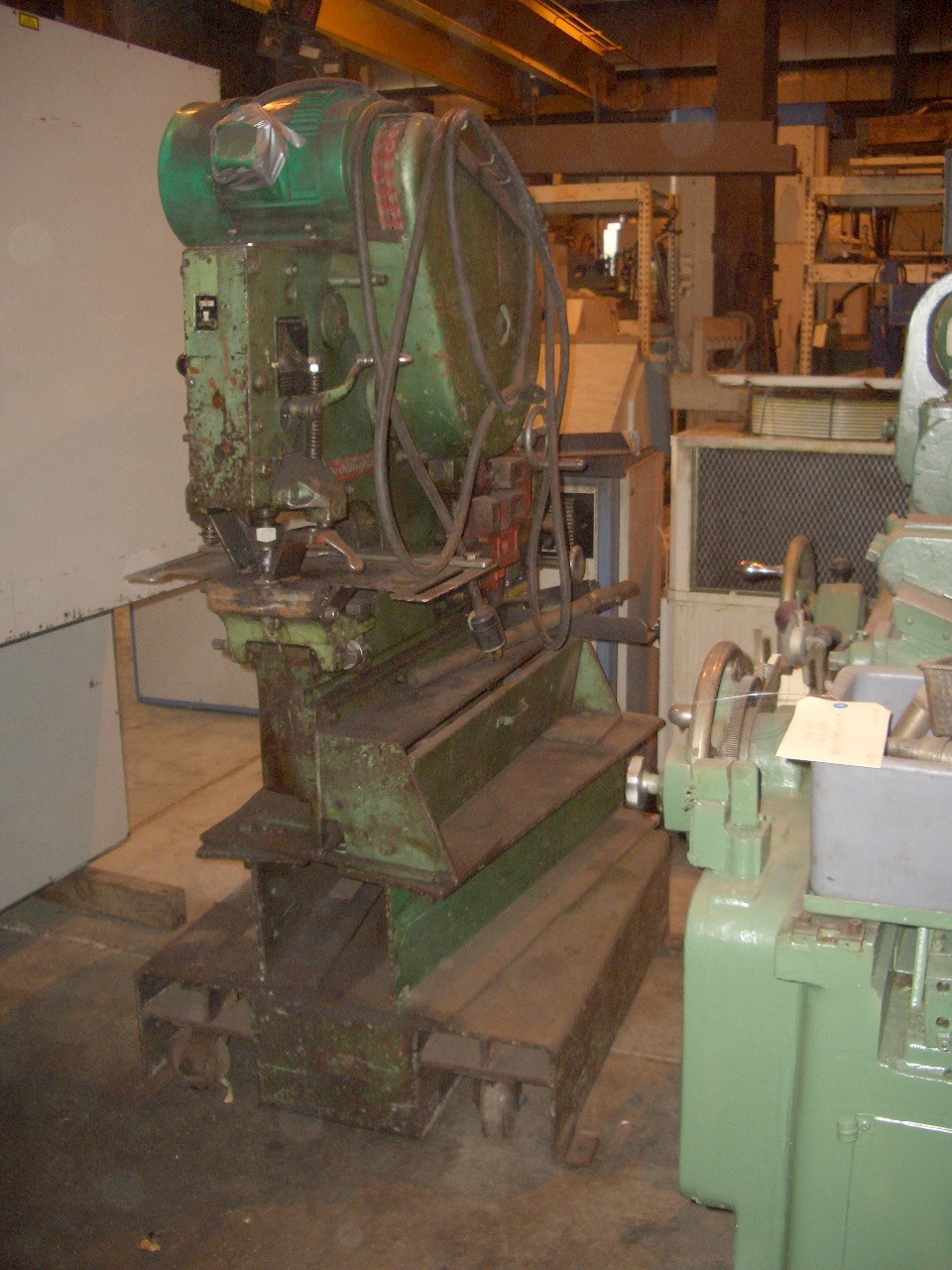

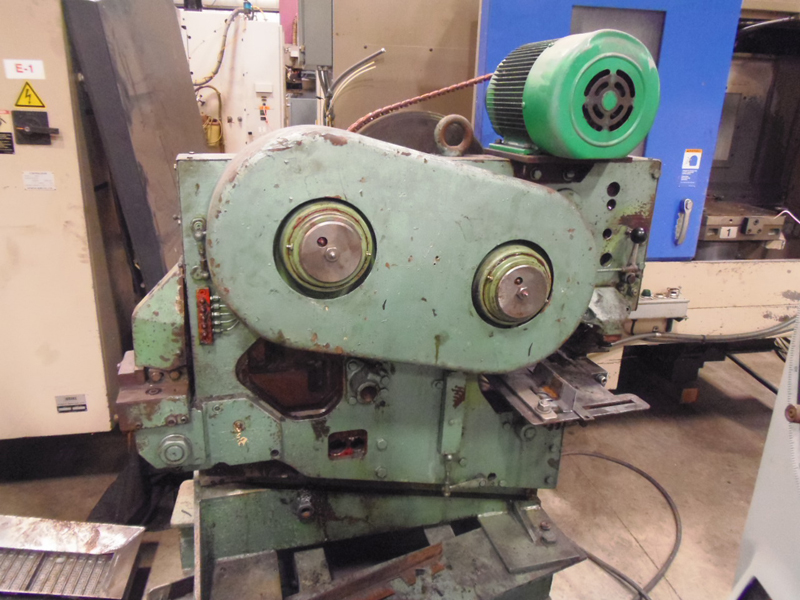

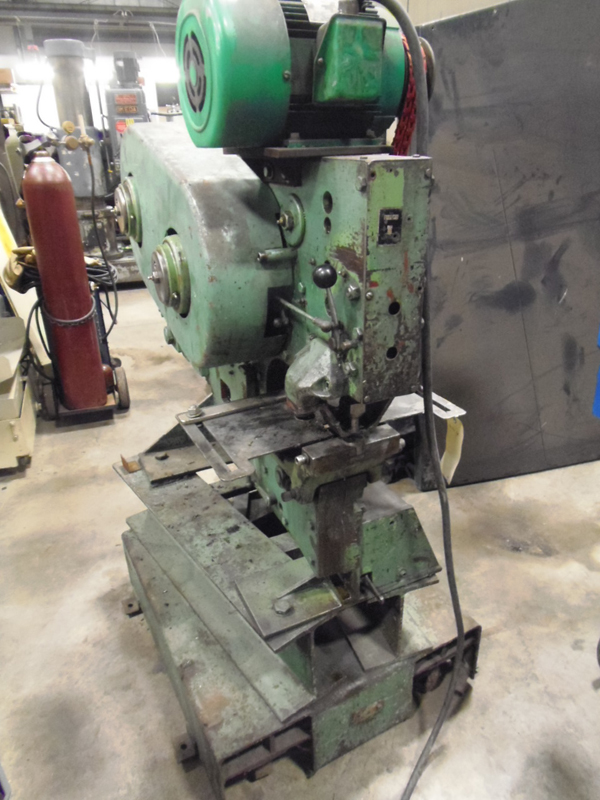

MANUFACTURER.................... PEDDINGHAUS

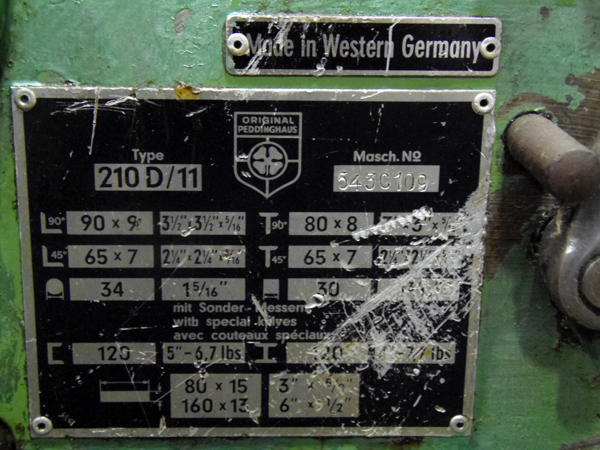

MODEL........................... 210D/11
SERIAL NUMBER:.................. 543C109
CAPACITY........................ 75 TON
ANGLE SHEARING CAPACITY......... 3.5" x 3.5" x 5/16"

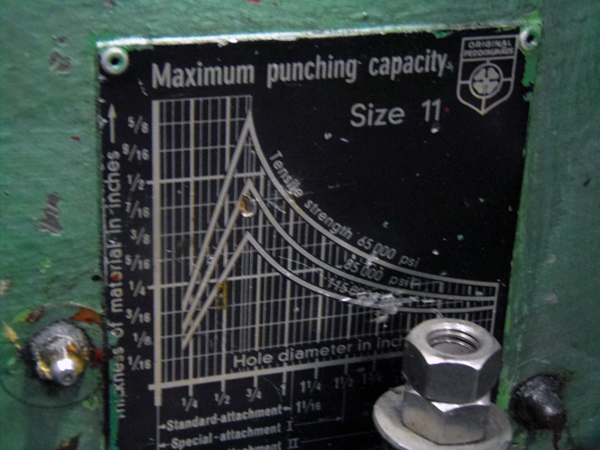

PUNCHING CAPACITY 72 TONS
................................ 1/2" DIA. THRU 1/2" THICK
................................ 1" DIA. THRU 7/16" THICK
................................ 2" DIA. THRU 1/8" THICK
MAX. FLAT SHEAR CAPACITY........ 6" x 1/2"
BAR SHEAR CAPACITY SQUARE....... 1-3/16"
BAR SHEAR CAPACITY ROUND........ 1-5/16"
MOTOR 5 HP
ELECTRICS 3PH/60CYCLE/230-460V
DIMENSIONS (APPROX.) 6'L x 32"W x 76"H
EQUIPPED WITH:
PUNCH & 1-17/32" DIE

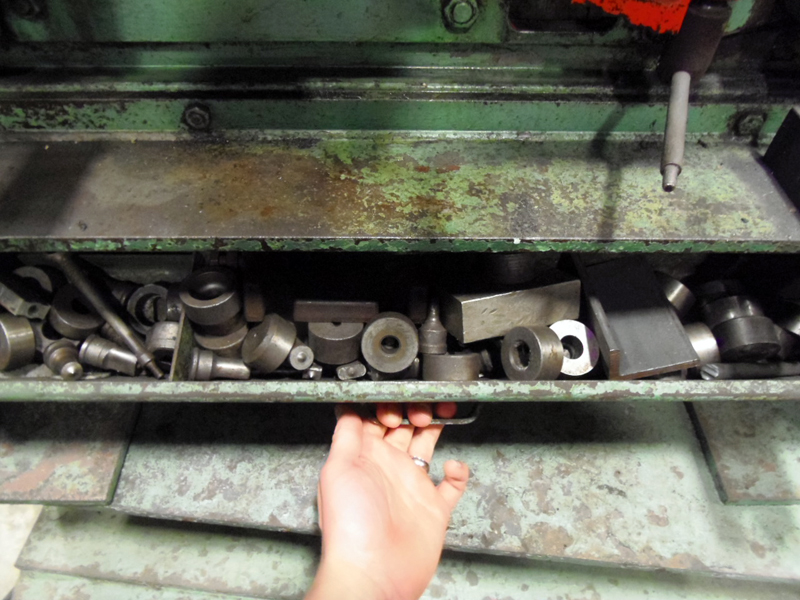

ASSORTED DIES
MANUALLY ADJUSTABLE LENGTH STOP FOR FLAT, ANGLE & BAR SHEAR
TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
