Performance Features |
|||
|
1. Capacity for 3-1/2” (88.9 mm) O.D. X 0.095 wall (2.1 mm) Steel Tubing, bending in 1.5 D C.L.R. |
|||
|
Capacity for 3” (76.2 mm) X 0.095 wall (2.4 mm) Stainless Steel Tubing, clockwise rotation. |
|||
|
2. Maximum 10” (250 mm) bending radius in standard model, |
|||
|
3. Maximum feeding length of 112” (2850 mm) in one stroke; maximum tube length with mandrel is 157” |
|||
|
(4000 mm) in multiple-stroke feeding method. |
|||
|
4. One stack (1 X Radius) bending. |
|||
|
5. Compression and draw bending capability |
|||
|
6. Simultaneous motion of Y, B & C axes |
|||
|
7. Simultaneous motion of bending Arm (C) & the pressure die assistant (U1) axes, controlled by |
|||
|
precision hydraulic proportional (servo) valves. |
|||
|
8. Closed or Open collet bending |
|||
|
9. Carriage Travel Repeatability (Y motion) of +/- 0.10 mm (+/- 0.005”) |
|||
|
10. Collect Rotation Repeatability (B Motion) of +/- 0.10 degrees. |
|||
|
11. Bending Arm Rotation Repeatability (C motion) of +/- 0.10 degrees. |
|||
|

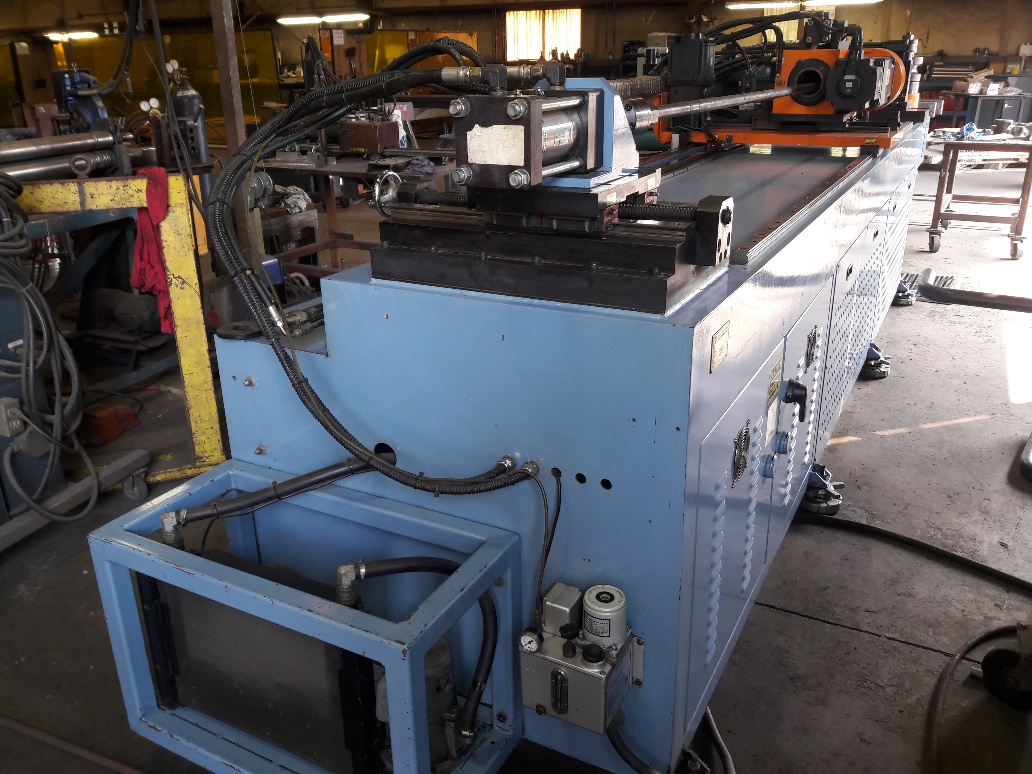

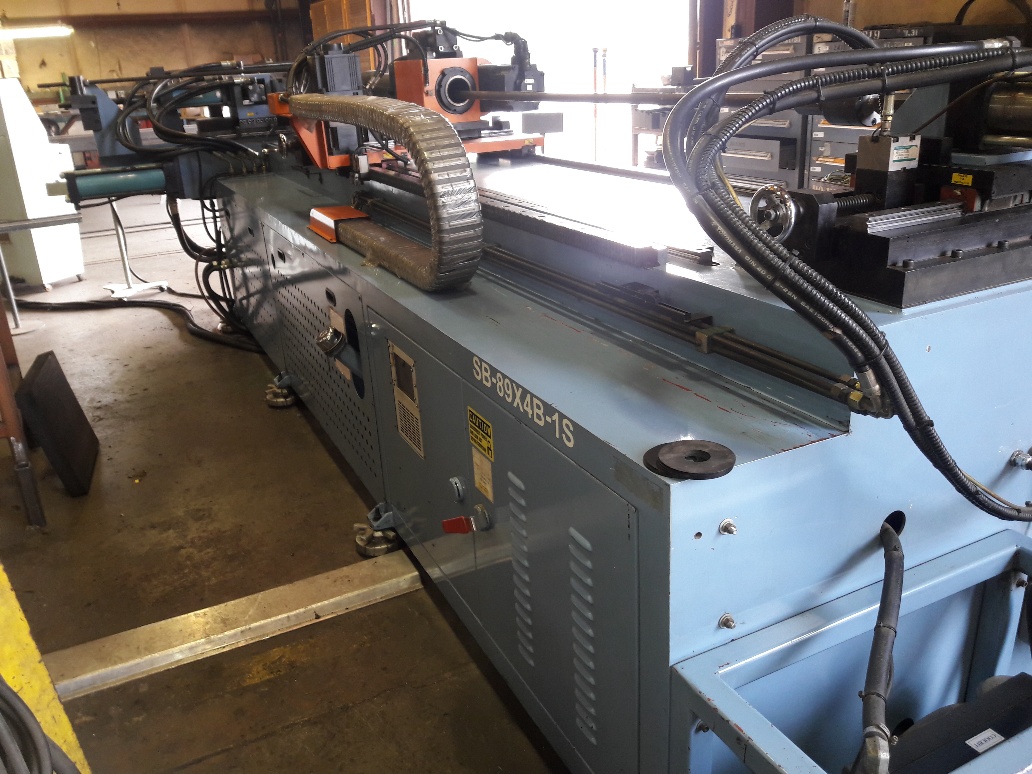

Machine Features |
|||
|
1. Hydraulic programmable mandrel extractor, heavy-duty mandrel lubricator. |
|||
|
2. Clamp and pressure die holders and sliding area semi-automatic lubricator. |
|||
|
3. Springback Compensation – Automatic correction for any differences caused by bending springback. |
|||
|
4. PDI Zone Recapture – Allows the carriage to move into the PDI Zone for any number of bends |
|||
|
necessary to complete the part. |
|||
|
5. Standard wiper die holder and drop down clamping system. |
|||
|
6. Remote operator control stand. |
|||
|
7. All electrical circuits with components and machine safety covers are properly built on. A connecting |
|||
|
box for the safety mat is also included (safety mat is optional but highly recommended). |
|||
|

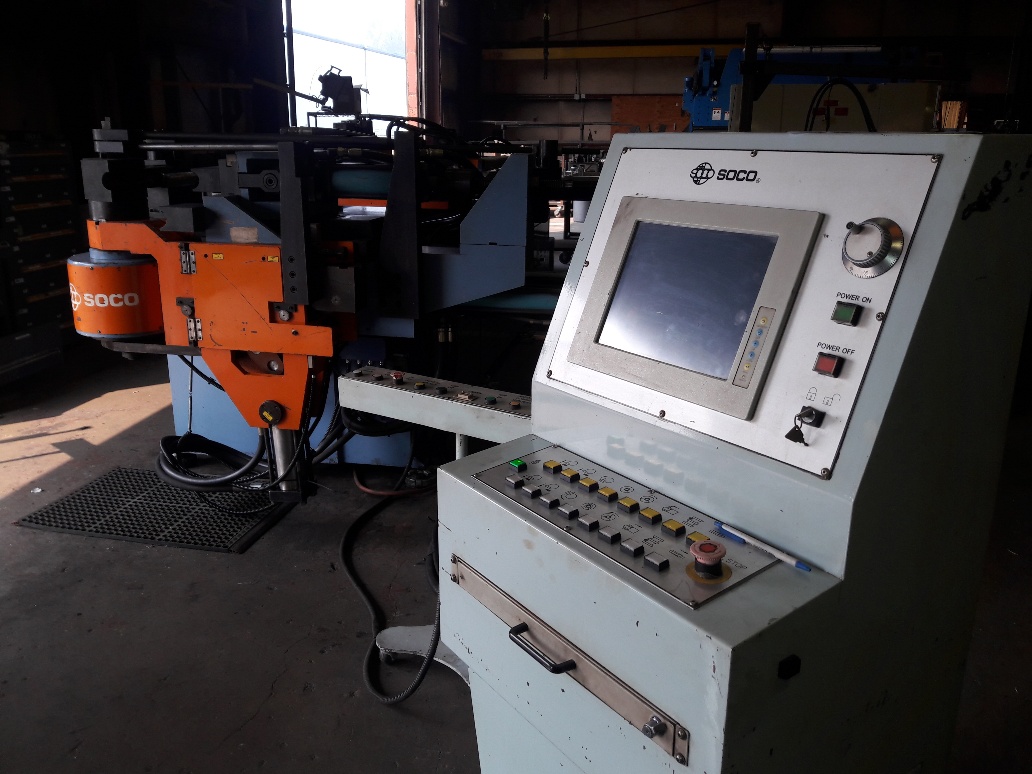

Computer Features- IPC with touch screen system |
|||
|
The stand-alone computer with touch screen system includes Windows 98 / 2000 based software |
|||
|
capable of performing the following: |
|||
|
1. Component (Part) Program entries for YBC and XYZ data. |
|||
|
2. Component (Part) Program Data Conversion from XYZ to YBC or from YBC to XYZ |
|||
|
values. |
|||
|
3. Component (Part) Program storage on hard disk or floppy. |
|||
|
4. Component (Part) Program reversal and mirror image conversion with graphical |
|||
|
display, with ability to rotate parts on the screen in any direction. |
|||
|
5. On screen display of offsets. |
|||
|
6. On screen self diagnostics with the ability to connect to live remote technical service |
|||
|
from Mfg. Outlet (Optional items: PC Anywhere software / Modem). |
|||
|
7. Ability to network between bender controls and a master computer. |
|||
|
8. Ability to store over 50,000 configuration files in 10 GB of disk space, as well as |
|||
|
opening 9 unique files at one time for greater bend setting flexibility. |
|||
