Specifications
Equipped With
GENERAL SPECIFICATIONS:

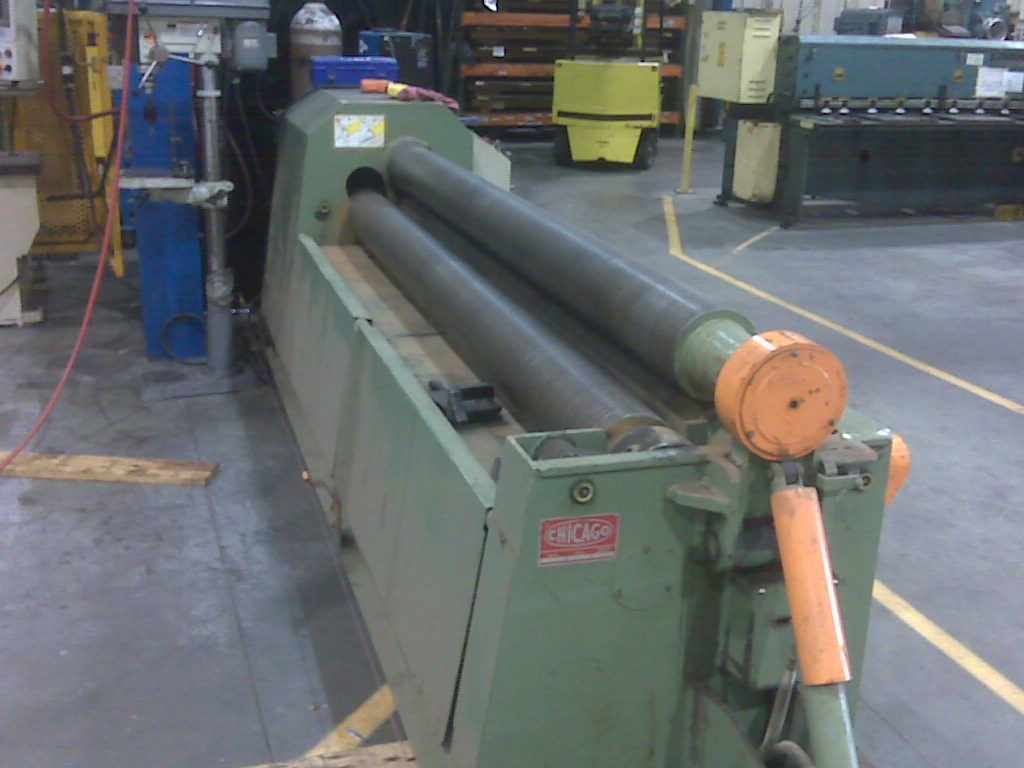

MANUFACTURER............................D & K CHICAGO
MODEL...................................IPR 8187
AGE.....................................2005
OVERALL ROLLING LENGTH..................96"
CAPACITY (MILD STEEL)...................3/16"
DIAMETER OF ROLLS.......................7"
ELECTRIC DRIVE MOTOR....................5 HP
HYDRAULIC PUMP MOTOR....................2 HP
STANDARD EQUIPMENT:
HYDRAULIC OPERATION OF REAR BENDING ROLL
HYDRAULIC OPERATION OF LOWER PINCH ROLL WITH QUICK GAP SET FEATURE
ELECTRIC MOTOR/TRANSIMISSION POWERS GEAR DRIVEN PINCH ROLLS
LED READOUT OF BENDING ROLL POSITION
HYDRAULIC POWERED DROP END
FORGED STEEL HARDENED ROLLS
ROLLER BEARINGS ON ALL ROLL SHAFTS
REINFORCED HEAVY DUTY FRAME
PENDANT FORWARD/REVERSE CONTROL
SAFETY CUT OFF CABLE AROUND WORK AREA
CONE FORMING ATTACHMENT
KEYLOCK ON/OFF CONTROL SWITCH
