Brand
Hendley & Whittemore

Model
4-G

Type
Rolls, Plate Bending (incld Pinch)

Stock #
10084

Condition
Used

Year
1970

Request a Quote

Specifications

Equipped With

GENERAL SPECIFICATIONS:
MANUFACTURER............................ HENDLEY BELOIT
MODEL................................... 4-G
AGE..................................... 1970
OVERALL ROLLING LENGTH.................. 96"
CAPACITY (MILD STEEL)................... 3/16"
PLATE ROLL DESIGN....................... INITIAL PINCH
DIAMETER OF ROLLS....................... 7"
ANGLE ROLL CAPACITY LEG-OUT............. 2 X 2 X 1/4"
ANGLE ROLL CAPACITY LEG-IN.............. 1 1/2" X 1 1/2" X 1/4"
ELECTRIC DRIVE MOTOR.................... 5 HP
WEIGHT.................................. 6420 LBS

STANDARD EQUIPMENT:

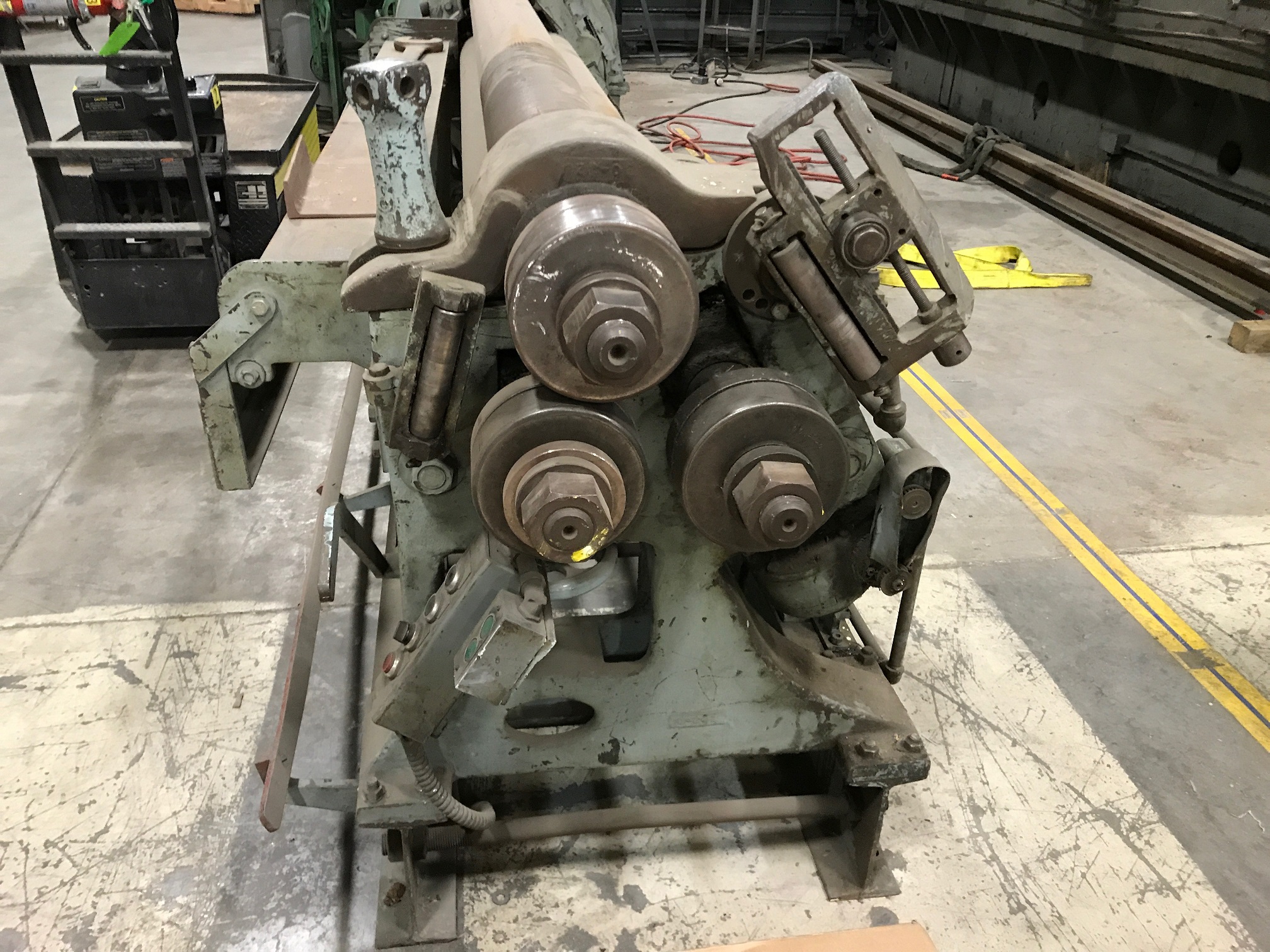

ANGLE ROLL ATTACHMENT

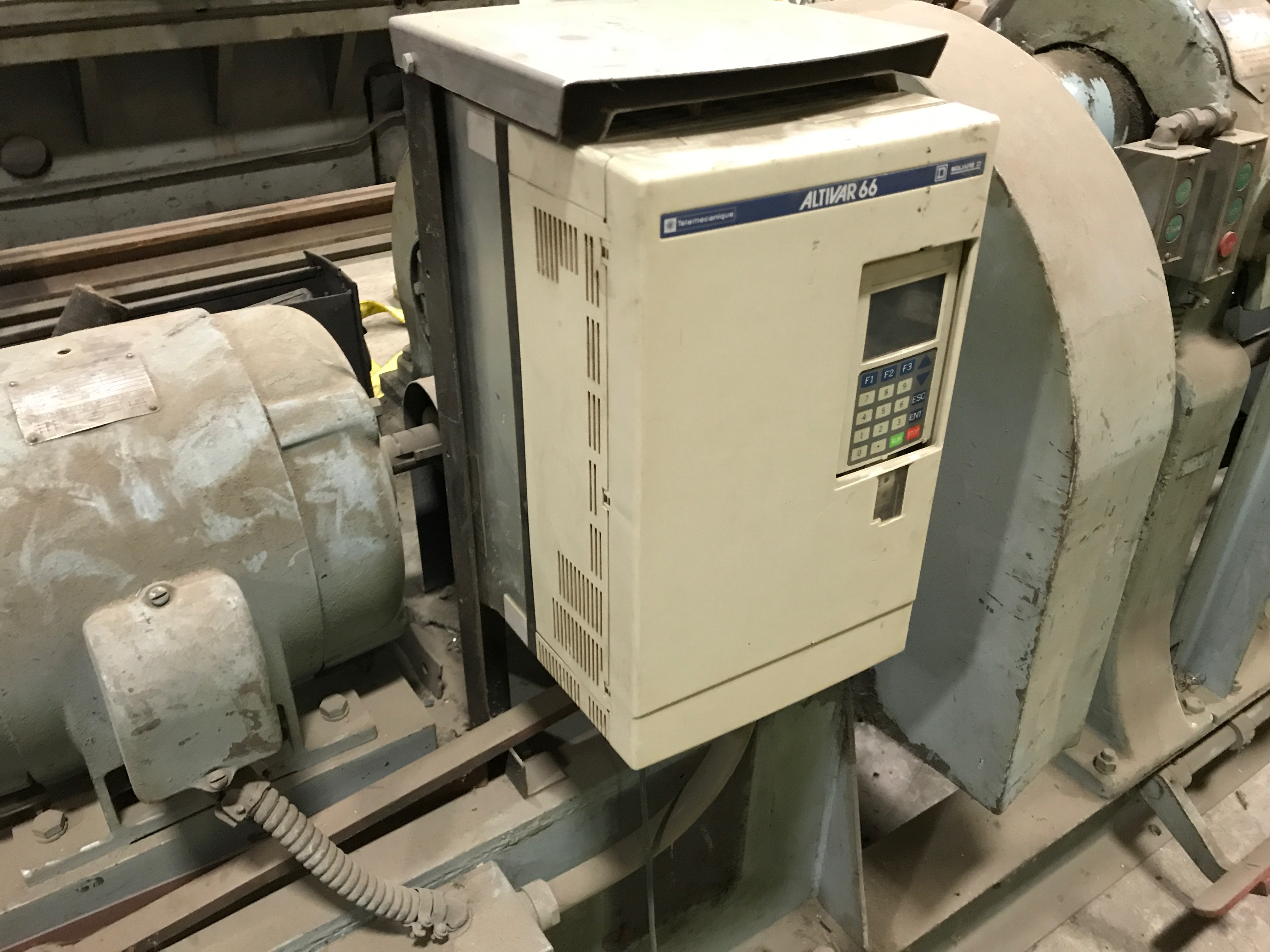

ALTIVAR 66 VARIABLE SPEED DRIVE
POWER DRIVEN ADJUSTMENT FOR BACK ROLL
