Specifications
Equipped With
GENERAL SPECIFICATIONS:

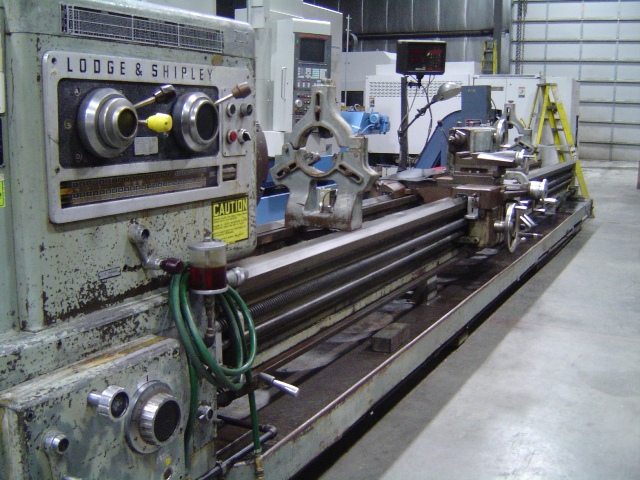

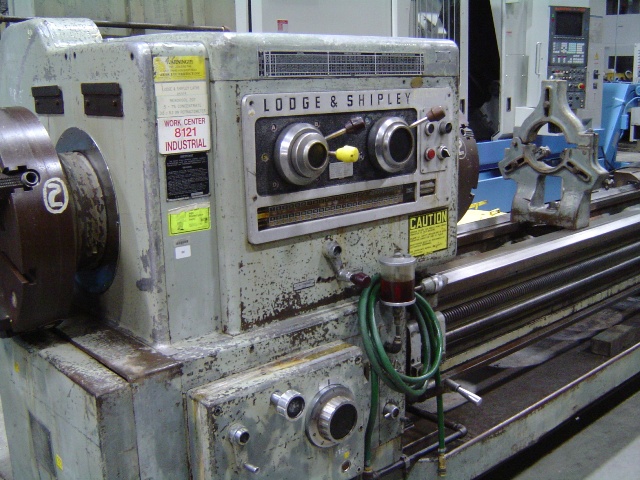

MANUFACTURER LODGE & SHIPLEY
MODEL 2516
SERIAL # 45190
NEW (APPROX.) 1967
SWING OVER WAYS 28"
SWING OVER CROSS SLIDE 17"
HOLE THRU SPINDLE 9"
DISTANCE BETWEEN CENTERS 222"
SPINDLE SPEED 8-450 RPM
FEED RANGE 2.5-160 THOUSANDTHS PER REV.
THREADING RANGE 1-64 TPI
LEADS .0156-1.0
VOLTAGE 440V
OVERALL DIMENSIONS 84"W X 75"H X 338"L
APPROXIMATE WEIGHT 20,000 LBS.
EQUIPPED WITH:

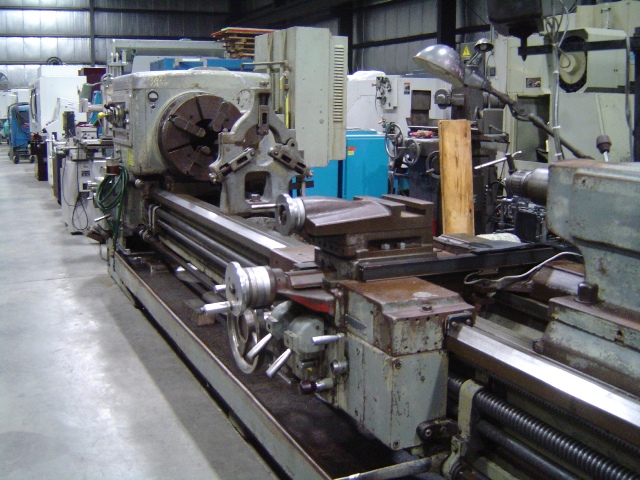

2-21" 4 JAW CHUCKS WITH 9" BORES MOUNTED ON FRONT AND BACK OF SPINDLE
(2) 8" ROLLER STEADY RESTS
2 AXIS ANILAM READOUT

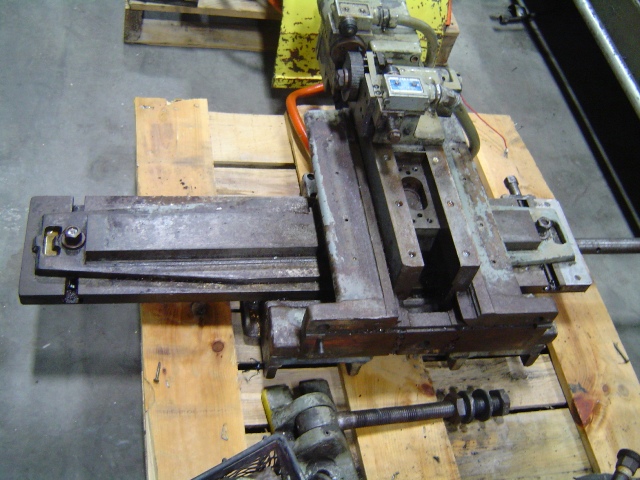

TAPER ATTACHMENT NOT MOUNTED ON LATHE
ALORIS TOOLPOST WITH ONE HOLDER
THREAD DIAL
BORING HOLDER
BUILT IN CHIP PAN FOR COOLANT TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
