Specifications
Equipped With
GENERAL SPECIFICATIONS:

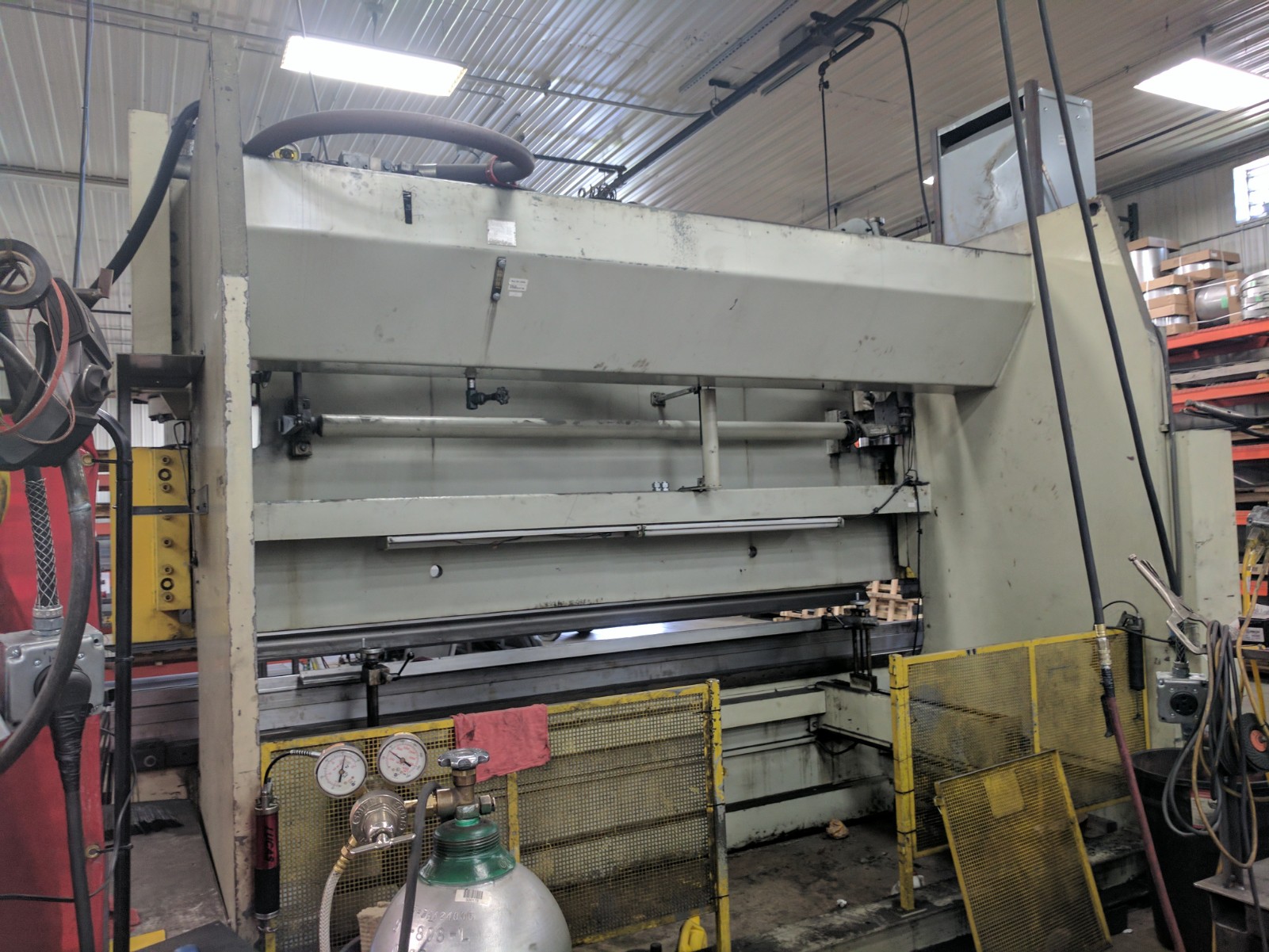

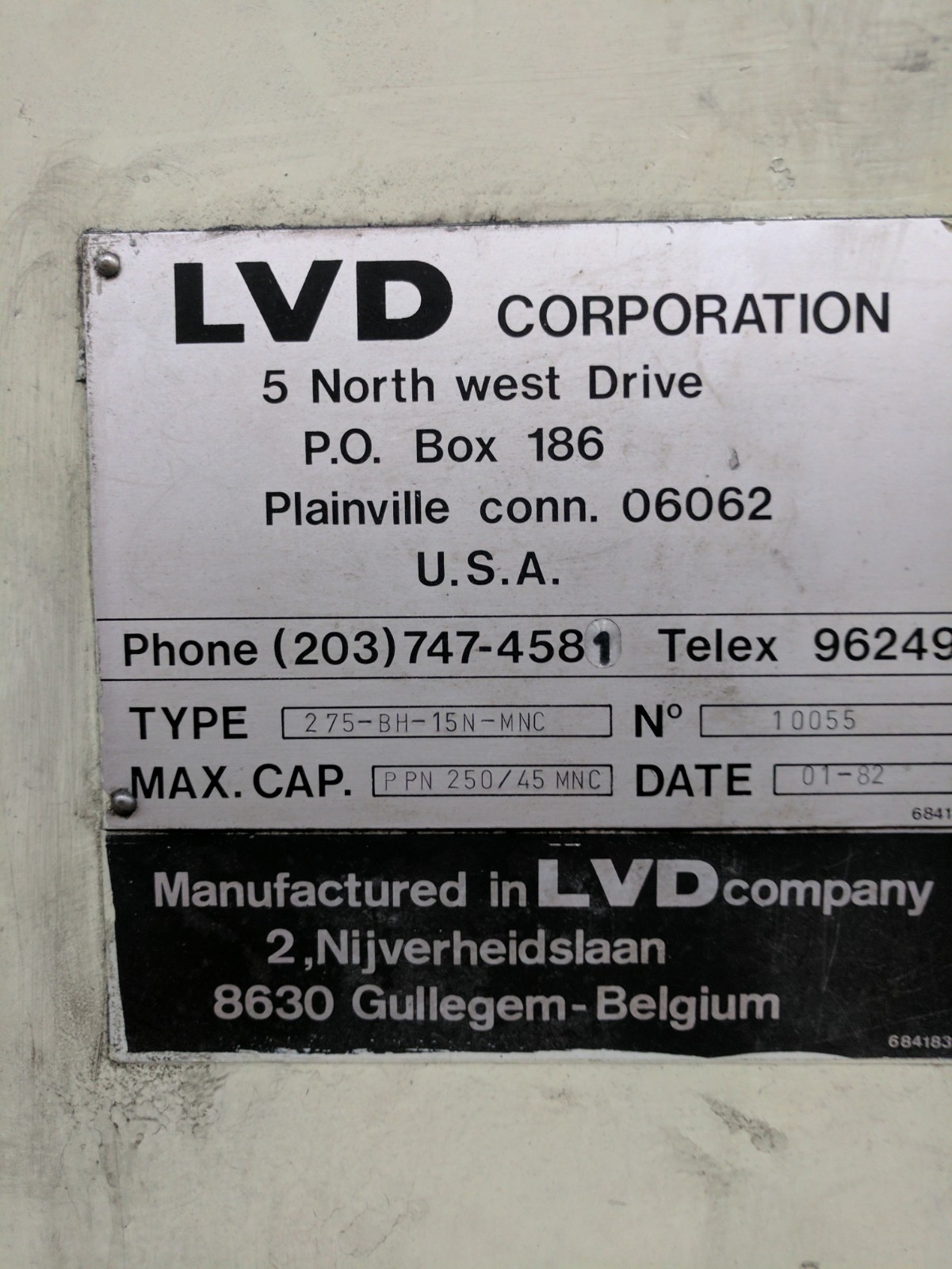

MANUFACTURER........................ LVD
MODEL............................... 275 BH-15N-MNC
NEW................................. 1982
NEW CONTROL RETROFIT................ 2006
TONNAGE............................. 275 U.S.
WORKING LENGTH...................... 197" 3050mm
DISTANCE BETWEEN UPRIGHTS........... 148" 2600mm
STROKE.............................. 6.7"
OPEN HEIGHT......................... 16.7"
CLOSED HEIGHT....................... 10"
THROAT DEPTH........................ 12"
RAM SPEED
RAPID APPROACH................... 236 IPM
WORKING.......................... 22 IPM
RETURN SPEED..................... 200 IPM
MAIN MOTOR.......................... 25 HP
CNC CONTROL......................... PC 800
BACKGAUGE LENGTH.................... 48"
APPROX. WEIGHT...................... 52,000 LBS
APPROX. DIMENSIONS.................. 197"W X 76"D X 123"TALL
EQUIPPED WITH:

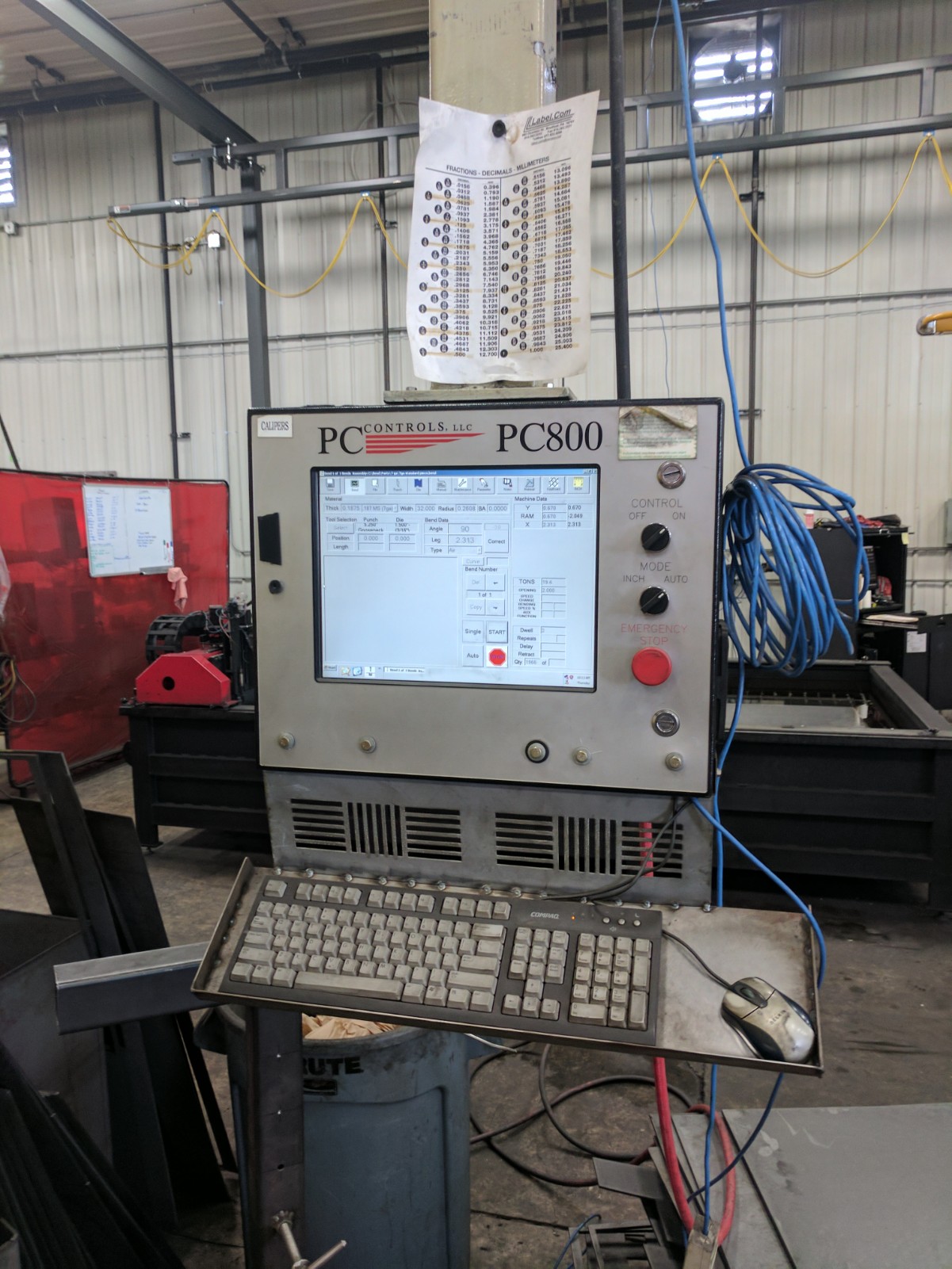

PC 800 CONTROL 2 AXIS CNC CONTROL (X & Y)
FLUSH FLOOR MOUNT

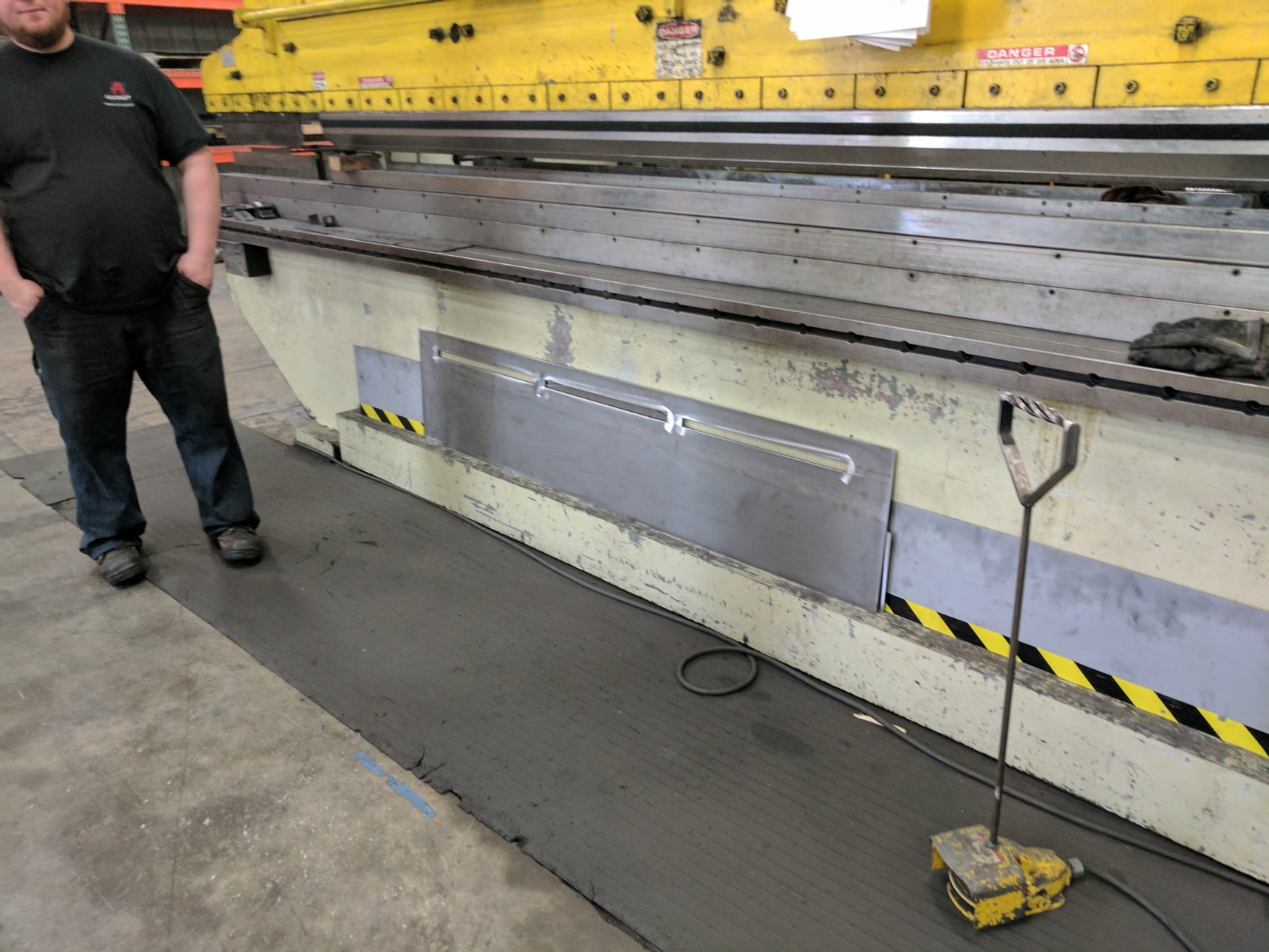

ELECTRIC FOOT SWITCH
UNIVERSAL FILLER BLOCK
SPECIFICATIONS SUBJECT TO VERIFICATION
