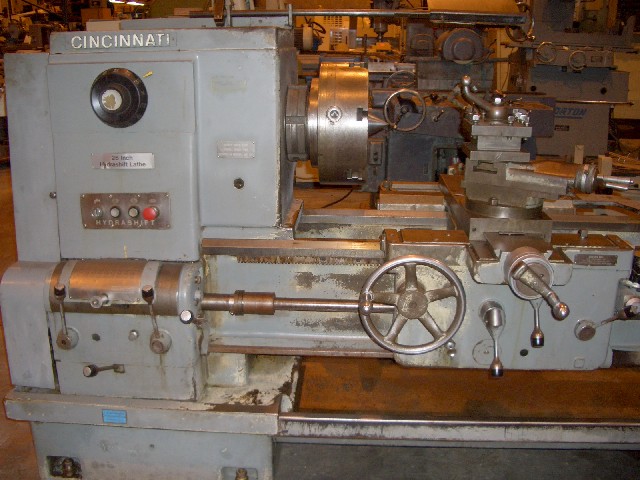

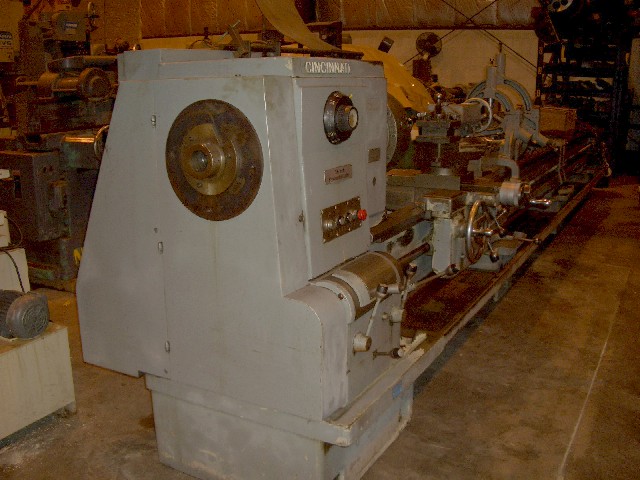

26" X 218" CIN HYDRASHIFT, TAPER ATTACHMENT, 15" 3 JAW, 15" 4 JAW, 2 STEADY RESTS,

GENERAL SPECIFICATIONS:
MANUFACTURER CINCINNATI
MODEL HYDRASHIFT 26
NEW (APPROX.) 1973
MAX. SWING OVER BED 26.75"
MAX. SWING OVER CROSS SLIDE 17.5"
MAX. DIST. BETWEEN CENTERS 218"
HOLE THRU SPINDLE 2.75"
SPINDLE SPEEDS (12 ) 16-640 RPM
THREAD RANGE 1.5-92 TPI
FEED RANGE-CARRIAGE .0019-.1215 IPR
FEED RANGE-CROSS SLIDE .0009-.0578 IPR
MAIN MOTOR 10 HP
WEIGHT (APPROX.) 9,700 LBS.
FLOOR SPACE 60" X 240"

EQUIPPED WITH:
TAPER ATTACHMENT
4-WAY TOOLPOST

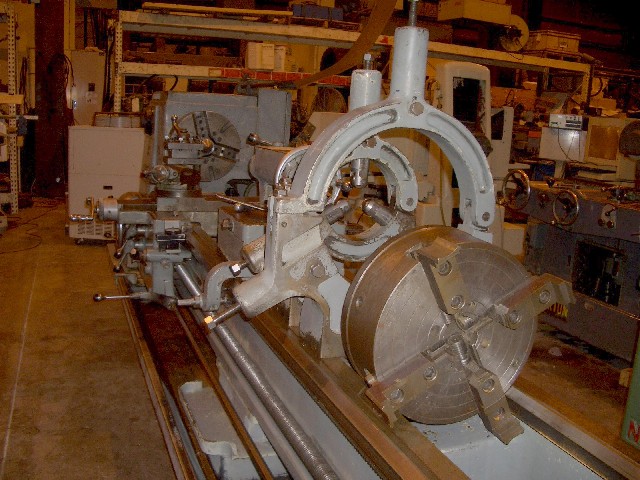

7.5-15" STEADY REST
.5 - 8" STEADY REST
15" 3-JAW CHUCK
TAILSTOCK
INCH THREADING
COOLANT
TRAV-A-DIAL
