GENERAL SPECIFICATIONS:
MANUFACTURER MIGHTY
MODEL T6-160
SERIAL # 38041
NEW (APPROX.) 1998/INSTALLED 2000
SWING OVER BED 26"
MAX. CUTTING DIAMETER 23.6"
MAX. SWING OVER CROSS SLIDE 14.5"
MAX. TURNING LENGTH 160"
MAX. TRAVERSE OF X 21.26"
SPINDLE BORE 6.6"
SPEED RANGE 3-1000 RPM
RAPID TRAVERSE RATE 394 IPM

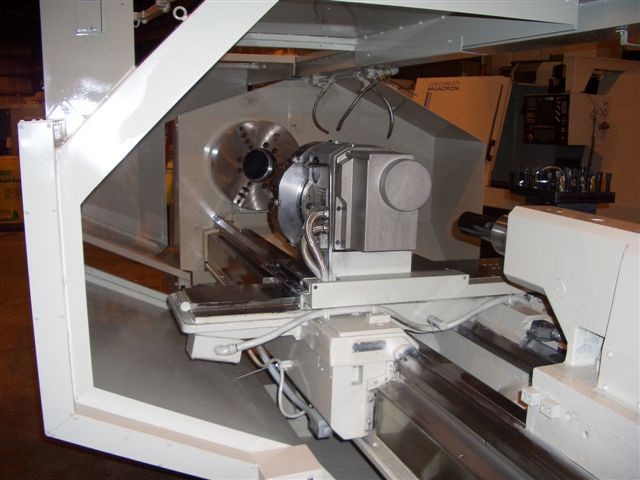

TURRET CAPACITY (FRONT) 8 STATION
TURRET CAPACITY (REAR) 4 STATION
SPINDLE HORSEPOWER 30
APPROXIMATE WEIGHT 19,840 LBS
FLOOR SPACE (APPROX.) 117" X 298"
EQUIPPED WITH:

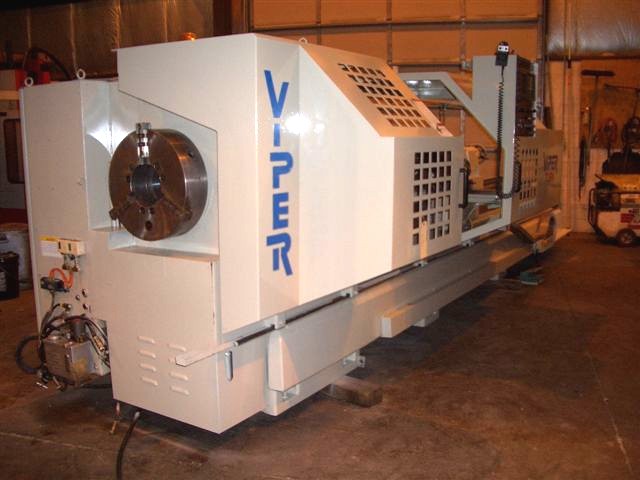

DUAL 24" DIAMETER 3 JAWS CHUCKS WITH 7" SPINDLE BORES
ONE CHUCK IS MOUNTED ON THE REAR OF THE SPINDLE

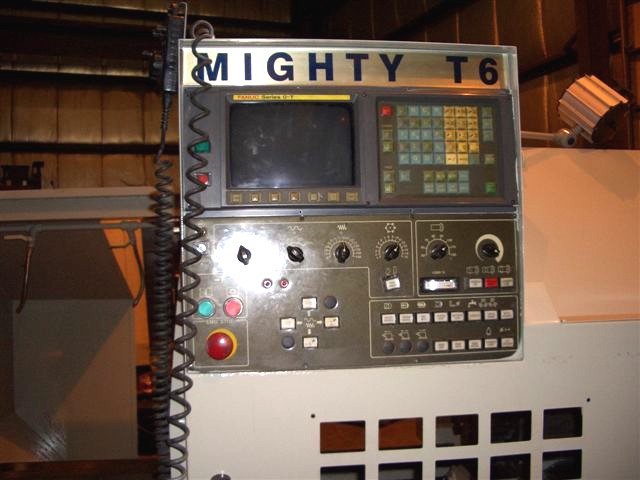

FANUC 0T CNC CONTROL W/CRT
10" & 16" ROLLER STEADY RESTS
FOLLOW REST
BAR SUPPORT SYSTEM
COOLANT

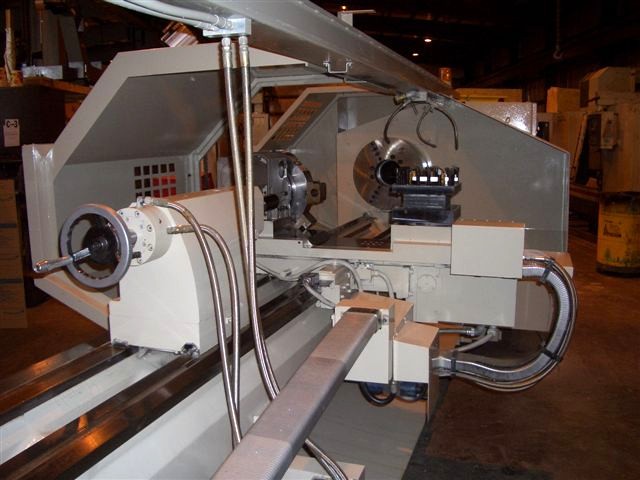

HYDRAULIC TAILSTOCK TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
