25" x 80" TOS, 25" OVERBED, 13.38" OVER CROSS SLIDE, 34.64" IN GAP, 10 HP, 2.79" HOLE, 2-AXIS SONY DRO, IN/MM, 1998

GENERAL SPECIFICATIONS:
MANUFACTURER TOS
MODEL 63C/2000
SERIAL # 076330980138
NEW (APPROX.) 1998
SWING OVER BED 25"
SWING OVER CROSS SLIDE 13.38"
SWING IN GAP 34.64"
CENTER DISTANCE 80"
MAX. WEIGHT OF WORK PIECE 3,306 LBS.
WIDTH OF GAP 11.81"
WIDTH OF BED 17.71"
MAIN MOTOR 10 HP
HOLE THRU SPINDLE 2.79"
SPINDLE SPEEDS 10 - 1000 RPM
TAILSTOCK DIAMETER 3.54"
TAILSTOCK TAPER MT 5
TAILSTOCK TRAVEL 9.44"
DIMENSIONS (APPROX.) 158" x 57" x 60"H
WEIGHT (APPROX.) 6,900 LBS.

EQUIPPED WITH:

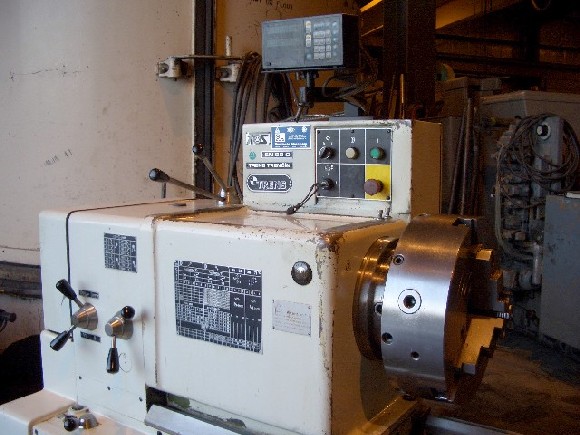

2-AXIS SONY DIGITAL READOUT
STEADY REST
14" 3-JAW CHUCK
INCH/METRIC THREADING
4-WAY TOOL POST
RAPID TRAVERSE
COOLANT
