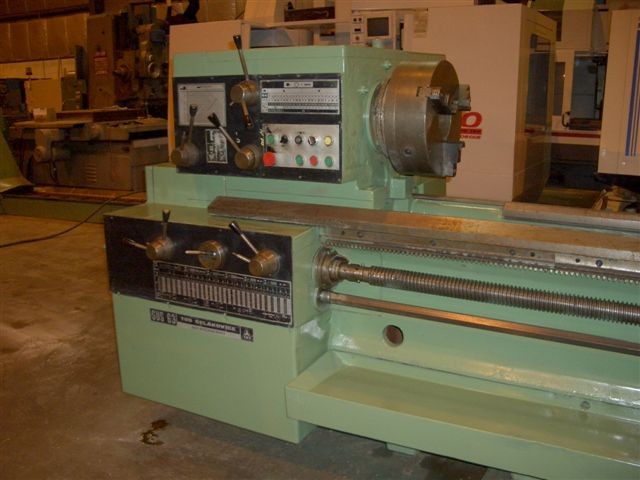

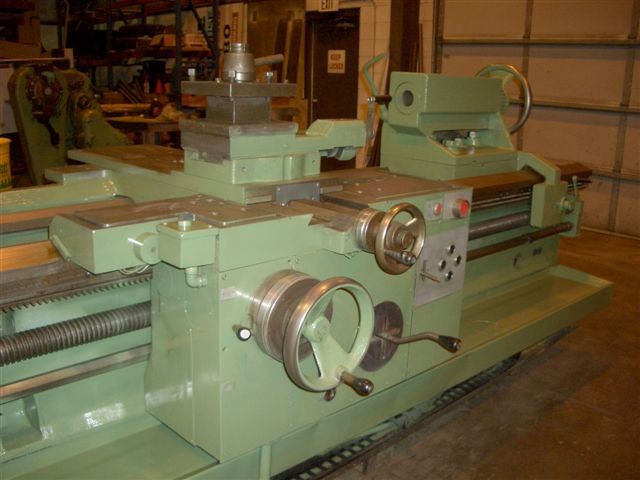

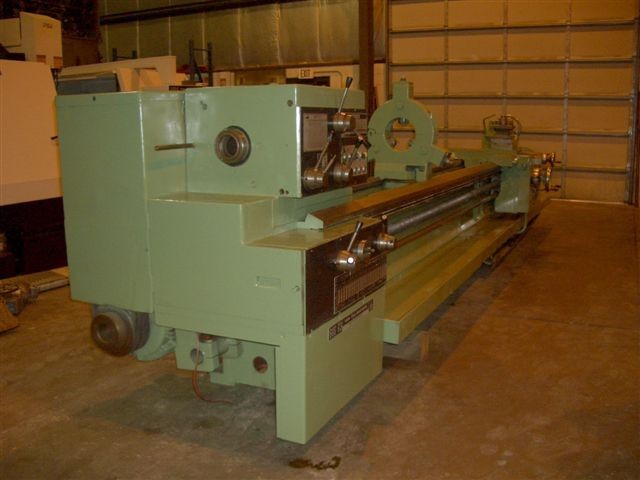

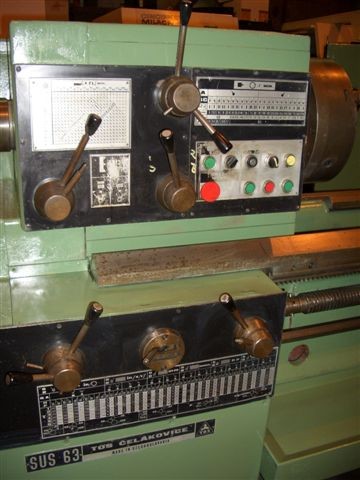

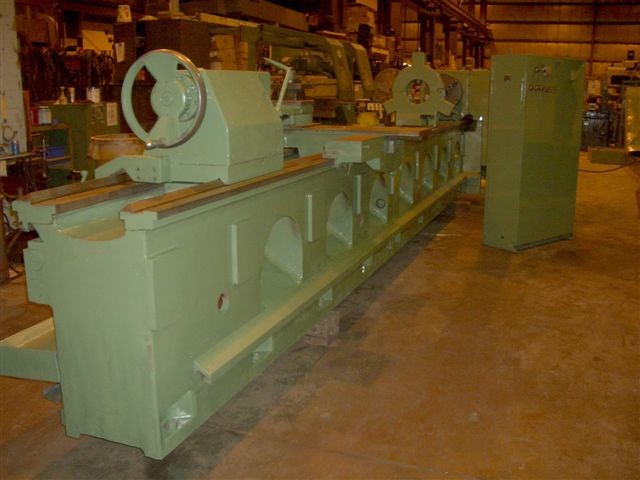

25" x 200" SIGMA TOS, 30 HP, 15.3" SWOCS, 1220 RPM, 3.3" HOLE, INCH/METRIC, 16" 3-JAW, 1980

GENERAL SPECIFICATIONS:
MANUFACTURER SIGMA TOS
MODEL SUS63
NEW (APPROX.) 1980
MAX. SWING OVER BED 25"
MAX. SWING OVER CROSS SLIDE 15.3"
MAX. DIST. BETWEEN CENTERS 200"
HOLE THRU SPINDLE 3.3"
SPINDLE SPEEDS (16) 9 - 1120 RPM
MAIN MOTOR 30 HP
WEIGHT (APPROX.) 17,500 LBS.

EQUIPPED WITH:
16" 3-JAW CHUCK
RAPID TRAVERSE
4-WAY TOOL POST
8.5" CAP. 3-POINT STEADY REST
TAILSTOCK
INCH/METRIC/WHITOWRHT/MODULE THREADING
COOLANT/CHIP PAN
