Specifications
Equipped With
GENERAL SPECIFICATIONS:

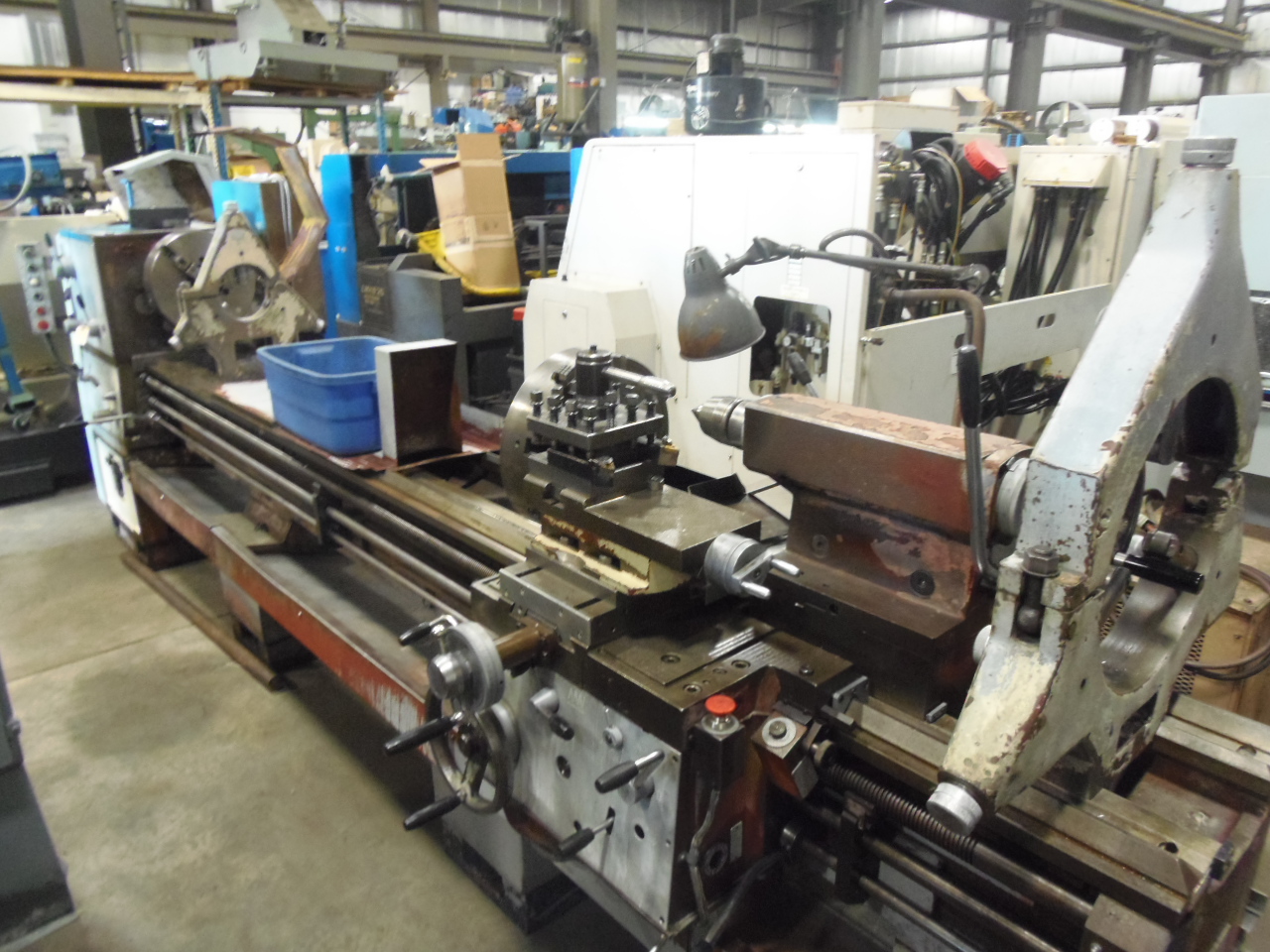

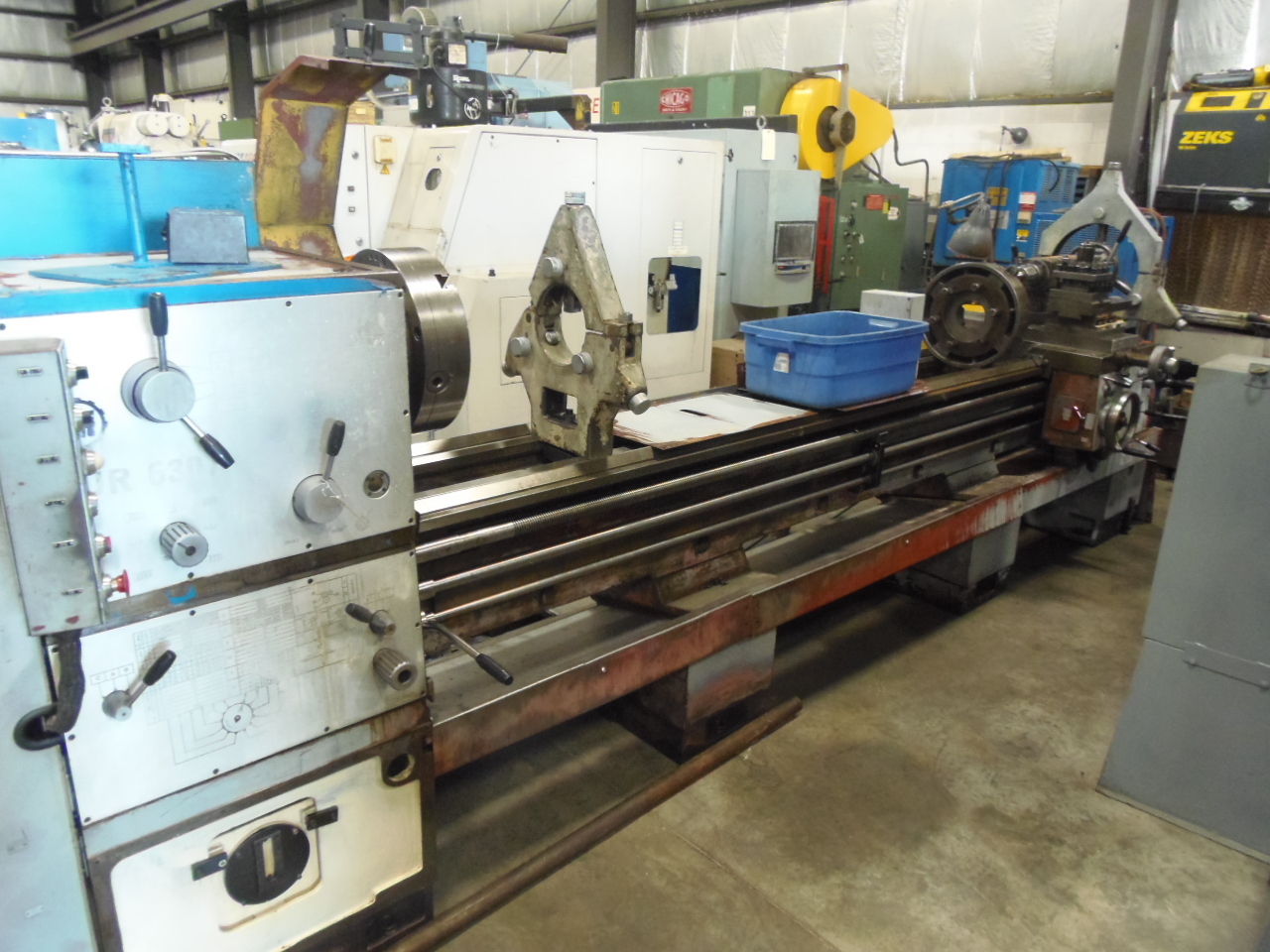

MANUFACTURER................... TOOLMEX
MODEL.......................... TUR 630A

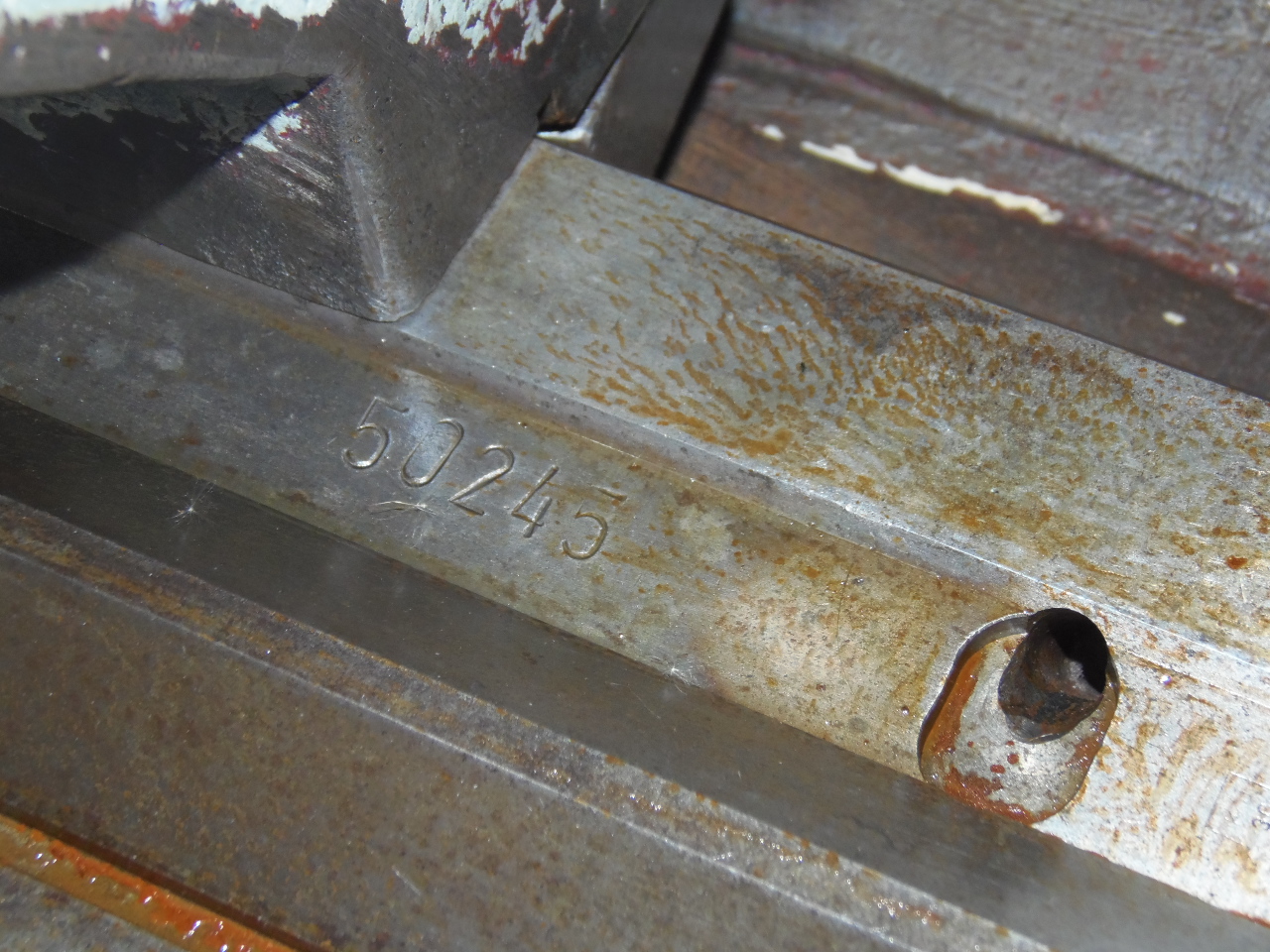

SERIAL #....................... 50245
AGE (YEAR)..................... 1993
SWING.......................... 25"
SWING OVER C.S................. 15.75"
DISTANCE BETWEEN CENTERS....... 118"
SPINDLE BORE................... 5.716"
HOLE THROUGH CHUCKS............ 5.2"

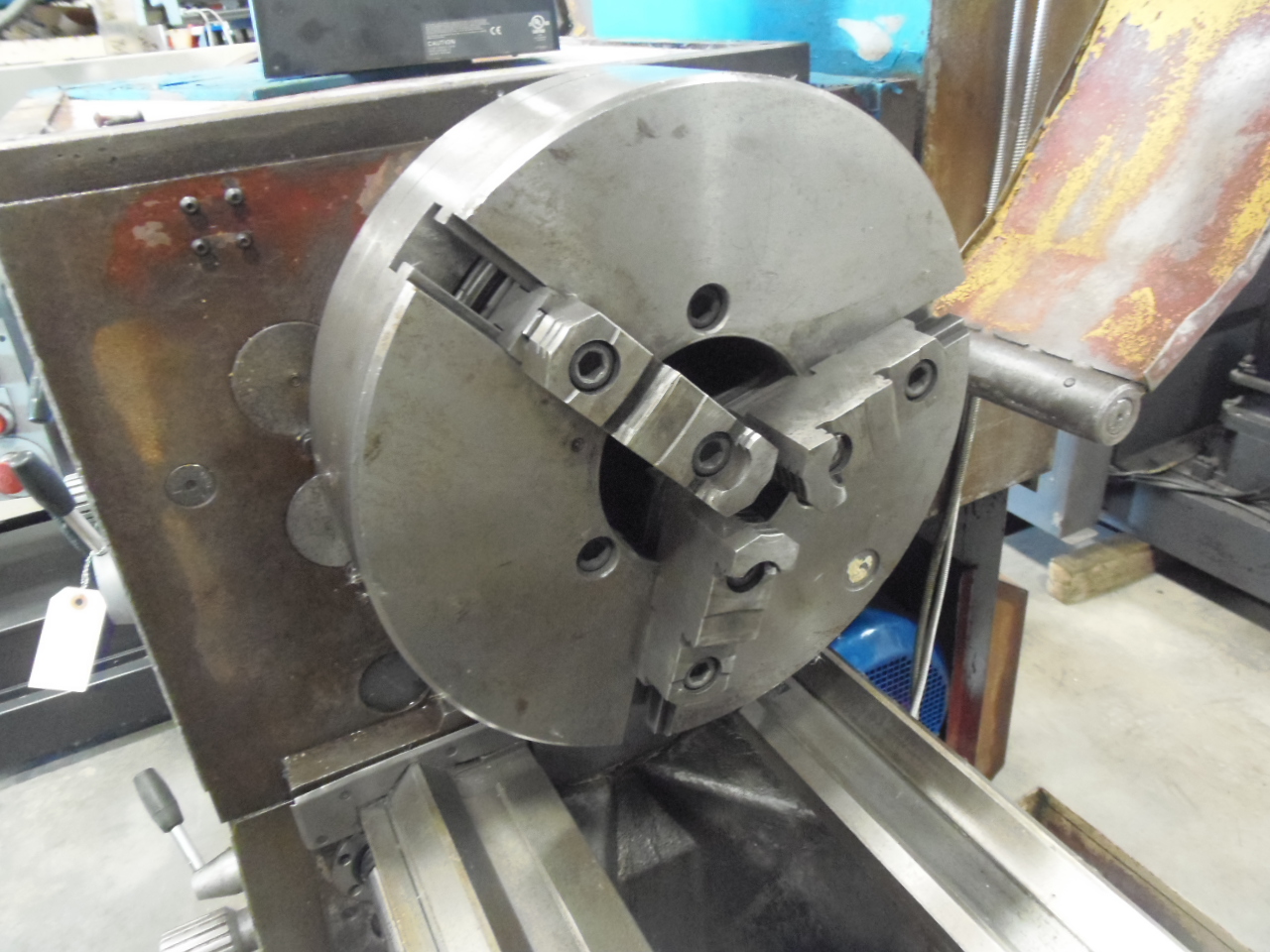

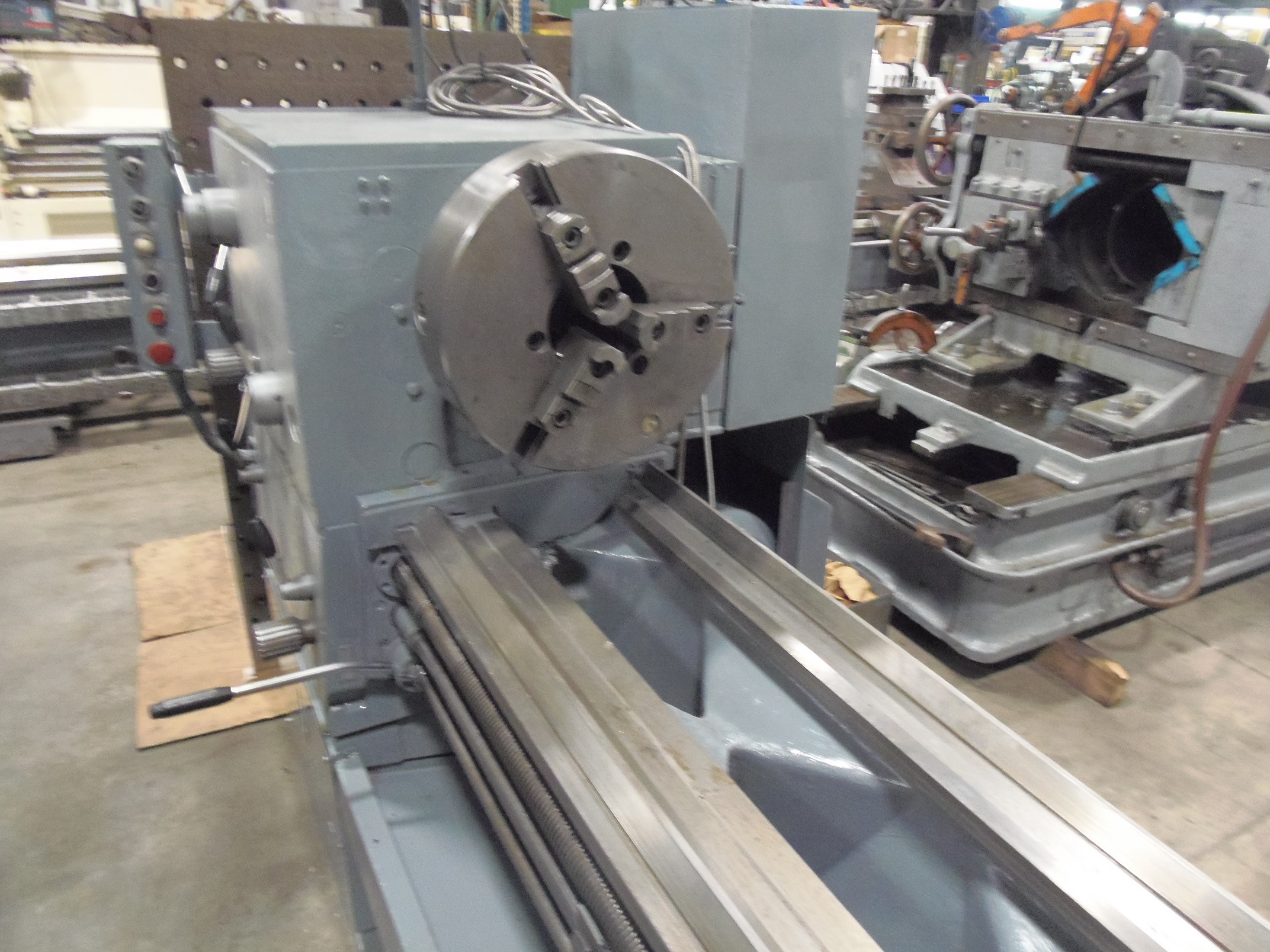

FRONT CHUCK.................... 15" 3J
SPINDLE SPEEDS (21)............ 15 -1400 RPM

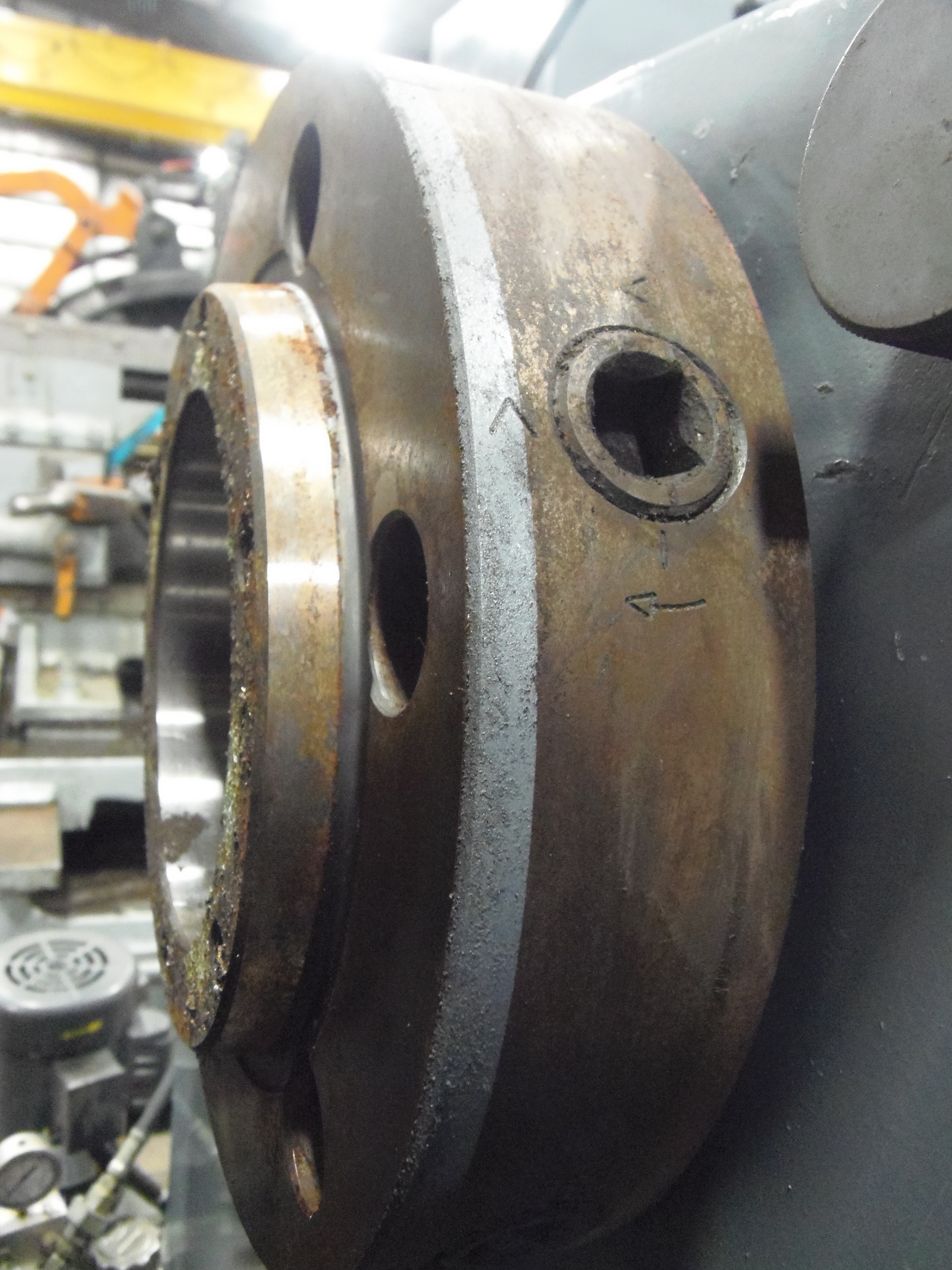

SPINDLE NOSE................... D1-11 CAMLOCK
THREADING...................... INCH/METRIC/MODULE/DP
OVERALL DIMENSIONS............. 56" WIDE X 204" LONG X 65" HIGH
WEIGHT (APPROX)................ 8,250 LBS.
ELECTRICS...................... 240 VOLTS / 3 PHASE
MAIN MOTOR..................... 20 HP
EQUIPPED WITH:

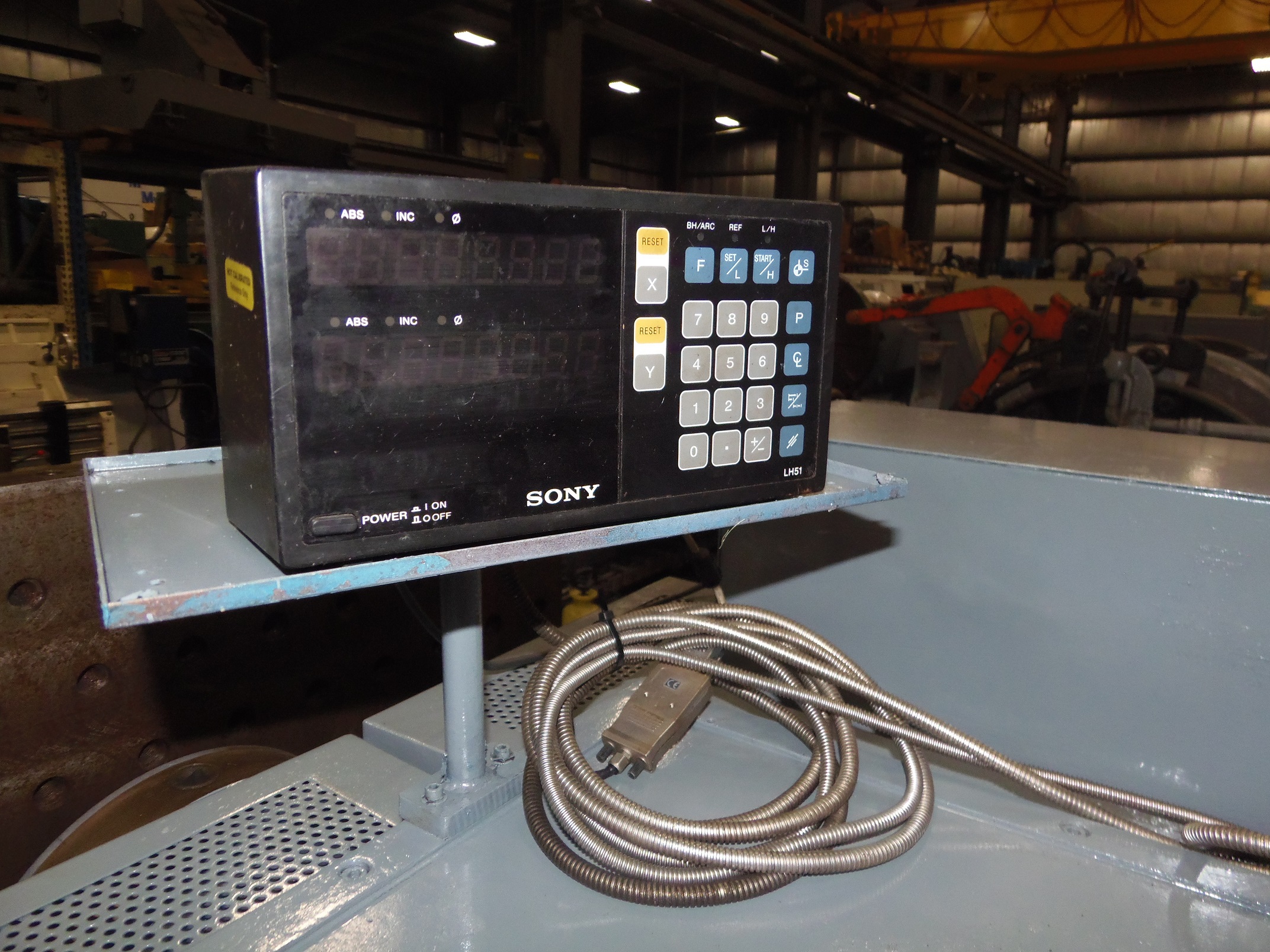

SONY 2 AXIS DIGITAL READOUT

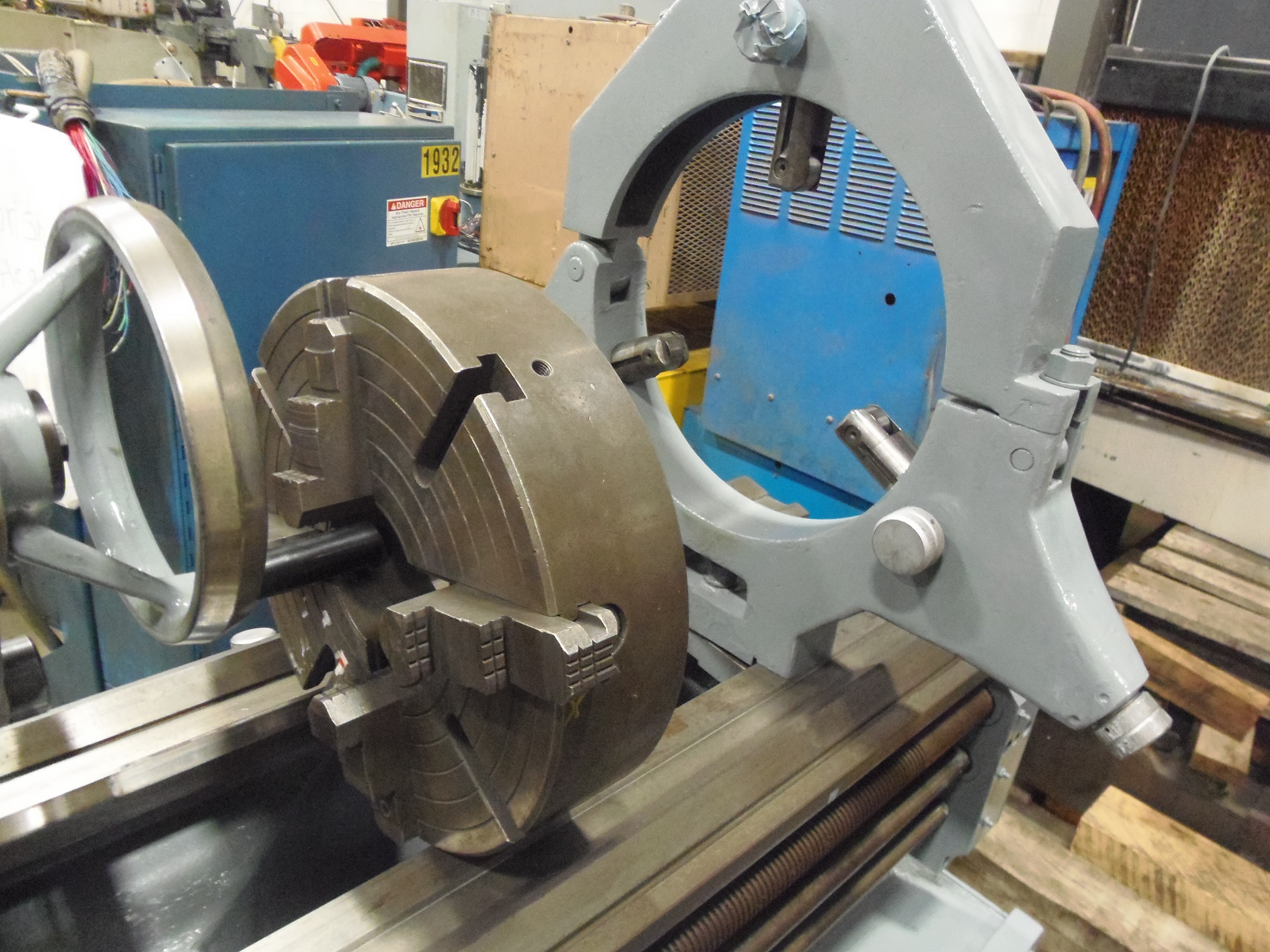

15" 4 JAW CHUCK
COOLANT PUMP
RAPID TRAVERSE

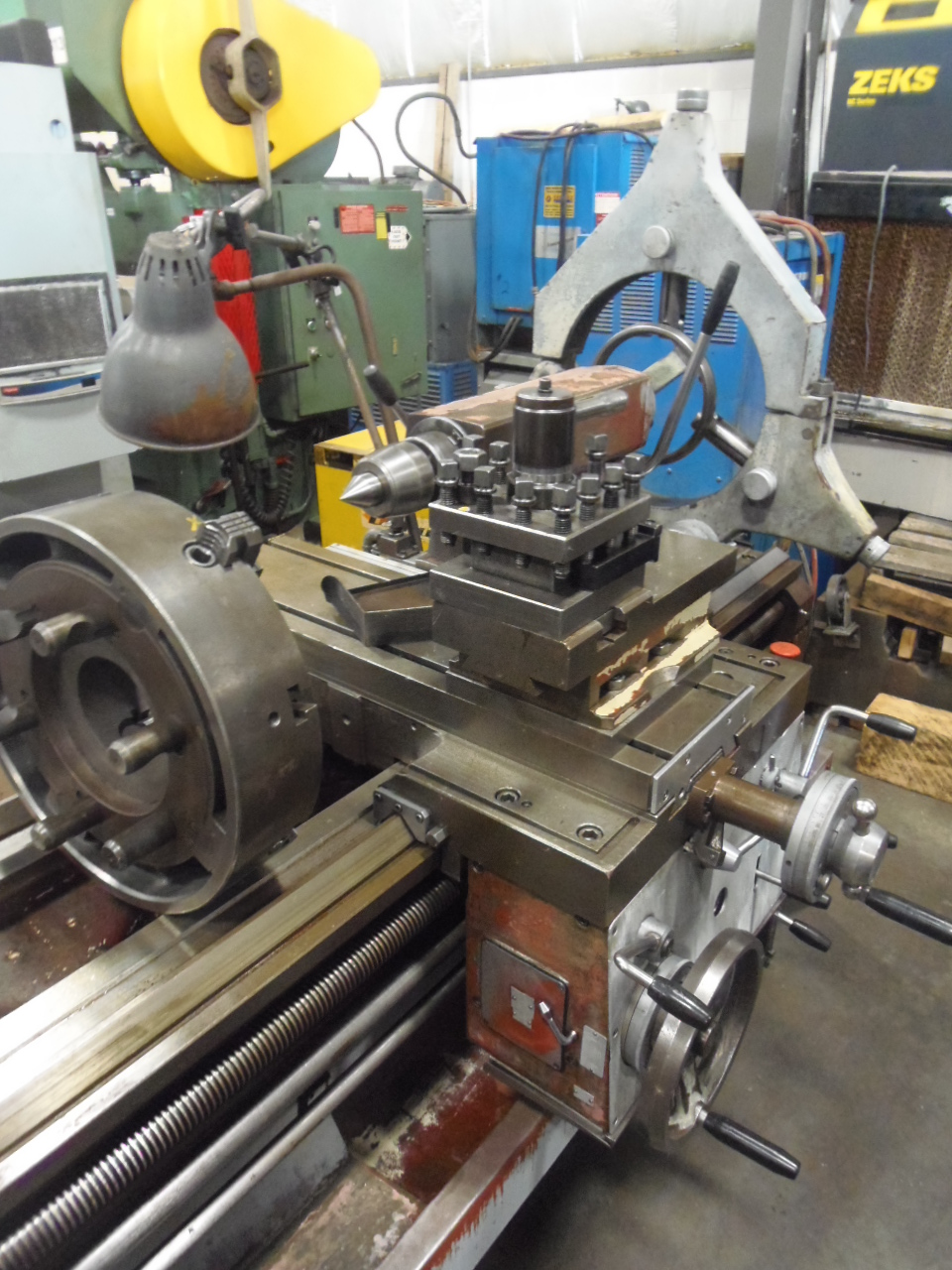

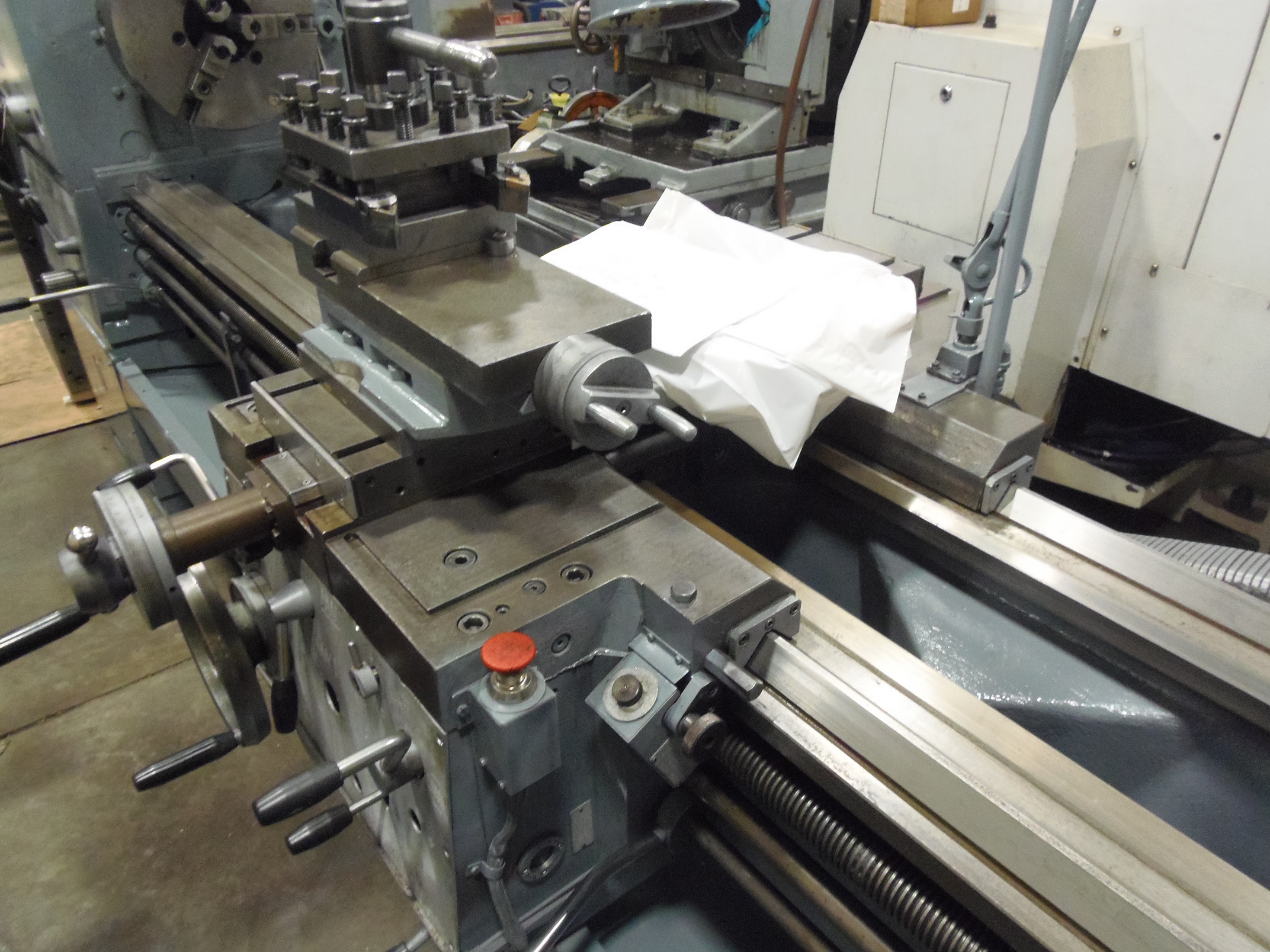

4 POSITION TOOL POST

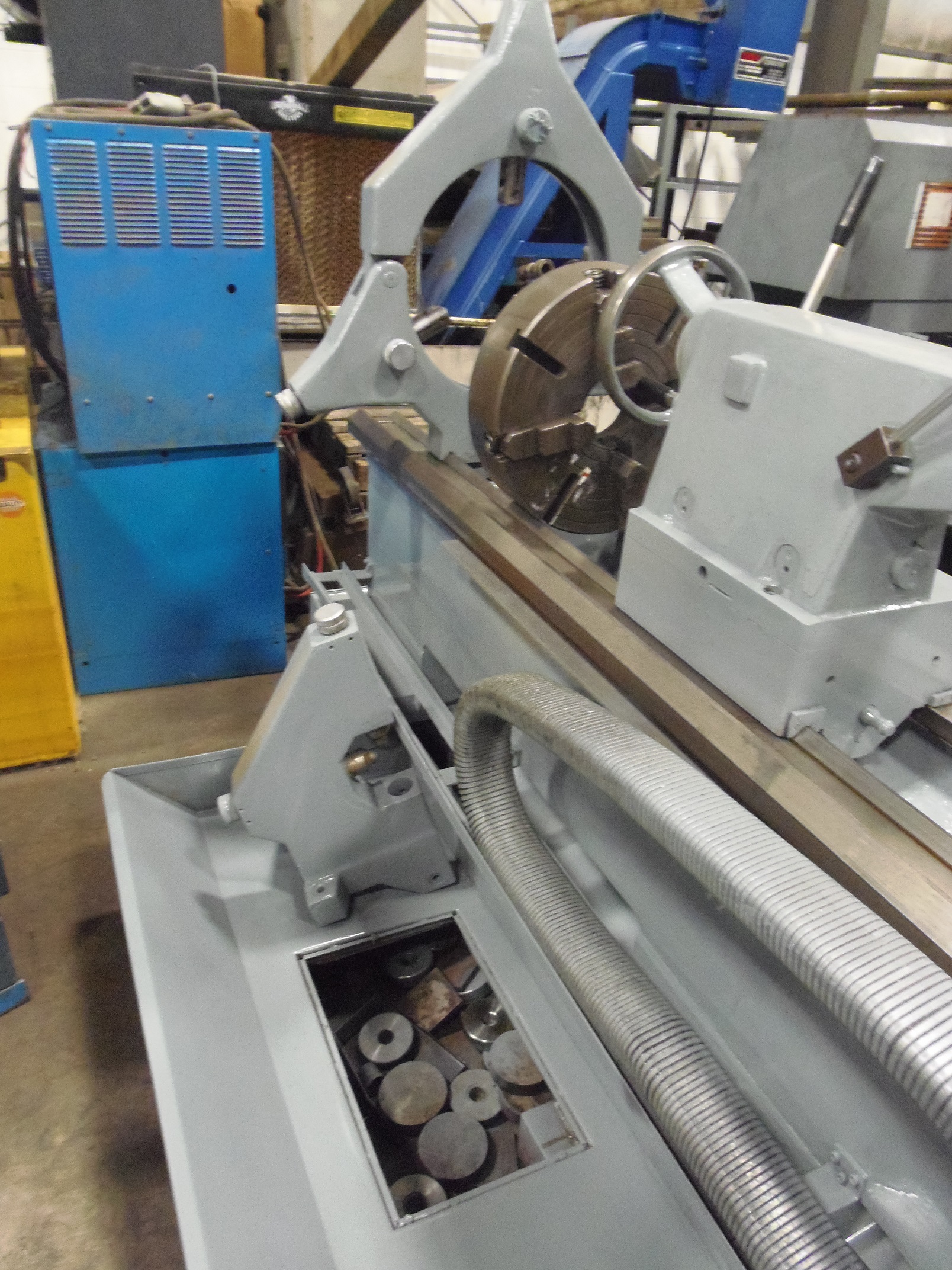

1 STEADY REST
