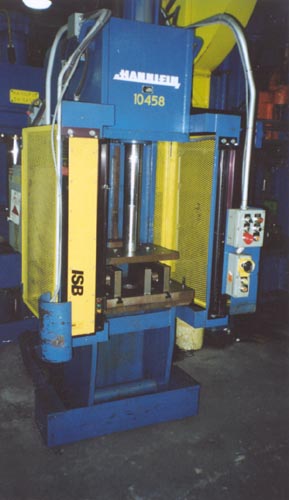

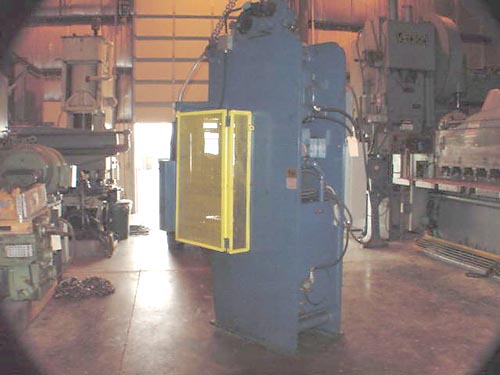

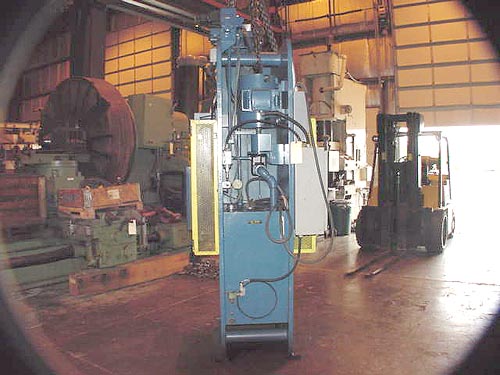

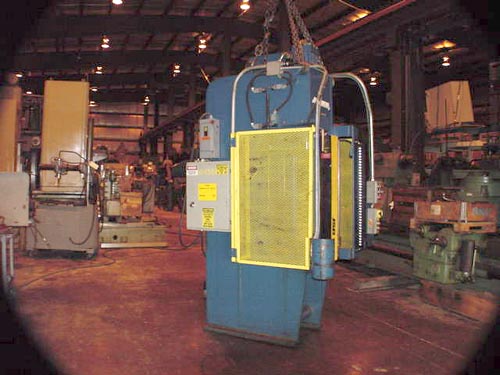

25 Ton,HANNIFIN,DUAL PALMS,LIGHT CURTAIN, 150 IPM,HIGH SPEED 24"Str, 16"x24"TBL

GENERAL SPECIFICATIONS:
MODEL S525-60-18-4-1-SPC
NEW APPROXIMATELY 1968
SERIAL NUMBER T-7888
DOWNSTROKE MAXIMUM CAPACITY 25 TONS
CYLINDER DIAMETER 6"
RAM DIAMETER 4"
MAXIMUM STROKE 24"
SPEED 150 IPM
THROAT DEPTH 8"
BED 16"F-B x 26" L-R
UPPER PLATE 14"F-B x 18" L-R
MAXIMUM DAYLIGHT 32"

EQUIPPED WITH:
ADJUSTABLE MAIN RELIEF VALVE
ISB LIGHT CURTAINS
ADJUSTABLE RAM STROKE
MAIN MOTOR 15 HP
APPROXIMATE WEIGHT 5,000 LBS.
ELECTRICS 460/60/3
FLOOR SPACE 48"L-R x 80"F-B
OVERALL HEIGHT (FLOOR STANDING) 110" HIGH
IN-FRAME HYDRAULICS
