Specifications
Equipped With
GENERAL SPECIFICATIONS:

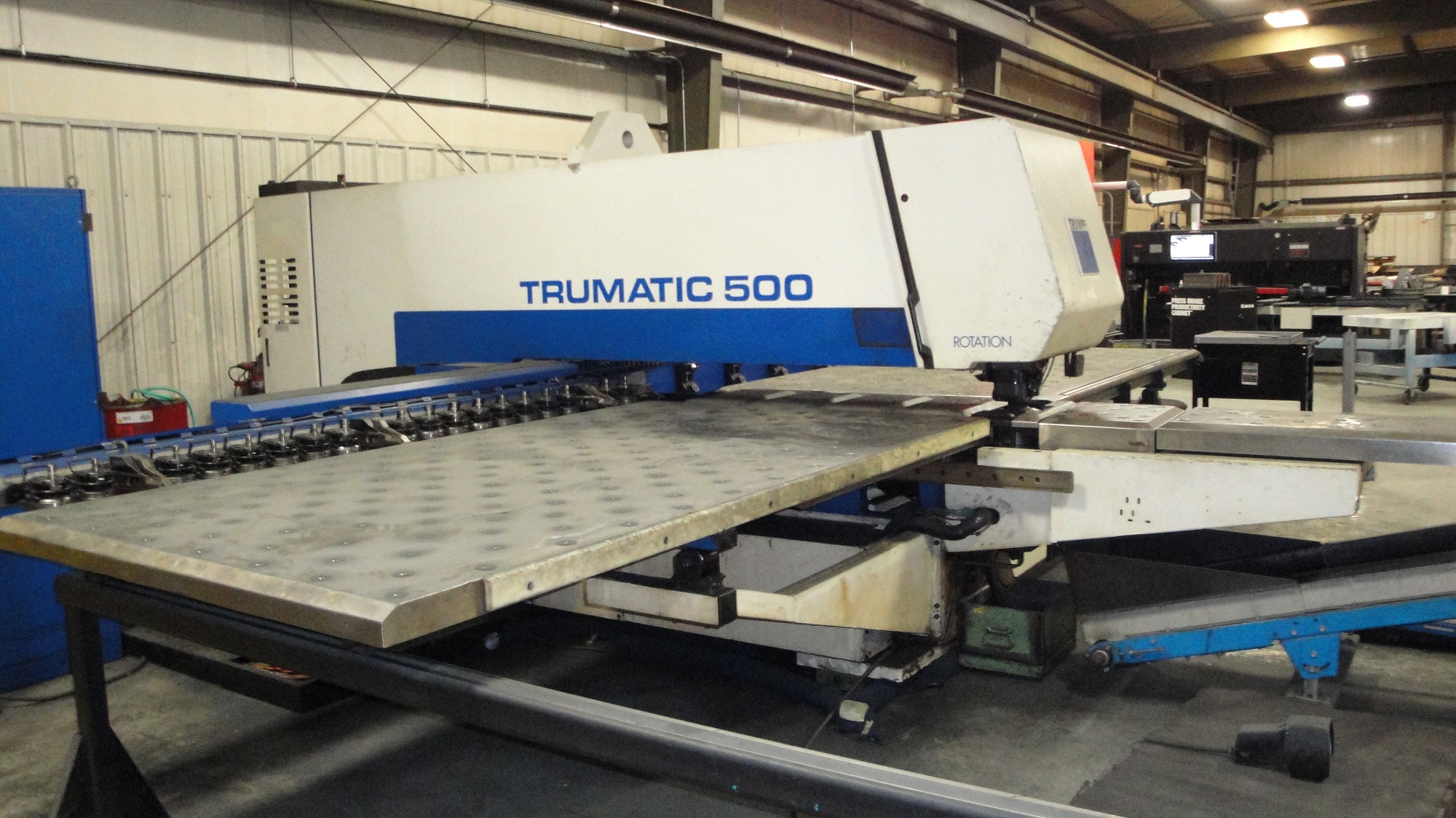

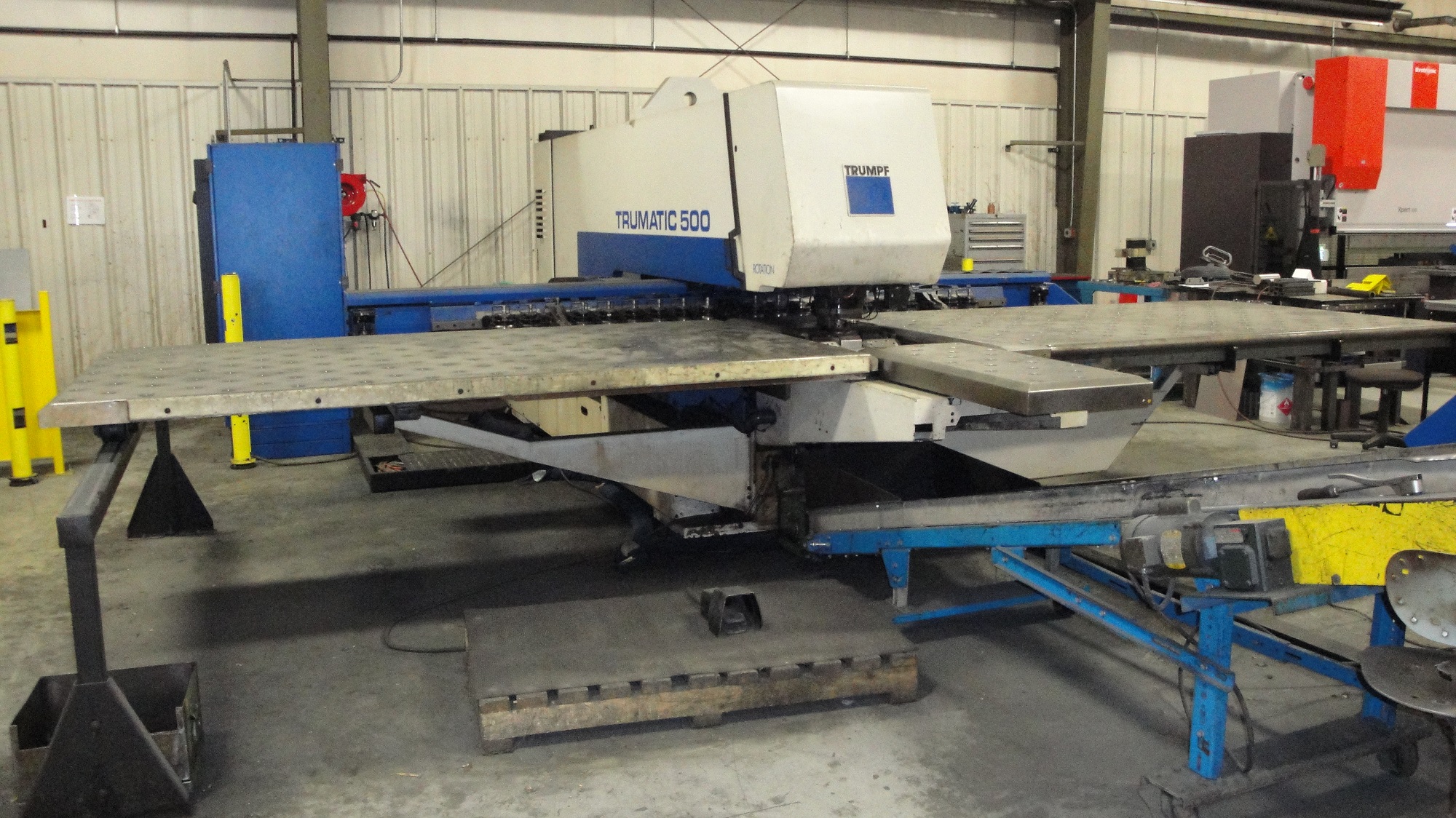

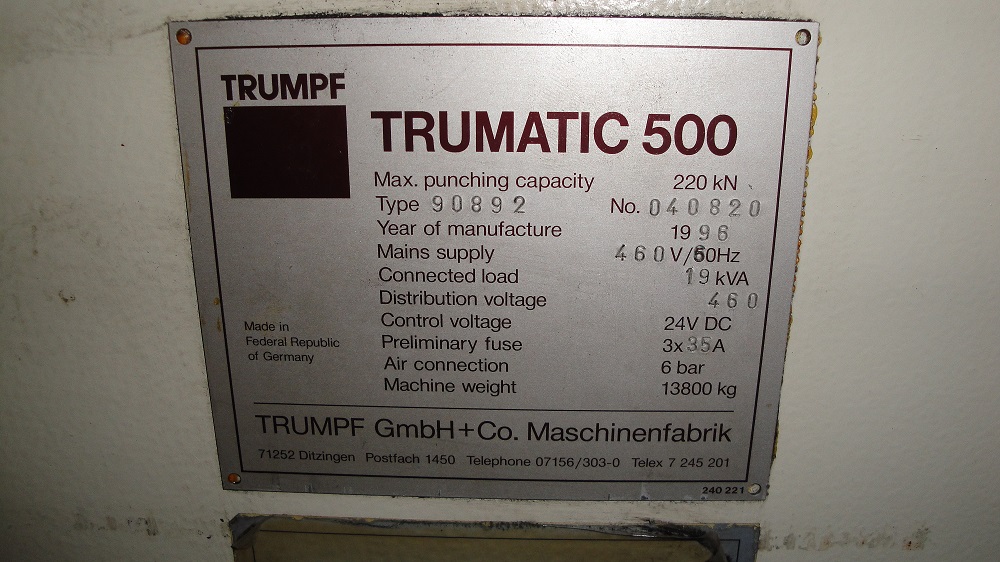

MANUFACTURER................. TRUMPF
MODEL........................ TC500R-1600
AGE.......................... 1996
SERIAL NUMBER................ 040820
TONNAGE...................... 25

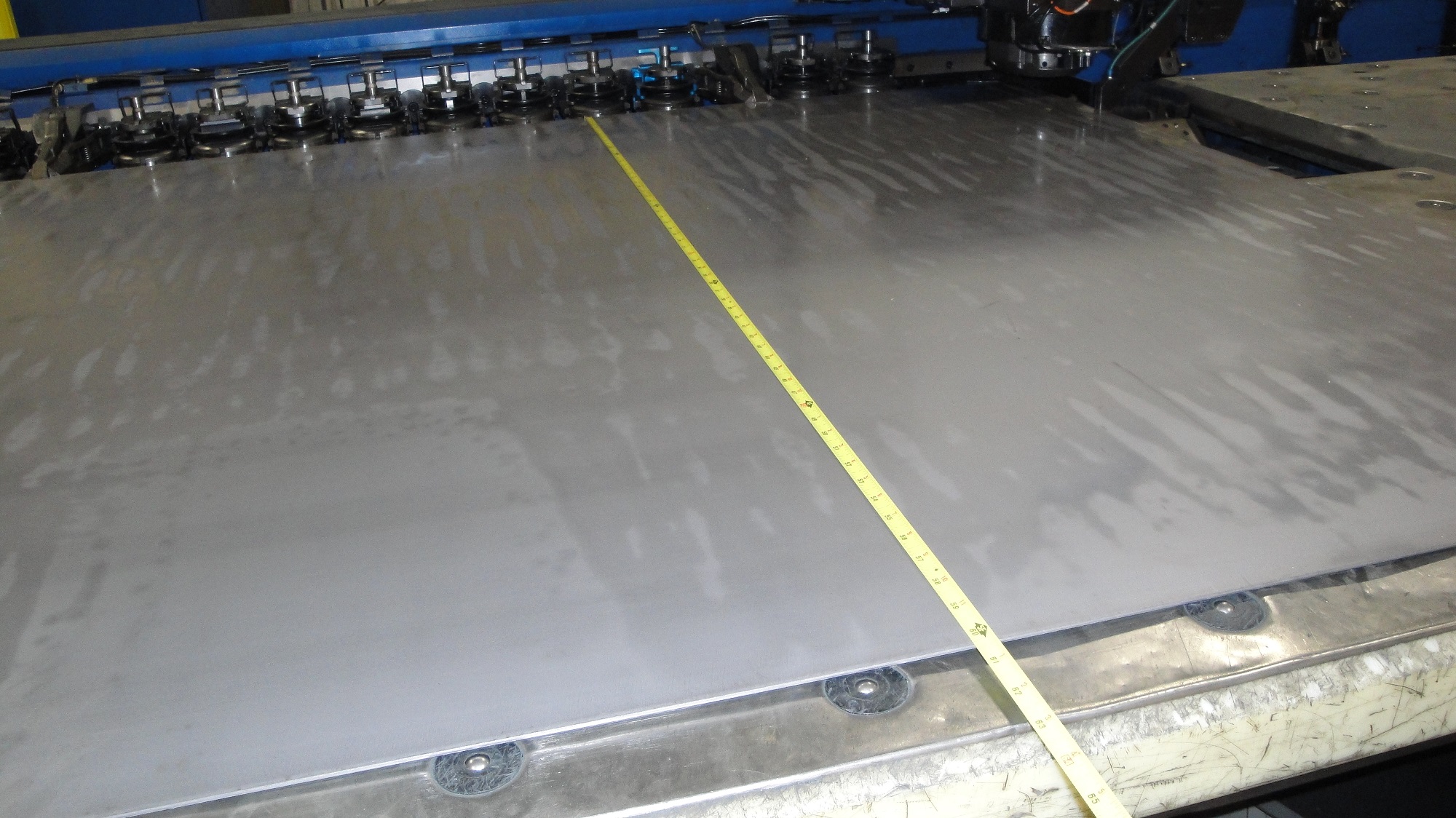

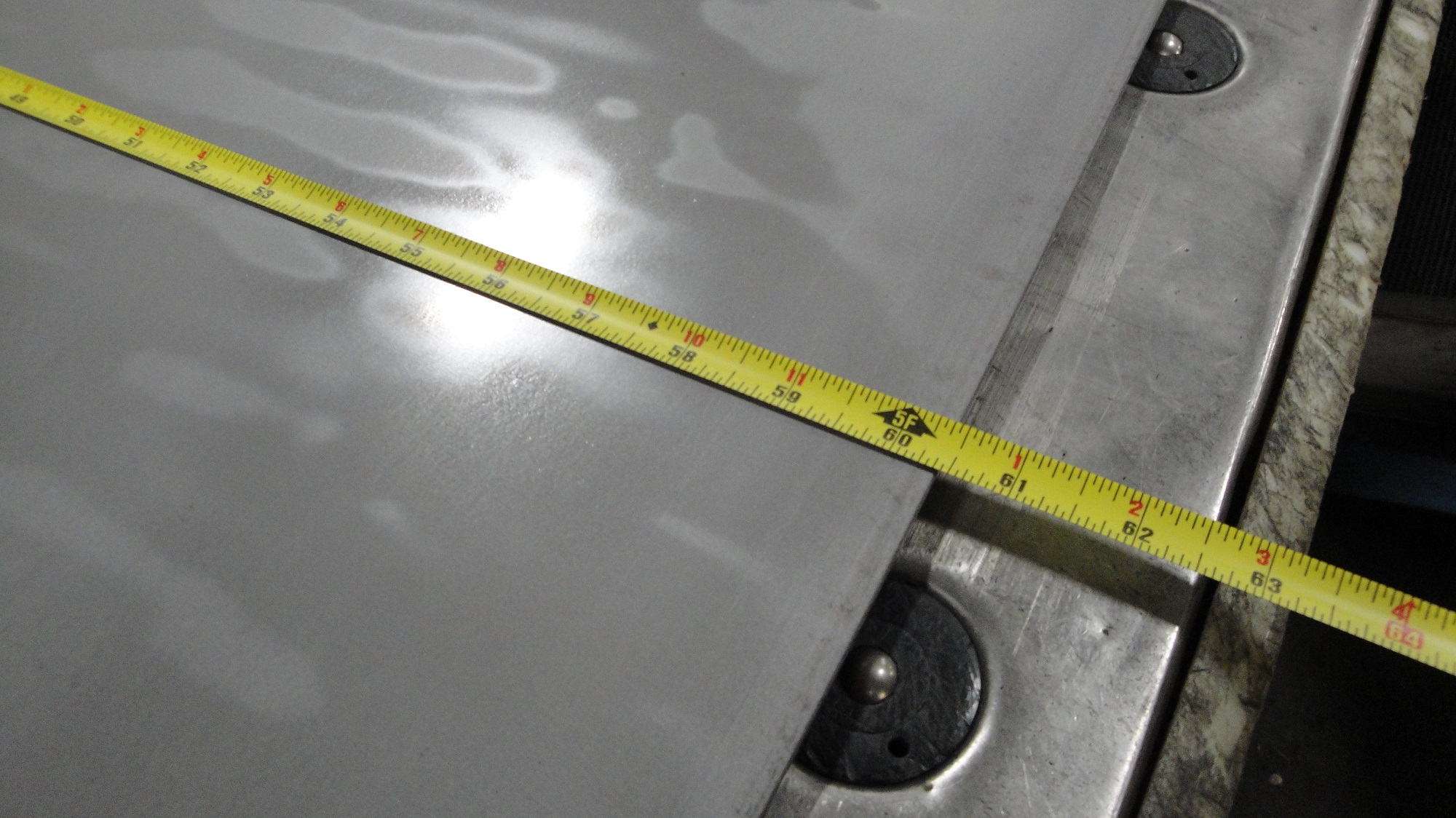

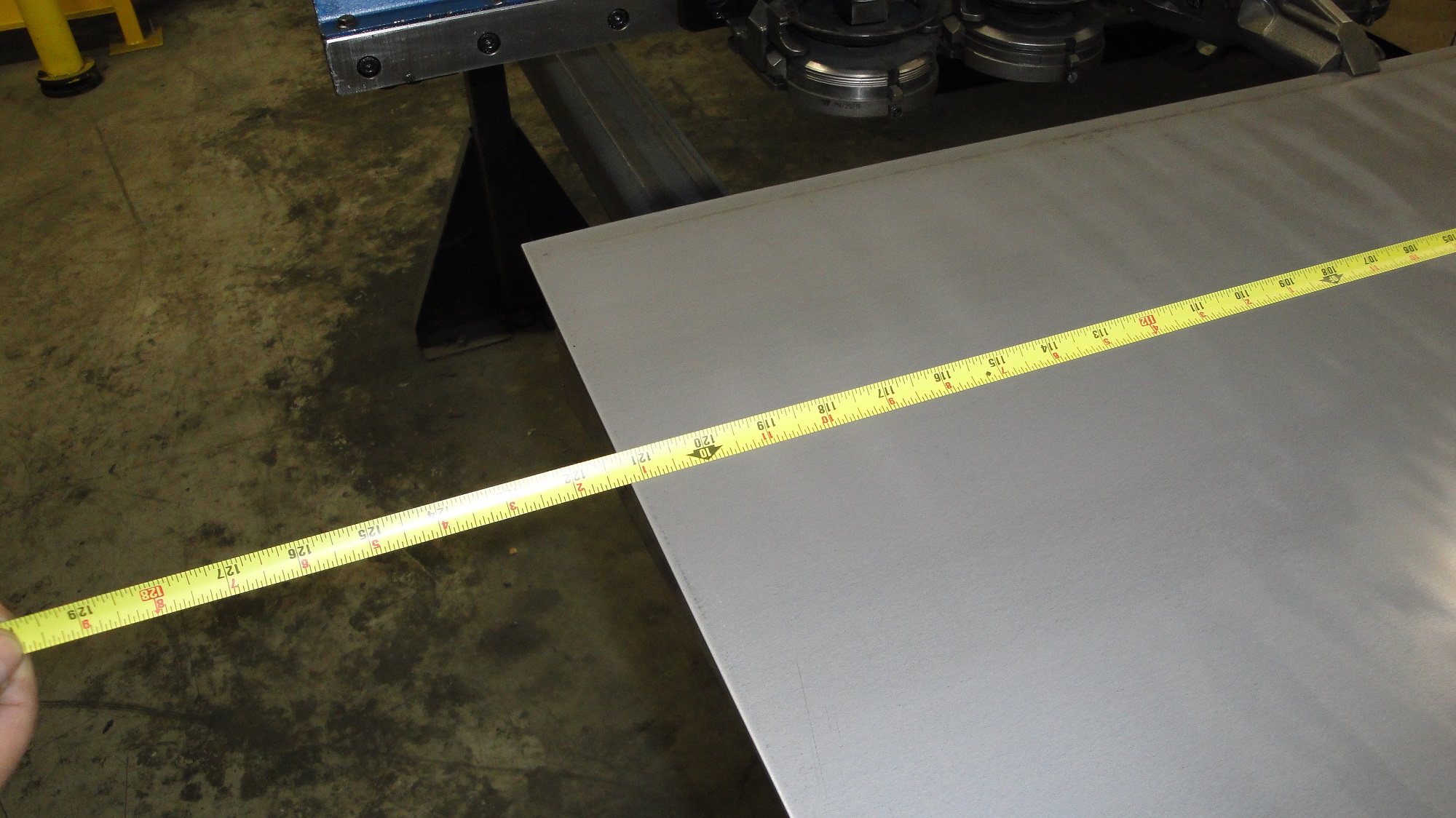

WORKING RANGE................ 60" X 120"
TOOL CAPACITY................ 18 STATIONS
MAX. PUNCH DIAMETER.......... 3"
MAX SHEET THICKNESS.......... 1/4"
MAX. STROKES PER MIN......... 300 ON 1"CC
MAX. STROKES PER MIN......... 600 CONTOURS
MAX. LINEAR TABLE SPEED...... 4,300 IPM
APPROX. MACHINE WEIGHT....... 29,000 LBS
EQUIPPED WITH:

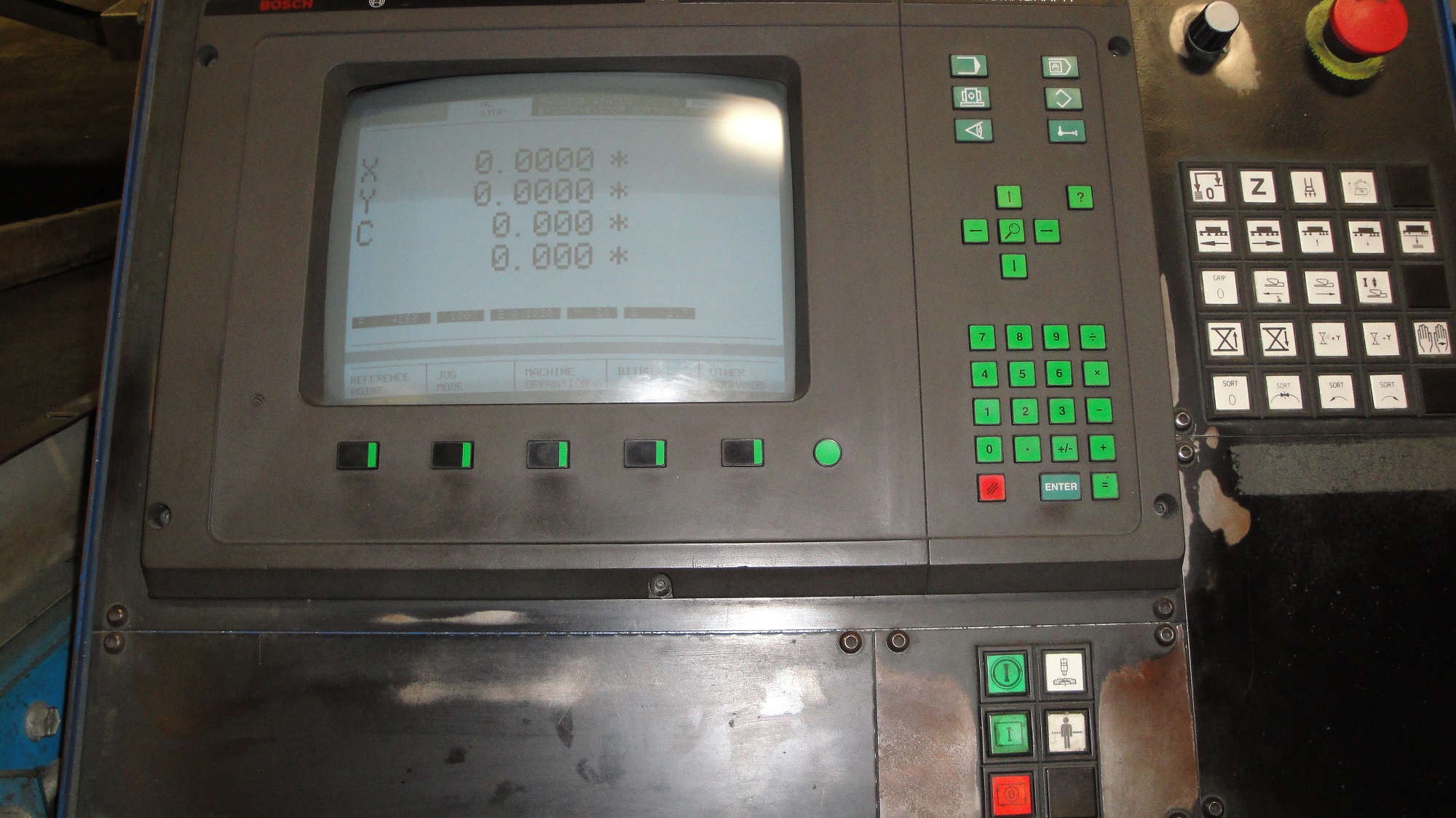

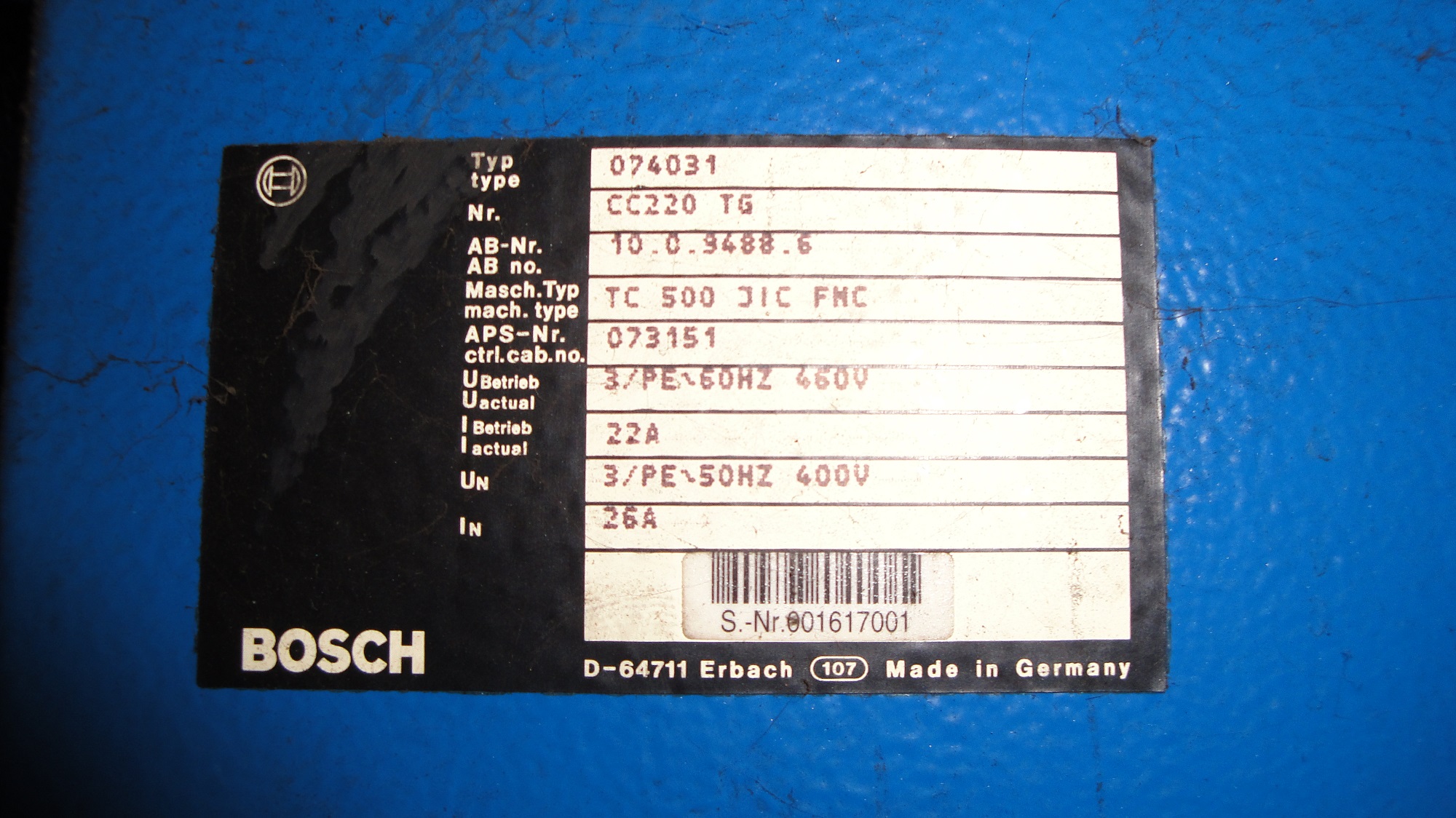

BOSCH TRUMAGRAPH CC220 CNC CONTROL

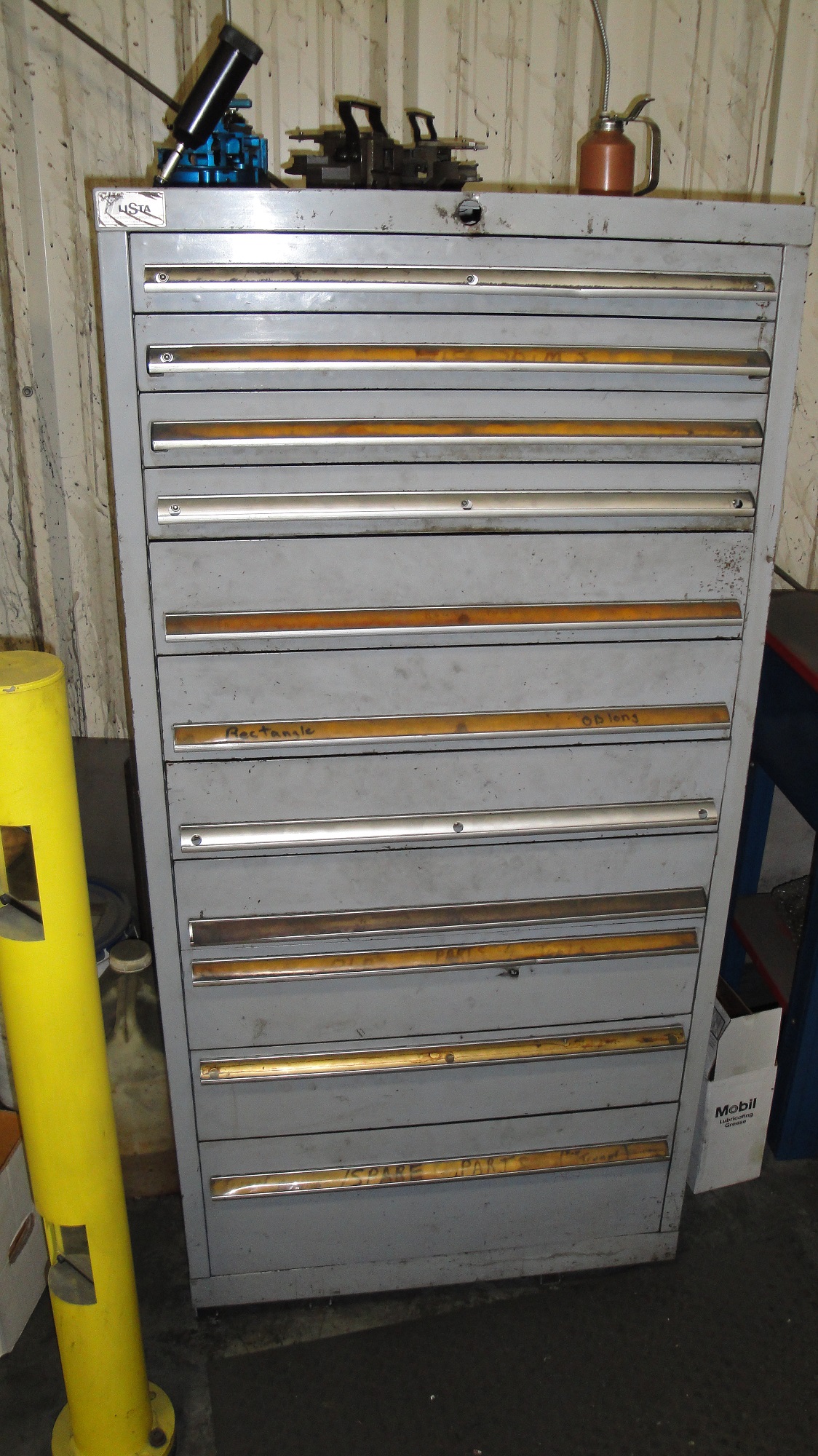

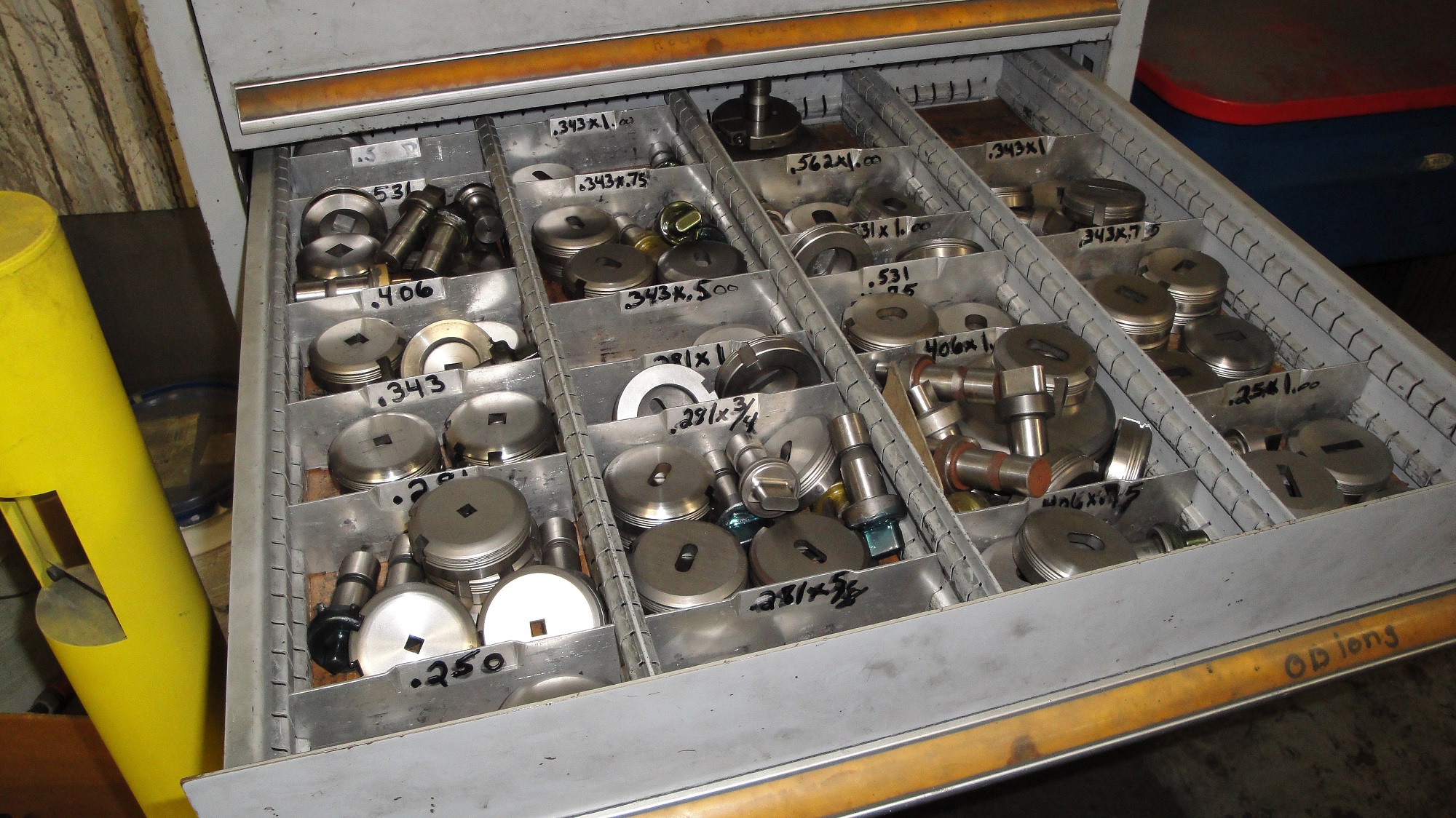

LARGE LOT OF PUNCHES AND DIES STORED IN 9 DRAWER CABINET

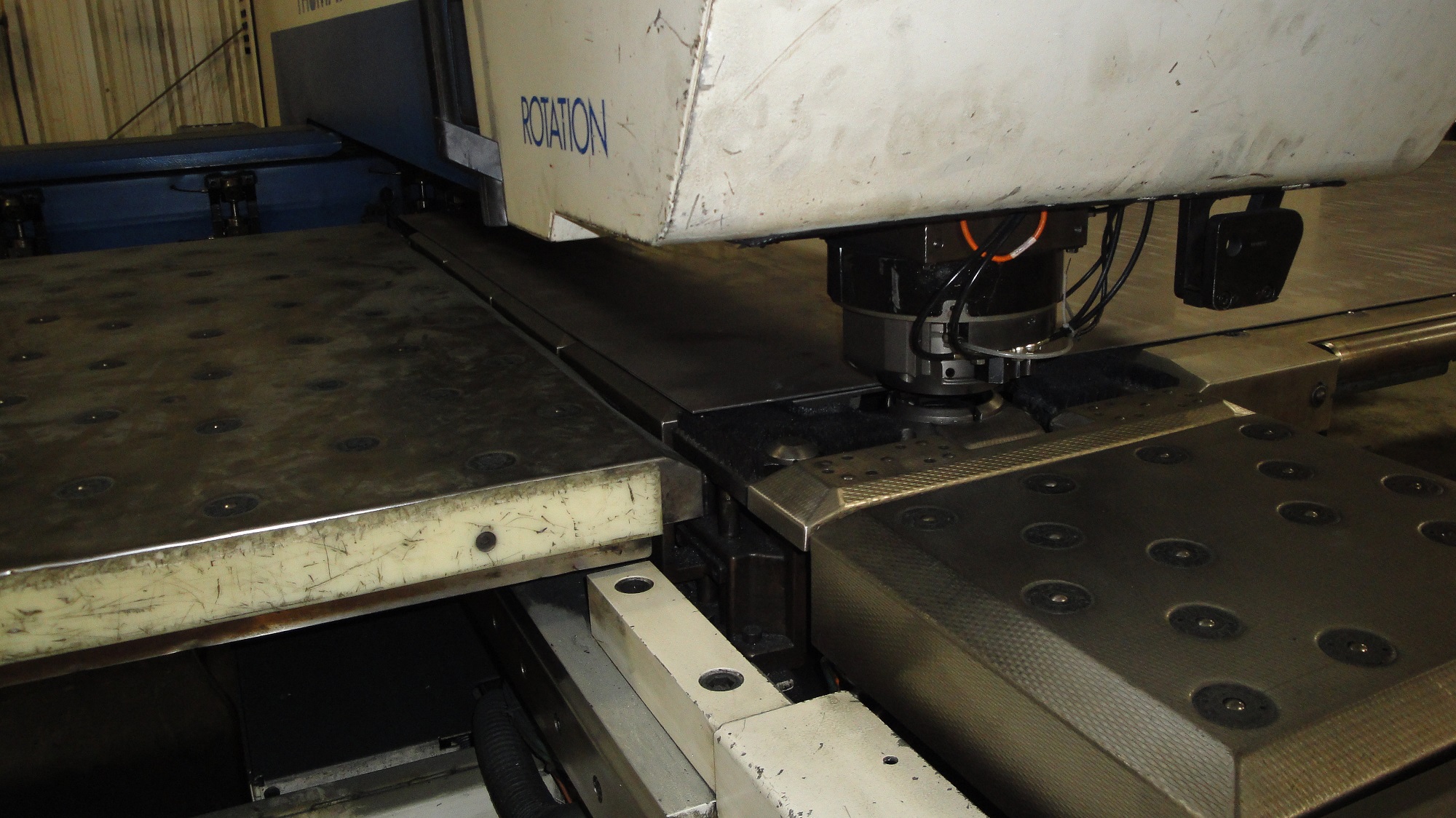

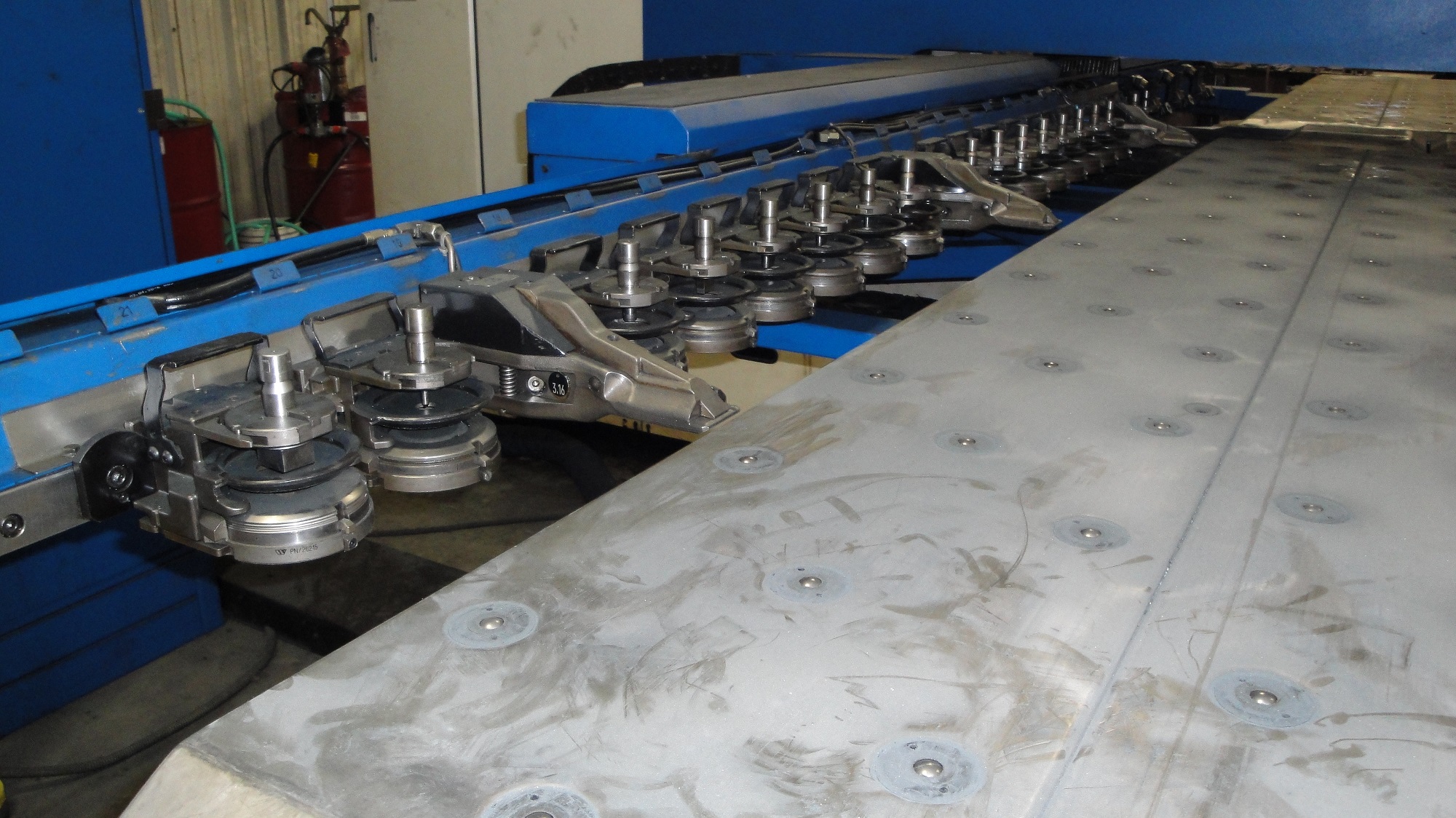

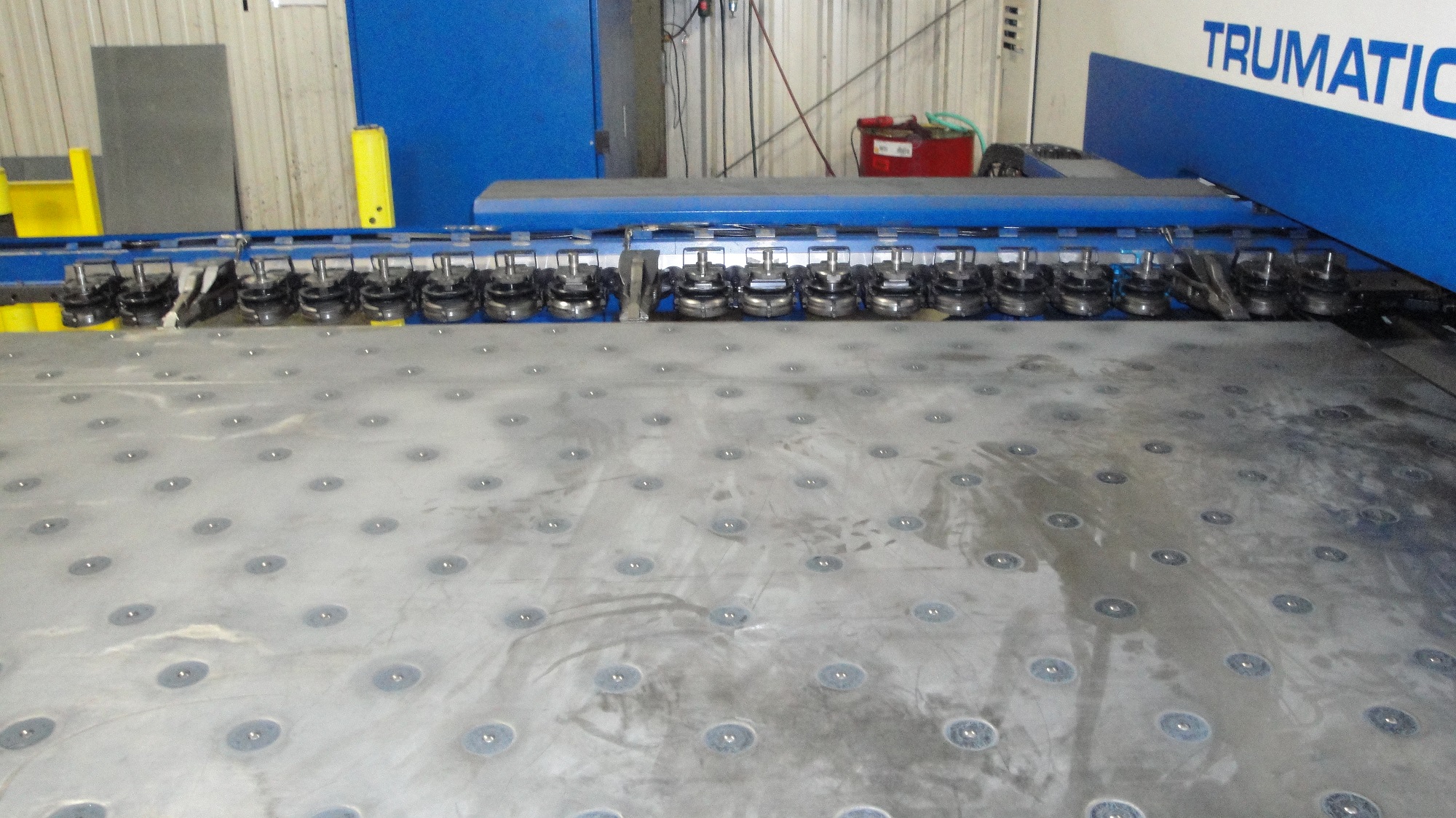

18 STATION LINEAR TOOL CHANGER-ALL FULL ROTATION

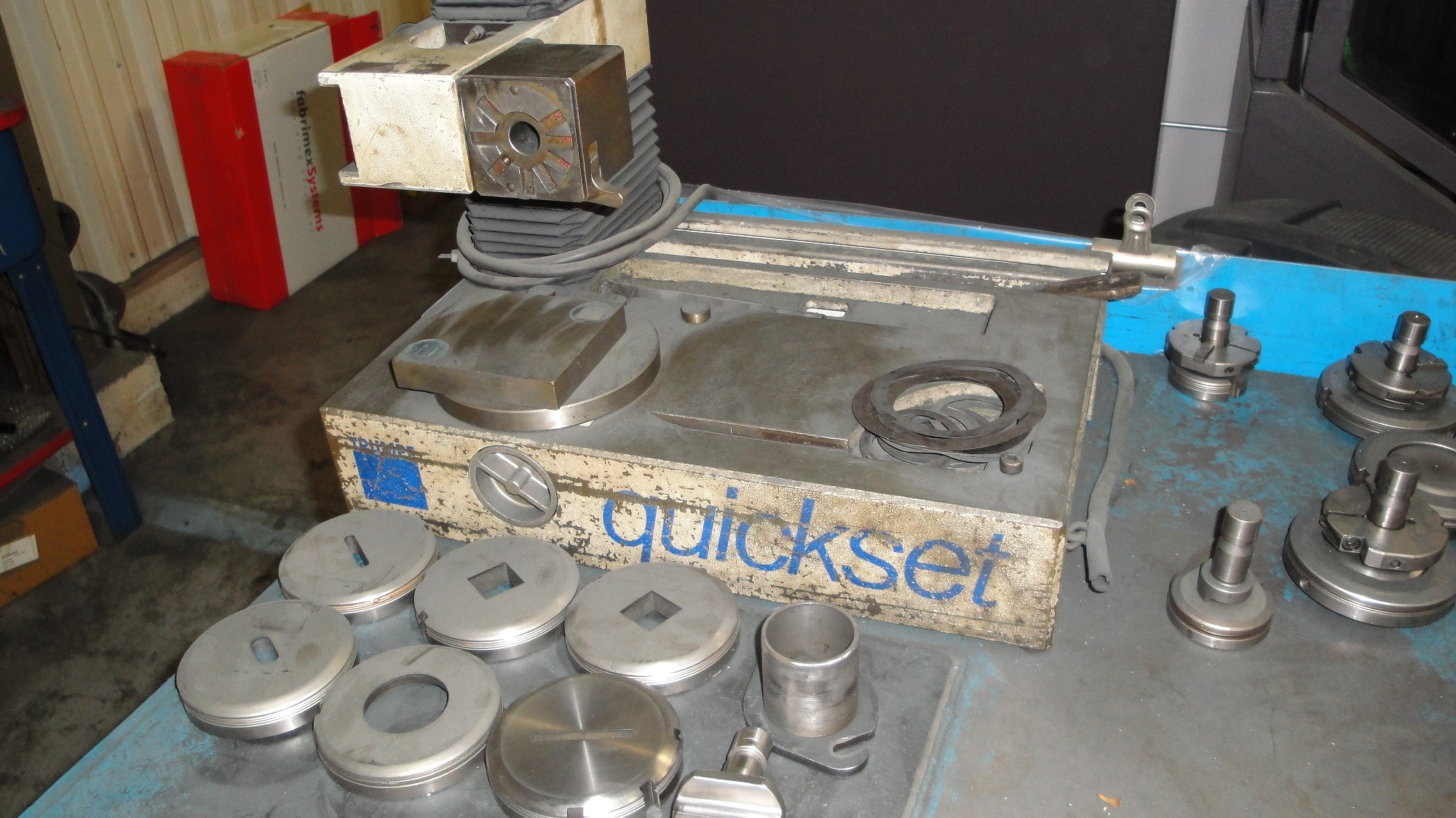

QUICKSET TOOL SETTER
YEARLY INSPECTIONS BY TRUMPF SERVICE. LAST ONE DONE 10/24/14.
