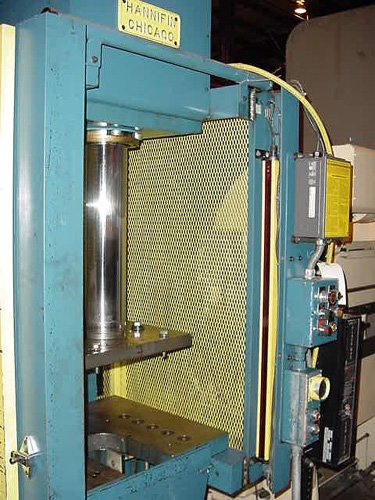

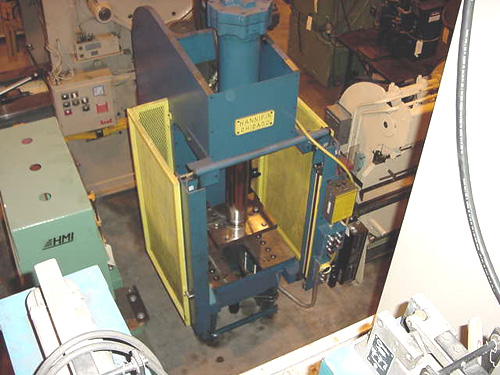

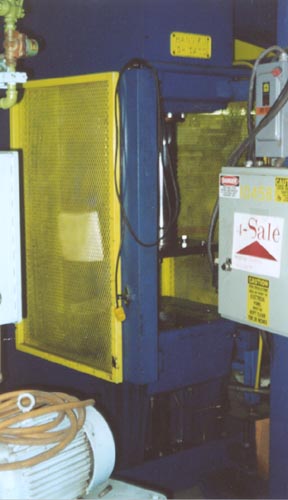

25 Ton HANNIFIN MDL.F250, 24"Str,25"DLO,24"F-Bx30"L-R,MAIN MOTOR 15HP,IN-FRAME H

GENERAL SPECIFICATIONS:
SERIAL NUMBER C50259
DOWNSTROKE MAXIMUM CAPACITY 25 TONS
CYLINDER DIAMETER 6"
RAM DIAMETER 5-3/4"
MAXIMUM STROKE 24"
APPROACH: SPEED 210 IPM
RETURN SPEED 165 IPM
THROAT DEPTH 15"
BED SIZE 24" F-B x 30" L-R
UPPER PLATE 14" F-B x 18" L-R
MAXIMUM DAYLIGHT 25"
MAIN MOTOR 15 HP
APPROXIMATE WEIGHT 6,500 LBS.
ELECTRICS REDONE 460/60/3
FLOOR SPACE 40" L-R x 8" F-B
OVERALL HEIGHT (FLOOR STANDING) 114" HIGH

EQUIPPED WITH:
ISB LIGHT CURTAINS
ADJUSTABLE RAM STROKE
MOUNTED ON WHEELS
IN-FRAME HYDRAULICS
