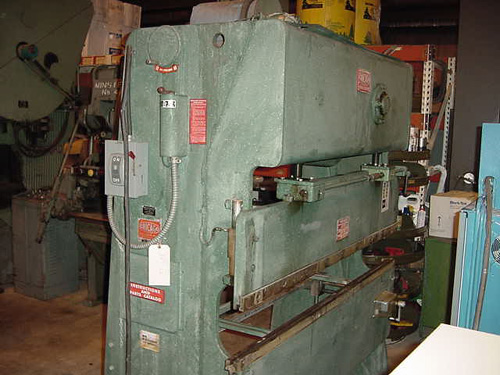

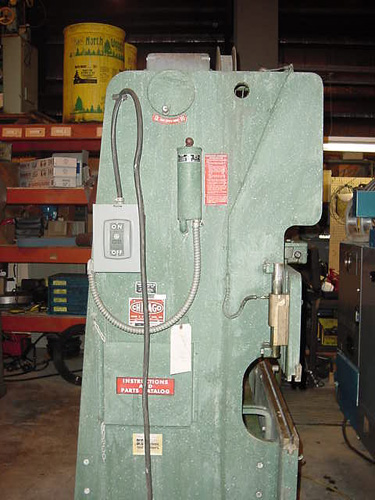

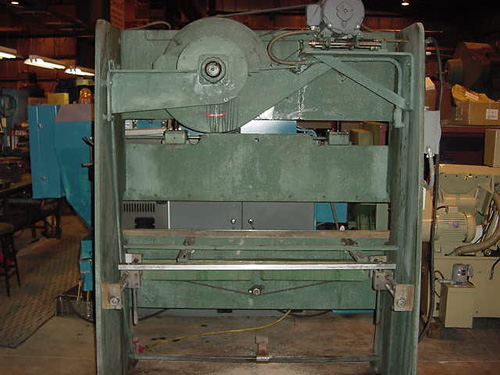

25 TON D & K MDL 265, MECHANICAL, 1969, 6' LENGTH, 2" STR., VARY SPEED, 1969

GENERAL SPECIFICAITONS:
MANUFACTURER.............................. DRIES & KRUMP
MODEL..................................... 265
SERIAL #.................................. L17578
NEW APPROXIMATELY......................... 1969
TONNAGE................................... 25
CAP. (MILD STEEL):........................ 12 GA X 48"
........................ 14 GA X 66"
OVERALL LENGTH OF BED & RAM............... 72"
DISTANCE BETWEEN HOUSINGS................. 62"
THROAT DEPTH.............................. 6"
STROKE.................................... 2"
RAM ADJUSTMENT............................ 3"
DIE SPACE................................. 9"
SPEED VARIABLE............................ 20 TO 50 SPM
BED HEIGHT FROM FLR (FLUSH FLR DESIGN).... 34"
FLOOR SPACE (APPROX.)..................... 72"Lx36"Dx92"H
WEIGHT (APPROX.).......................... 4,500 LBS.

EQUIPPED WITH:
1.5 HP A/C MAIN DRIVE MOTOR 3/60/220 VOLT
REVERSING ELECTRICAL CONTROLS
RAM CLAMPS
DIE RAIL
MANUAL BACK GUAGE
ONE SHOT LUBE
MECHANICAL CLUTCH AND BRAKE W/FOOT TREADLE CONTROL TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION
