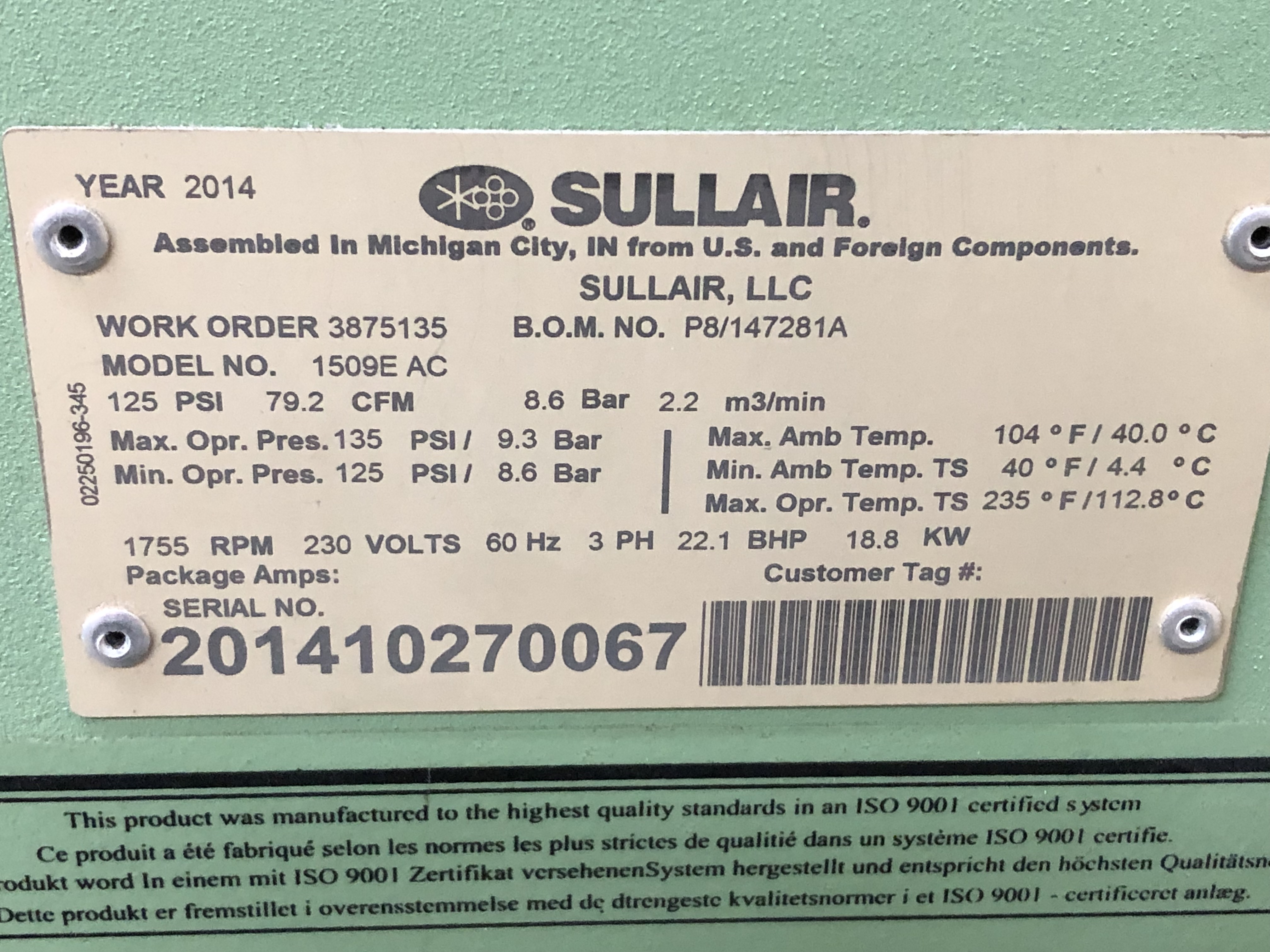

GENERAL SPECIFICATIONS:
MANUFACTURER................... SULLAIR
MODEL.......................... 1509E
AGE............................ 2014
SERIAL NUMBER.................. 201410270067
TYPE........................... ROTARY SCREW
PSI............................ 125
CFM............................ 79.2
MAX. OPERATING PRESSURE........ 135 PSI/ 9.3 BAR
MIN. OPERATING PRESSURE........ 125 PSI/ 8.6 BAR
HOURS.......................... 7995
MOTOR.......................... 25.56 HP (18.8 KW)
VOLTAGE........................ 230/60/3
EQUIPPED WITH:
FULL ENCLOSURE
CATALOG INFORMATION
- Totally Enclosed Fan Cooled motor (TEFC)
- Total package filtration*
- Low life cycle costs including long-life bearings, rotors, and consumable parts
- Less than 2 ppm fluid carryover
- Excellent motor cooling design characteristics for longer motor life
- Sequencing standard
- NEMA 4

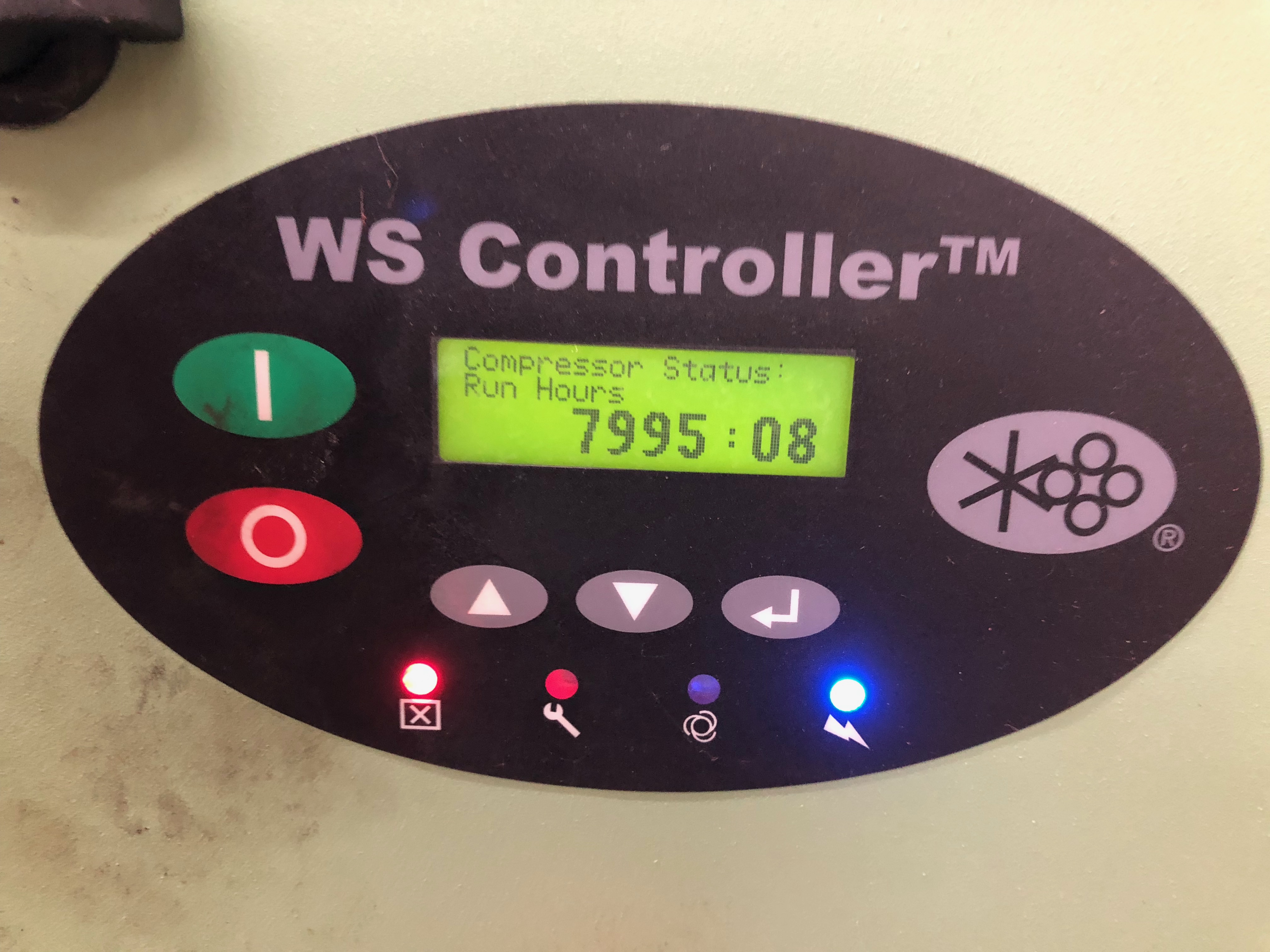

- WS Controller™ microprocessor standard
- Smallest footprint in its class
- Quietest in its class, as low as 66 dBA
- Numerous unique service features
- Environmental, health, and safety design features
- Sullube®—non-varnishing, biodegradable compressor fluid
- Optimalair® air filter provides ten times better filtration than other filters
