SPECIFICATIONS

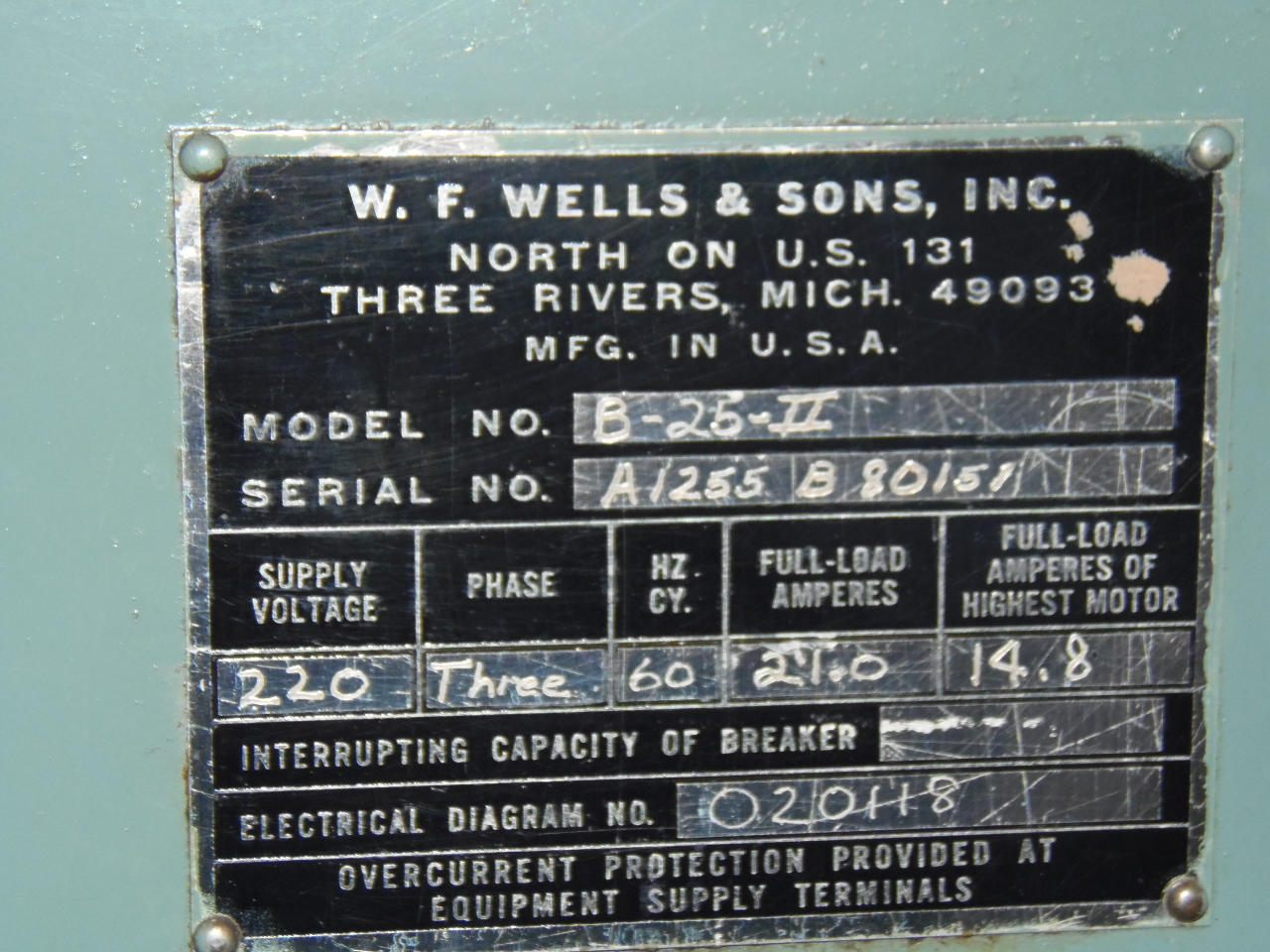

MANUFACTURER....................... W.F. WELLS
MODEL.............................. B-25-II
SERIAL NUMBER...................... 28447
CAPACITY
RECTANGULAR AT 90 DEGREES....... 25" HIGH X 40" WIDE
25.5" ROUND
RECTANGULAR AT 45 DEGREES....... 25" HIGH X 24" WIDE
WEIGHT CAPACITY.................... 15,000 LBS
BLADE SIZE......................... 1.5" X .050" X 19'8"
BLADE TENSION...................... HYDRAULIC

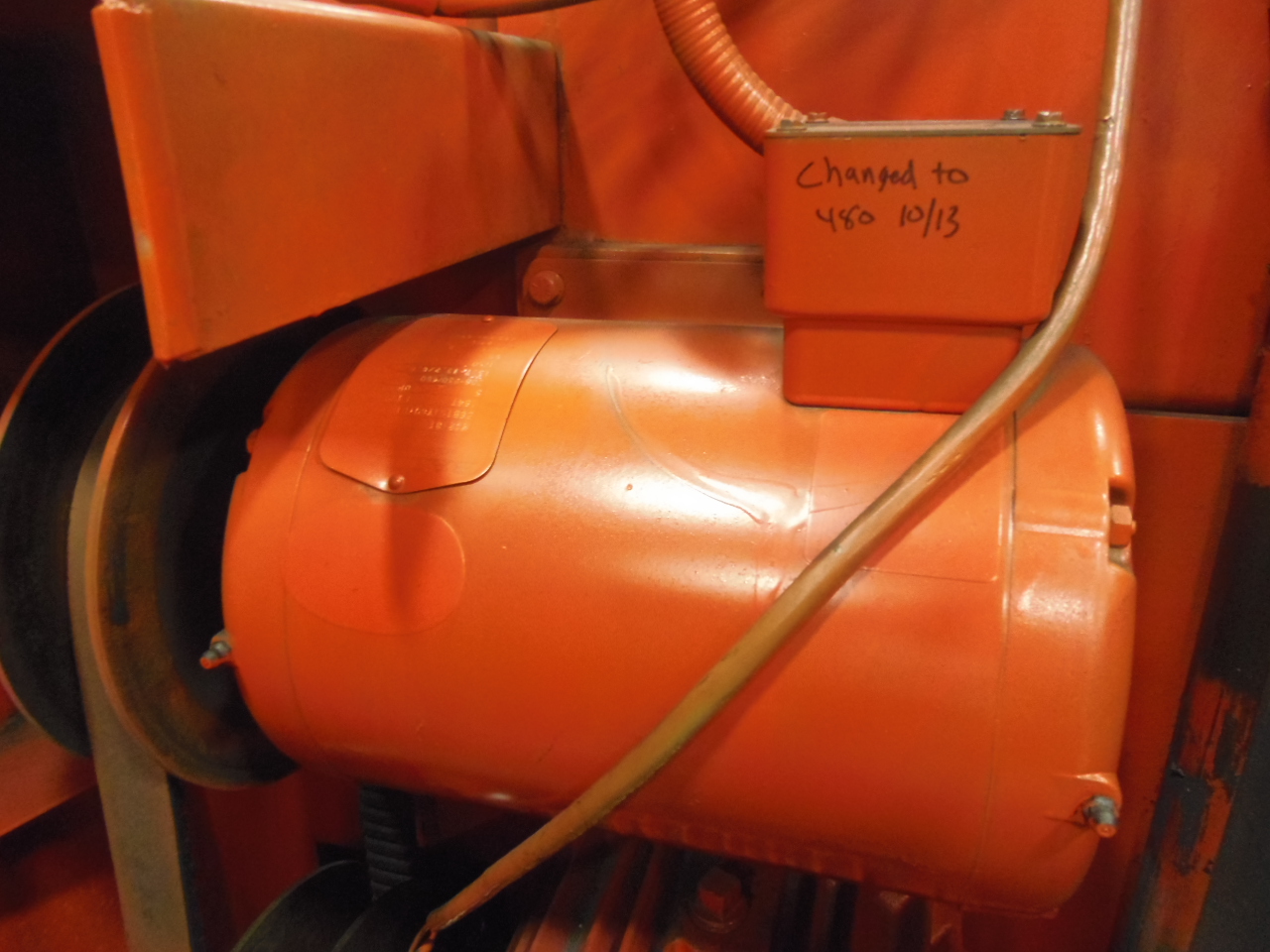

BLADE DRIVE........................ 10 HP, AC VECTOR DRIVE
BAND WHEEL SIZE.................... 26"
VISE............................... HYDRAULIC
SAWING FORCE....................... 0 - 1,000 LBS
COOLANT CAPACITY................... 15 GALLONS
HYDRAULIC CAPACITY................. 20 GALLONS
HYDRAULIC DRIVE.................... 5 HP MOTOR
OFF FEED TABLE..................... 24" X 40"
SHIPPING WEIGHT.................... 6,600 LBS
MACHINE DIMENSIONS................. 170" L X 55" W X 100" HIGH
EQUIPPED WITH:

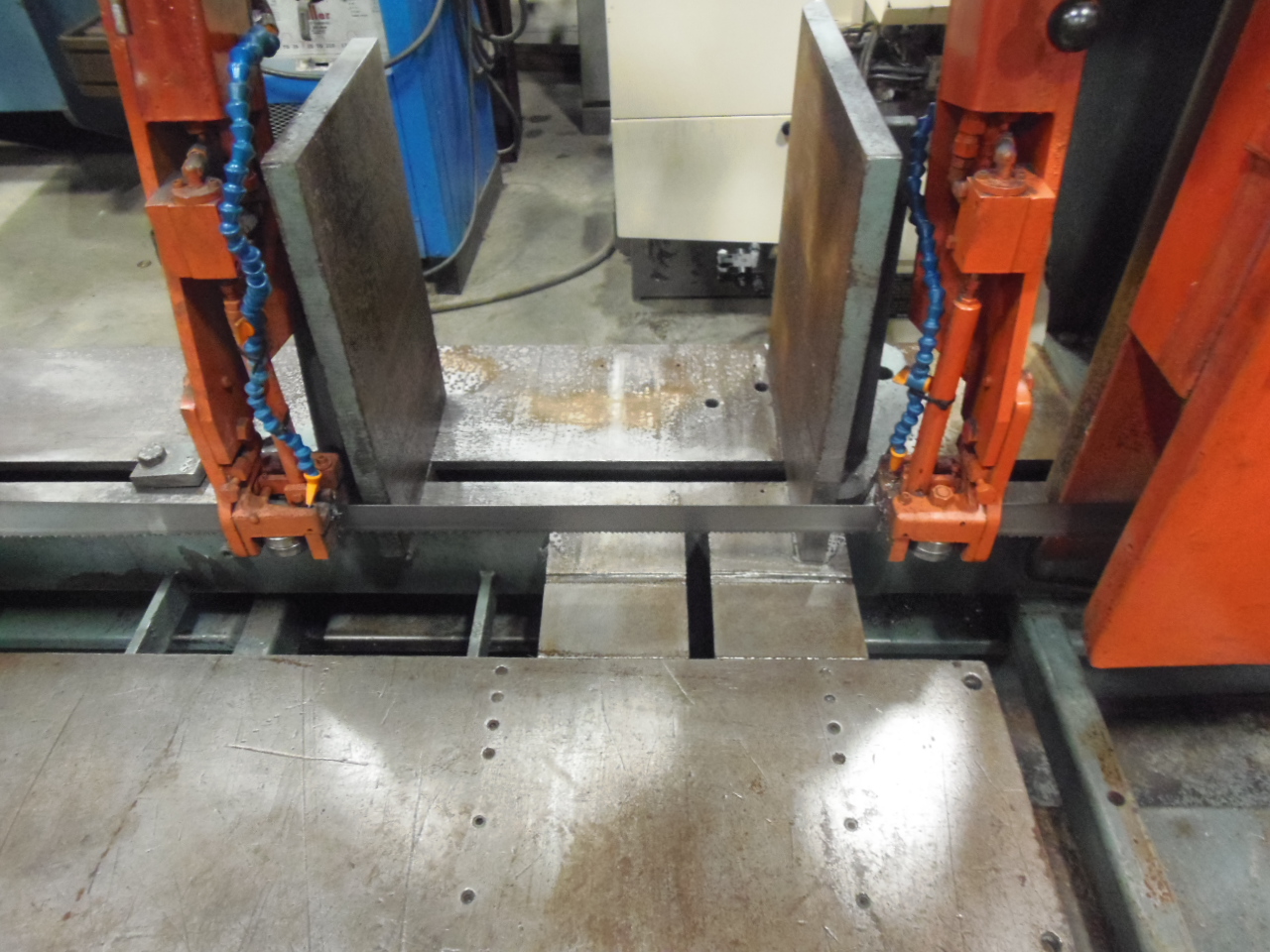

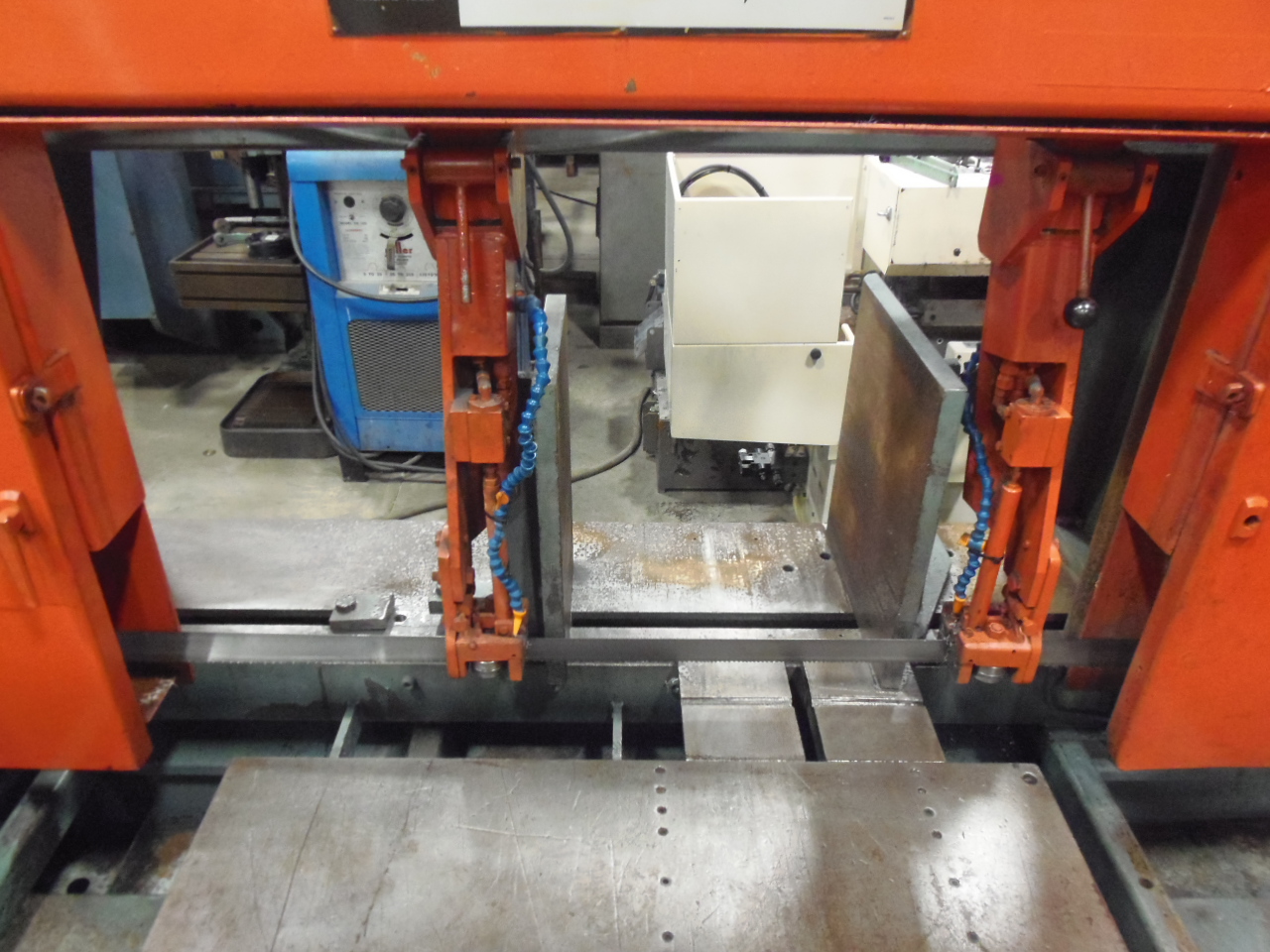

SPRING TENSION CARBIDE BLOCKS WITH IDLE ROLLER BACK UP FOR BLADE TENSION
BLADE BREAK STALL SWITCH
HYDRAULIC POSITIONED GUIDE ARM AND BLADE BRUSH
BLADE TENSION INDICATOR
