Specifications
Equipped With
GENERAL SPECIFICATIONS:

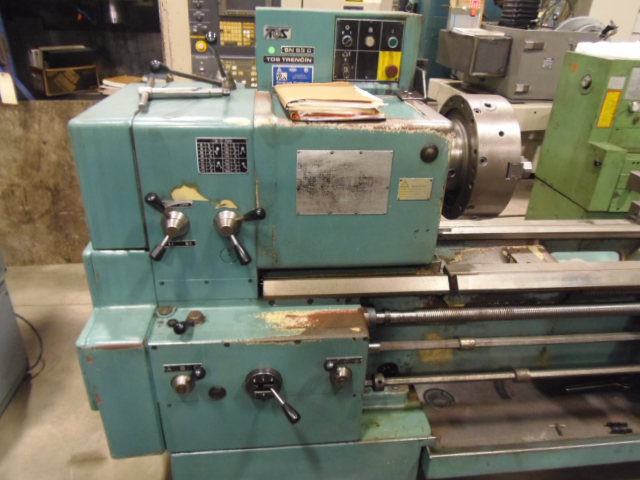

MANUFACTURER................ TOS
MODEL....................... SN63C
AGE APPROXIMATELY........... 1997

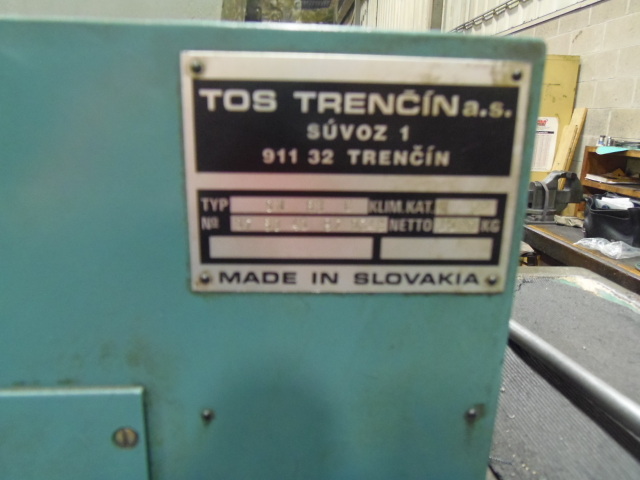

SERIAL#..................... 076340970043

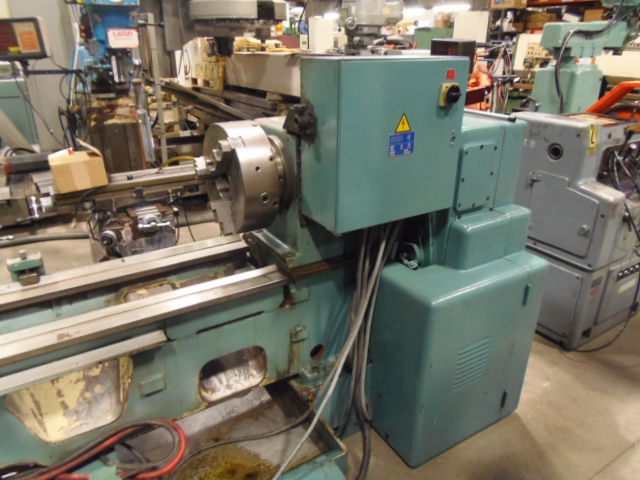

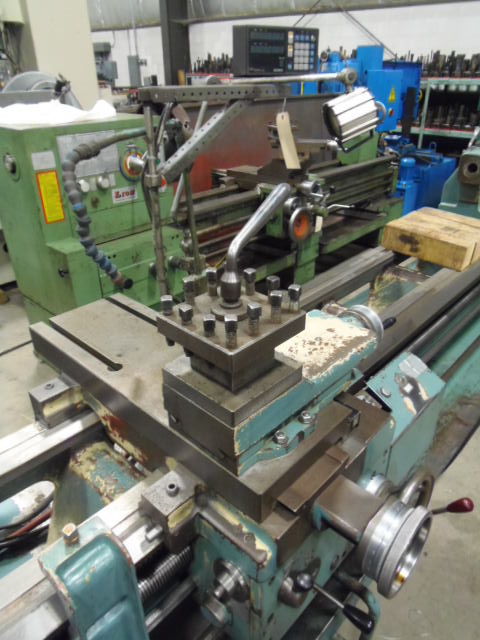

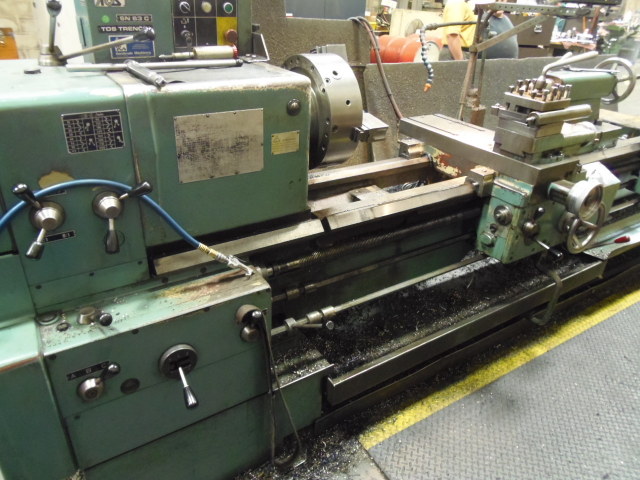

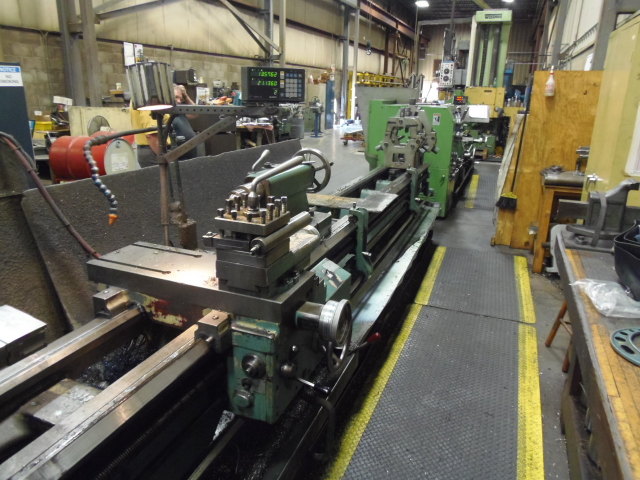

TYPE........................ GAP BED LATHE
SWING....................... 26"
SWING OVER CROSS SLIDE...... 13 3/8"
SWING OVER GAP.............. 34 5/8"
GAP WIDTH................... 11 7/8"
BED WIDTH................... 17 3/4"
DISTANCE BETWEEN CENTERS.... 160"
TAILSTOCK................... MT#5
SPINDLE NOSE................ D1-8
SPINDLE BORE................ 3"
SPINDLE SPEEDS.............. 10-1000 RPM
THREADING .................. INCH/METRIC
HORSEPOWER.................. 10
ELECTRICS................... 220/440 3PHS 60HZ
DIMENSIONS.................. 240" X 60" X 60"H
APPROX. WEIGHT.............. 8,000 LBS
EQUIPPED WITH:
RAPID TRAVERSE

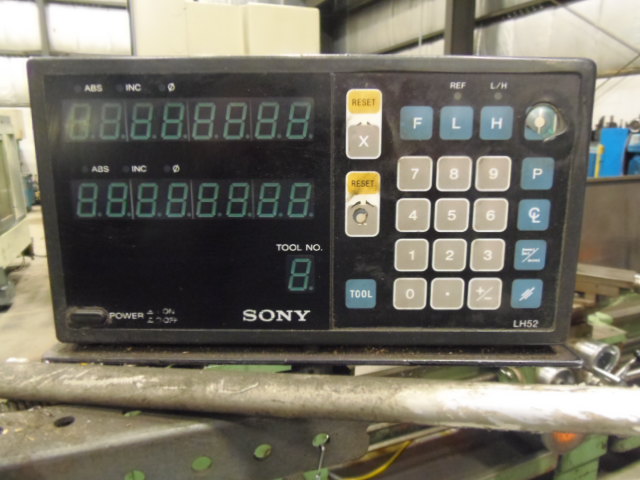

SONY 2 AXIS DIGITAL READOUT

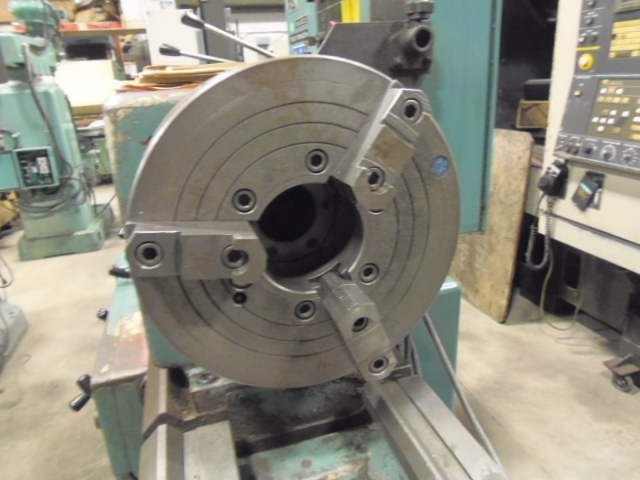

3 JAW CHUCK

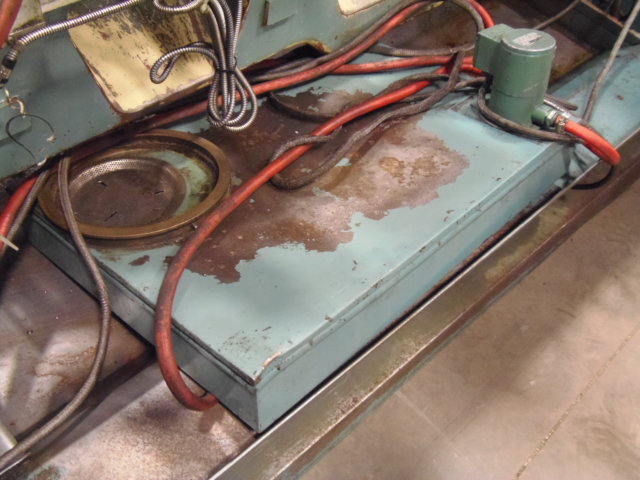

COOLANT

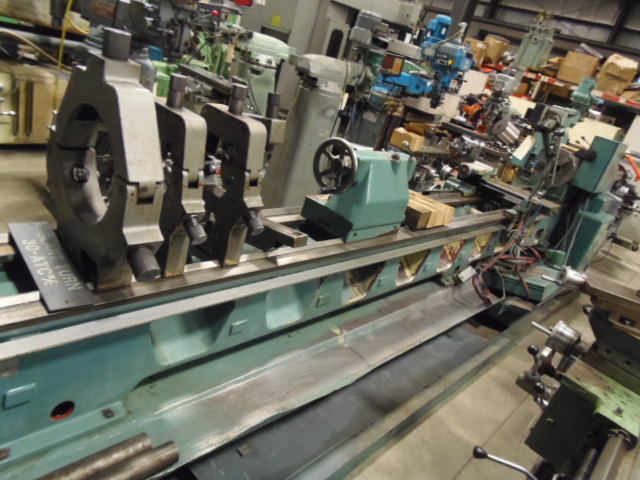

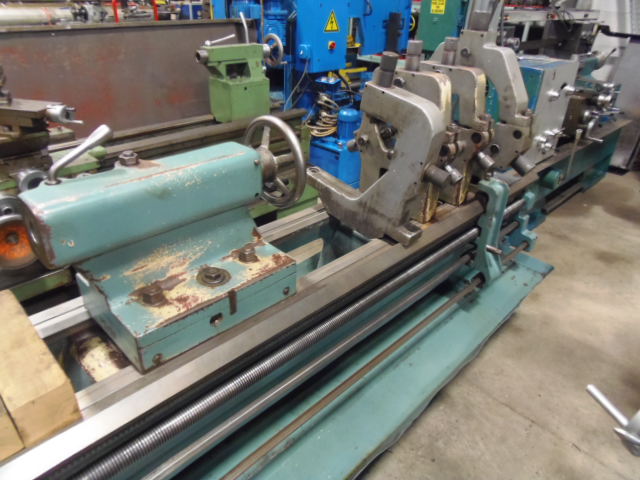

3 STEADY RESTS
FOLLOW REST
