Specifications
Equipped With
GENERAL SPECIFICATIONS:

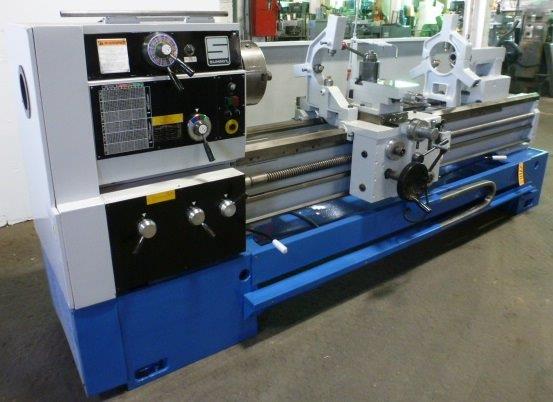

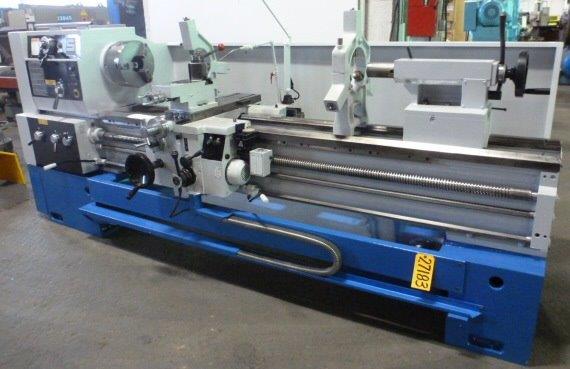

MANUFACTURER.................... SUMMIT
MODEL........................... 24-4 X 80
SERIAL#......................... 32556
AGE APPROXIMATELY............... 2002
SWING OVER BED.................. 25"
SWING OVER GAP.................. 32-5/8"
SWING OVER CROSS SLIDE.......... 17"
DISTANCE BETWEEN CENTERS........ 80"
SPINDLE SPEEDS (21)............. 20-1250 RPM
HOLE THRU SPINDLE............... 4 1/8"
SPINDLE NOSE.................... D1-8 CAMLOCK
THREADS (64).................... 1/4 - 60 TPI
METRIC THREADS (64)............. .5 - 120
LONGITUDINAL FEEDS (124)........ .0045 - .44474
CROSS FEEDS (56)................ .0007 - .22237
CROSS SLIDE TRAVEL.............. 11 3/8"
COMPOUND REST TRAVEL............ 5 3/8"
TAILSTOCK SPINDLE TRAVEL........ 9 1/2"
TAILSTOCK SPINDLE TAPER......... NO. 4MT
BED WIDTH....................... 15 3/4"
WEIGHT APPROXIMATELY............ 7500 LBS.
EQUIPPED WITH:
15 HP MOTOR
INCH/METRIC THREADING
HARDENED AND GROUND BED WAYS
12" 3 JAW CHUCK
24" 4 JAW CHUCK

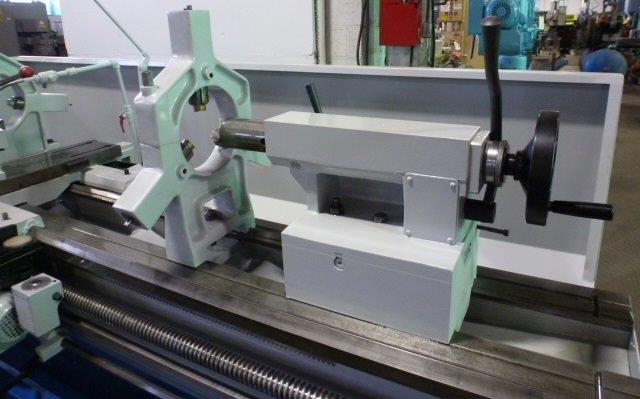

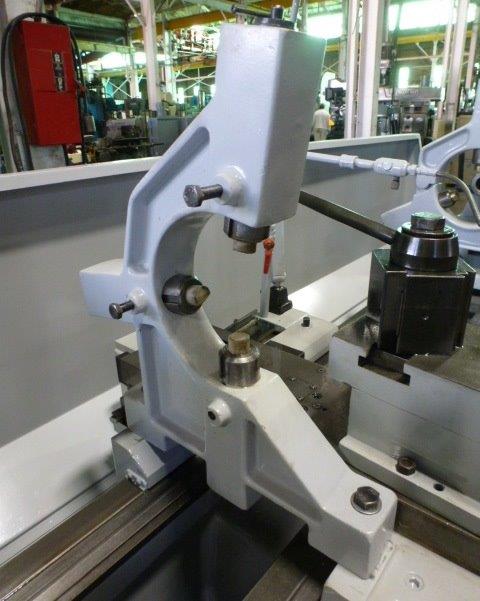

STEADY REST
THREAD DIAL
(COST OF MACHINE WHEN NEW 44,900.00)
