Specifications
Equipped With
GENERAL SPECIFICATIONS:
MAKE......................... CLAUSING COLCHESTOR
MODEL........................ MAGNUM 1250
SERIAL NUMBER................ 9-00068-00025
AGE (APPROX)................. 1984
SWING........................ 25"
SWING OVER CROSS SLIDE....... 15.375"
SWING IN GAP................. 36"
LENGTH OF GAP................ 12"
DIST. BETWEEN CENTERS........ 120"
CHUCK SIZE (3 JAW)........... 15"
SPINDLE NOSE................. D1-11 CAMLOCK

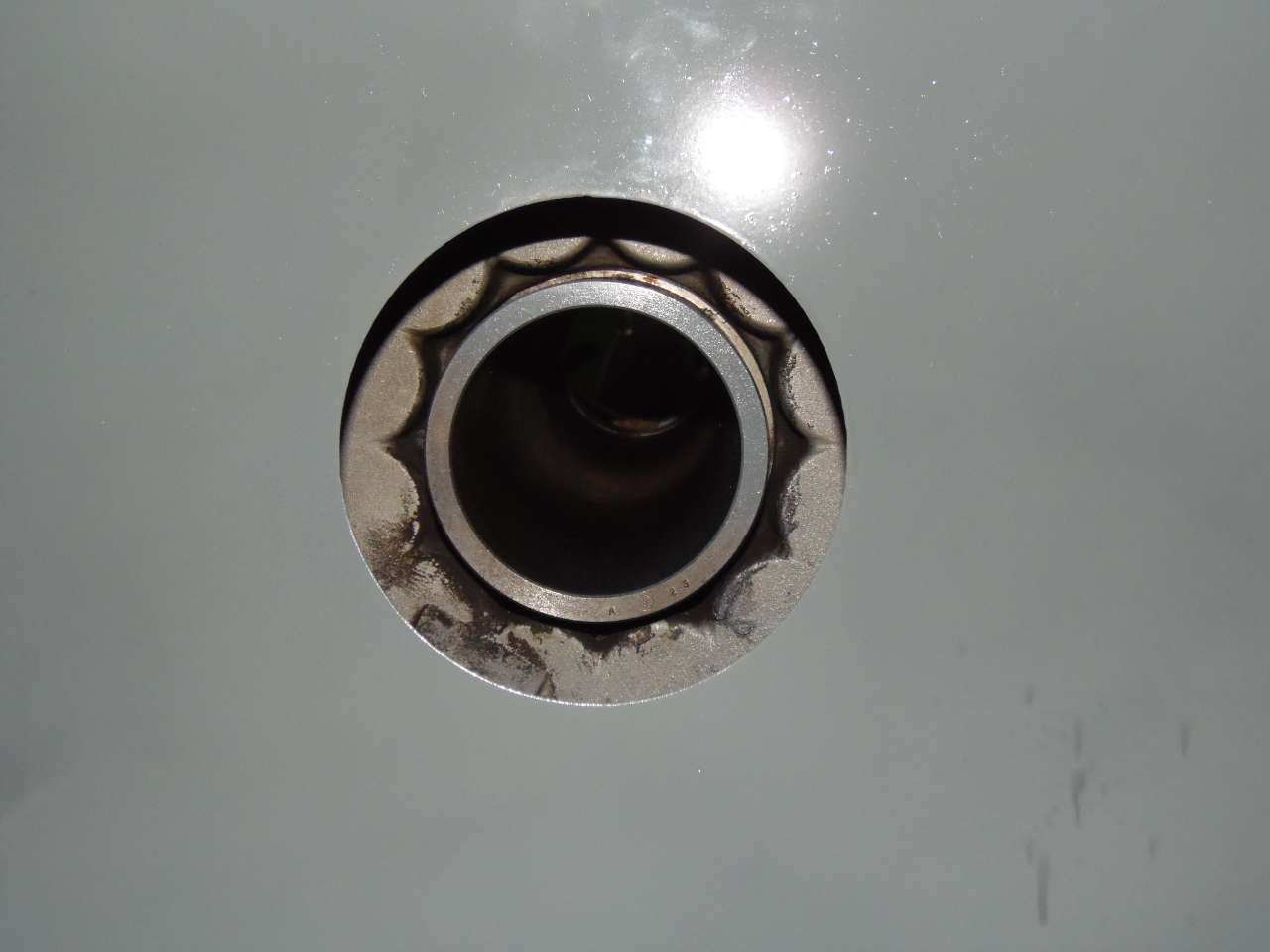

HOLE THRU SPINDLE............ 4.56"

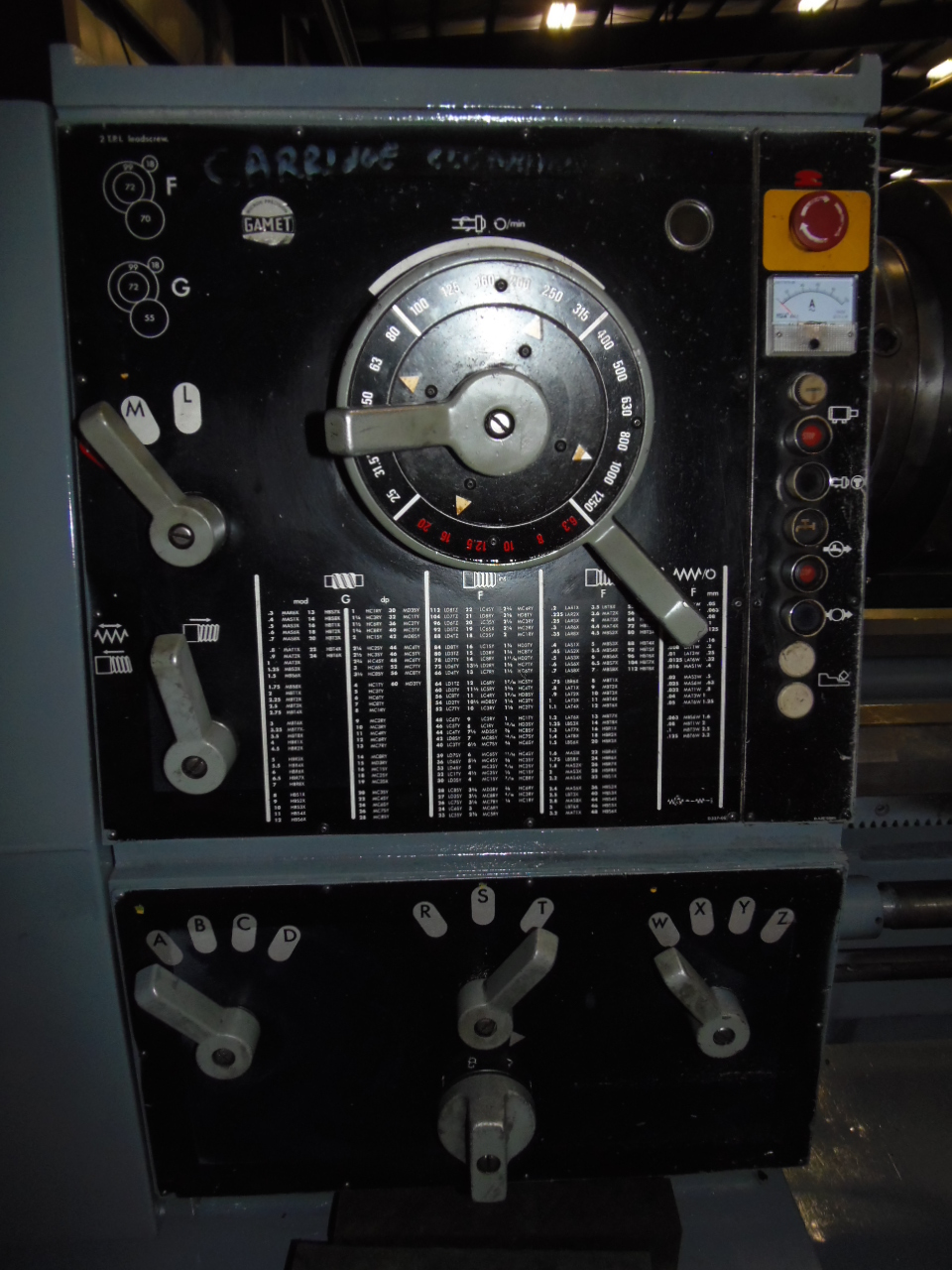

RPM RANGE
LOW RANGE................. 6.3, 8, 10, 12.5, 16, 20 RPM
LOW/MID RANGE............. 25, 31.5, 40, 50, 63, 80
HIGH/MID RNAGE............ 100, 125, 160, 200, 250, 315
HIGH RANGE................ 400, 500, 630, 800, 1000, 1250
FEEDS
INCH...................... .002 - .140
METRIC.................... .05mm - 4.0mm
RAPIDS TRAVERSE
LONGITUDINAL.............. 158 IPM
CROSS..................... 79 IPM

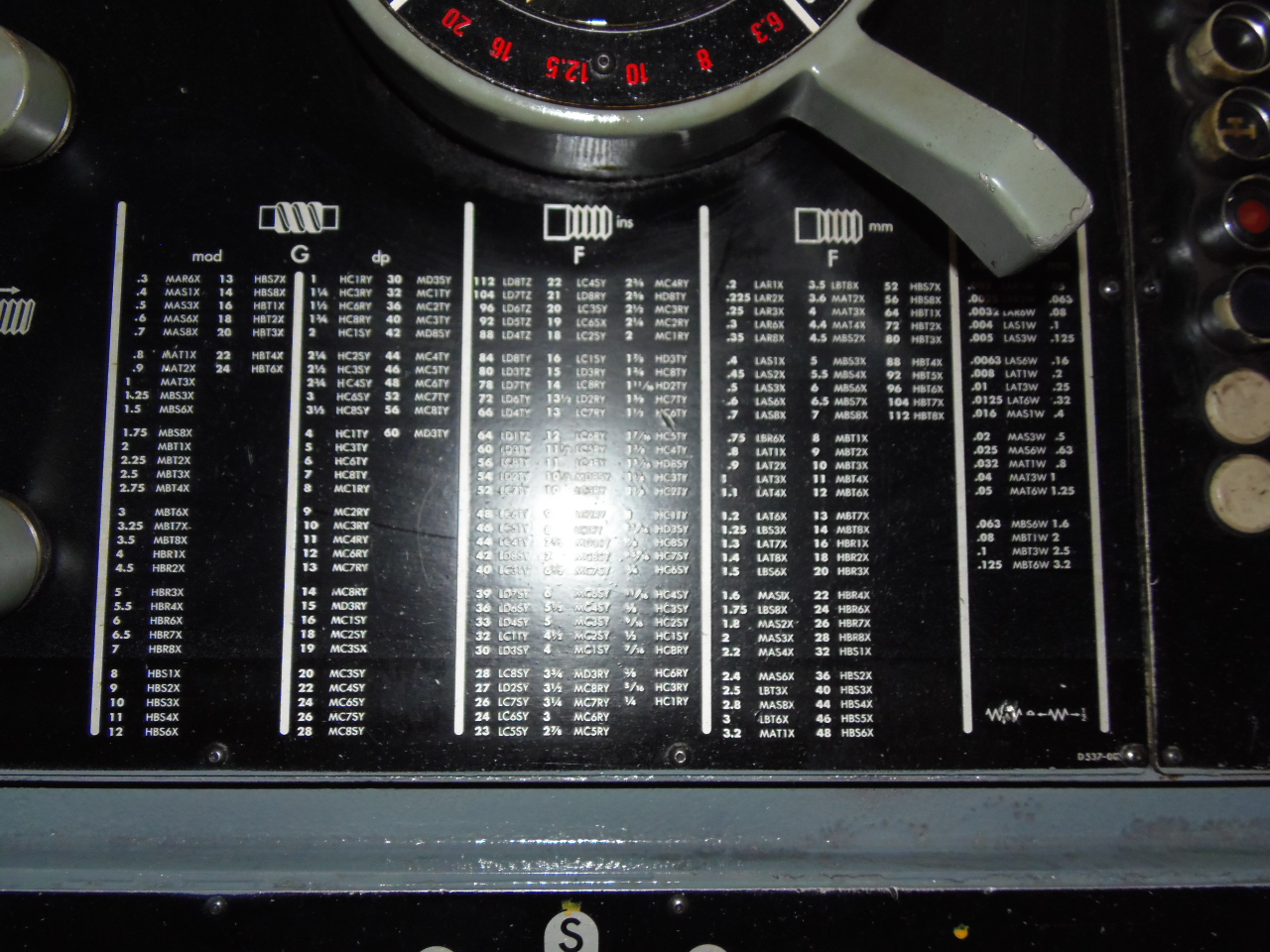

THREADING
INCH THREADING (40)....... 1/4 TO 72 TPI
DIAMETRAL THREADING (27).. 8 TO 60 D.P.
METRIC THREADING (40)..... 0.4 TO 112mm
MODULE THREADING (18)..... 0.3 TO 3.5 MOD
TAILSTOCK SPINDLE TAPER...... MT-6
TAILSTOCK SPINDLE TRAVEL..... 7"
MOTOR........................ 25 HP
APPROX. WEIGHT....................... 9500 LBS.
EQUIPPED WITH:

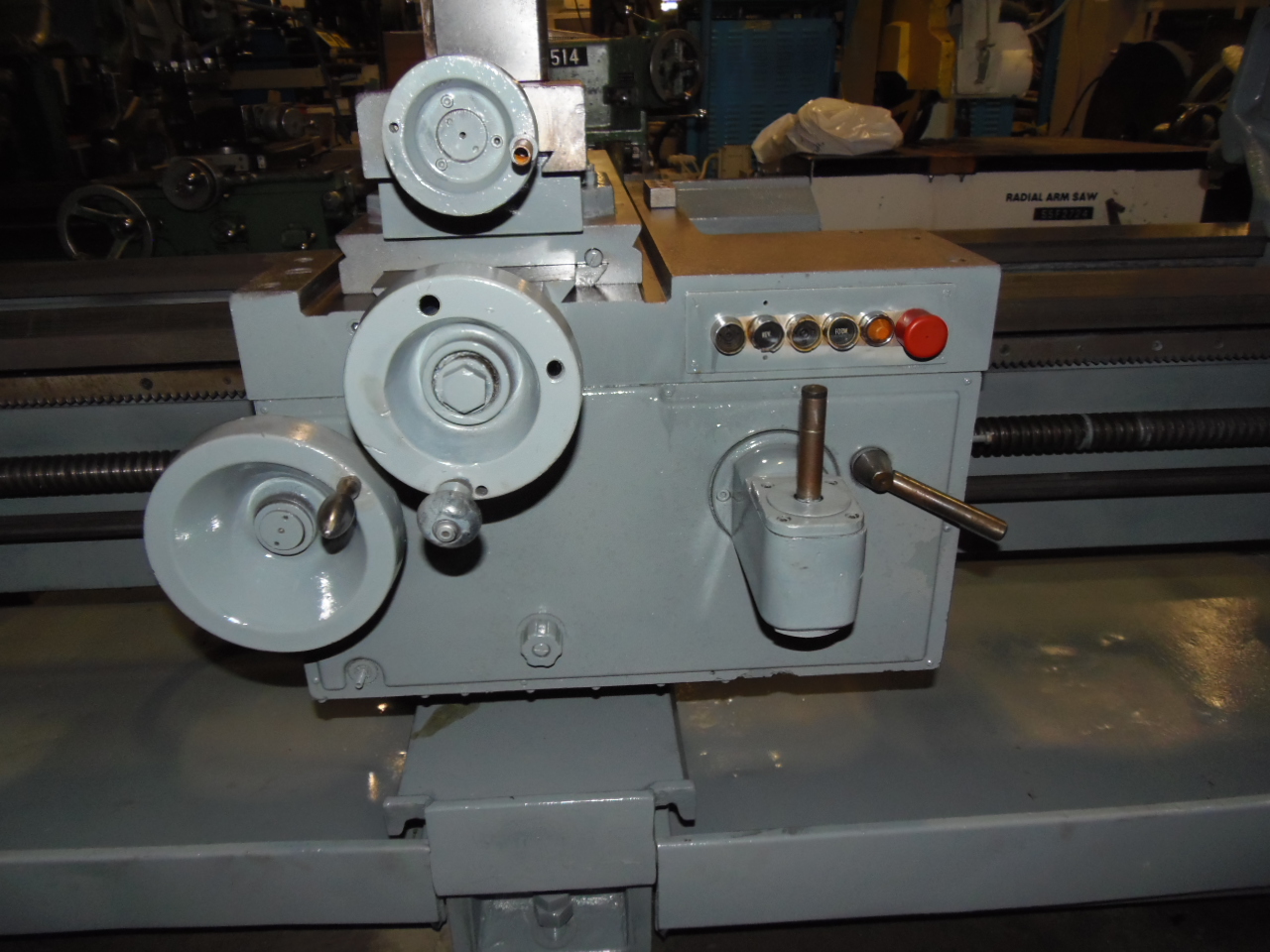

RAPID TRAVERSE

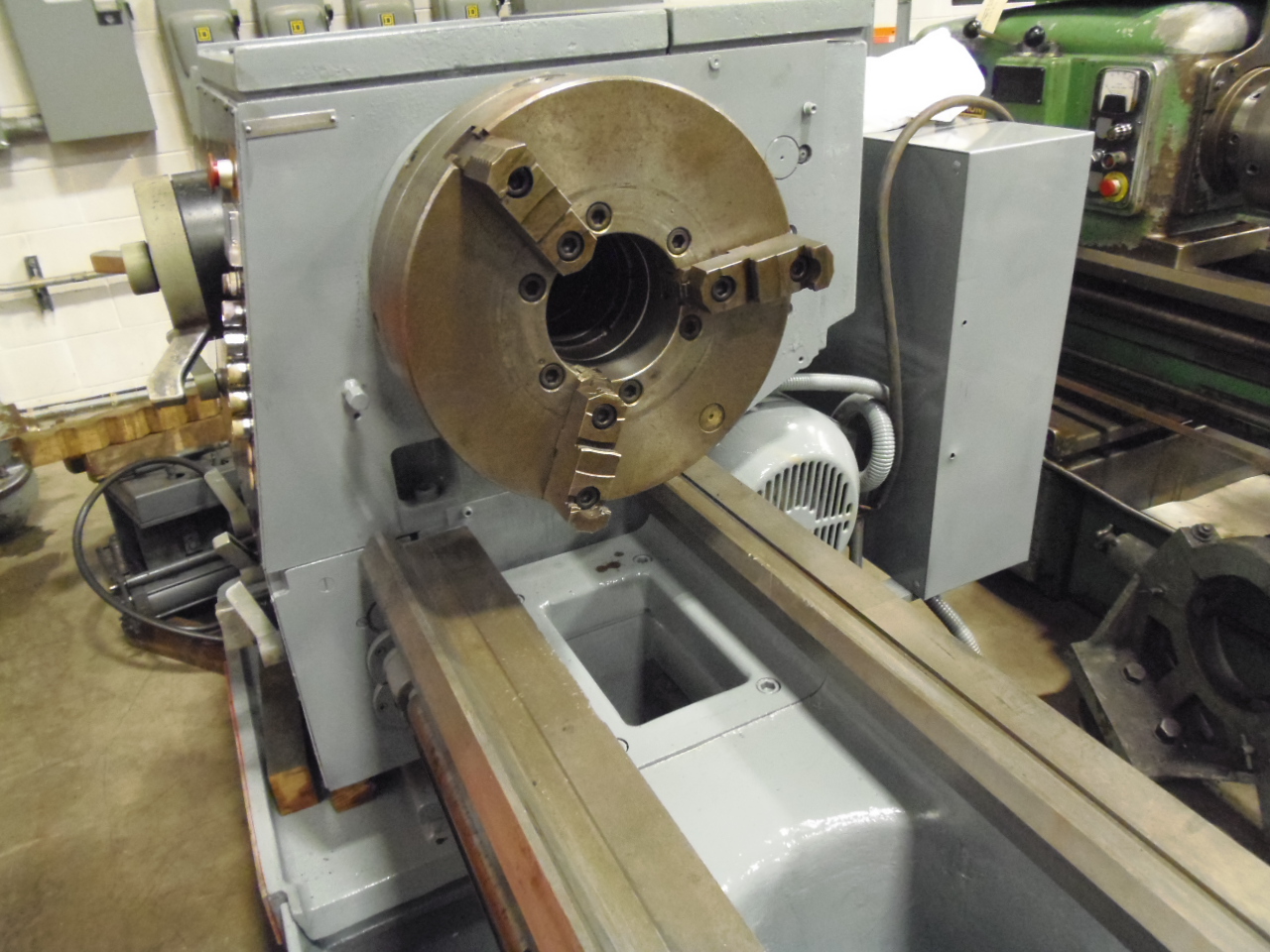

15" 3 JAW CHUCK WITH 5" HOLE

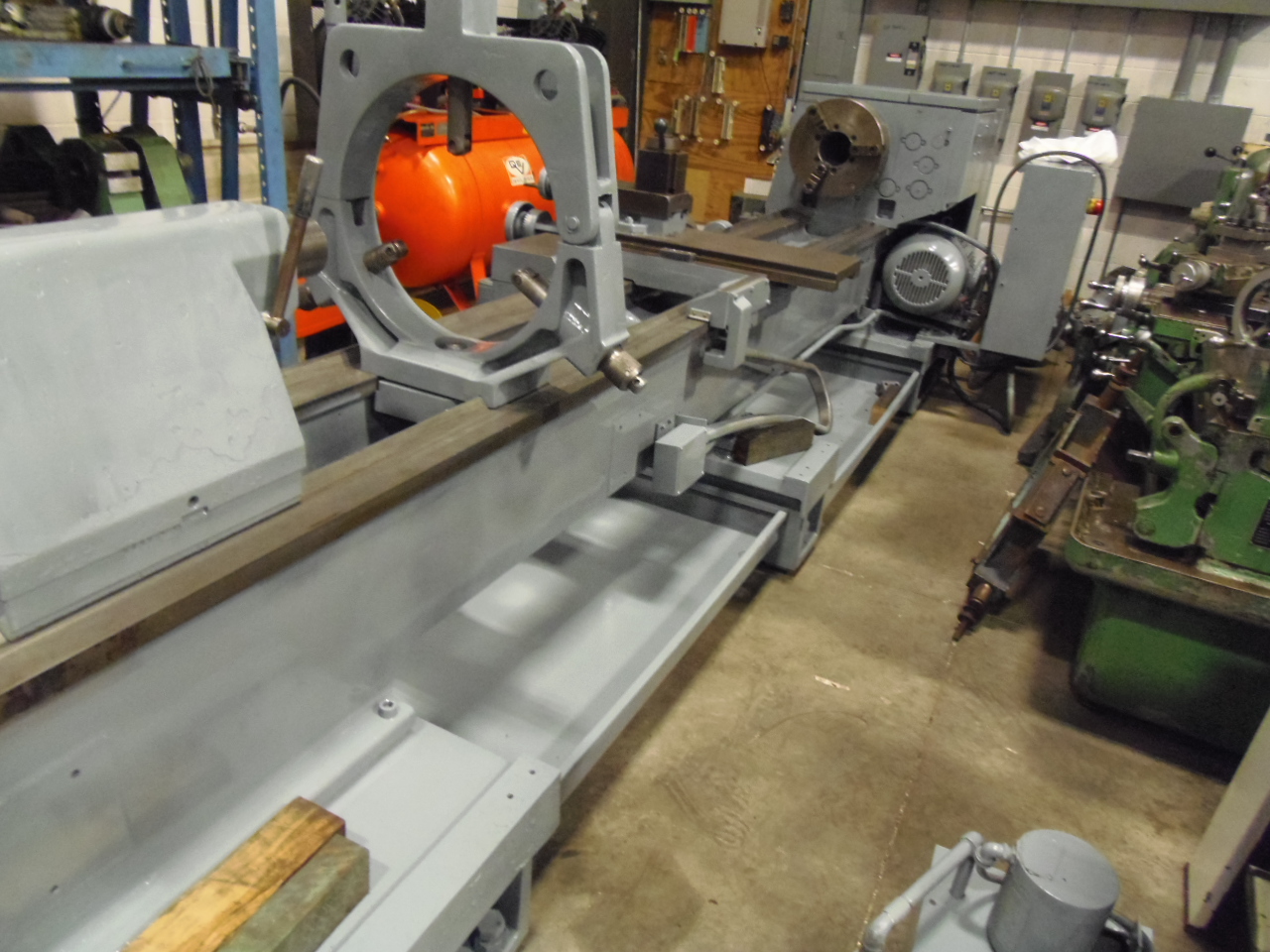

18" ROLLER STEADY REST

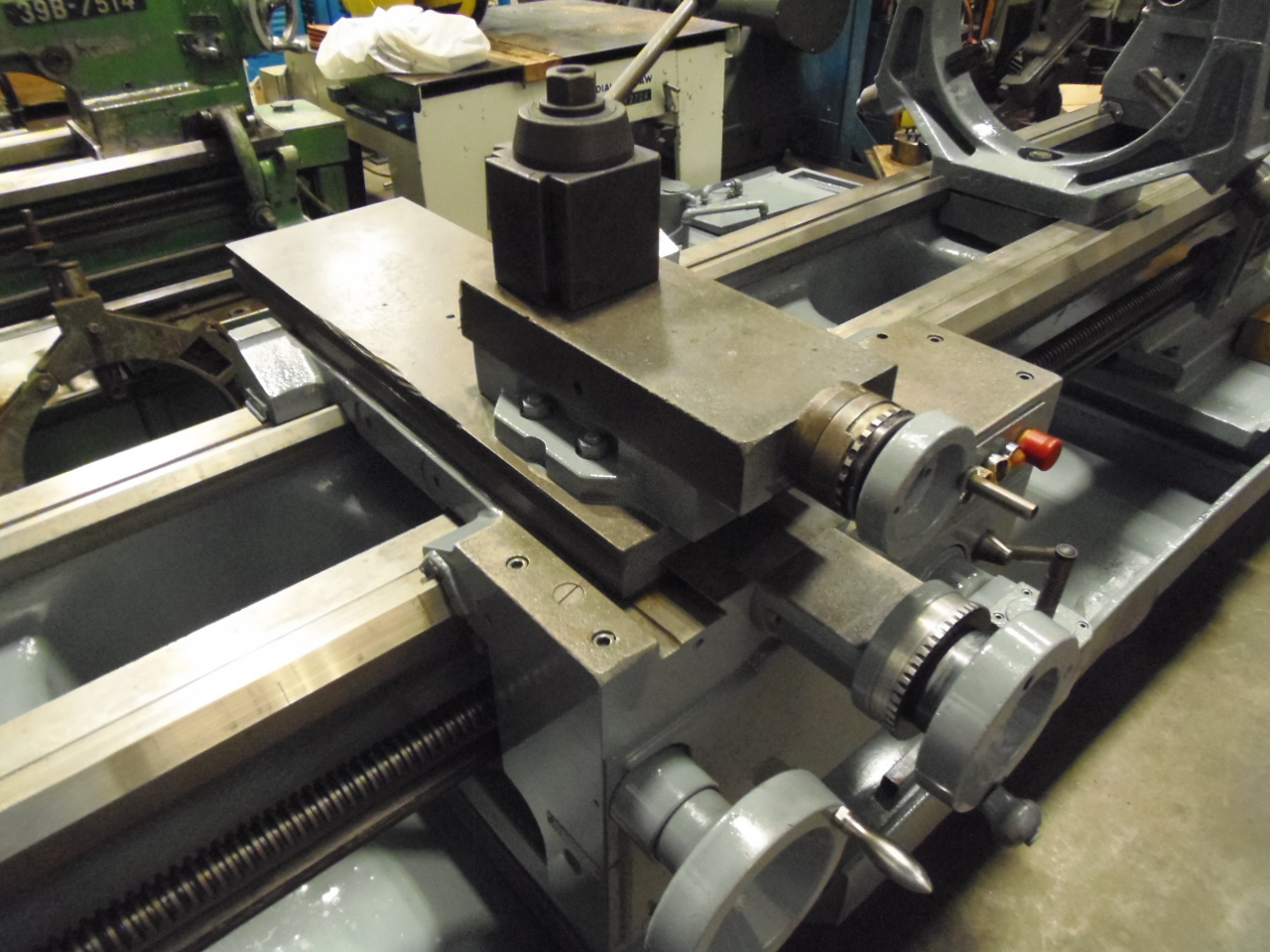

ALORIS STYLE TOOL POST WITHOUT HOLDERS

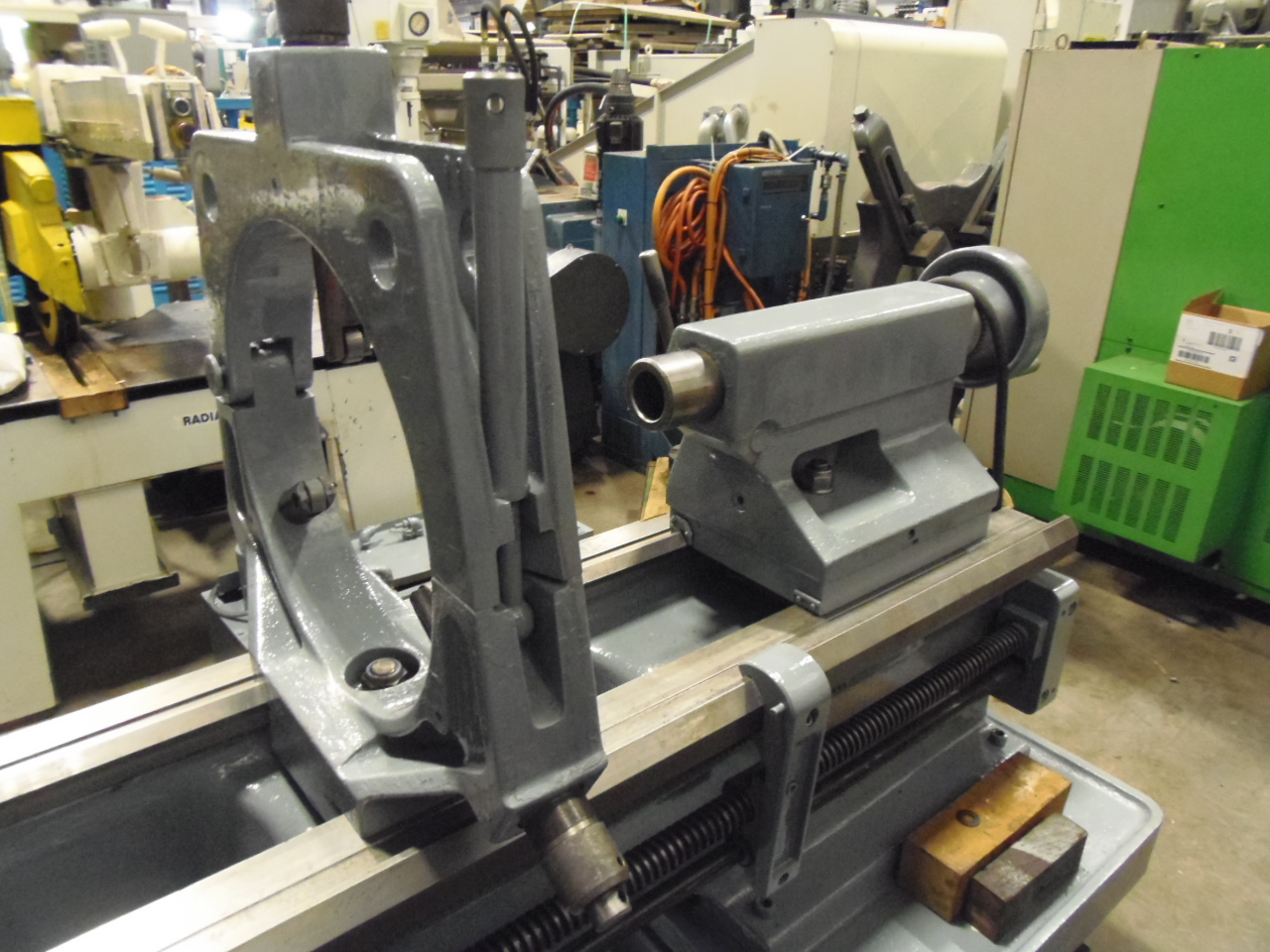

TAILSTOCK
INCH/METRIC THREADING
FULL LENGTH SPLASH GUARD
COOLANT
SPECIFICATIONS SUBJECT TO VERIFICATION
