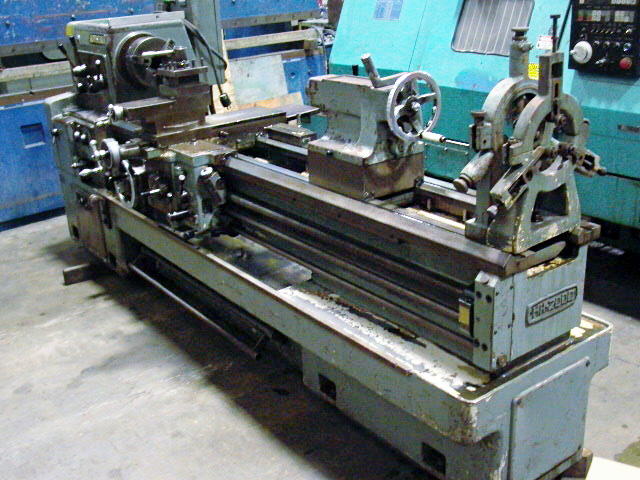

24" X 80" MORI SEIKI ENGINE LATHE, MH-2000, 16" OCS, 3" BORE

GENERAL SPECIFICATIONS:
MANUFACTURER MORI SEIKI
MODEL MH2000
SERIAL 2187
SWING OVER BED 24"
DISTANCE BETWEEN CENTERS 80"
SWING OVER CROSS SLIDE 16"
SWING OVER GAP 33"
GAP LENGTH 7.5"
HARDENED BED WIDTH 16.5"
HOLE THROUGH SPINDLE 3"
SPINDLE NOSE A8
SPINDLE SPEEDS (12) 27 - 1205 RPM
INCH THREAD CHANGES (32) 4 - 80 TPI
METRIC THREAD CHANGES (32) .5 - 7MM PITCH
MAIN DRIVE MOTOR 10 HP
WEIGHT (APPROX.) 7,430 LBS
DIMENSIONS (APPROX.) 140" x 43"

EQUIPPED WITH:
10" 3-JAW CHUCK
STEADY REST (x2)
COOLANT PUMP
