Specifications
Equipped With

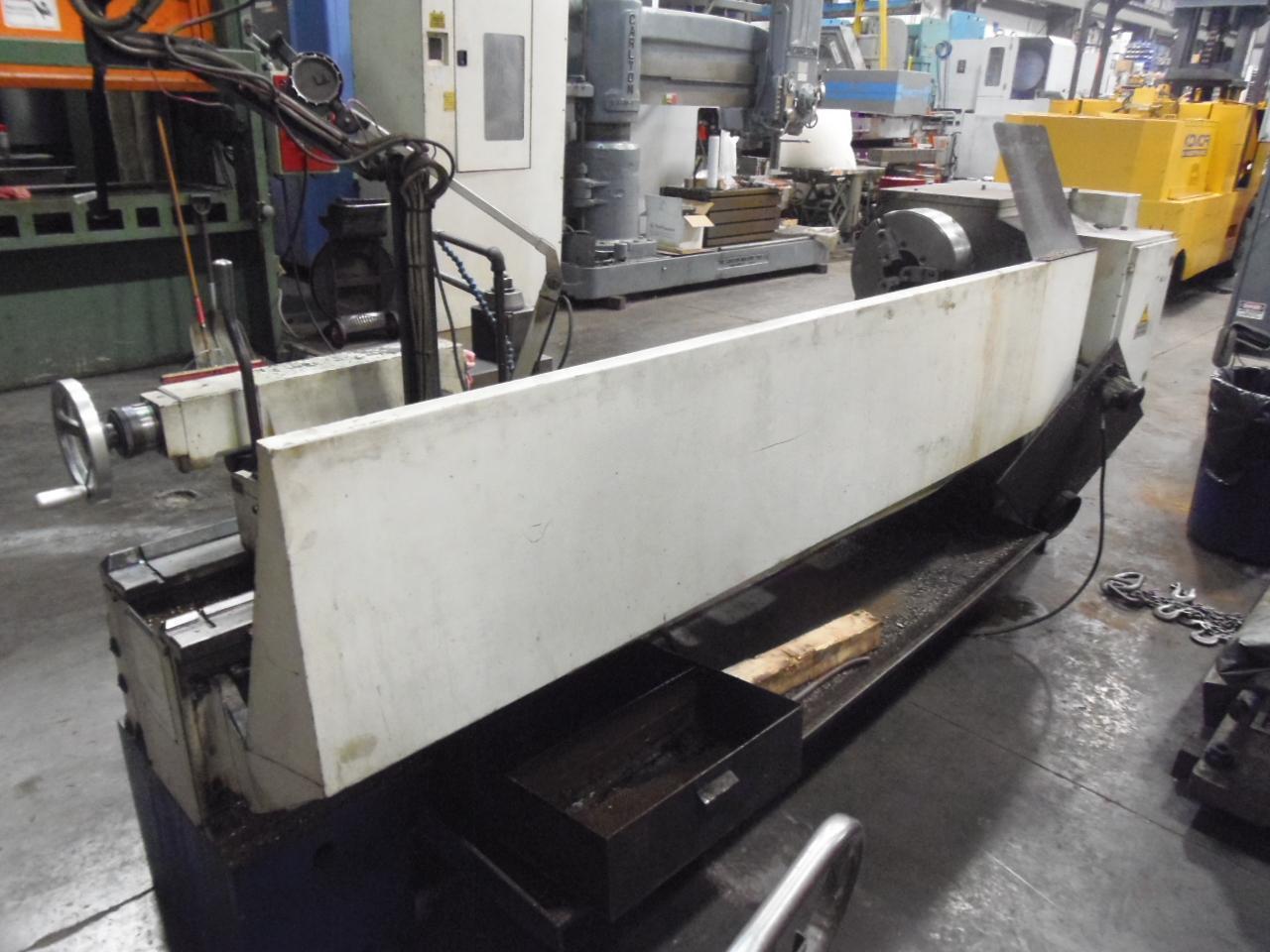

GENERAL SPECIFICATIONS:
MANUFACTURER............... SUMMIT
MODEL...................... 24-4

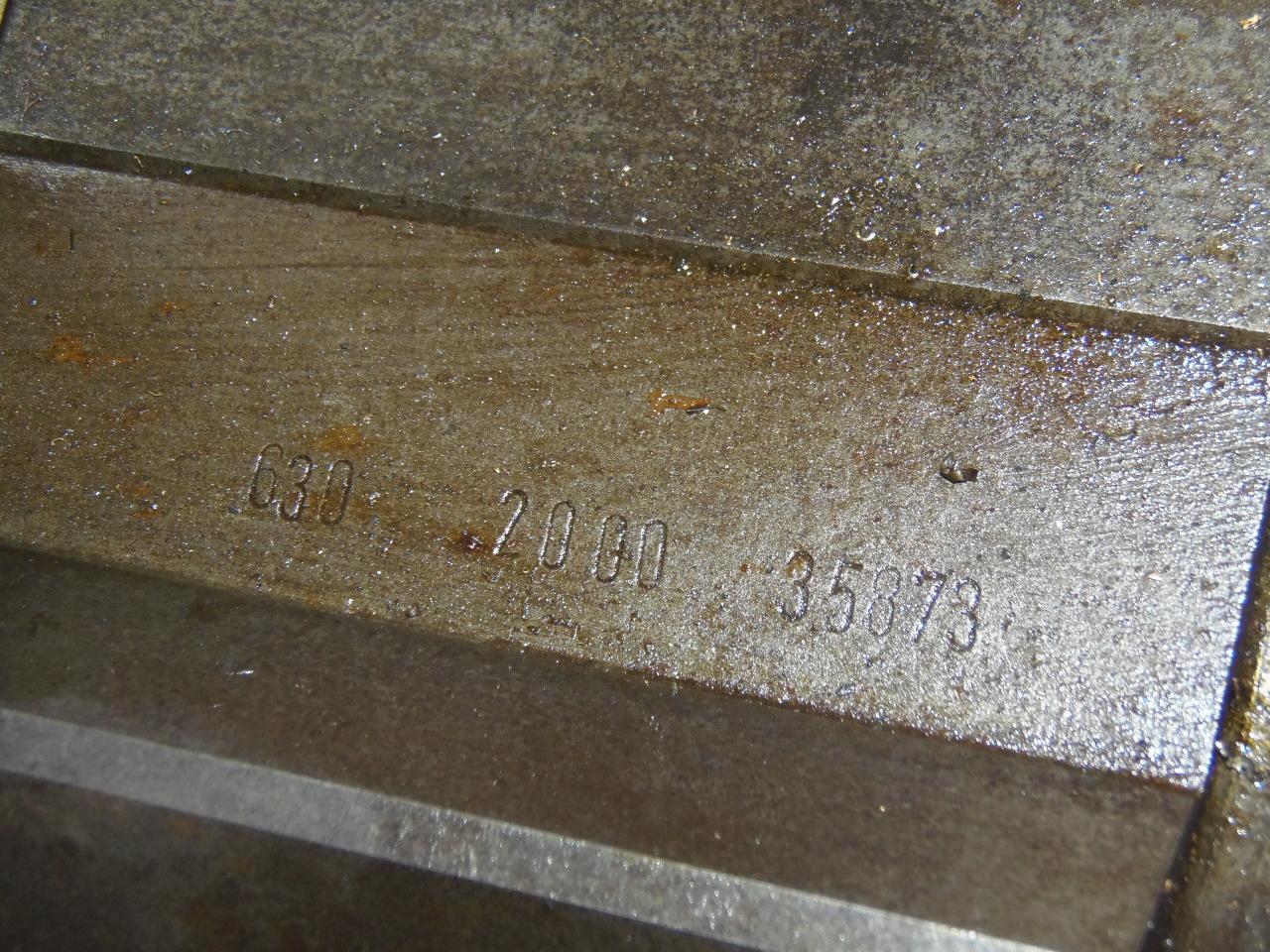

SERIAL #................... 35873
AGE (YEAR)................. 2007
SWING...................... 24"
SWING OVER C.S............. 17"
SWING IN GAP............... 33"
LENGTH OF GAP.............. 8.375"
SPINDLE NOSE............... D1-8
APPROX. LENGTH IN GAP...... 15 3/8"
DISTANCE BETWEEN CENTERS... 80"

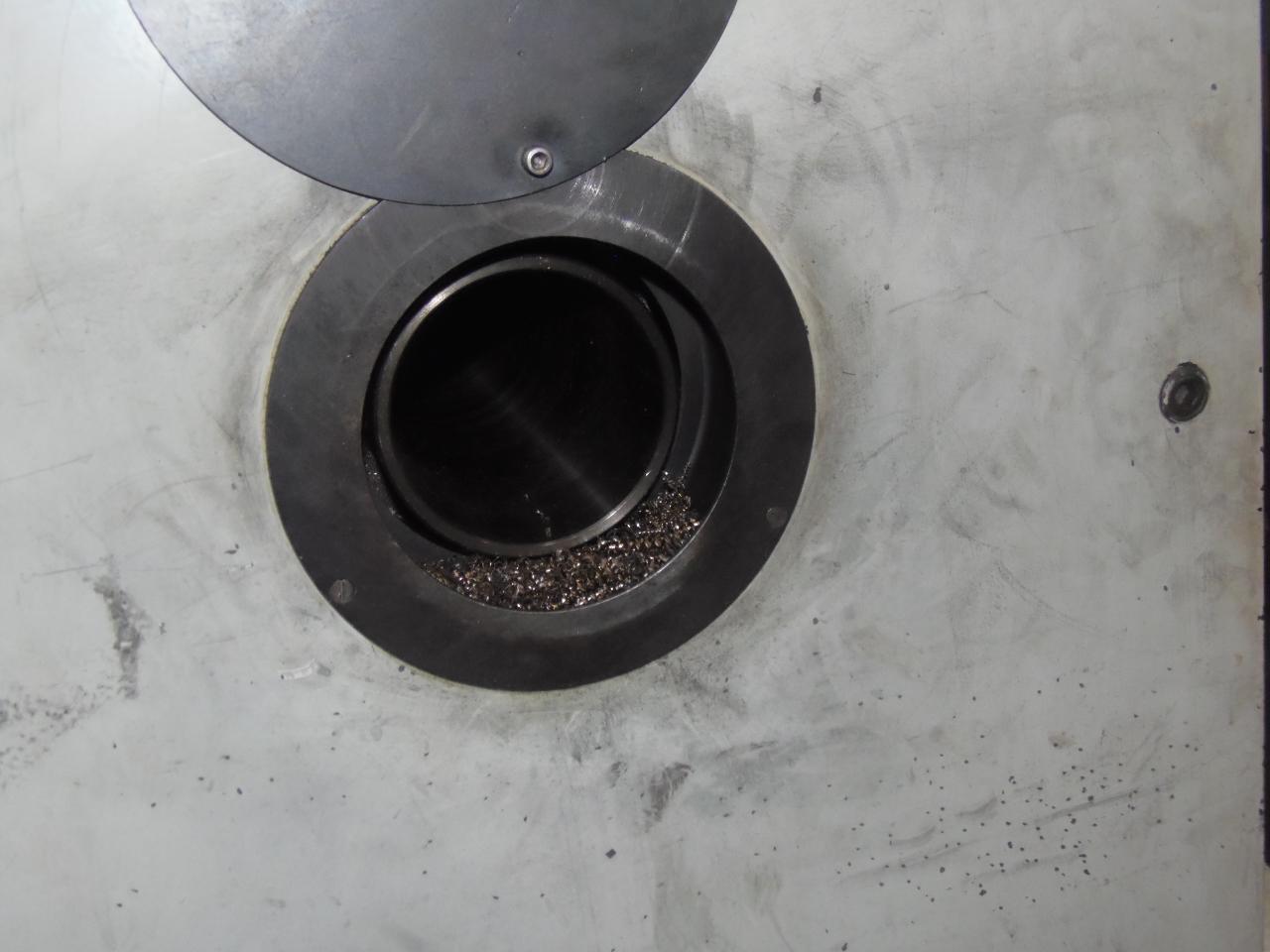

SPINDLE BORE............... 4 1/8"

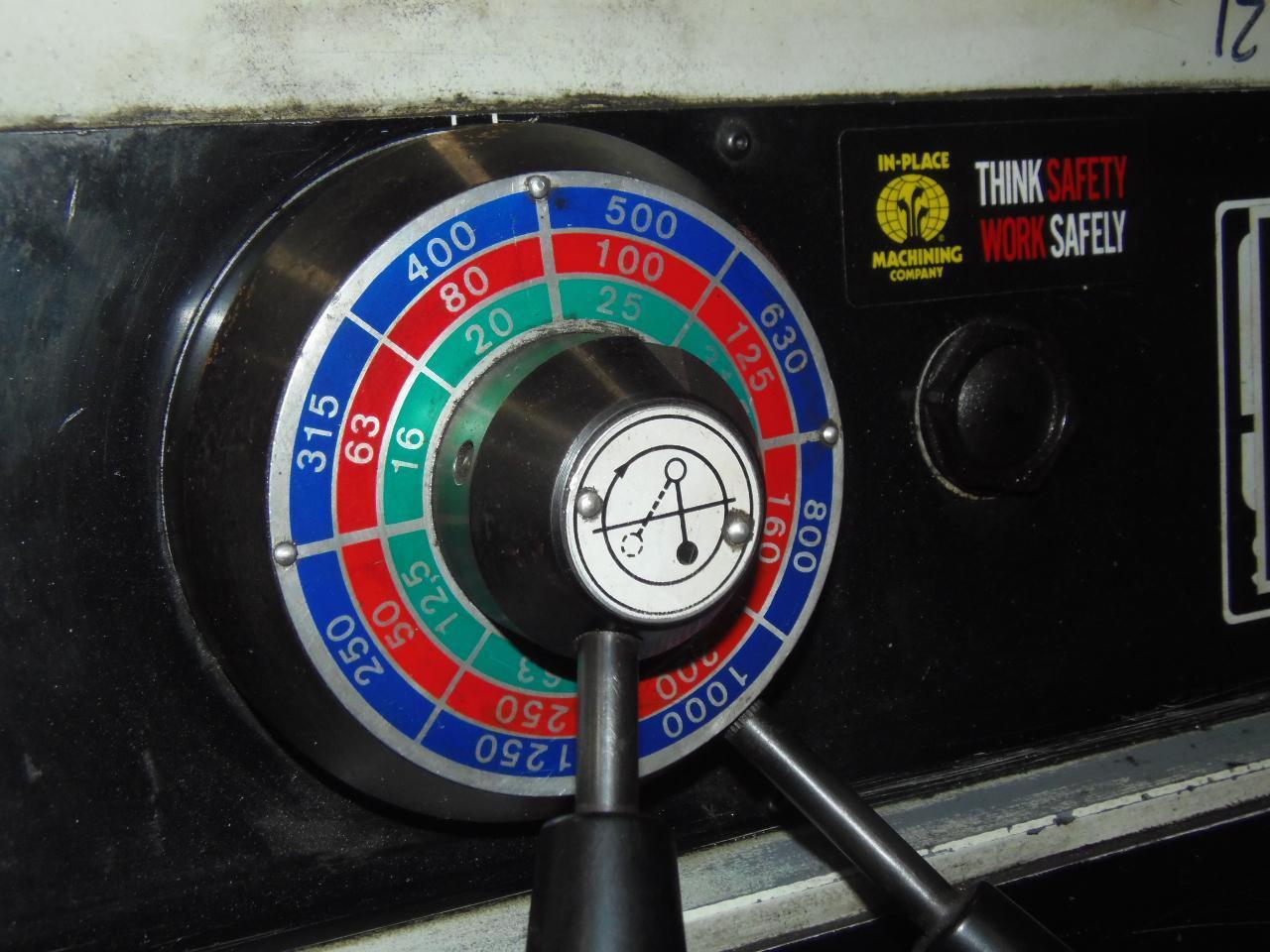

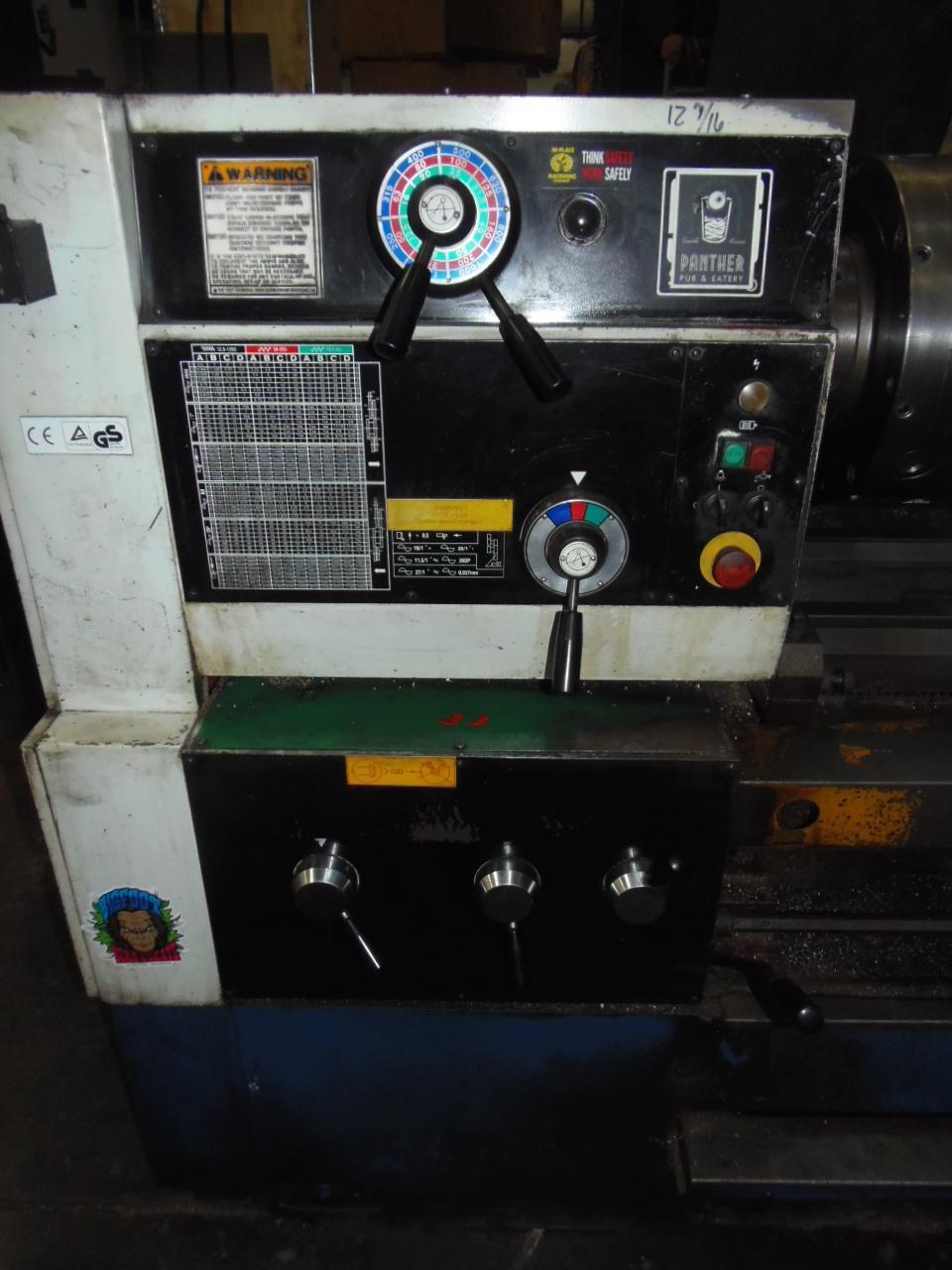

SPINDLE SPEED.............. 12.5 - 1250 RPM
NUMBER OF SPEEDS........... 24

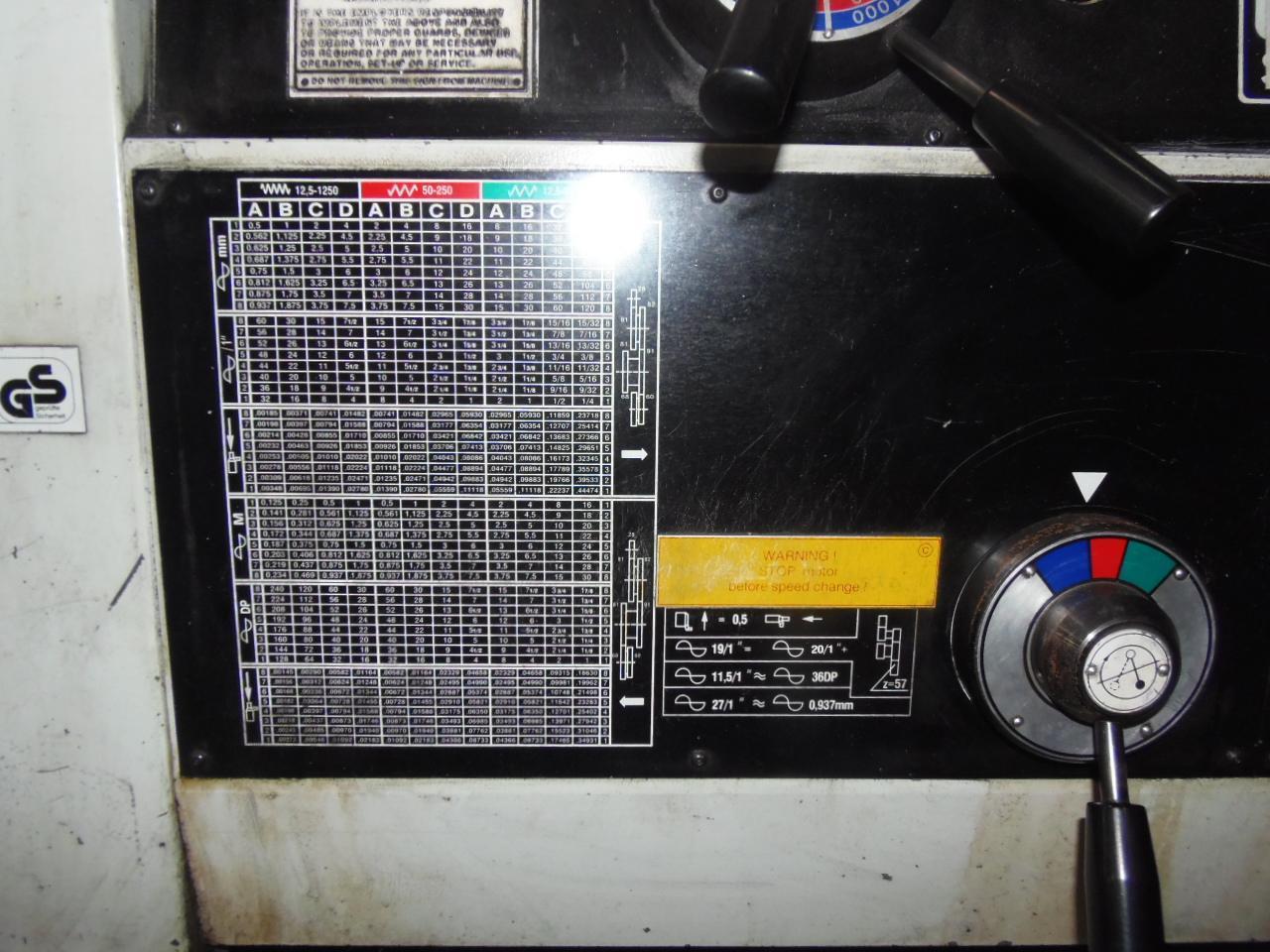

FEED RANGE (INCH/REV)...... 0.00145-0.44474
NUMBER OF FEEDS............ 124
LONG. & CROSS FEED RATIO... 2/1
RAPID RATE (LONG).......... 149.5 IPM
RAPID RATE (CROSS)......... 73.5 IPM

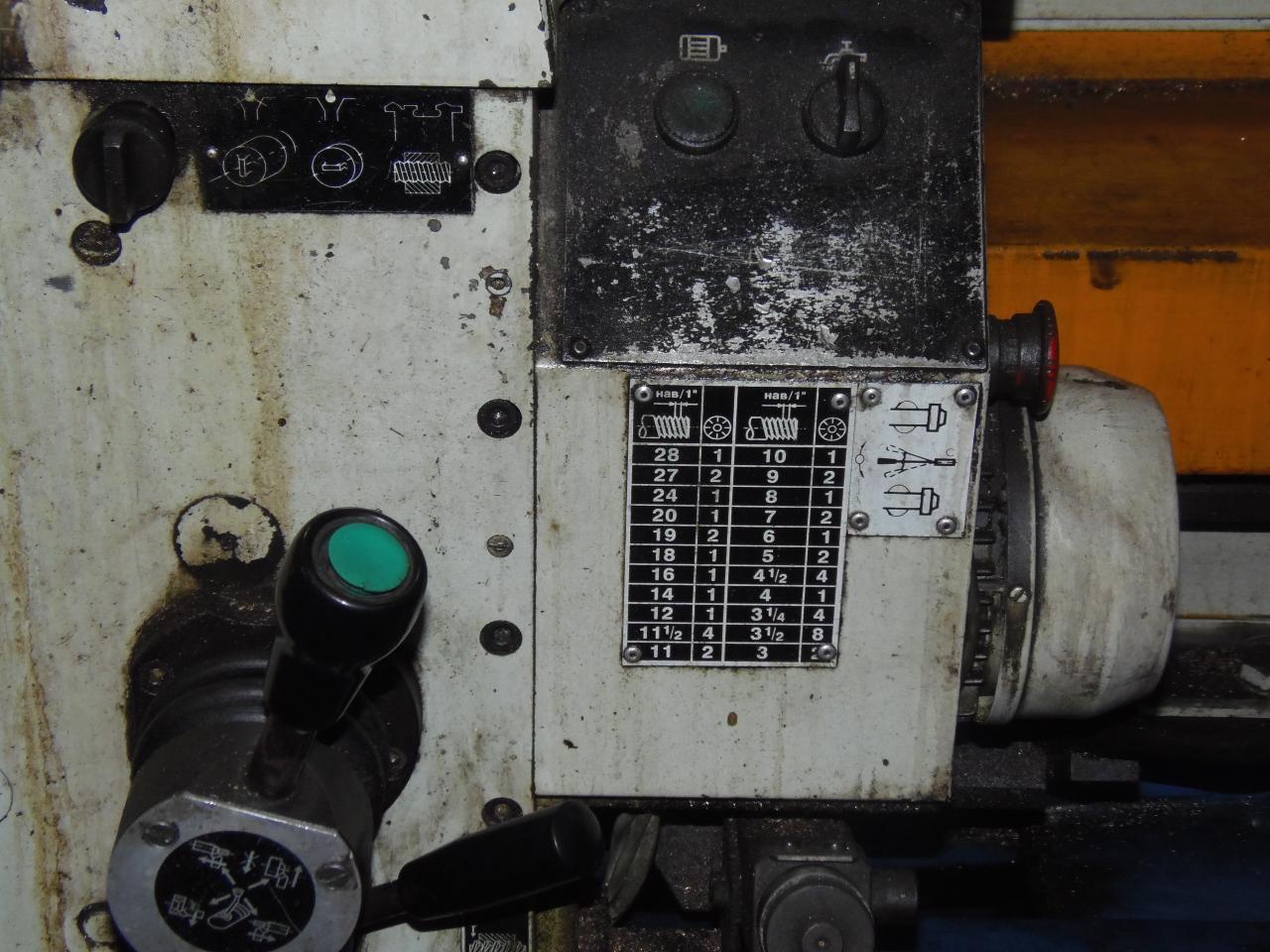

NUMBER OF THREADS.......... 64
METRIC.................. 0.5-120
INCH.................... 60-1/4
MODULE.................. 0.125-30
D.P..................... 240-1
TAIL STOCK QUILL DIAM...... 2 15/16
TAIL STOCK TAPER........... 5 MT
MAIN DRIVE MOTOR........... 15 HP

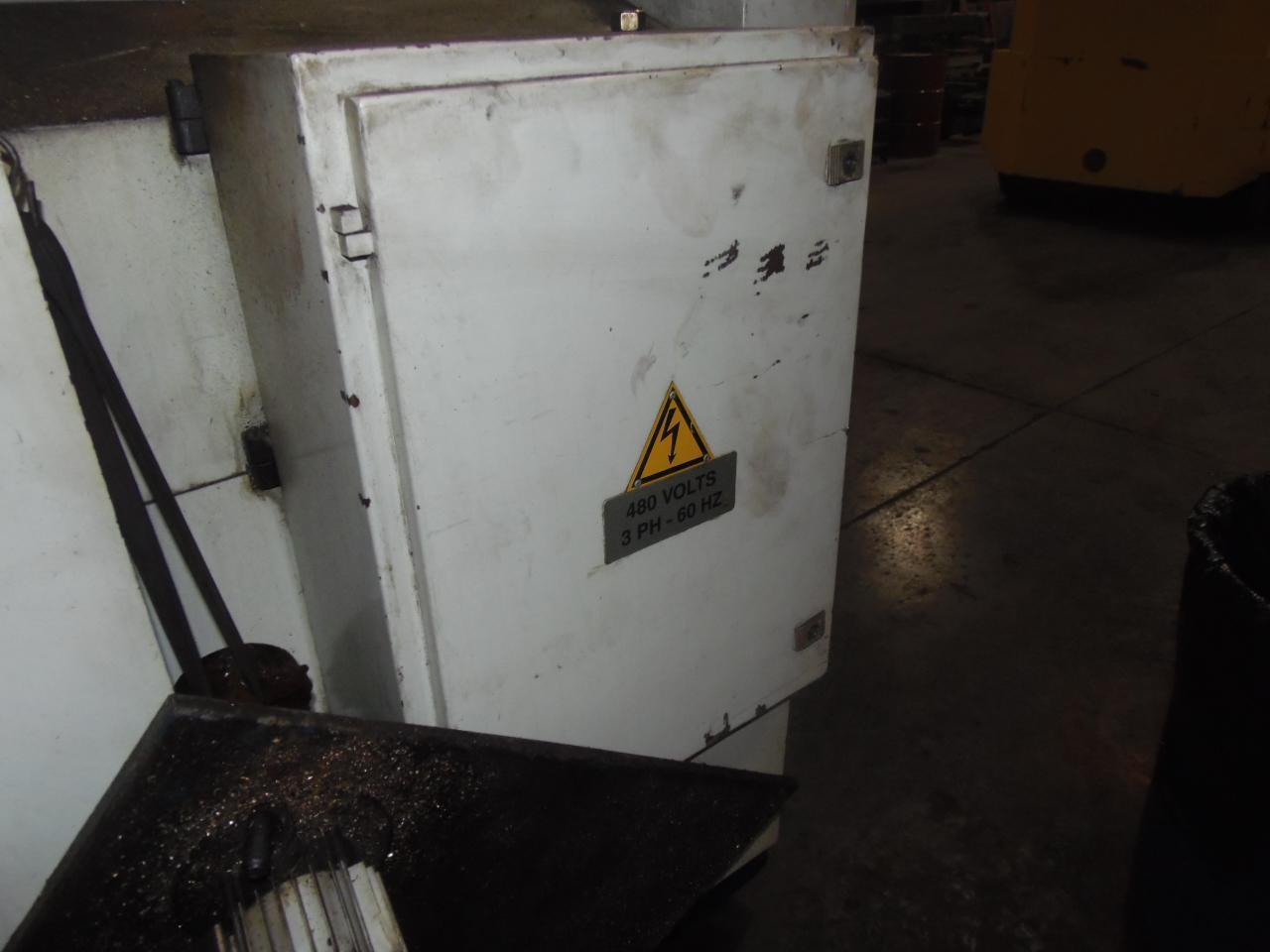

ELECTRICS.................. 460 (440) V / 3PH
WEIGHT (APPROX)............ 7,400 LBS.
EQUIPPED WITH:

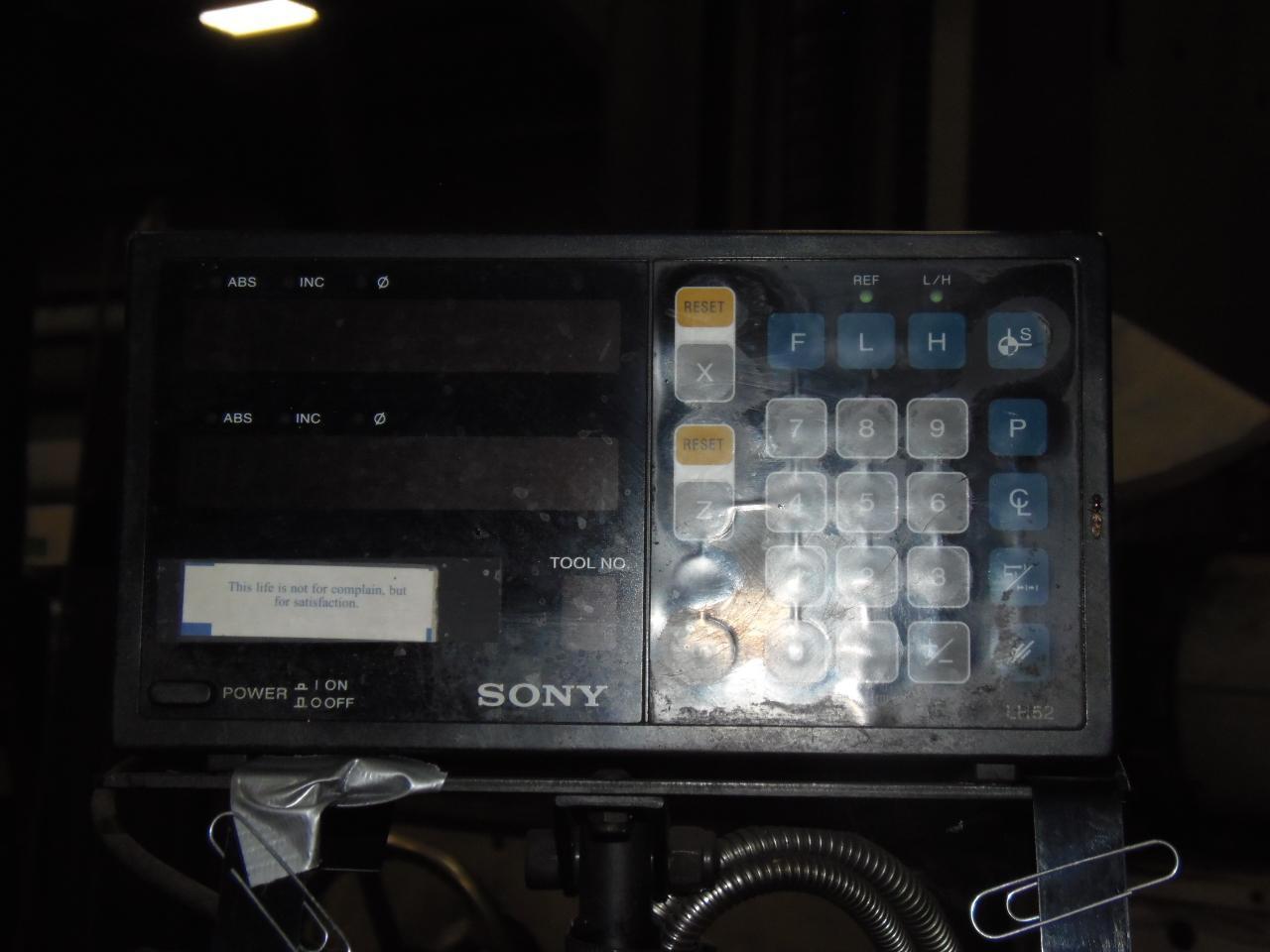

SONY MODEL LH52 2 AXIS DIGITAL READOUT

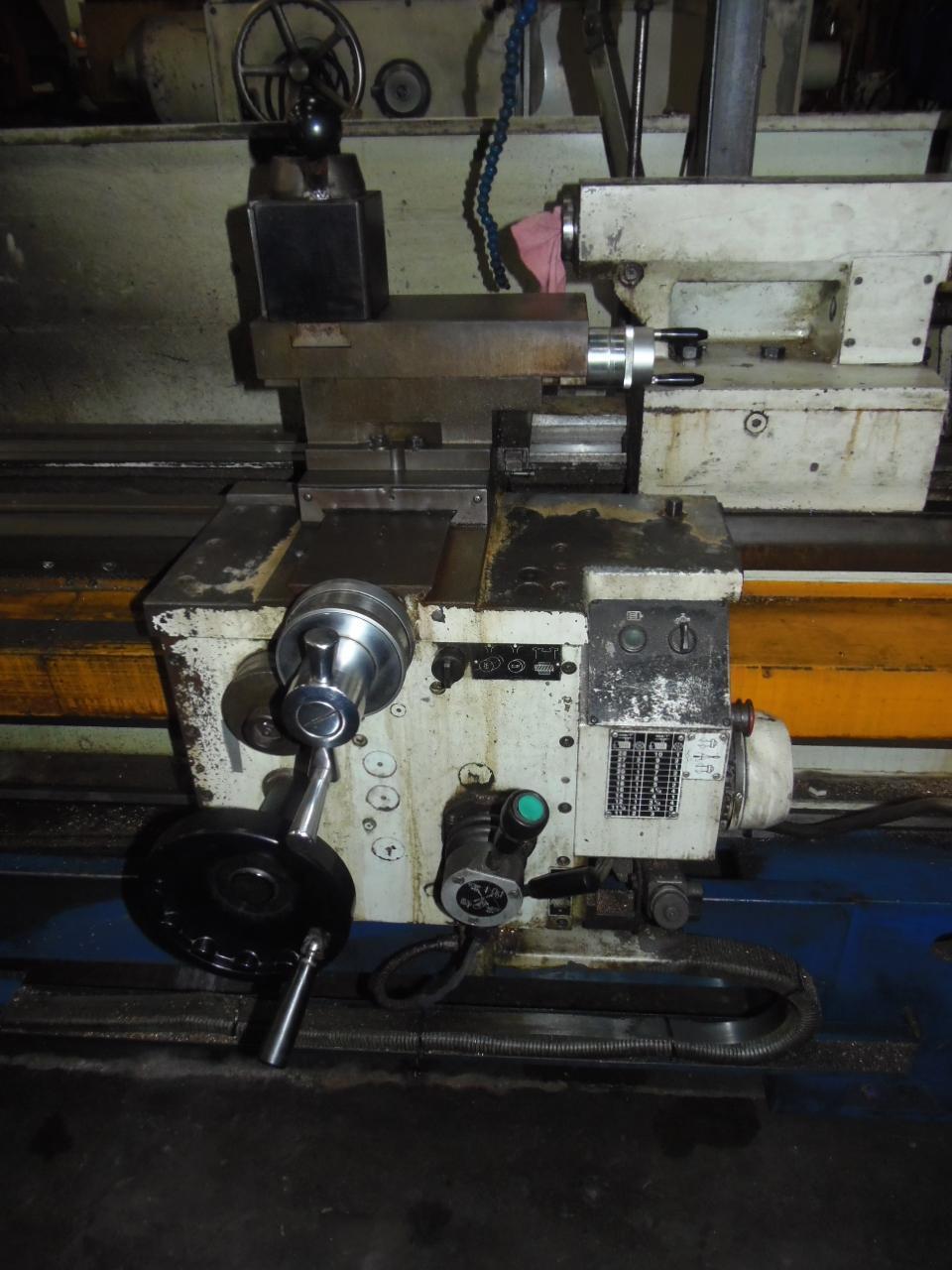

TAPER ATTACHMENT WITH A 15.75 AND +- 10 DEGREES
RAPID TRAVERSE

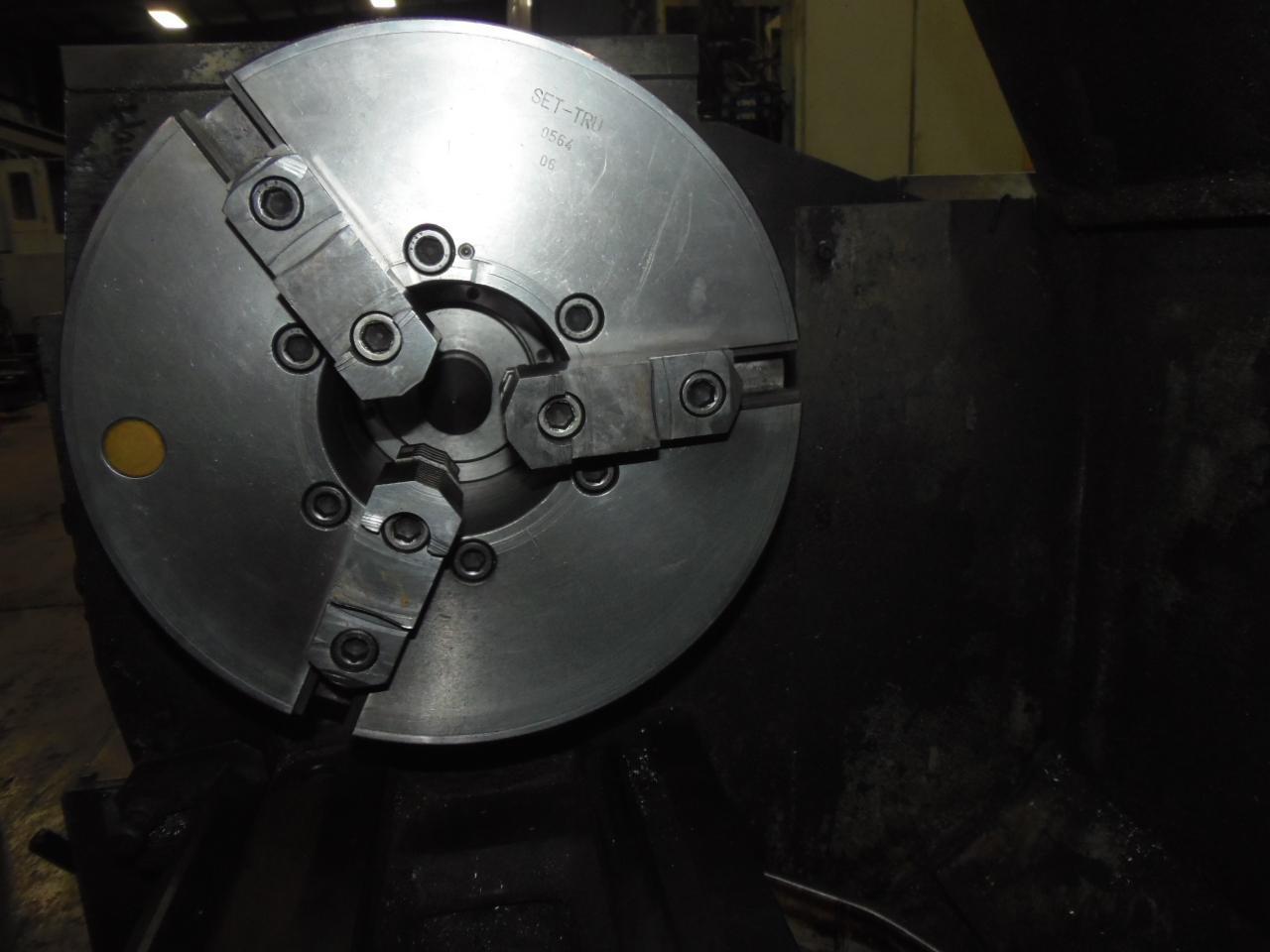

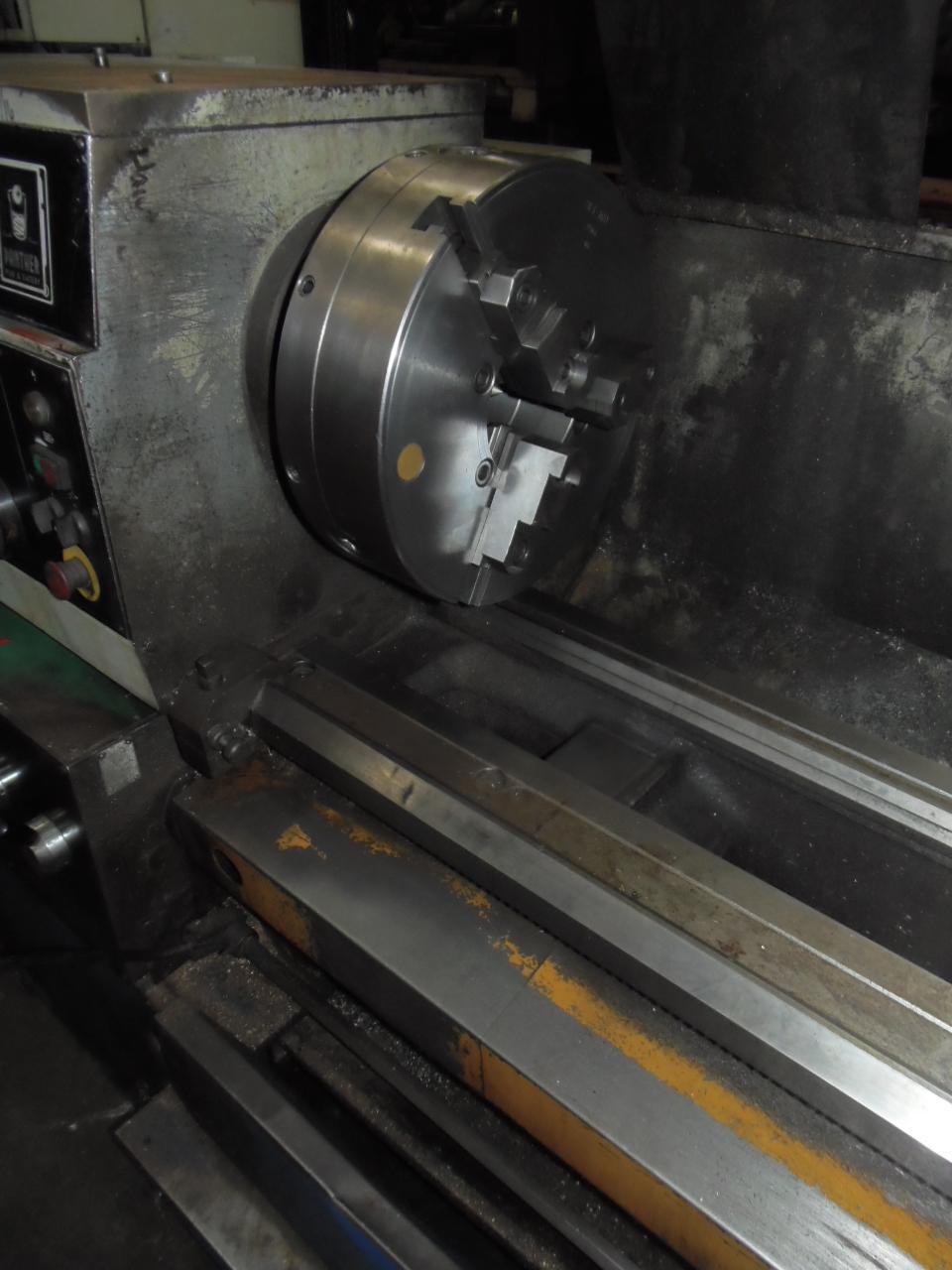

15.75" BISON SET-TRU 3 JAW CHUCK
12" 3 JAW CHUCK

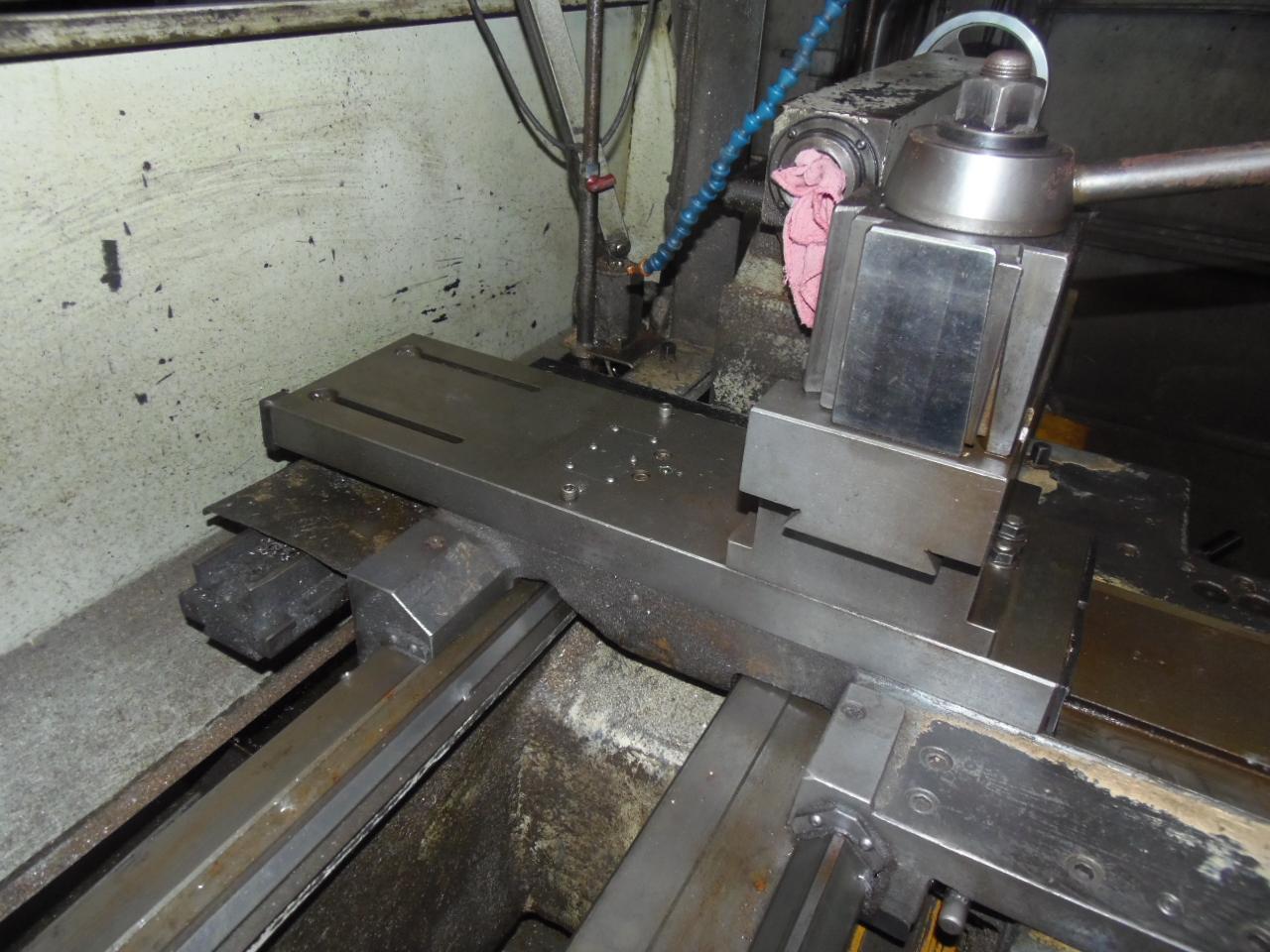

ALORIS TOOL POST (NO HOLDERS)
1/2" - 7 7/8" STEADY REST
7 1/8" - 13 3/8" STEADY REST
COOLANT SYSTEM
WORK LIGHT
